Component Inspection

CHECK ICC STEERING SWITCH

Check resistance between ICC steering switch terminals.

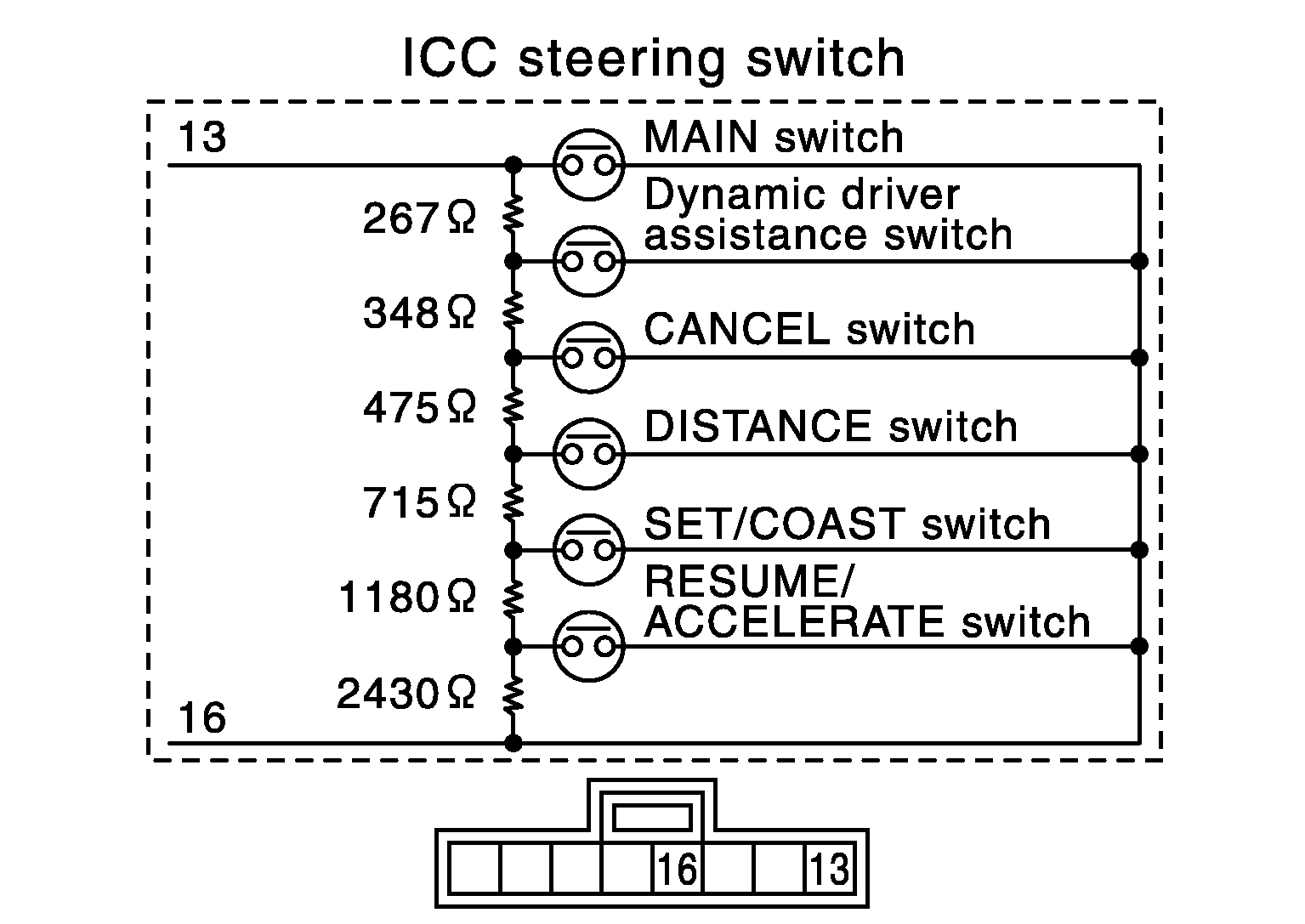

Fig 1: Checking Resistance Between ICC Steering Switch Terminals

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal		Switch operation	Resistance [Ω]
13	15	When pressing MAIN switch	Approx. 0
		When pressing dynamic driver assistance switch	Approx. 267
		When pressing CANCEL switch	Approx. 615
		When pressing DISTANCE switch	Approx. 1090
		When pressing SET/COAST switch	Approx. 1805
		When pressing RESUME/ACCELERATE switch	Approx. 2985
		When all switches are not pressed	Approx. 5415

Is the inspection result normal?

YES

INSPECTION END

Replace the ICC steering switch.
