Horn (Exc Hybrid): Wiring Diagram: Horn: Wiring Diagram

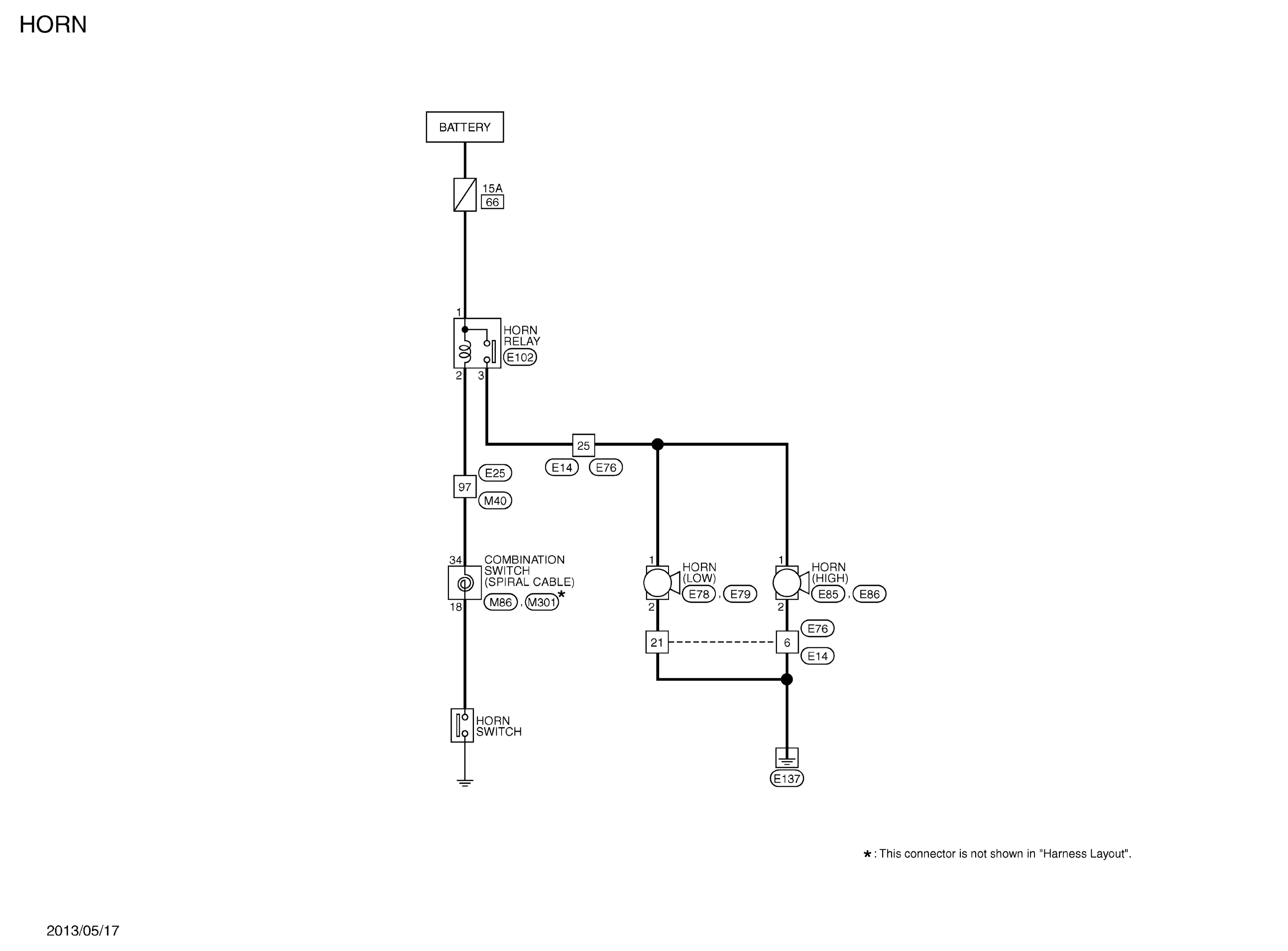

Fig 1: Horn Wiring Diagram

G09164073

Courtesy of NISSAN NORTH AMERICA, INC.
