Seat Cushion Heater Connector End View (B619)

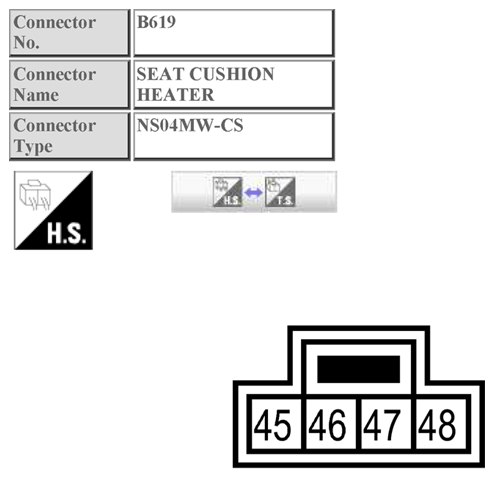

Fig 1: Seat Cushion Heater Connector End View (B619)

G10427019

Courtesy of NISSAN NORTH AMERICA, INC.
