Outside Key Antenna (Rear Bumper) Connector End View (B96)

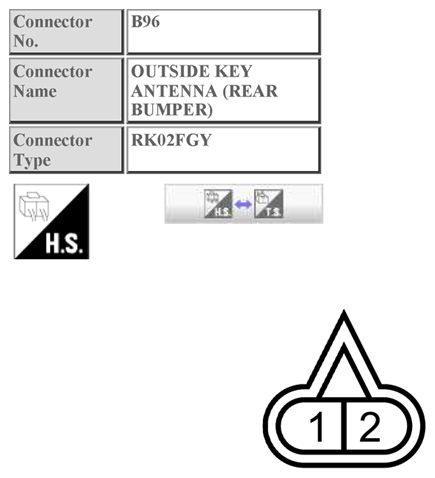

Fig 1: Outside Key Antenna (Rear Bumper) Connector End View (B96)

G10426961

Courtesy of NISSAN NORTH AMERICA, INC.
