Can System (With ICC) Connectors

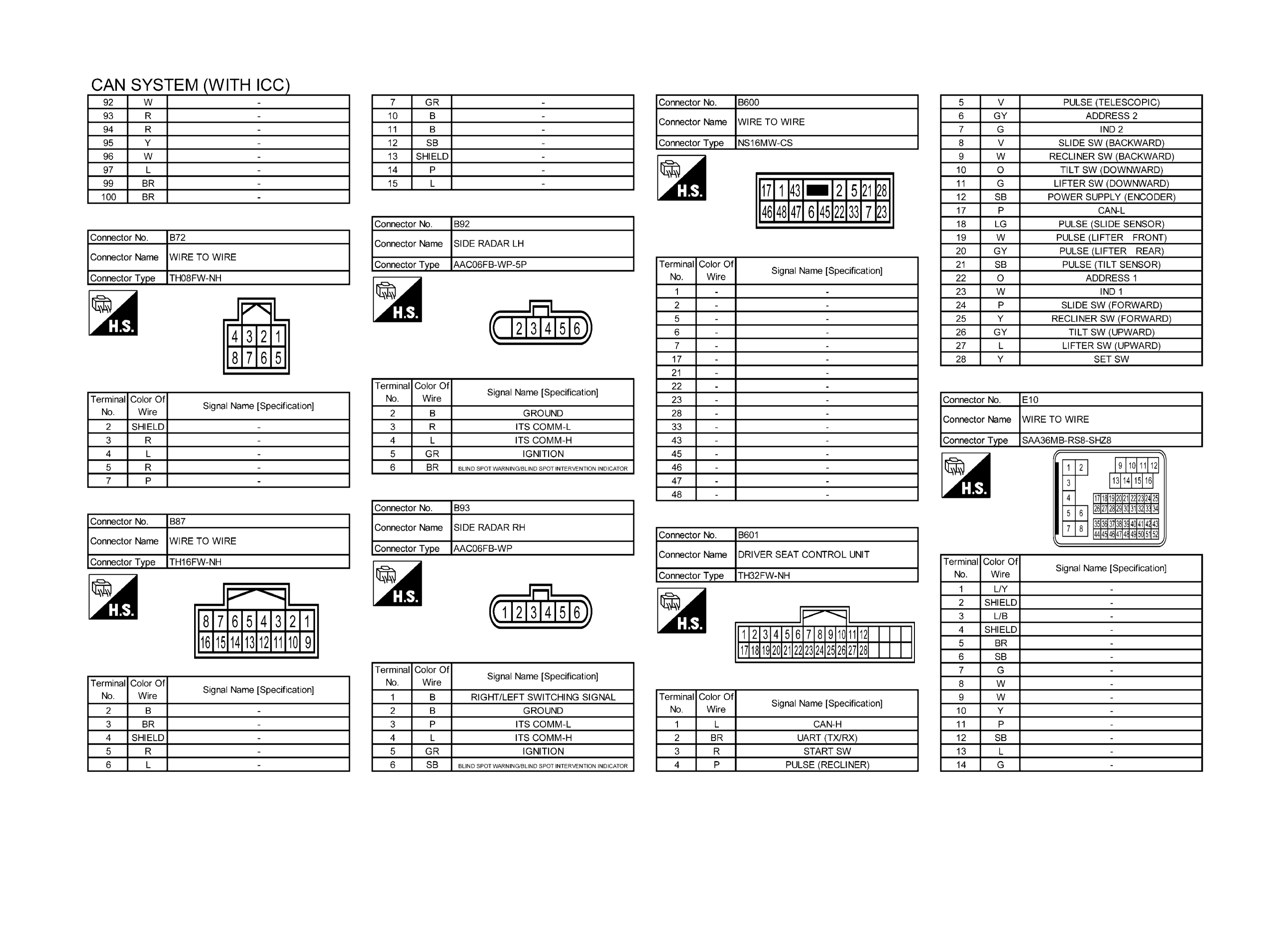

Fig 1: Can System (With ICC) Connectors (1 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

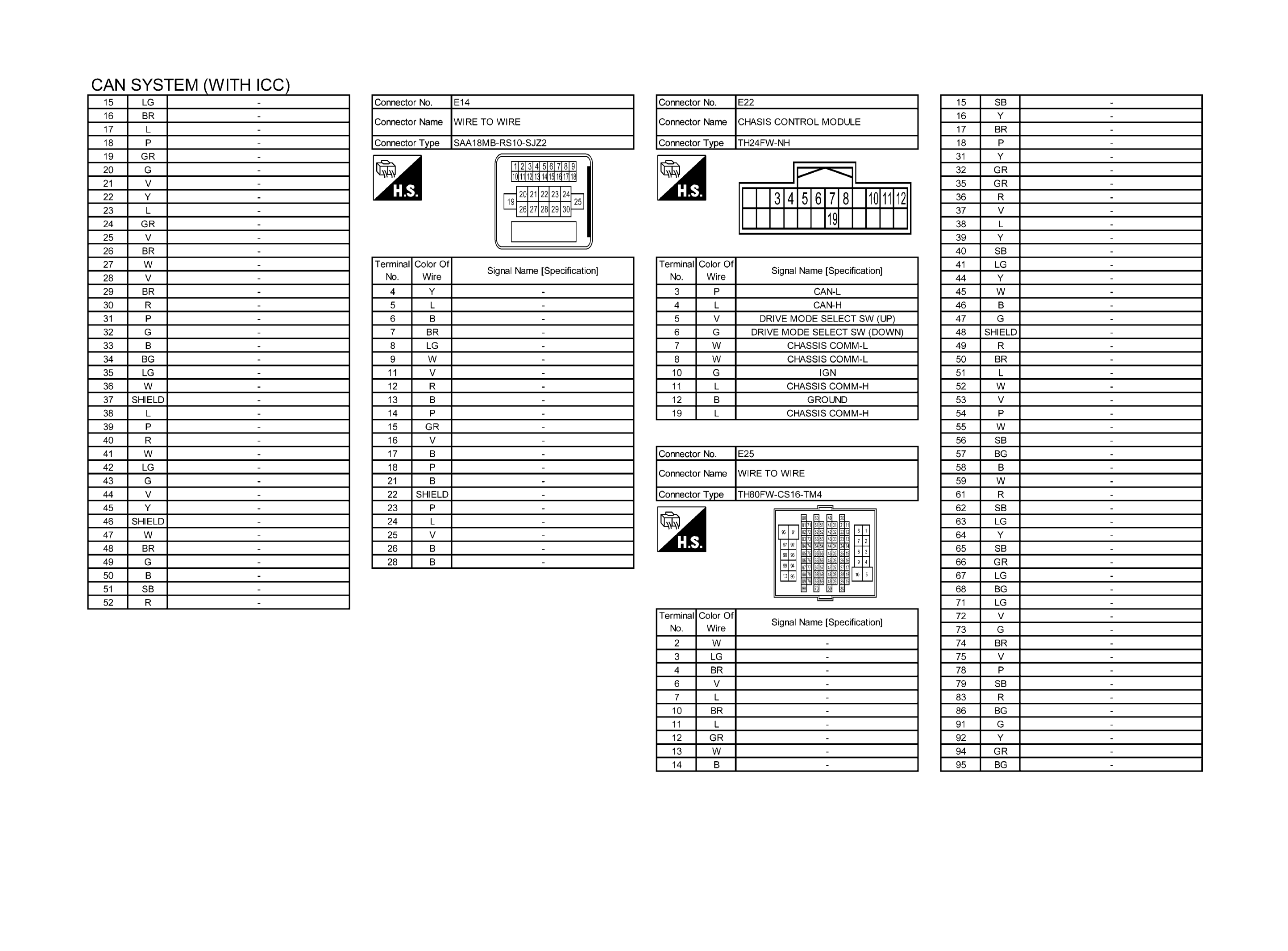

Fig 2: Can System (With ICC) Connectors (2 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

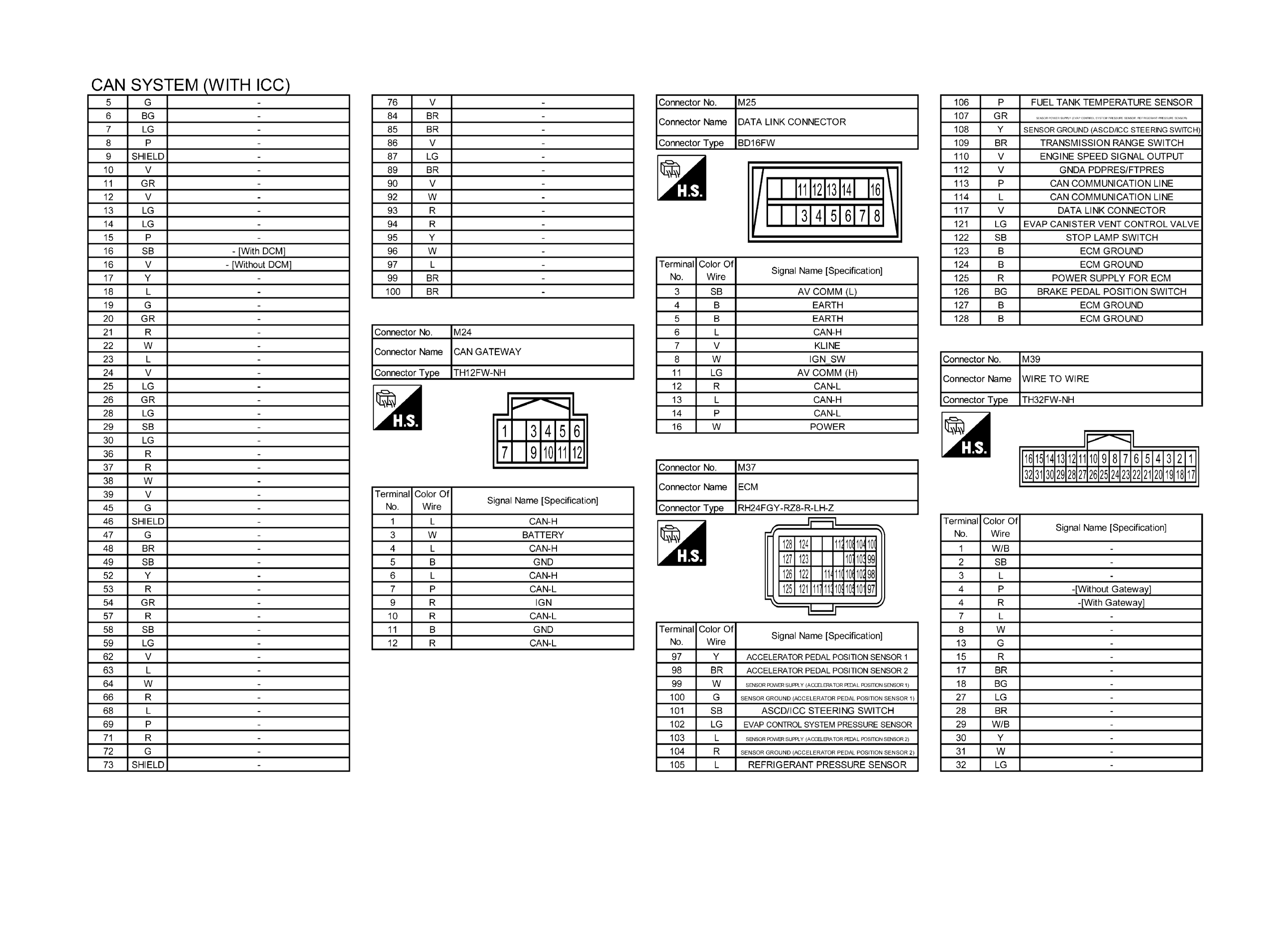

Fig 3: Can System (With ICC) Connectors (3 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

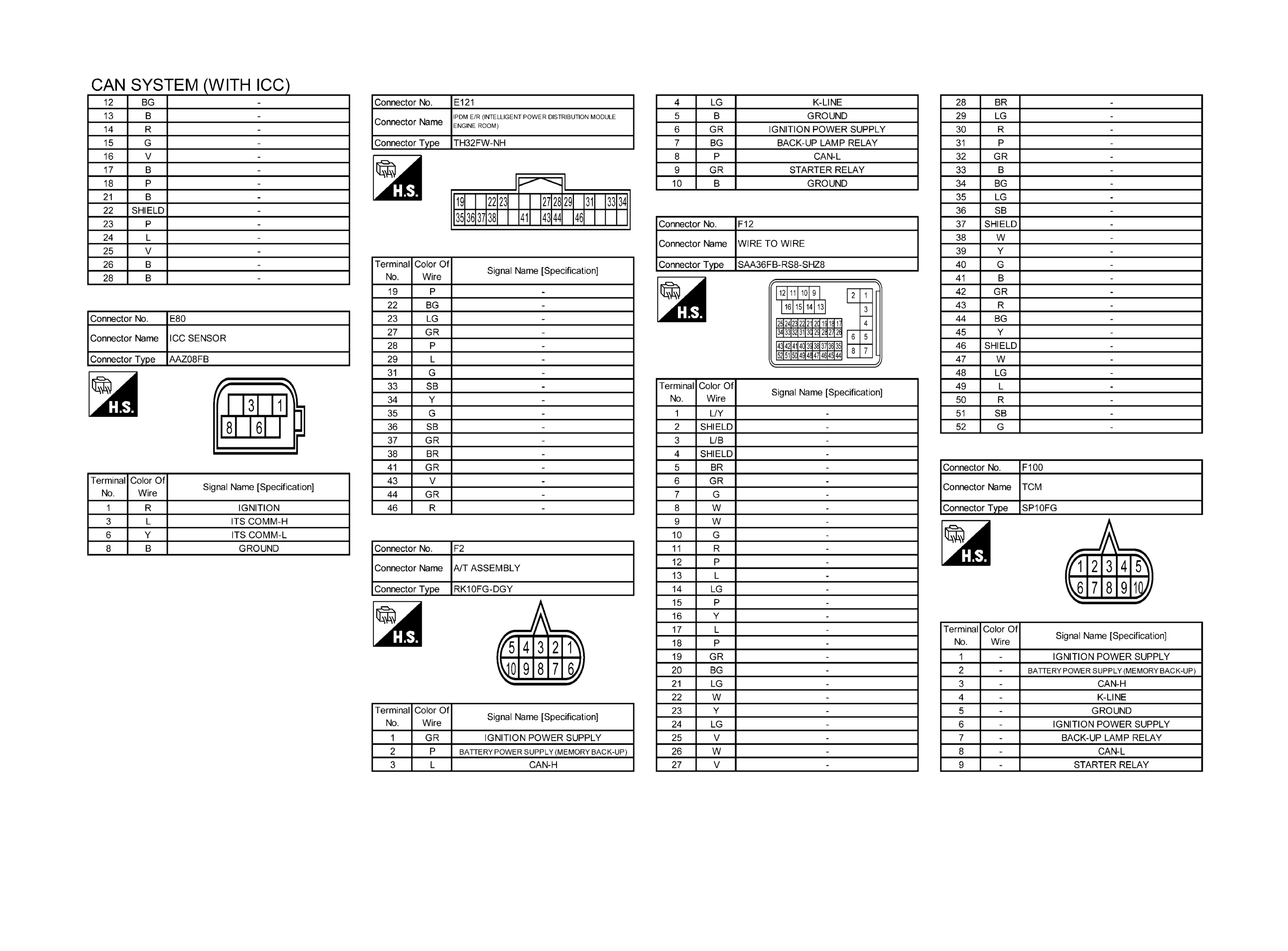

Fig 4: Can System (With ICC) Connectors (4 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Can System (With ICC) Connectors (5 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Can System (With ICC) Connectors (6 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Can System (With ICC) Connectors (7 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Can System (With ICC) Connectors (8 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Can System (With ICC) Connectors (9 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Can System (With ICC) Connectors (10 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Can System (With ICC) Connectors (11 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Can System (With ICC) Connectors (12 Of 12)

Courtesy of NISSAN NORTH AMERICA, INC.
