BCM Connectors

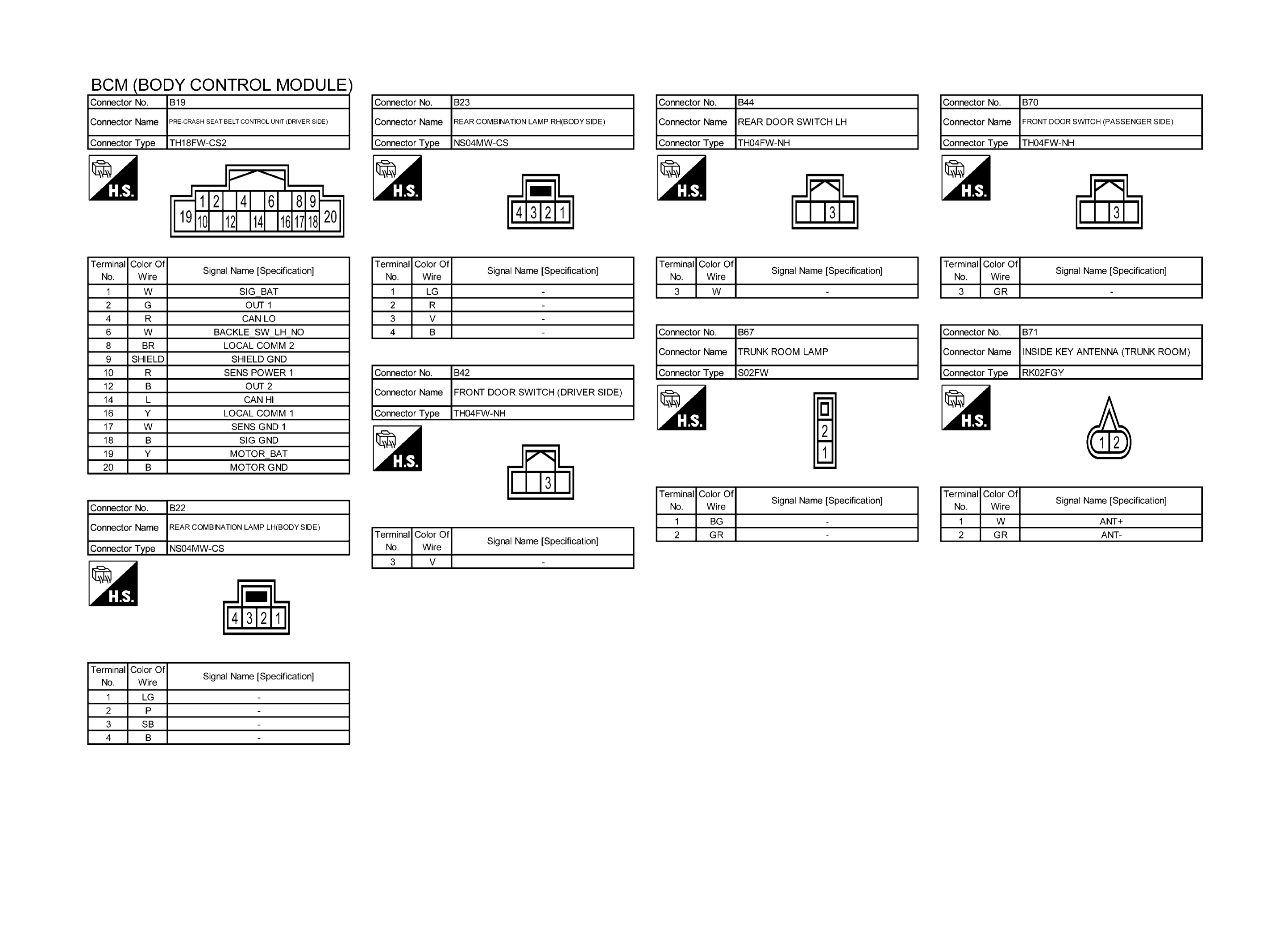

Fig 1: BCM Connectors (1 Of 10)

GNSJRMWG3524GB-524

Courtesy of NISSAN NORTH AMERICA, INC.

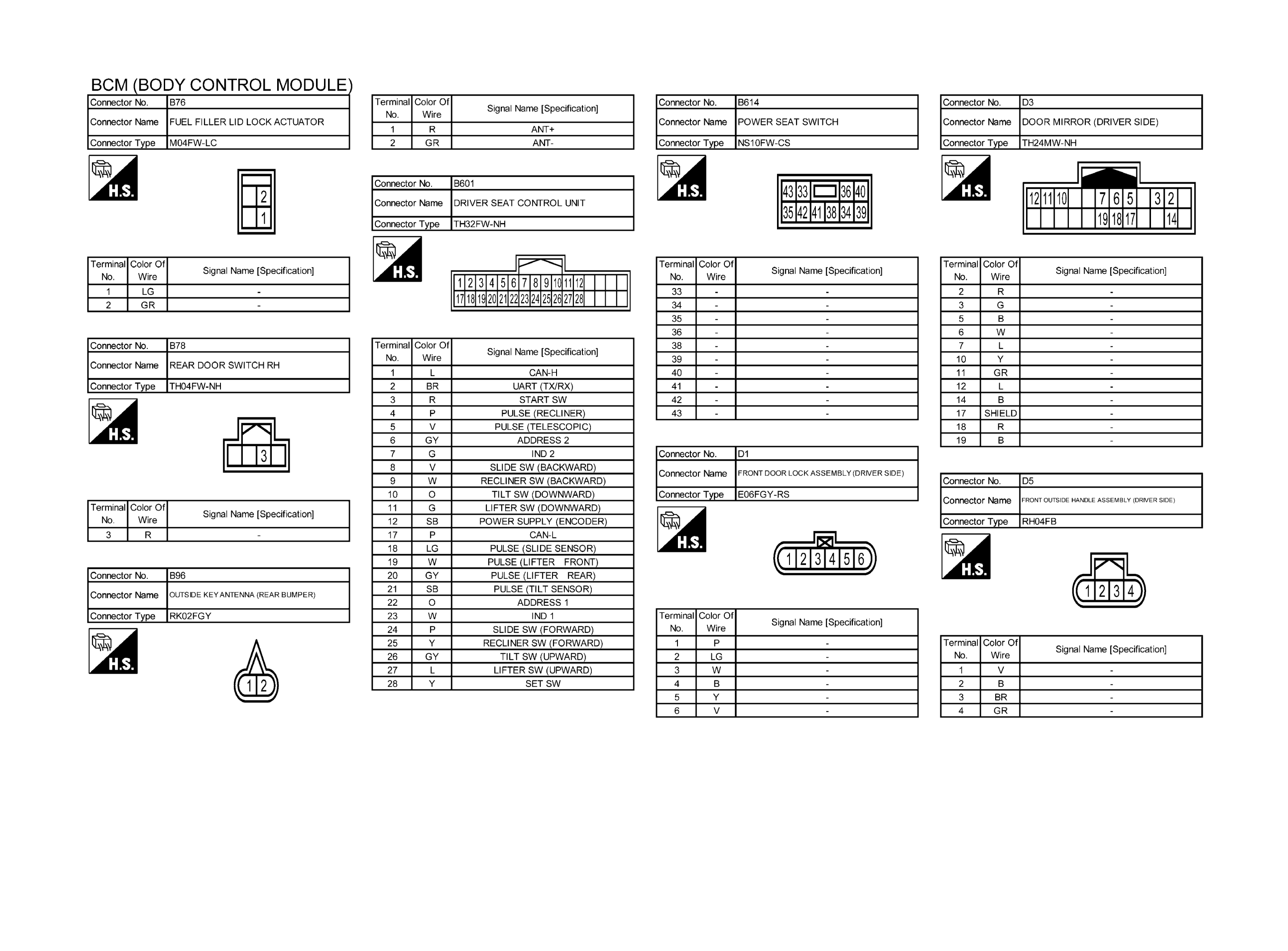

Fig 2: BCM Connectors (2 Of 10)

GNSJRMWG3525GB-525

Courtesy of NISSAN NORTH AMERICA, INC.

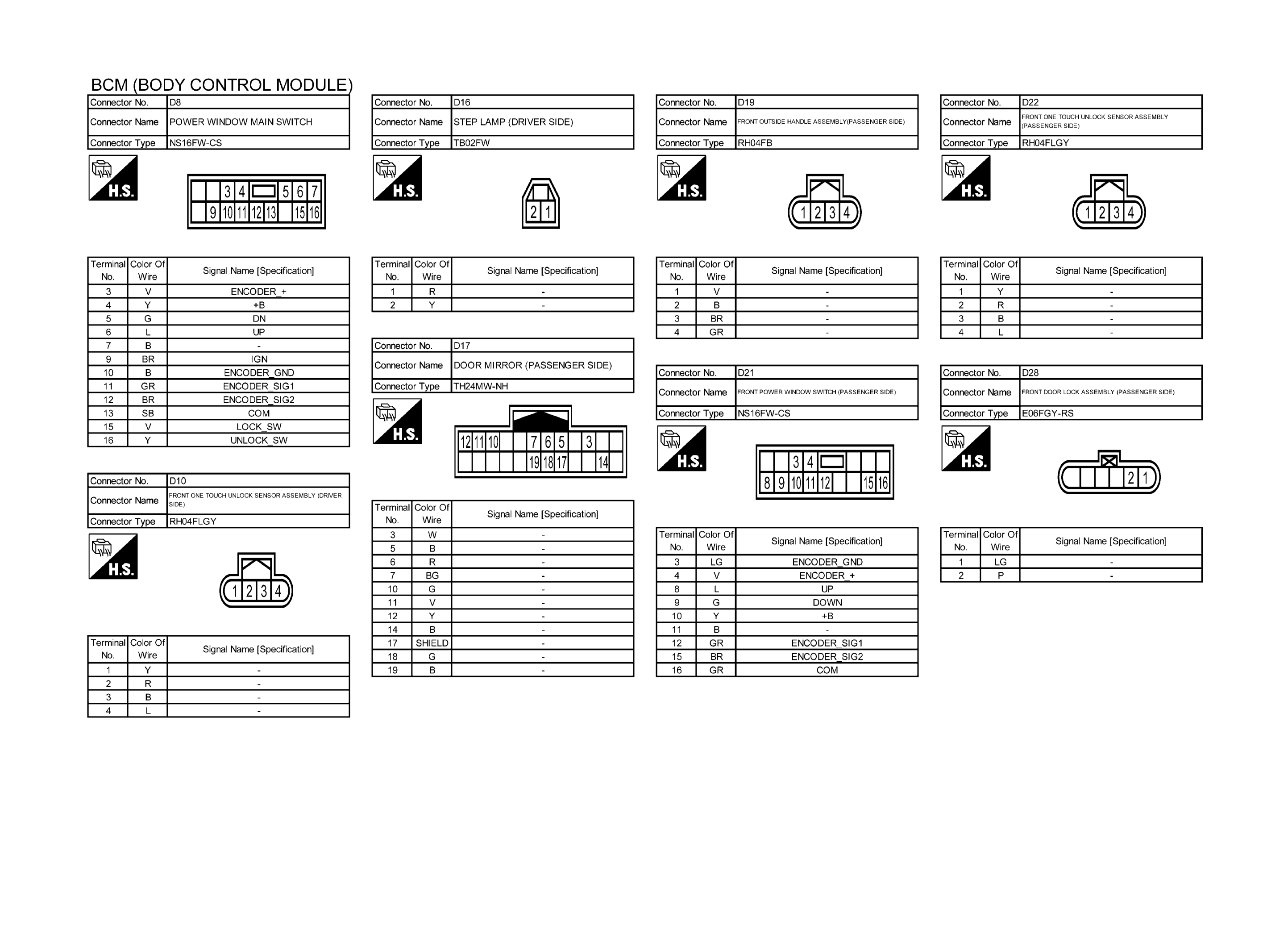

Fig 3: BCM Connectors (3 Of 10)

GNSJRMWG3526GB-526

Courtesy of NISSAN NORTH AMERICA, INC.

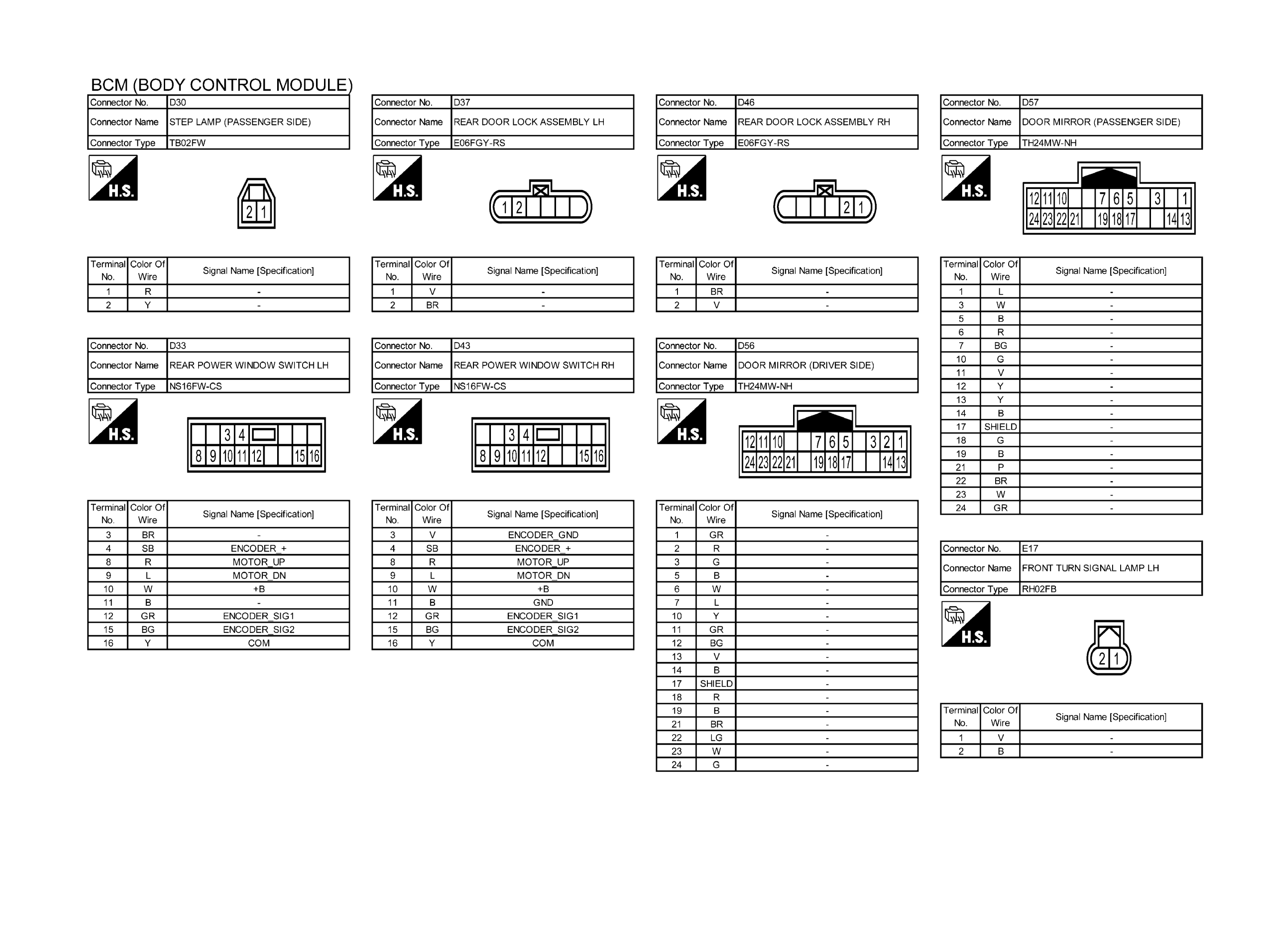

Fig 4: BCM Connectors (4 Of 10)

GNSJRMWG3527GB-527

Courtesy of NISSAN NORTH AMERICA, INC.

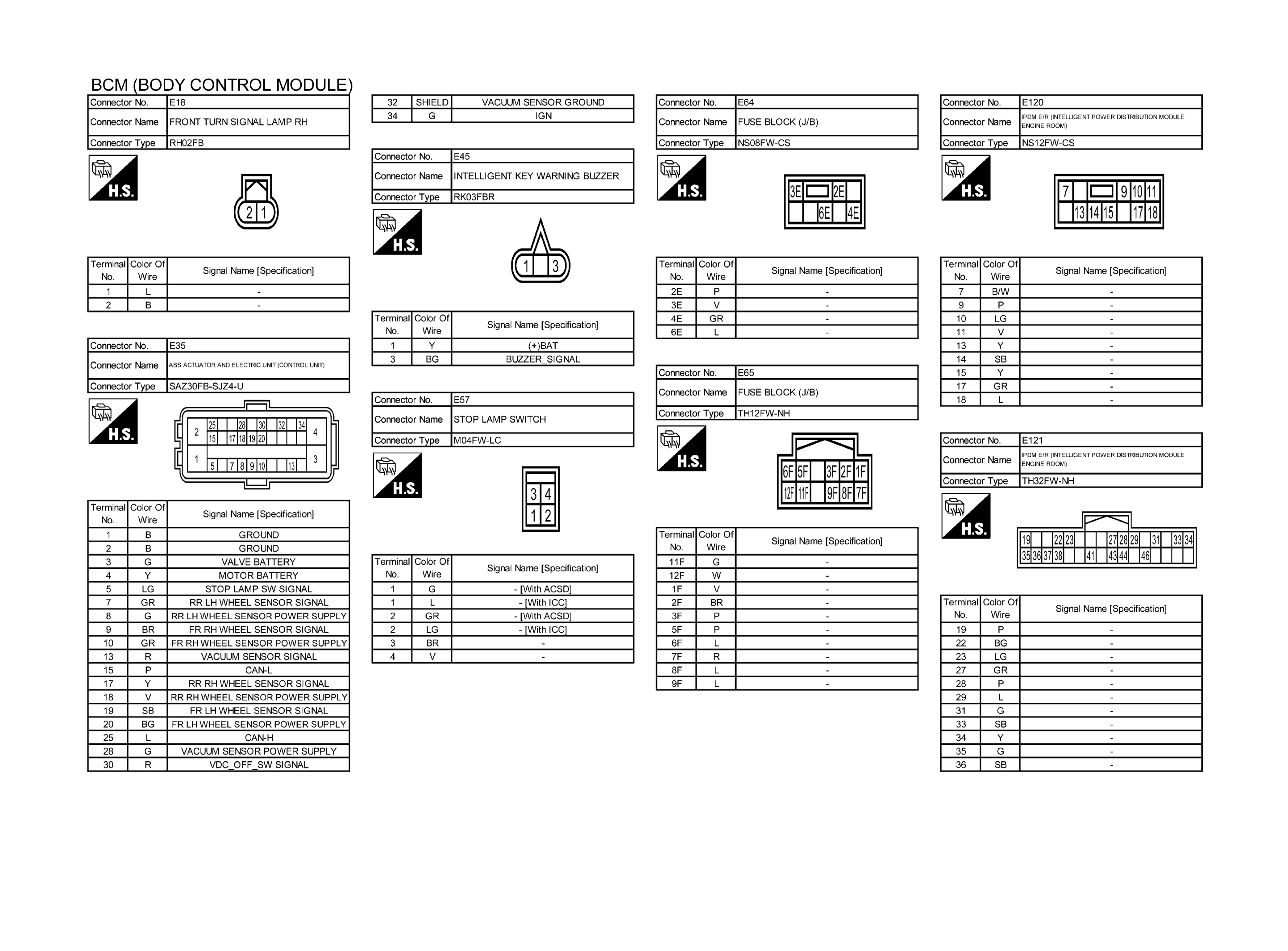

Fig 5: BCM Connectors (5 Of 10)

GNSJRMWG3528GB-528

Courtesy of NISSAN NORTH AMERICA, INC.

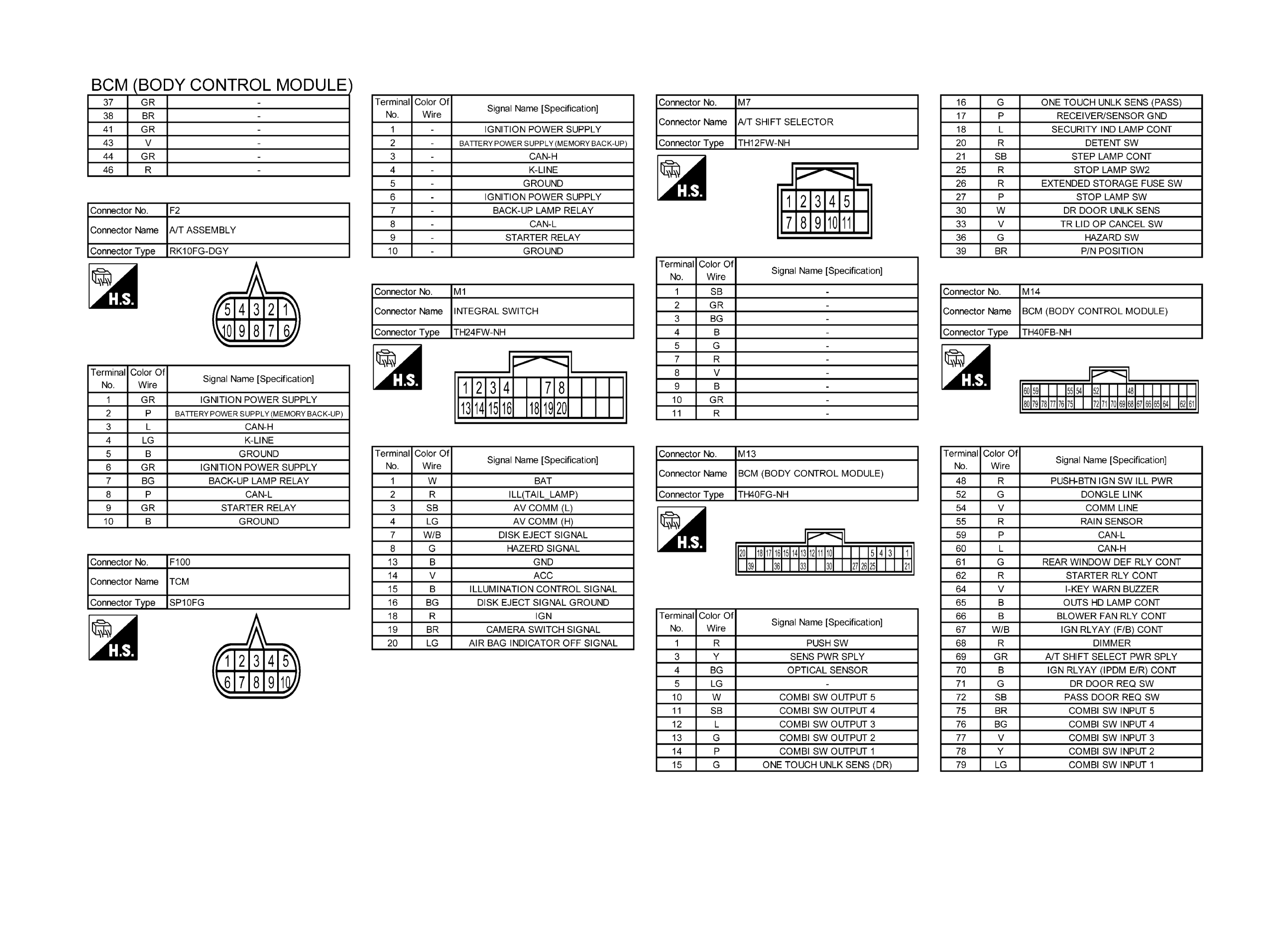

Fig 6: BCM Connectors (6 Of 10)

GNSJRMWG3529GB-529

Courtesy of NISSAN NORTH AMERICA, INC.

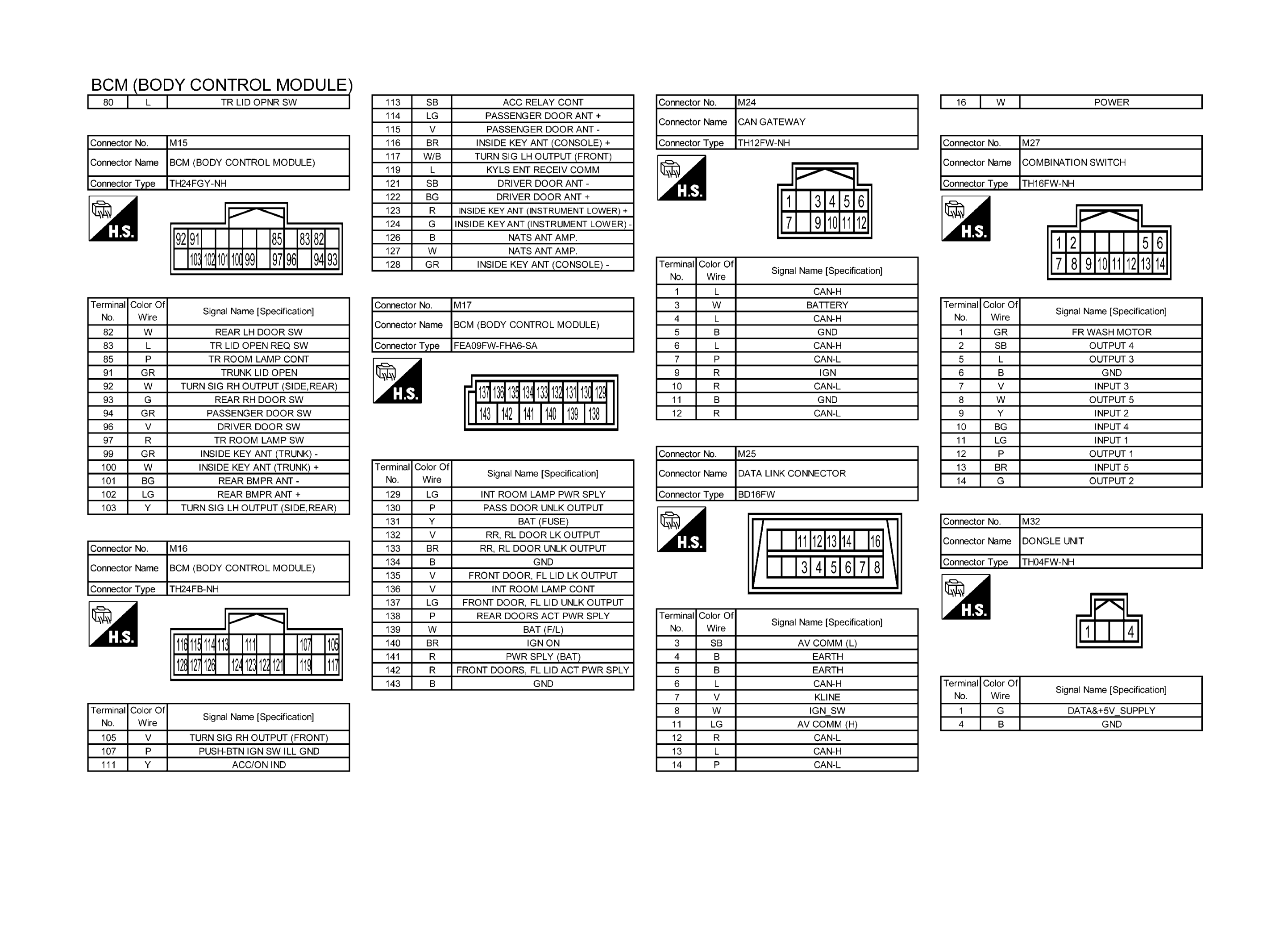

Fig 7: BCM Connectors (7 Of 10)

GNSJRMWG3530GB-530

Courtesy of NISSAN NORTH AMERICA, INC.

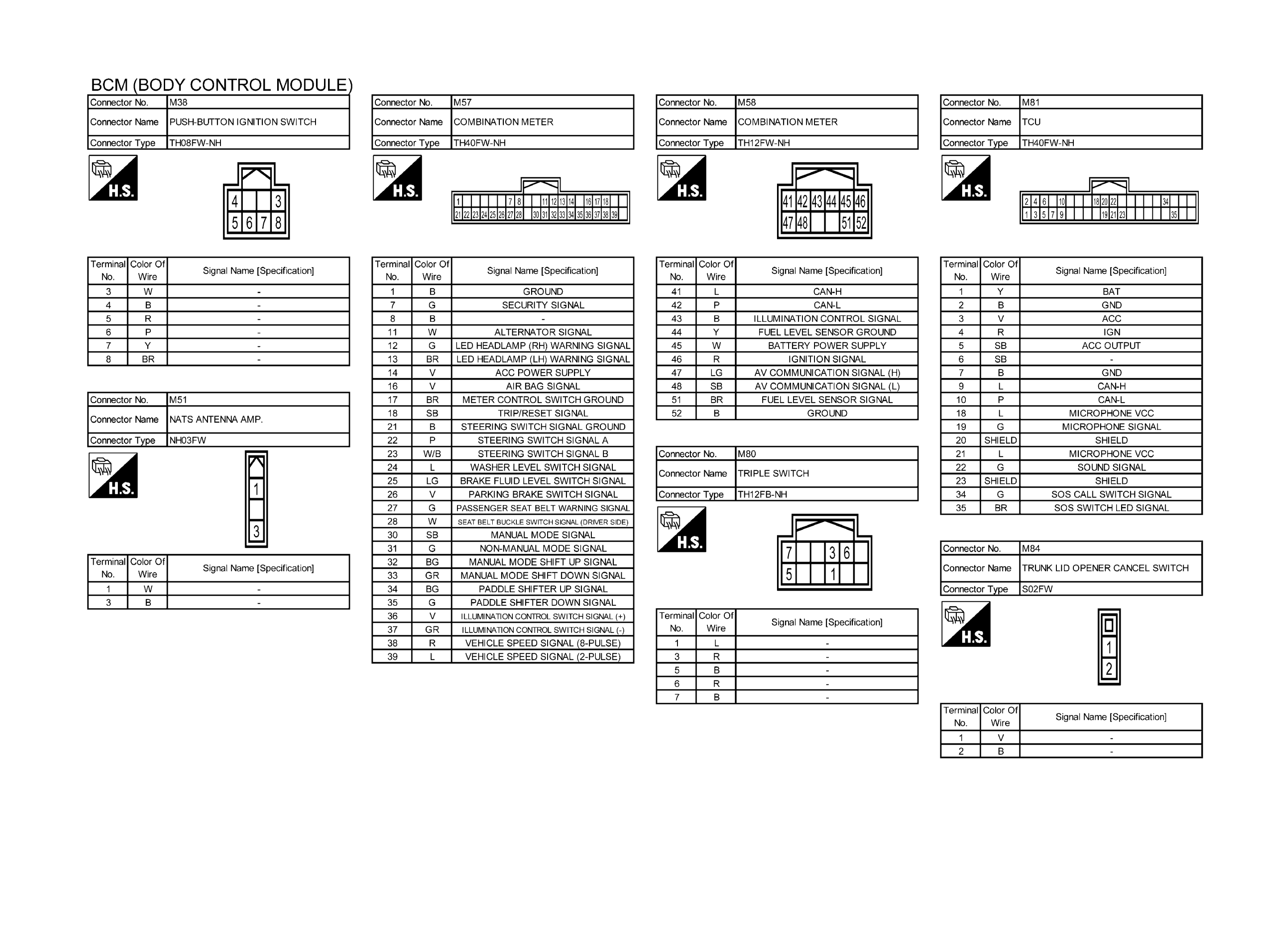

Fig 8: BCM Connectors (8 Of 10)

GNSJRMWG3531GB-531

Courtesy of NISSAN NORTH AMERICA, INC.

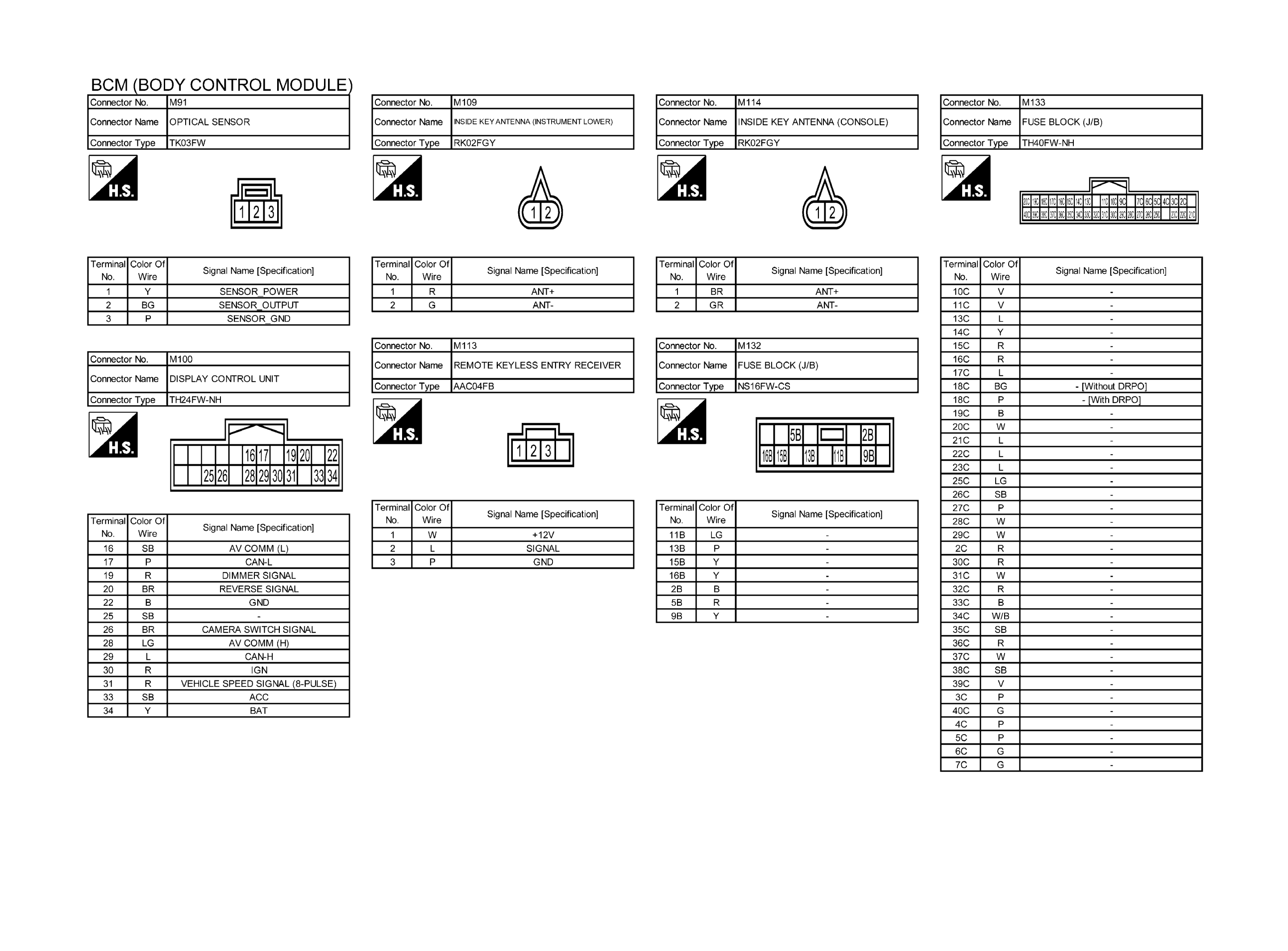

Fig 9: BCM Connectors (9 Of 10)

GNSJRMWG3532GB-532

Courtesy of NISSAN NORTH AMERICA, INC.

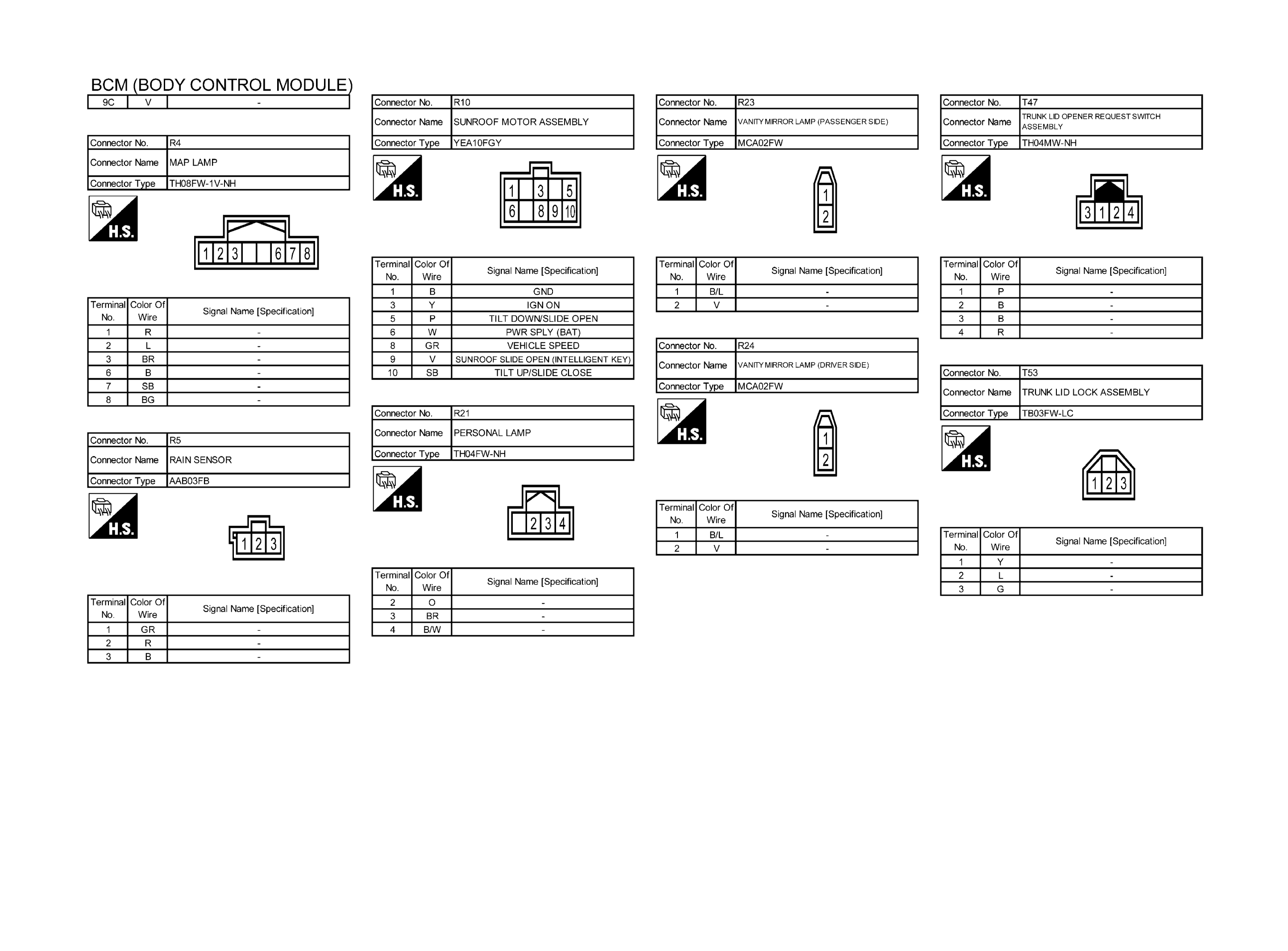

Fig 10: BCM Connectors (10 Of 10)

GNSJRMWG3533GB-533

Courtesy of NISSAN NORTH AMERICA, INC.
