Meter, Warning Lamp & Indicator (Exc Hybrid)
>>
Wiring Diagram
>>
Meter System
>>
Wiring Diagram
Meter System: Wiring Diagram

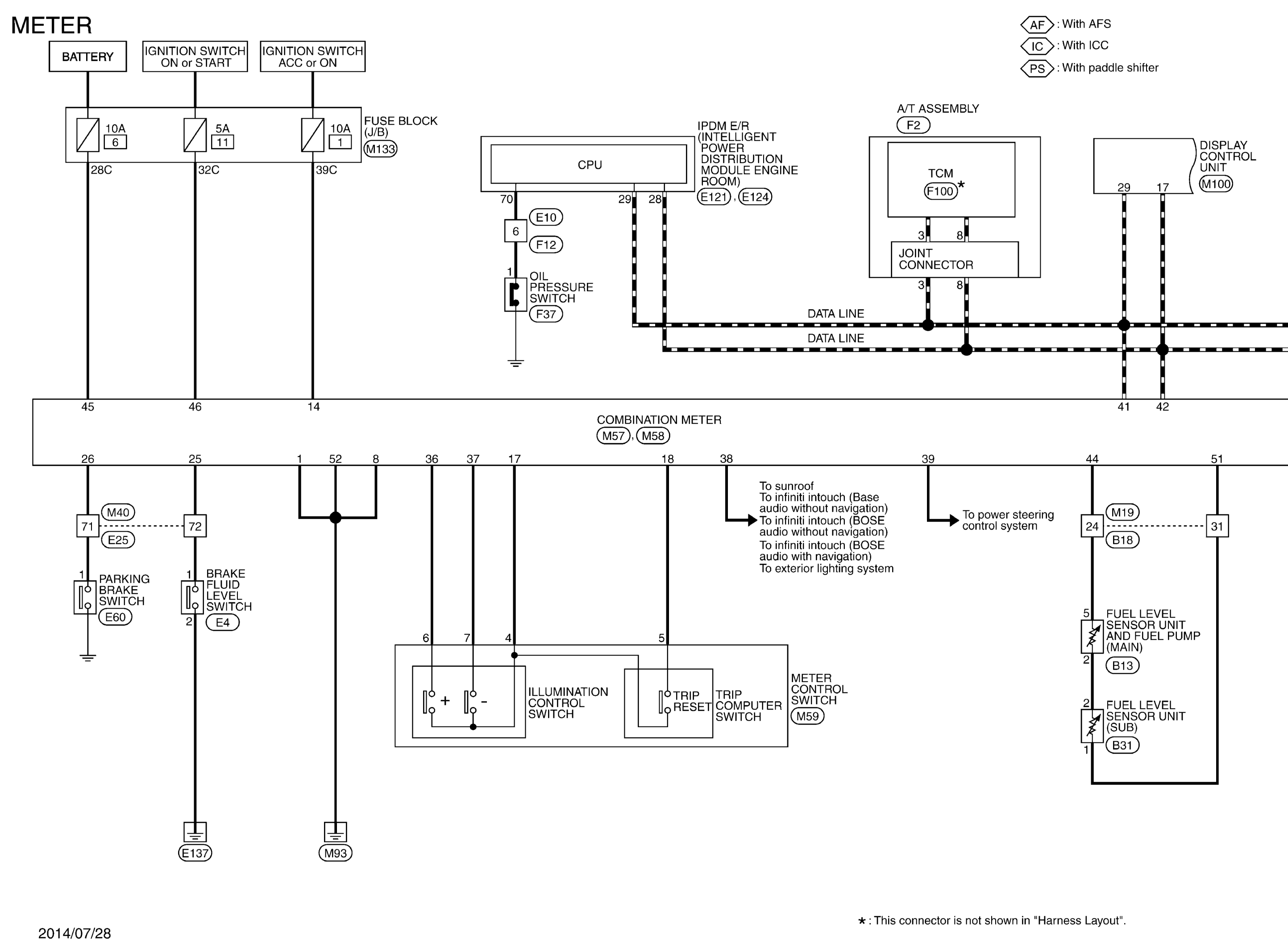

Fig 1: Meter System Wiring Diagram (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

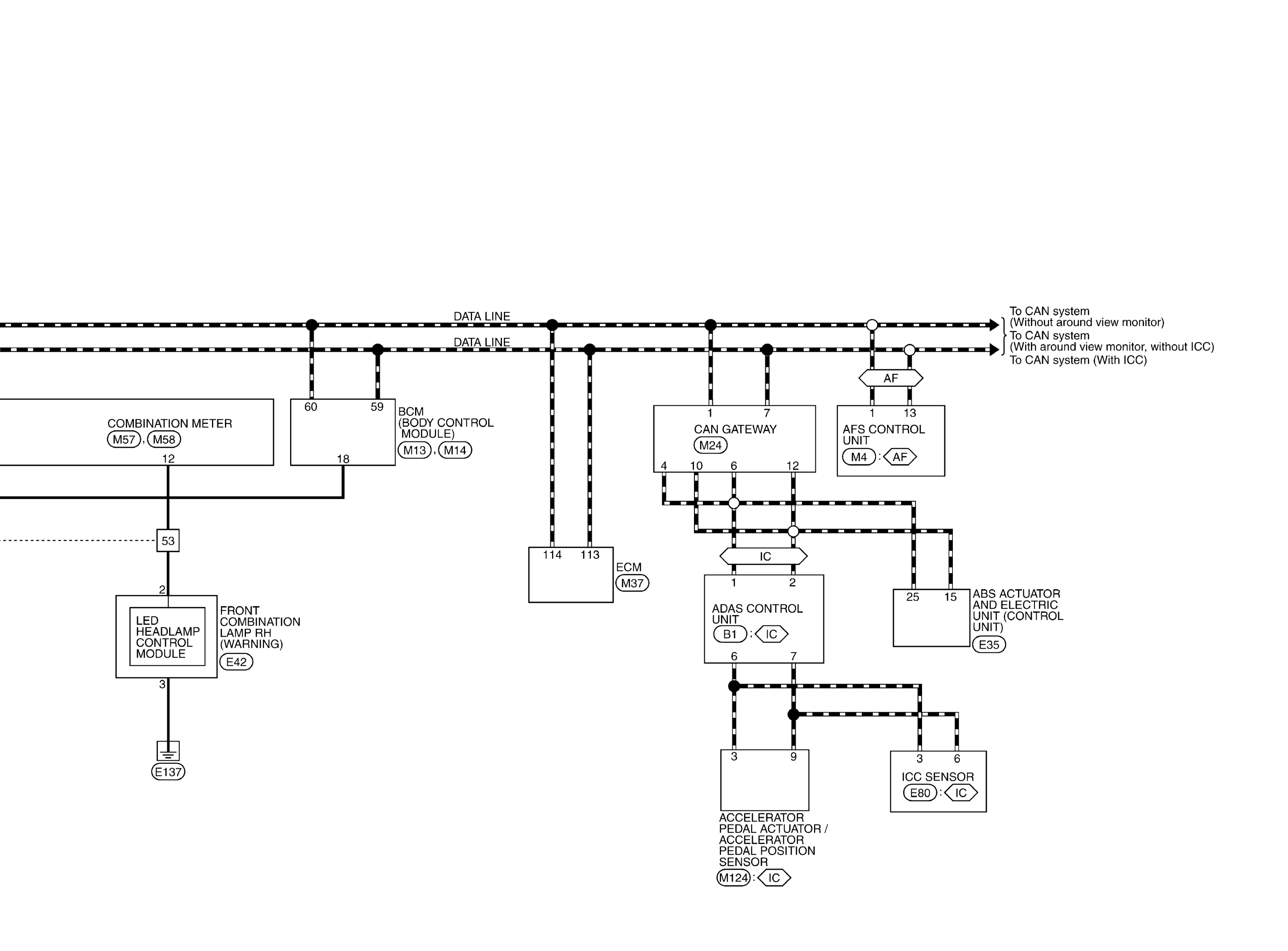

Fig 2: Meter System Wiring Diagram (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

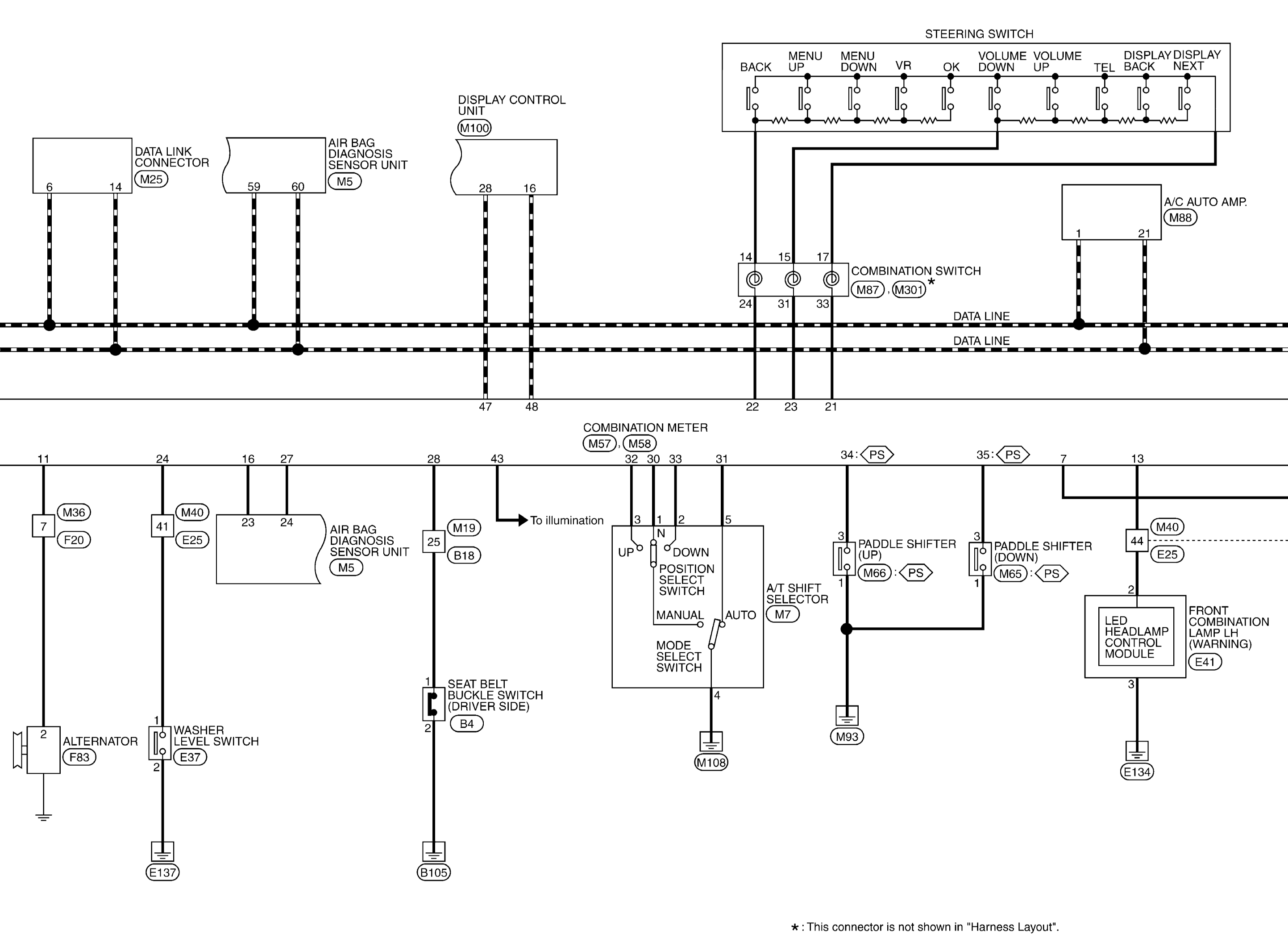

Fig 3: Meter System Wiring Diagram (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
