Meter System Connectors

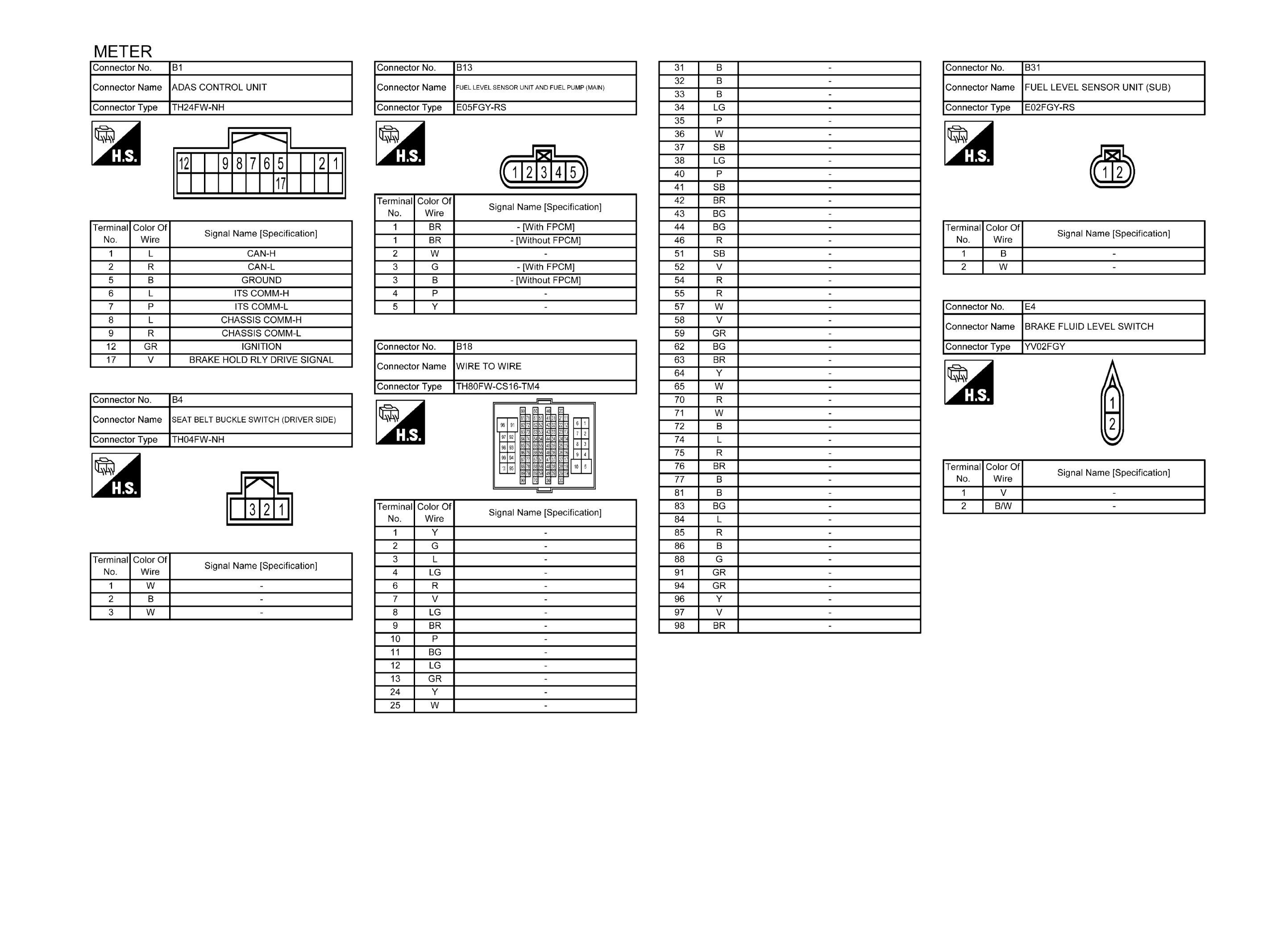

Fig 1: Meter System Connectors (1 Of 8)

GNSJRNWE3549GB-549

Courtesy of NISSAN NORTH AMERICA, INC.

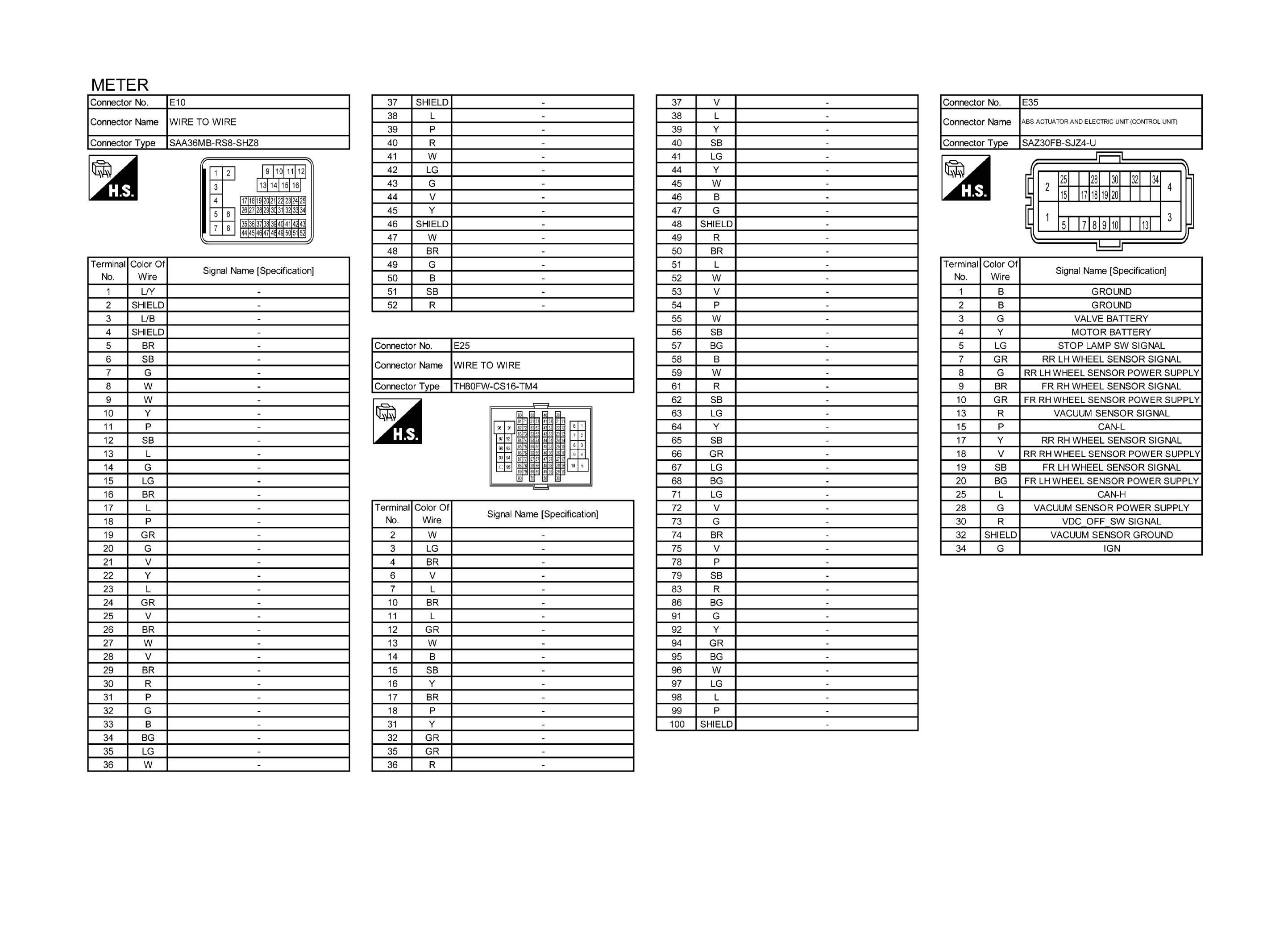

Fig 2: Meter System Connectors (2 Of 8)

GNSJRNWD9105GB-105

Courtesy of NISSAN NORTH AMERICA, INC.

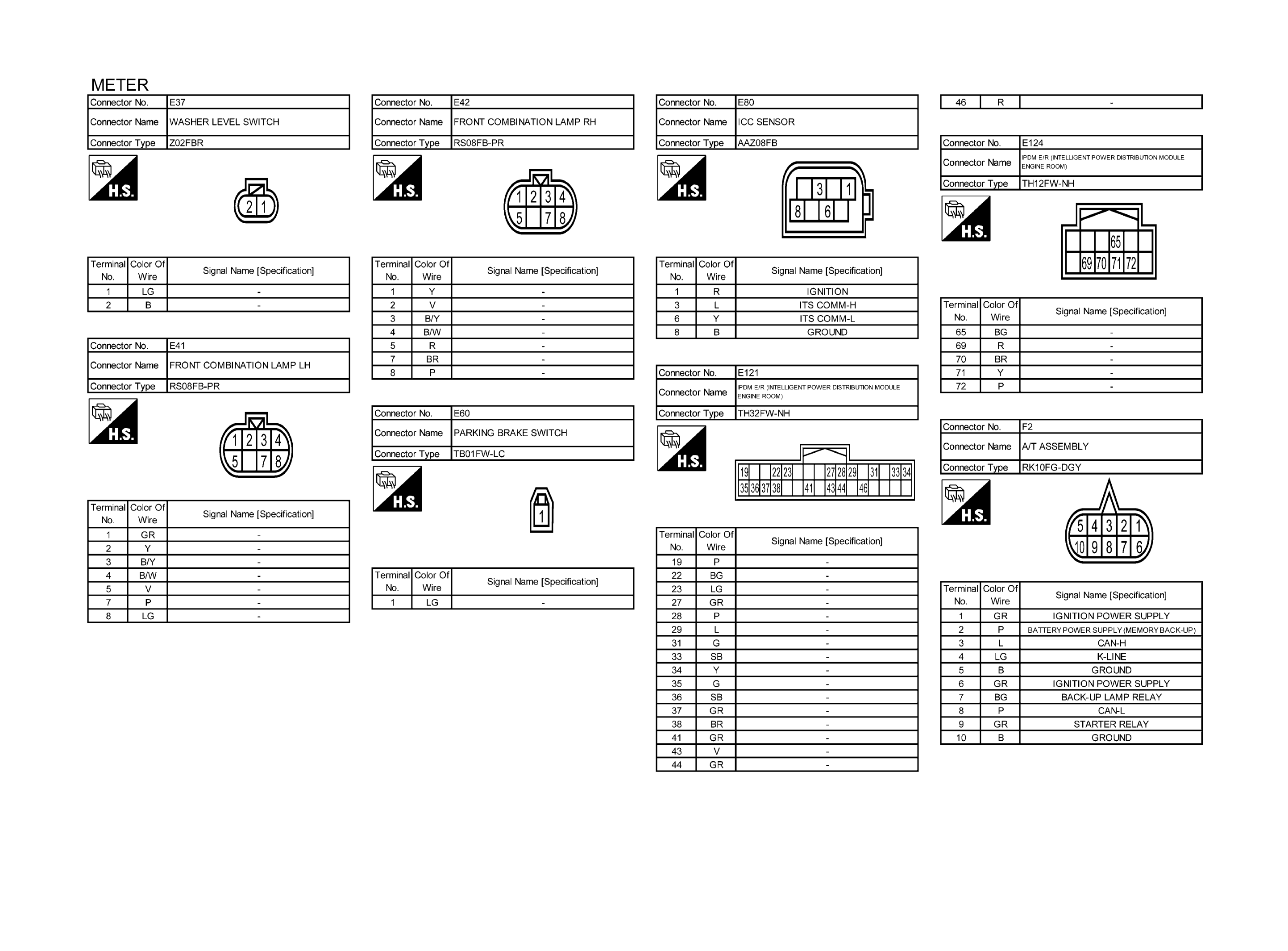

Fig 3: Meter System Connectors (3 Of 8)

GNSJRNWD9106GB-106

Courtesy of NISSAN NORTH AMERICA, INC.

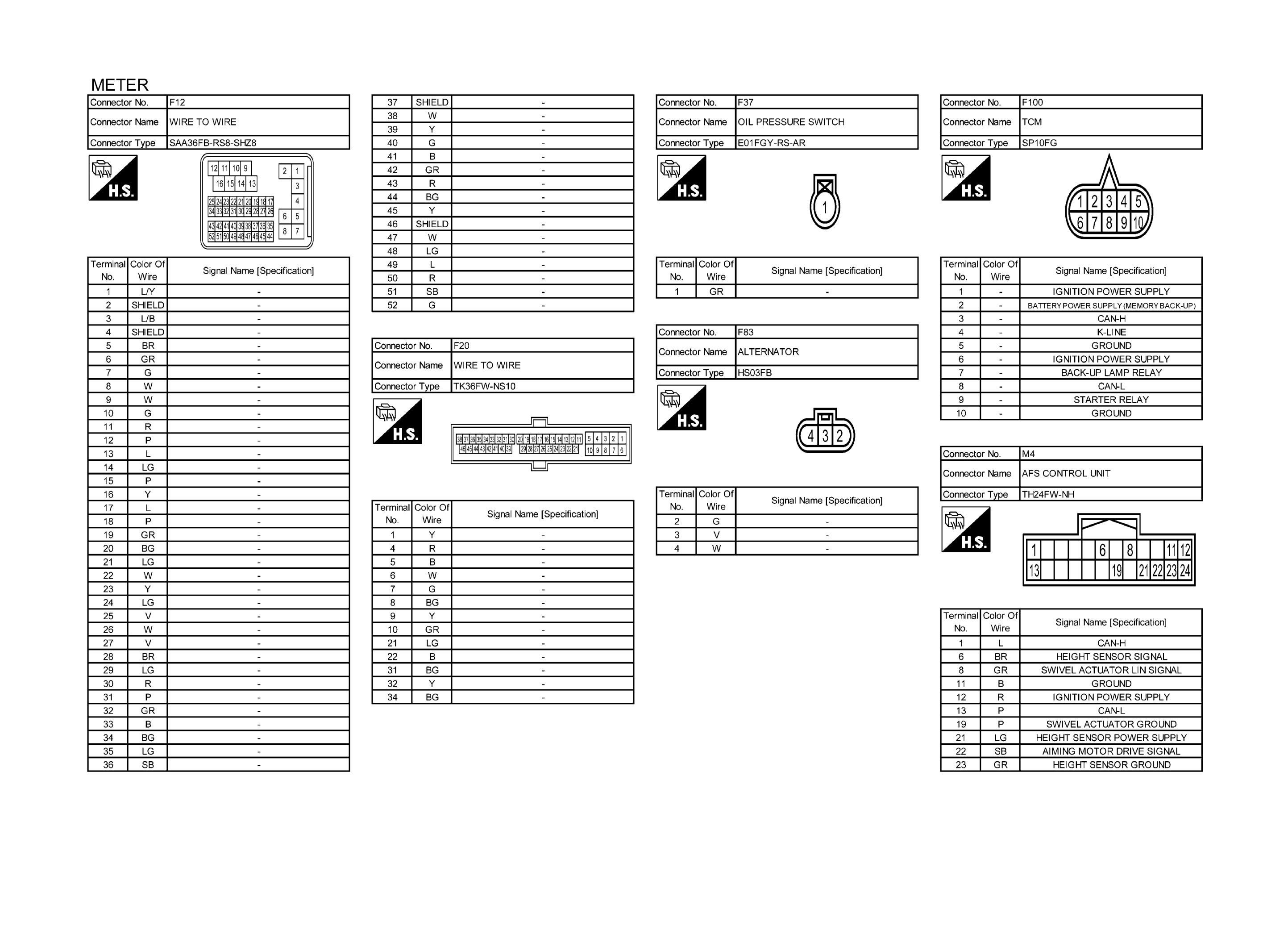

Fig 4: Meter System Connectors (4 Of 8)

GNSJRNWD9107GB-107

Courtesy of NISSAN NORTH AMERICA, INC.

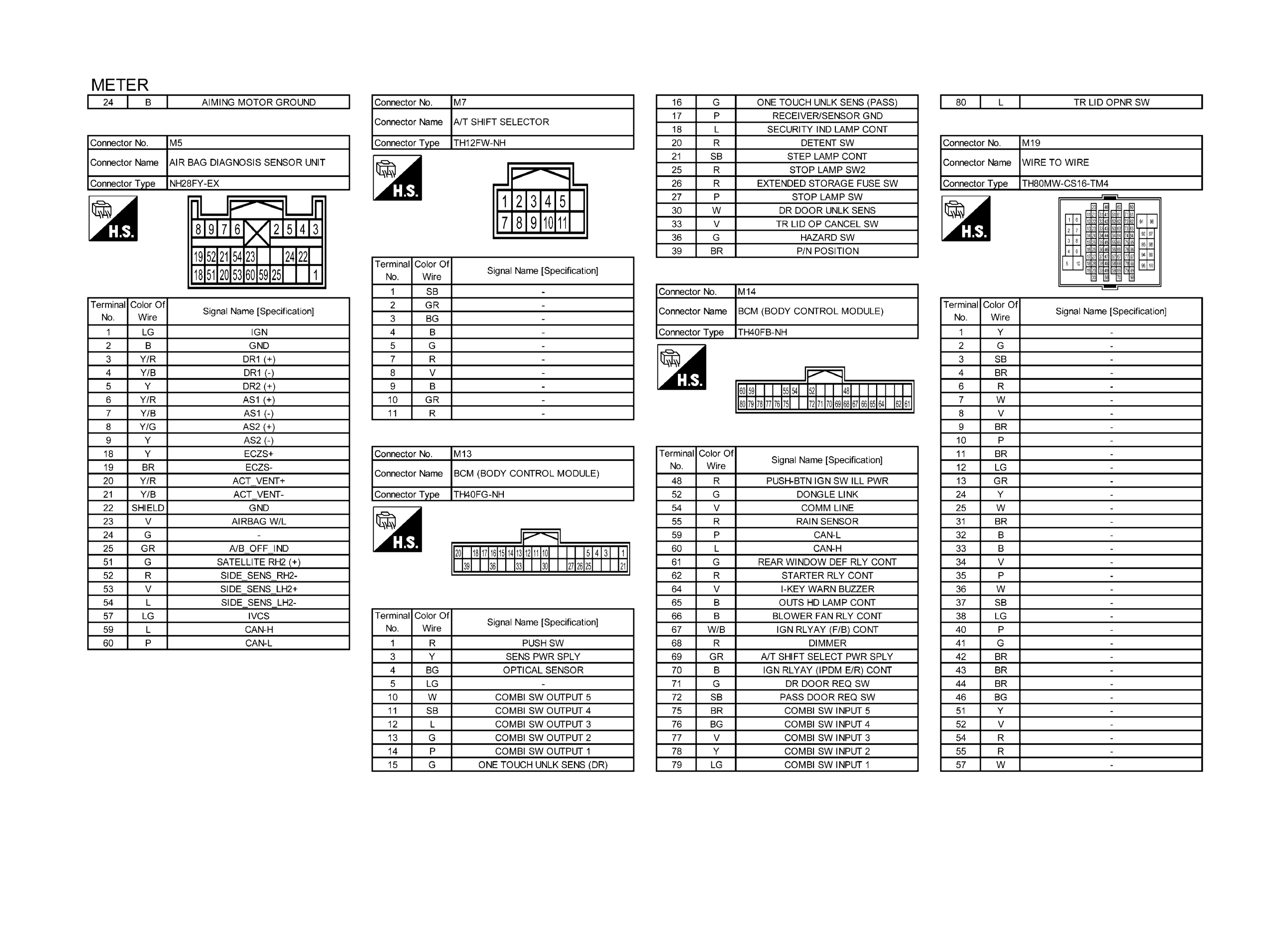

Fig 5: Meter System Connectors (5 Of 8)

GNSJRNWD9108GB-108

Courtesy of NISSAN NORTH AMERICA, INC.

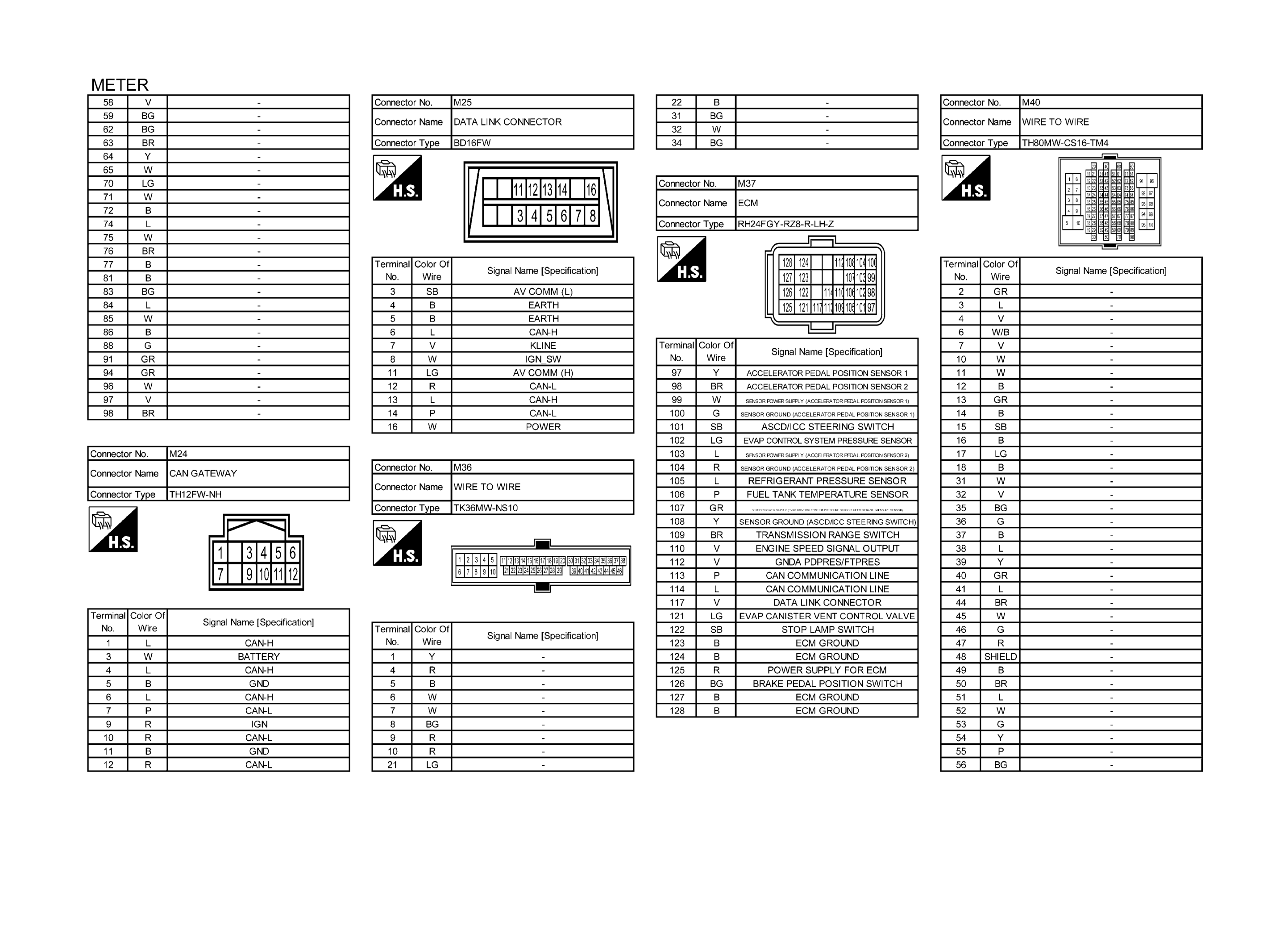

Fig 6: Meter System Connectors (6 Of 8)

GNSJRNWD9109GB-109

Courtesy of NISSAN NORTH AMERICA, INC.

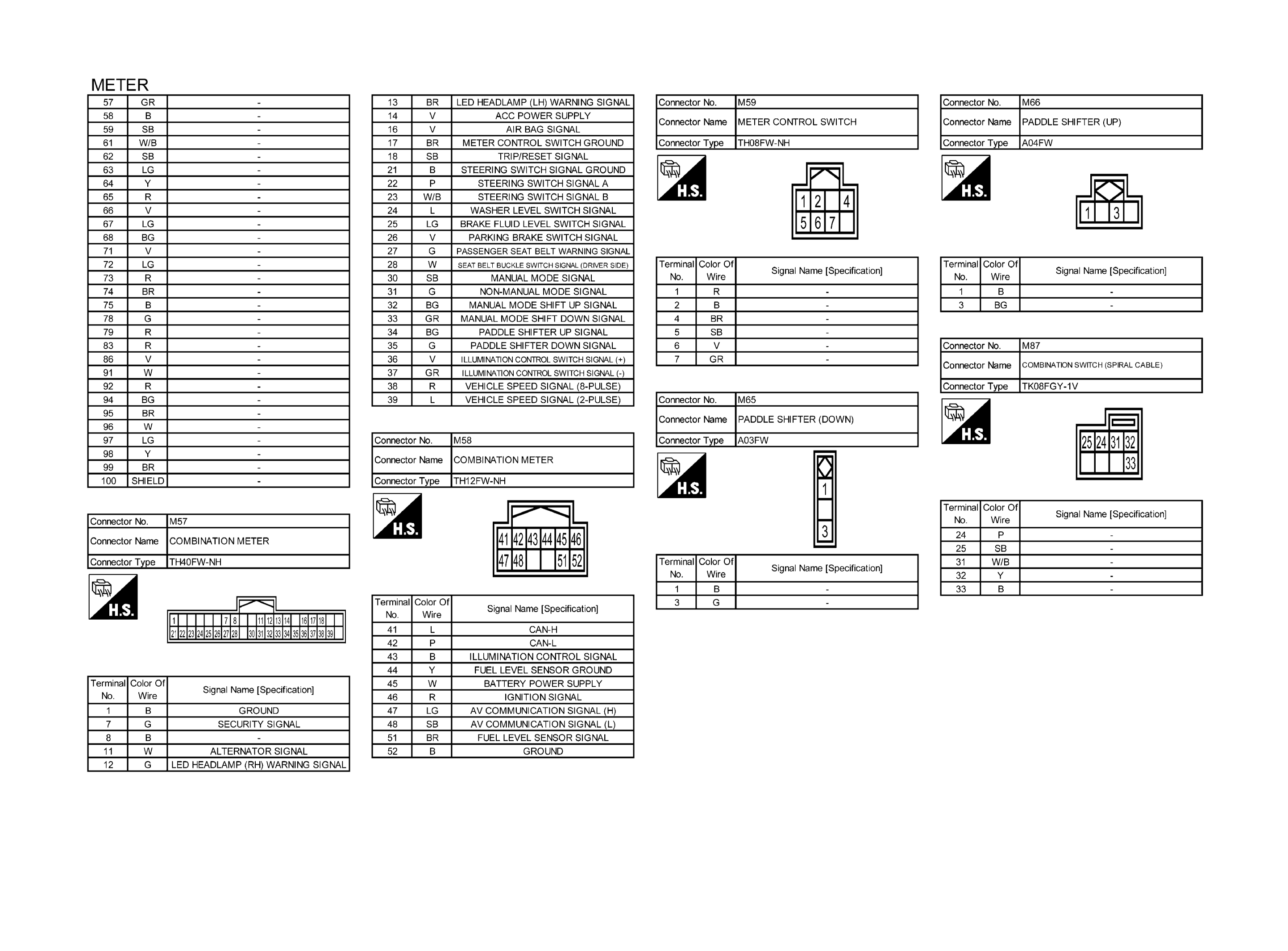

Fig 7: Meter System Connectors (7 Of 8)

GNSJRNWD9110GB-110

Courtesy of NISSAN NORTH AMERICA, INC.

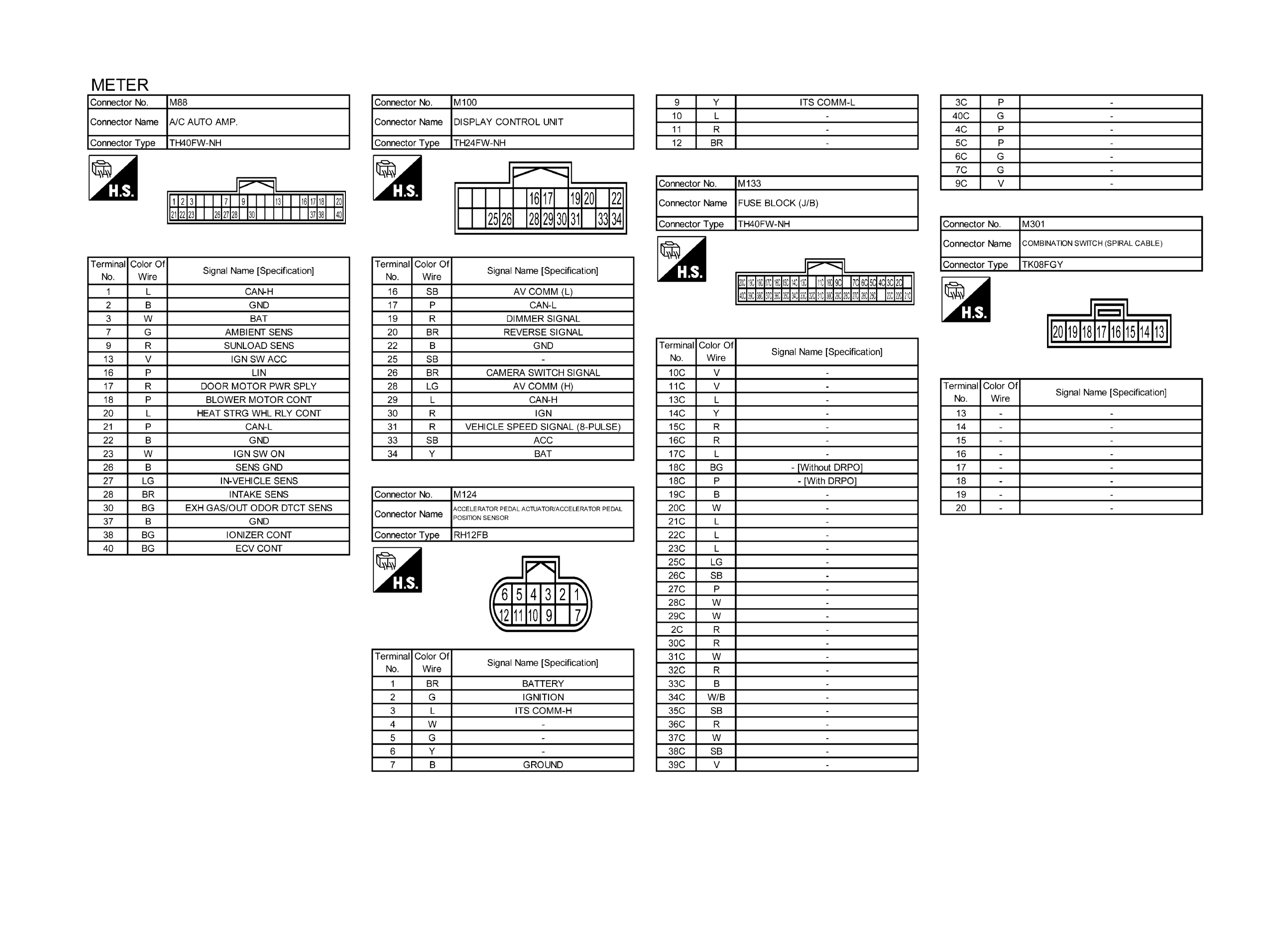

Fig 8: Meter System Connectors (8 Of 8)

GNSJRNWD9111GB-111

Courtesy of NISSAN NORTH AMERICA, INC.
