Exploded View With Torque Specifications

CENTER CONSOLE ASSEMBLY

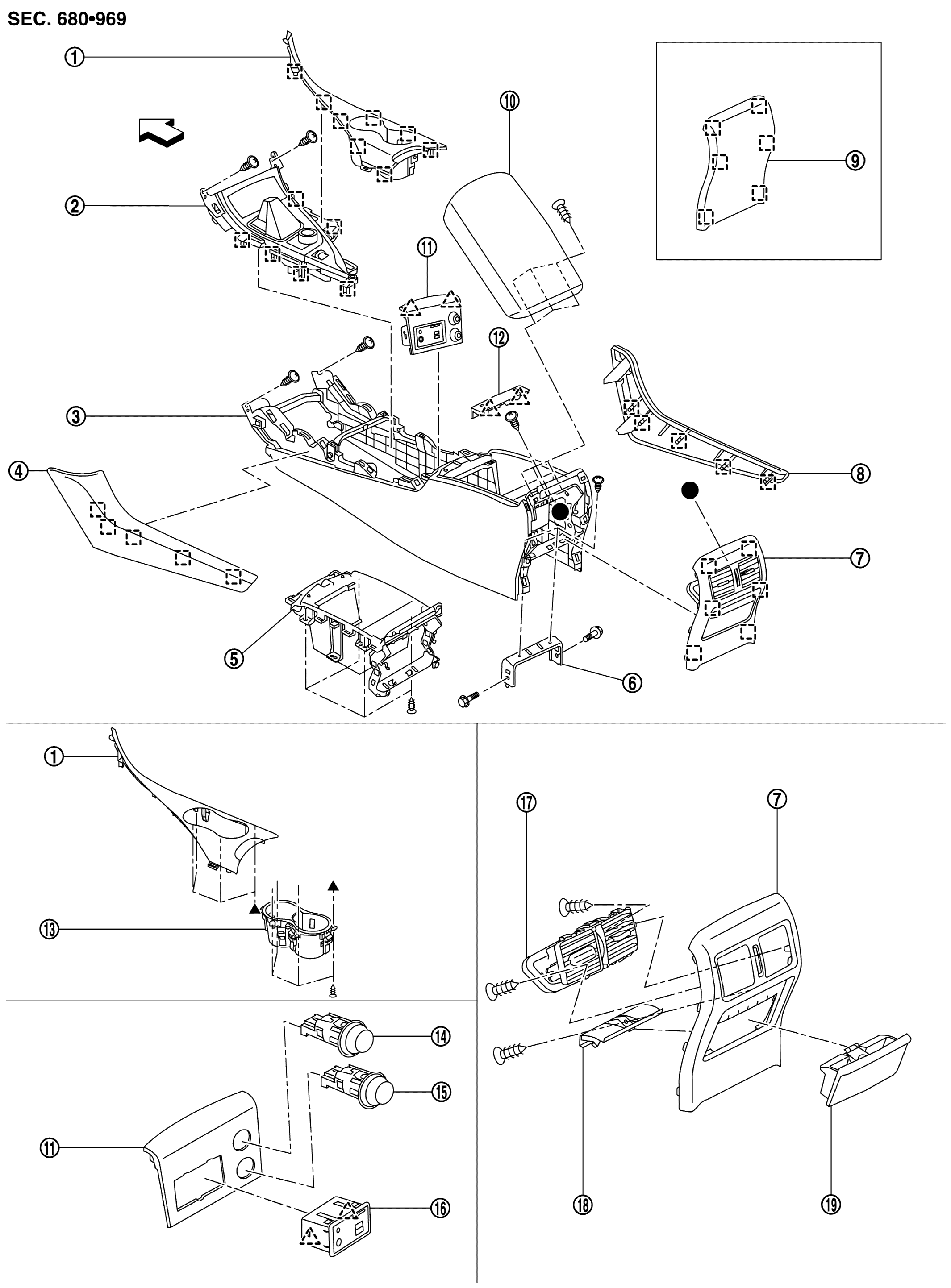

Fig 1: Exploded View Of Center Console Assembly

GNSJMJIA9048ZZ-048

Courtesy of NISSAN NORTH AMERICA, INC.

	Console upper finisher		Console finisher assembly		Center console assembly
	Center console side finisher LH		Console reinforcement bracket		Console rear bracket
	Console rear finisher assembly (with rear ventilator)		Center console side finisher RH		Console rear finisher assembly (without rear ventilator)
	Console lid assembly		Center console finisher		Console mask
	Cup holder assembly		Power socket assembly		Power socket assembly
	External data input box		Rear ashtray console bracket		Rear ashtray console
	Rear ventilator grille (with rear ventilator)
	: Pawl
	: Metal clip
	: Vehicle front
, : Indicates that the part is connected at points with same symbol in actual vehicle.

CONSOLE FINISHER ASSEMBLY

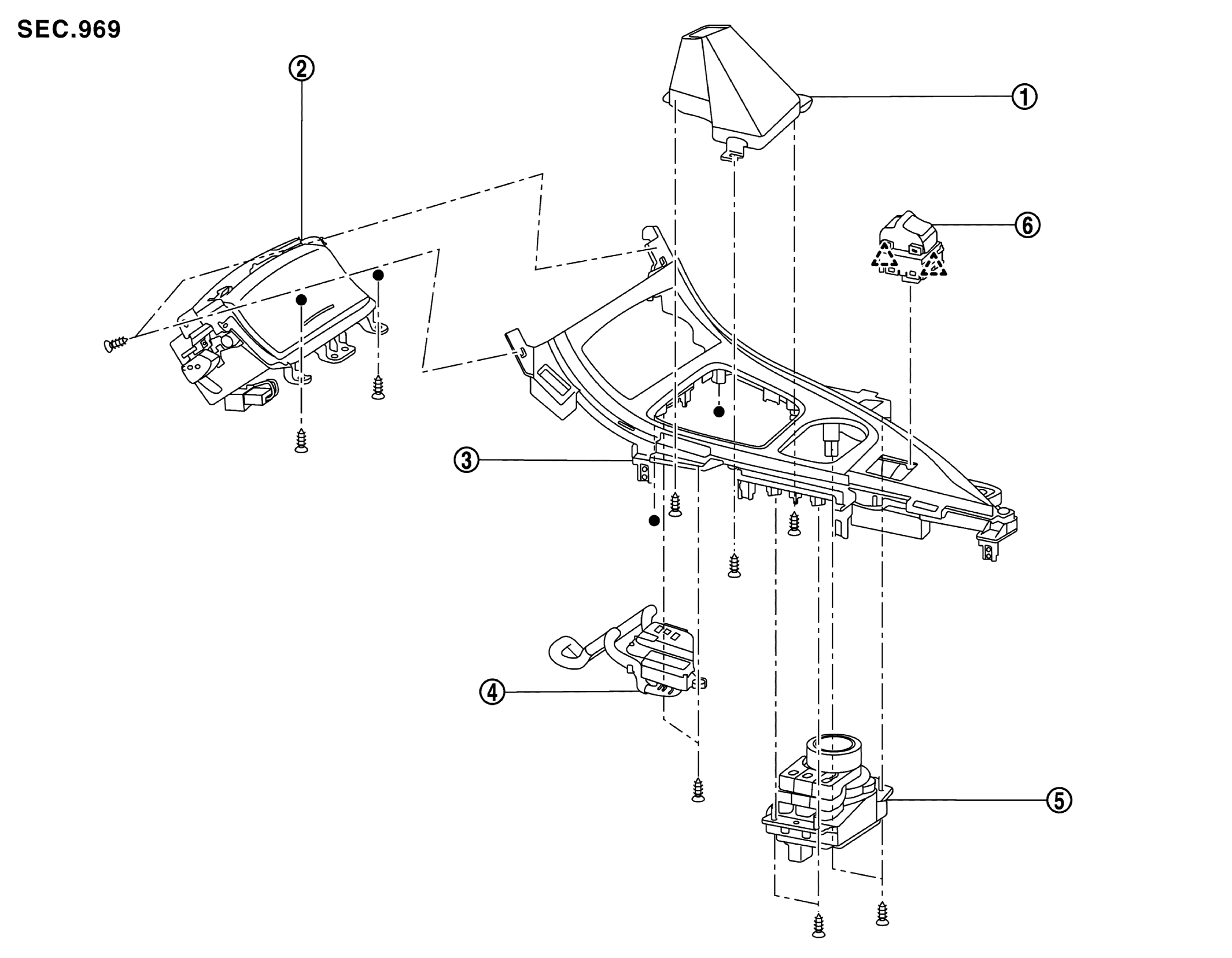

Fig 2: Exploded View Of Console Finisher Assembly

GNSJMJIA9049ZZ-049

Courtesy of NISSAN NORTH AMERICA, INC.

	Console finisher boot		Console front pocket assembly		Console finisher assembly
	Selector lever position indicator		Multifunction switch		Drive mode select switch
	: Pawl
: Indicates that the part is connected at points with same symbol in actual vehicle.
