Exploded View With Torque Specifications

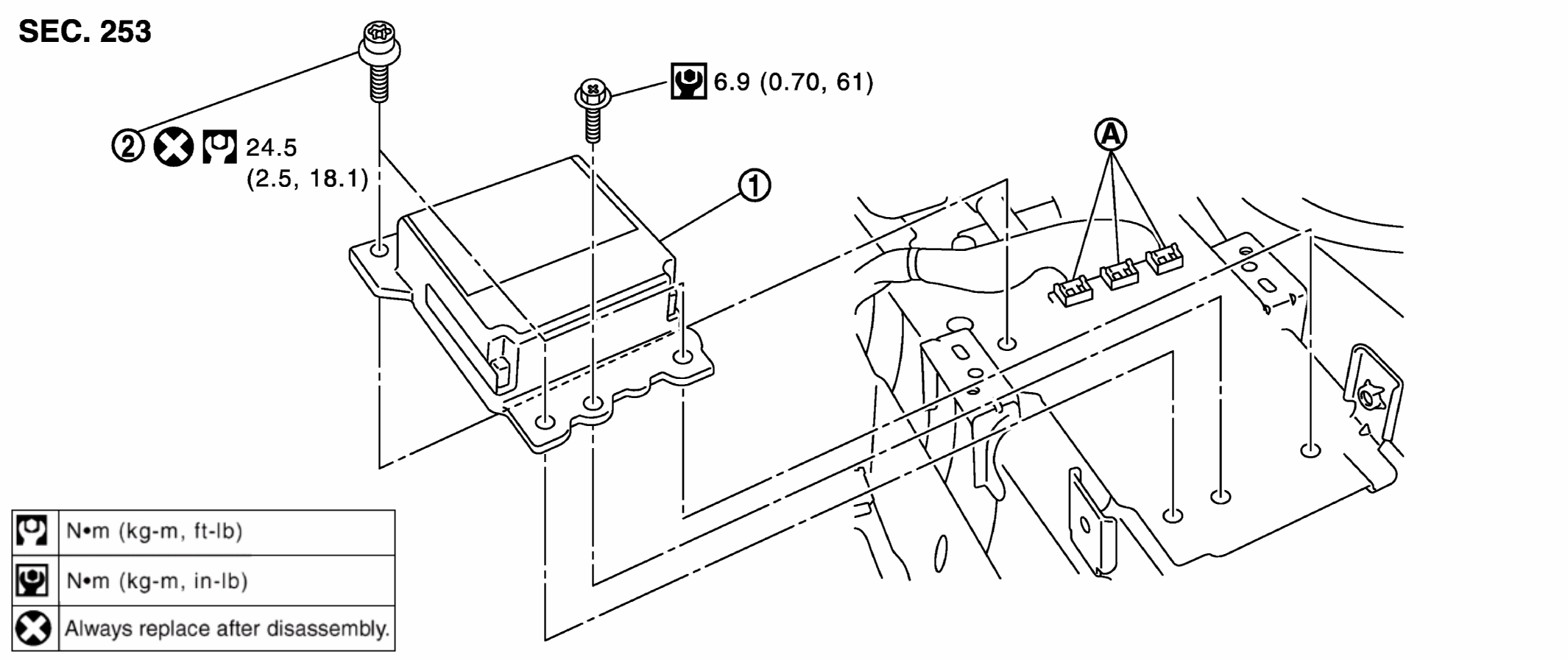

Fig 1: Exploded View Of Diagnosis Sensor Unit With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Diagnosis sensor unit	2.	TORX bolt
A	: Diagnosis sensor unit harness connectors
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
