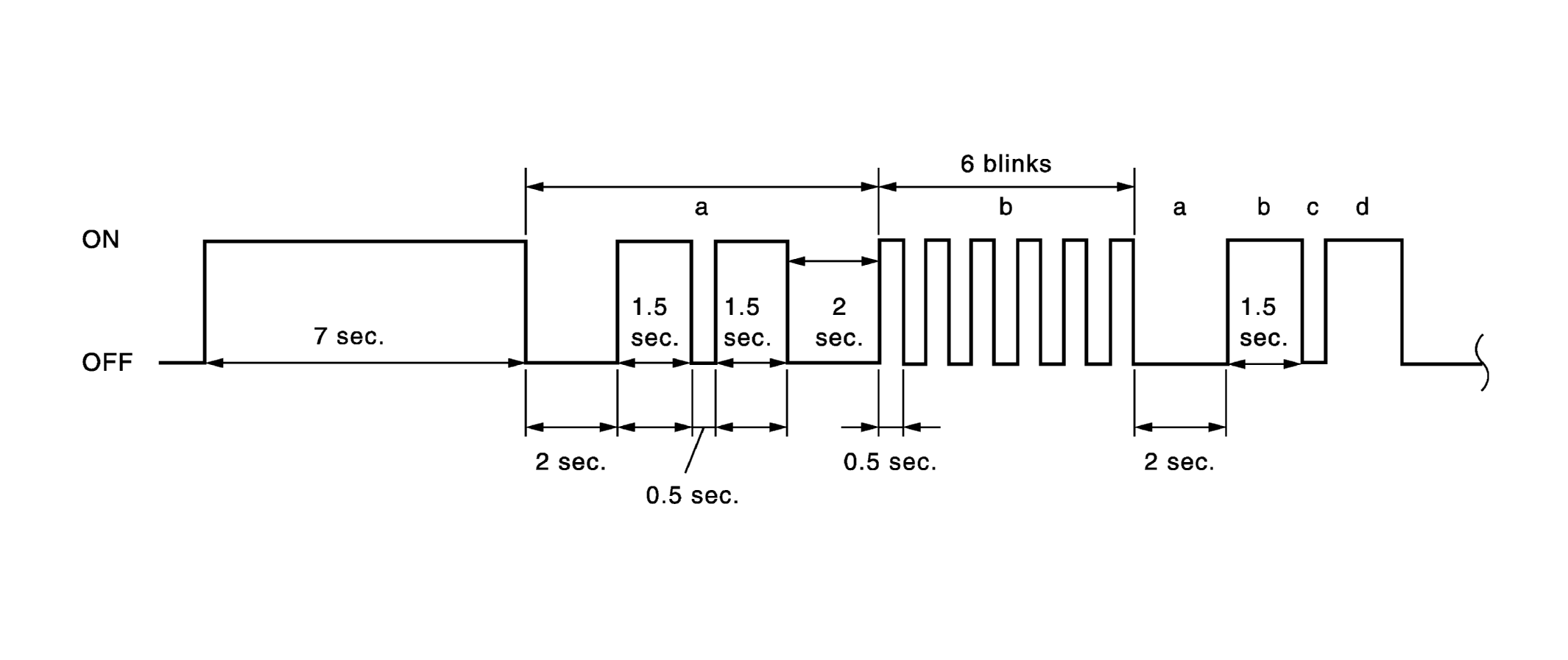

An Example Of Two 1.5-Second Blinks Followed By A 0.5-Second Blink Repeated

Fig 1: Air Bag Warning Lamp Blinking Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

a through b are repeated.

b: Six 0.5-second blinks indicate that the LH side curtain air bag module circuit is malfunctioning.
