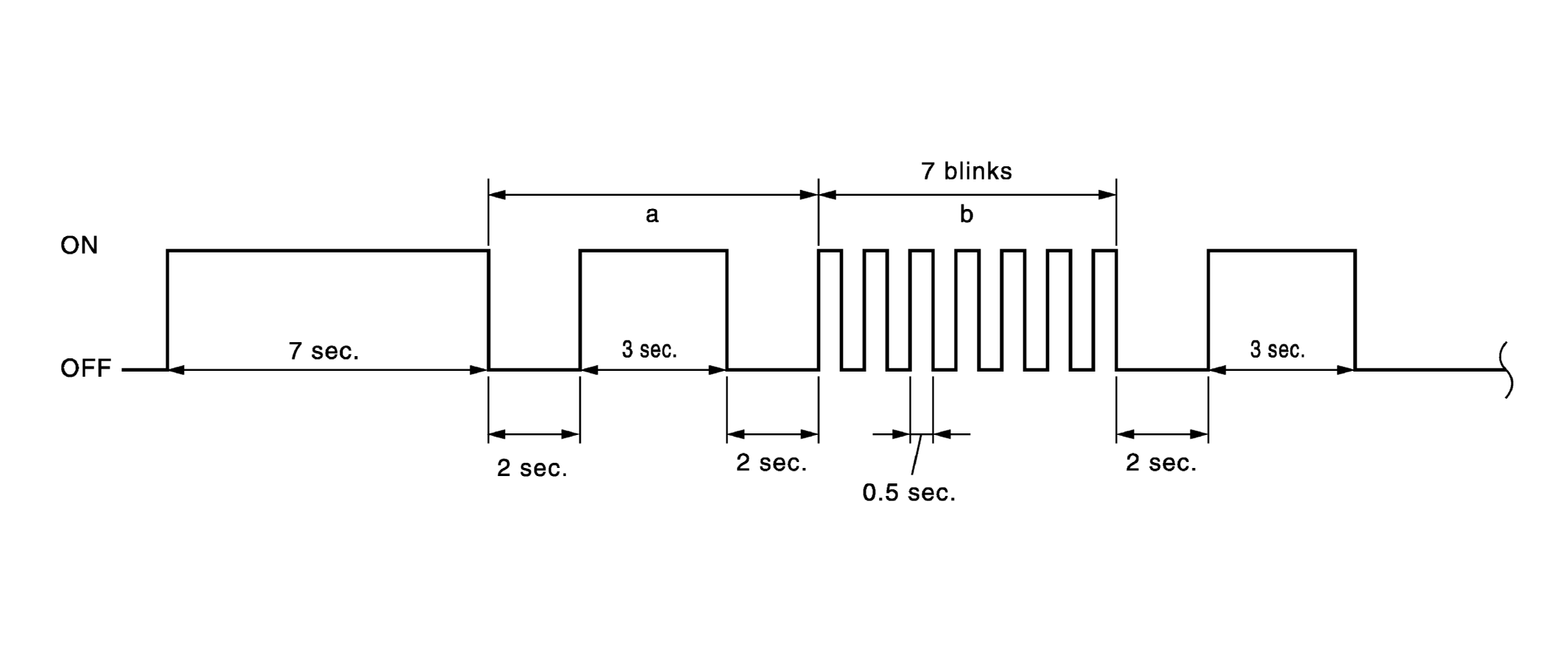

An Example Of A 3-Second Blink Followed By A 0.5-Second Blink Repeated

Fig 1: Air Bag Warning Lamp Blinking Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

a through b are repeated.

b: Seven 0.5-second blinks indicate that the air bag diagnosis sensor unit circuit is malfunctioning.
