Infiniti
>>
2015
>>
Q40 AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter, Warning Lamp & Indicator
>>
Ecu Diagnosis Information
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
IPDM E/R Wiring Diagram
IPDM E/R Wiring Diagram

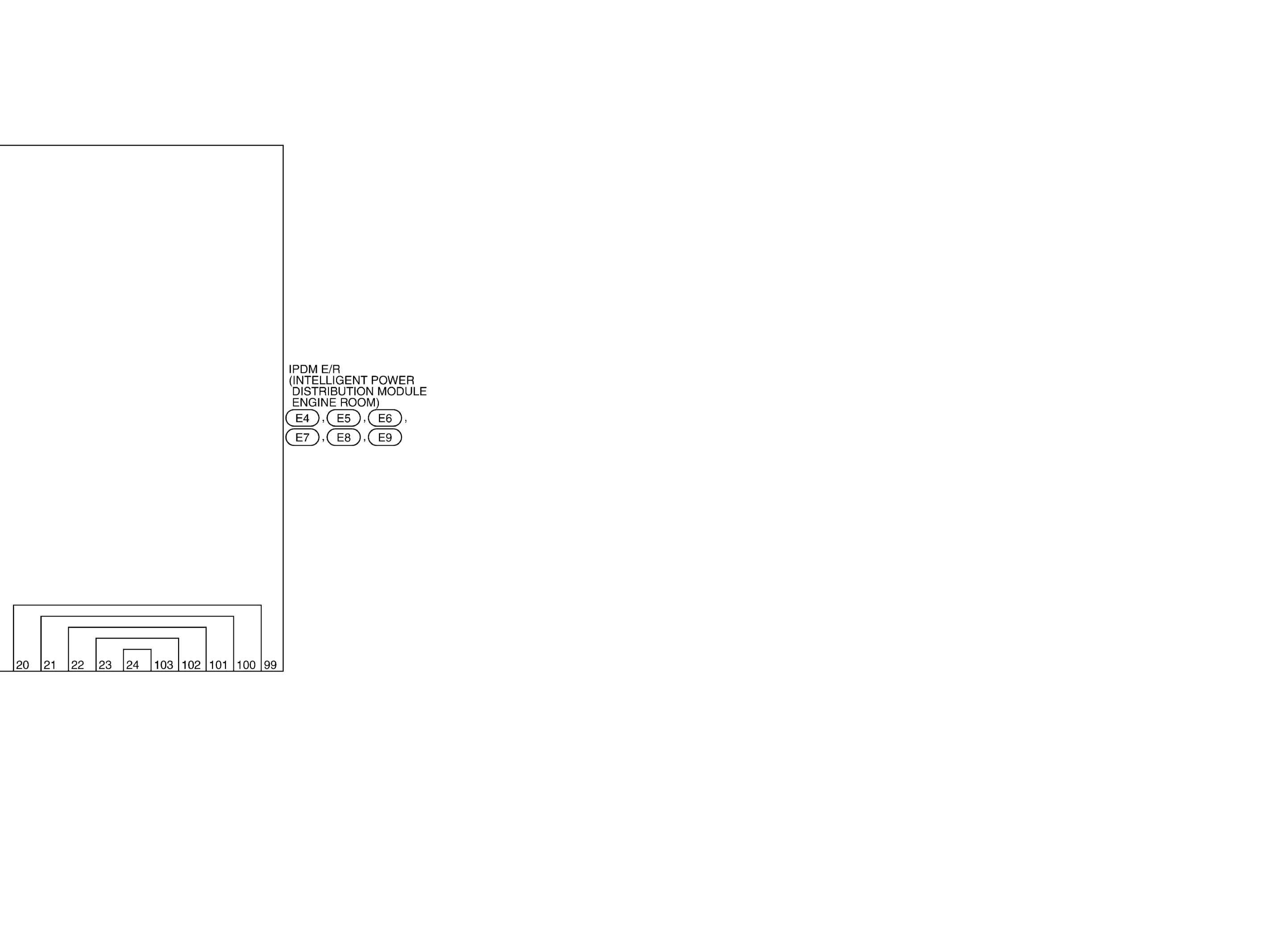

Fig 1: IPDM E/R Wiring Diagram (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

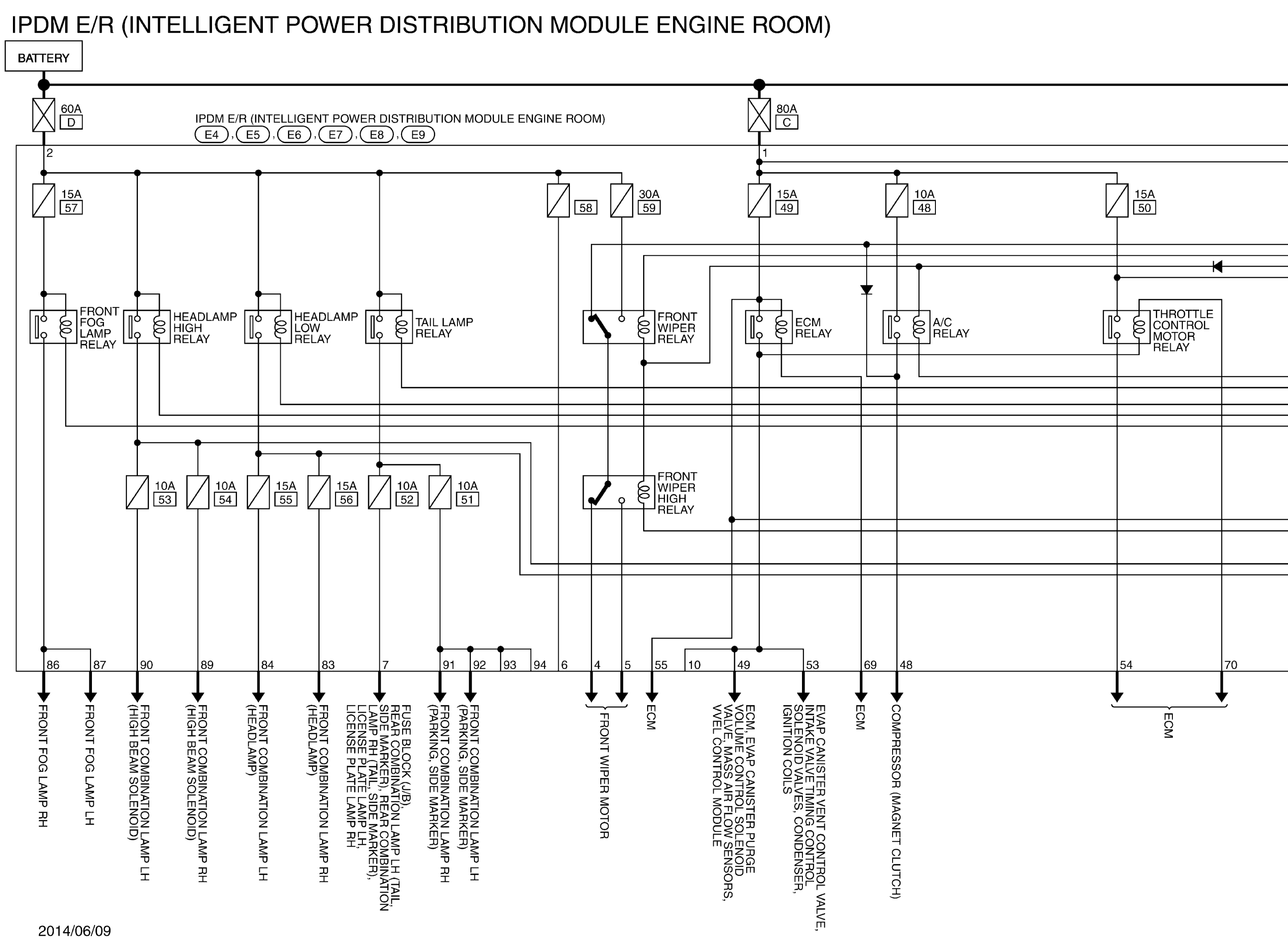

Fig 2: IPDM E/R Wiring Diagram (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

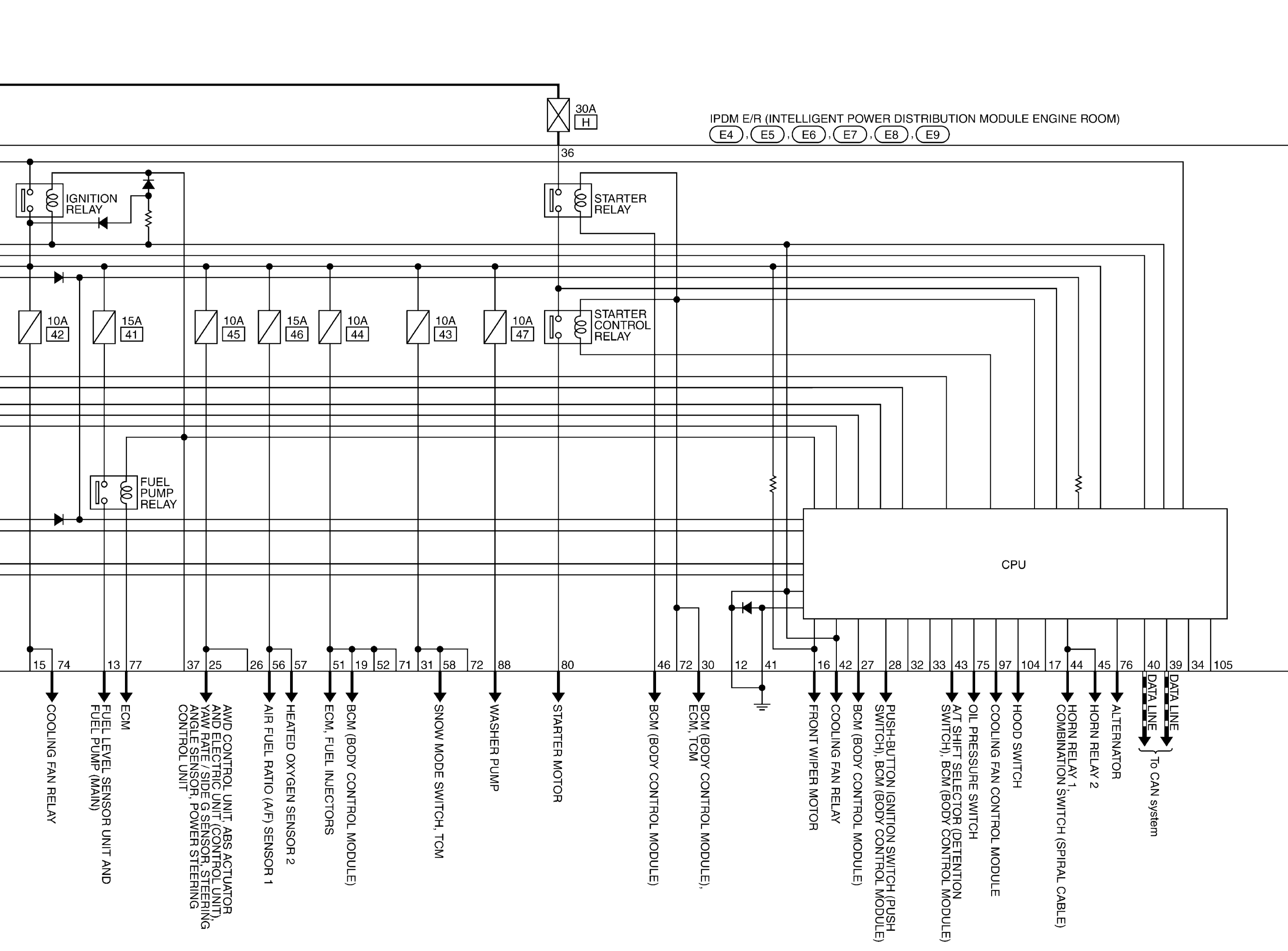

Fig 3: IPDM E/R Wiring Diagram (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
