Infiniti
>>
2014
>>
QX80 AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel
>>
Removal And Installation
>>
Rear Console Assembly
>>
Exploded View
Exploded View

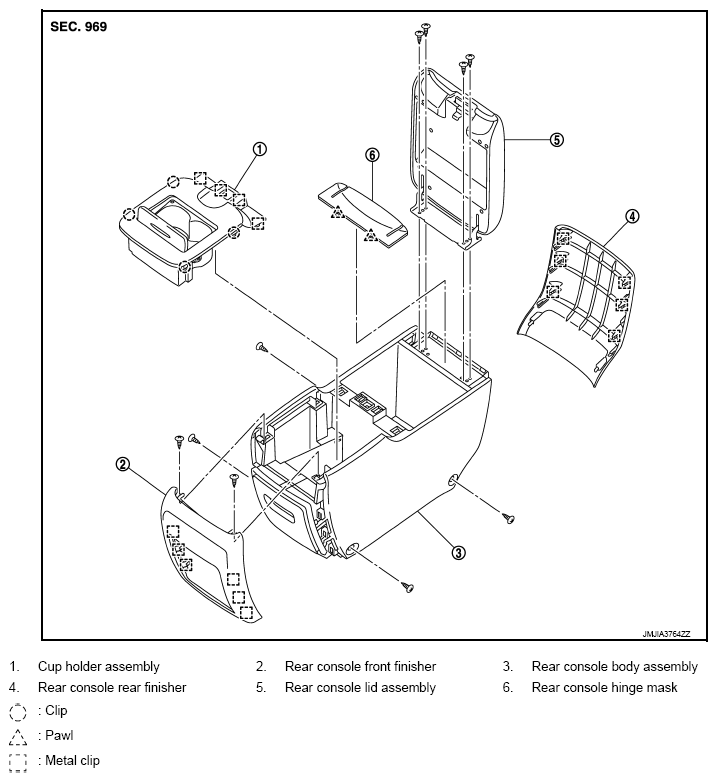

Fig 1: Identifying Exploded View Of Rear Console Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
