Removal and Installation: Removal

  1. Remove instrument lower cover.
    1. Pull disengaged pawls downward.
    2. Pull back instrument lower cover.
    3. Disconnect harness connectors.
      Fig 1: Removing Instrument Lower Cover
      G09179916Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove selector lever knob. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove console finisher assembly.
    1. Put front seat to rearmost position.
    2. Pull console finisher assembly, upward to disengage from center console assembly.
    3. Disconnect harness connectors.

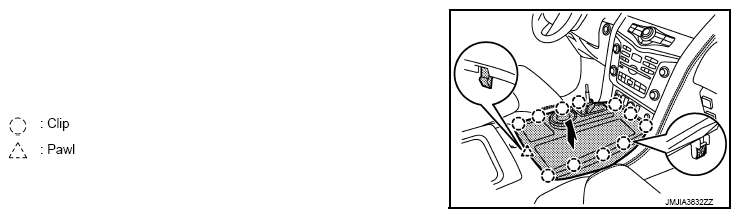

      Fig 2: Removing Console Finisher Assembly
      G09179917Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove instrument center finisher RH.
    1. Pull the instrument center finisher RH lower side, and then disengage the fixing clip.
      Fig 3: Removing Instrument Center Finisher RH
      G09179918Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back instrument center finisher RH, and then disengage metal clips.
    3. Disengage instrument center finisher RH fixing pawl from instrument panel assembly.

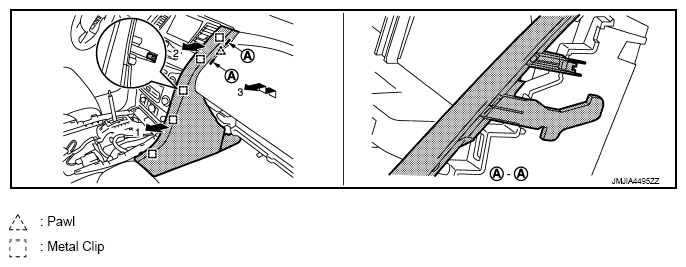

      Fig 4: Removing Instrument Center Finisher RH Fixing Pawl From Instrument Panel Assembly
      G09179919Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove instrument center finisher LH.
    1. Pull the instrument center finisher LH lower side, and then disengage the fixing clip.
      Fig 5: Removing Instrument Center Finisher LH
      G09179920Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull back instrument center finisher LH, and then disengage metal clips.
    3. Disengage instrument center finisher LH fixing pawl from instrument panel assembly.

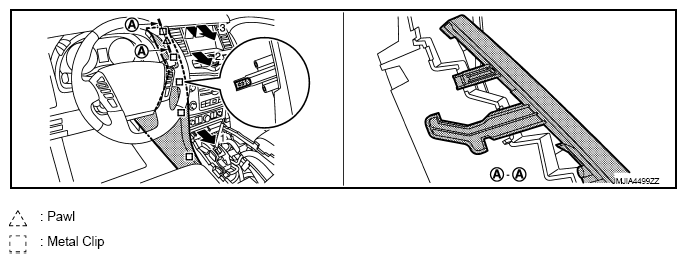

      Fig 6: Removing Instrument Center Finisher LH Fixing Pawl From Instrument Panel Assembly
      G09179921Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove console rear finisher.
    1. Put front seat to frontmost position.
    2. Pull back console rear finisher with remover tool (A).
    3. Disconnect harness connectors and harness clips.
      CAUTION: Apply protective tape (B) on the part to protect it from damage.

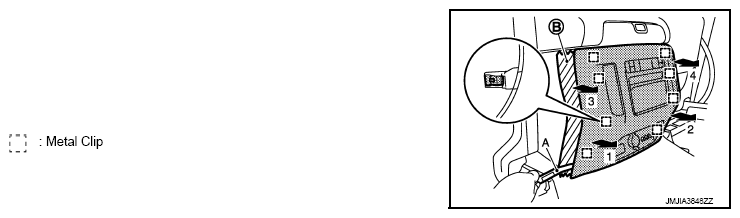

      Fig 7: Removing Console Rear Finisher
      G09179922Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove center console assembly.
    1. Remove center console assembly rear side fixing screws (A).

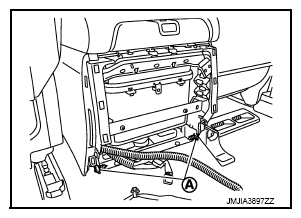

      Fig 8: Removing Center Console Assembly
      G09179923Courtesy of NISSAN NORTH AMERICA, INC.
    2. Put front seat to rearmost position.
    3. Remove center console assembly front fixing screws (B).

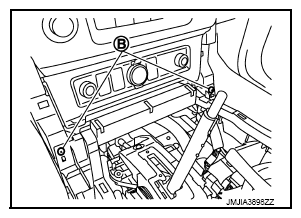

      Fig 9: Identifying Center Console Assembly Front Fixing Screws
      G09179924Courtesy of NISSAN NORTH AMERICA, INC.
    4. Lift up center console assembly back side, and then remove center console assembly.
