Removal And Installation: Installation
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse hose clamp.
- Hose clamp should not interfere with the spool or bulge.
*Refer to the following when installing CVT water hose.
| Water hose (1) | Installation side tube (2) | Direction of paint mark | Hose insertion depth |
|---|---|---|---|
| CVT water hose A | Water outlet | Upward | End reaches the 2-stage bulge. |
| CVT oil warmer | Frontward | ||
| CVT water hose B | CVT oil warmer | Frontward | |
| Heater thermostat | Align with the mark on the heater thermostat side | ||
| CVT water hose C | Heater thermostat | Align with the mark on the heater thermostat side | End reaches the expansion part. |
| Water outlet | Upward | End reaches the 2-stage bulge. |

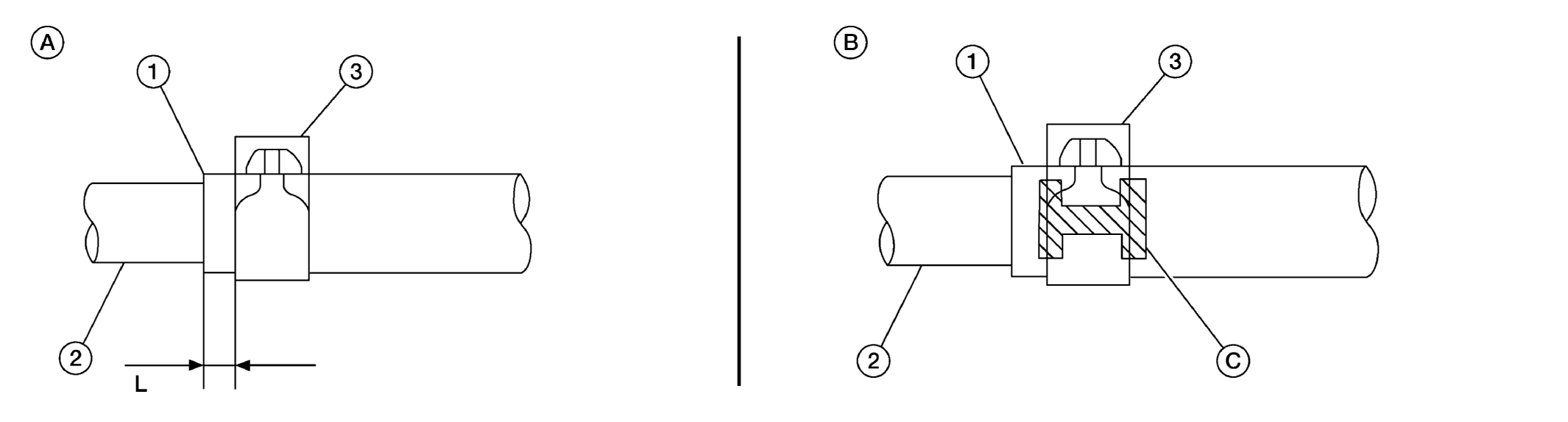

*Refer to the following when installing hose clamps.
| CVT Water hose (1) | Installation side tube (2) | Hose clamp (3) | |
|---|---|---|---|
| Direction of tab | Clamping position* | ||
| CVT Water hose A | Water outlet | Downward and 45° rightward | A: 5-7 mm (0.20 - 0.28 in) (L) from hose end. |
| CVT oil warmer | Downward | ||
| CVT Water hose B | CVT oil warmer | Forward and 45° downward | B: Align with the paint mark (C) as shown in illustration. |
| Heater thermostat | Downward | ||
| CVT Water hose C | Heater thermostat | Downward | |
| Water outlet | Upward | ||
