Inspection Before Installation

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

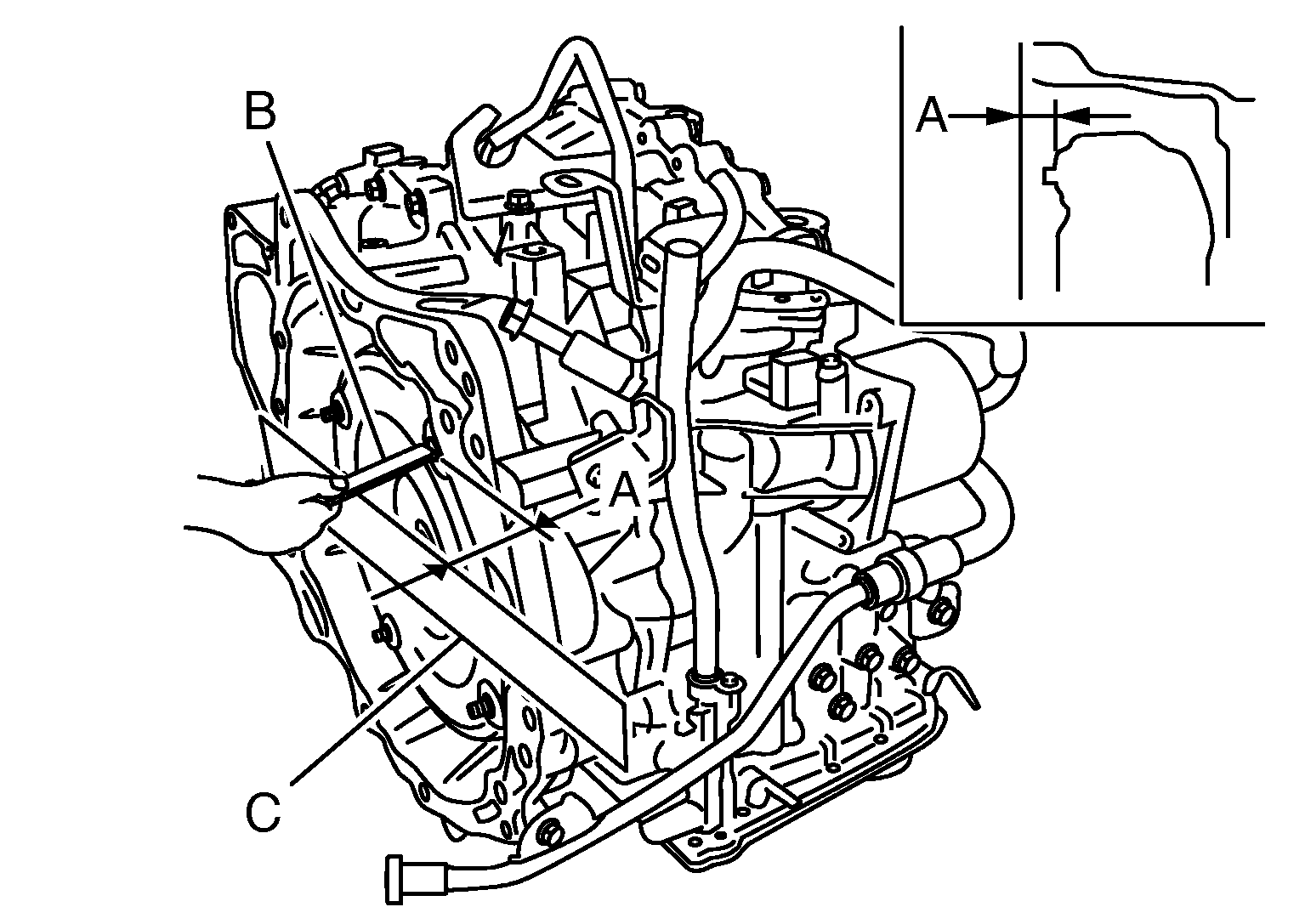

After inserting a torque converter to the CVT, check dimension (A) with in the reference value limit.

G05370114Courtesy of NISSAN NORTH AMERICA, INC.
B : Scale
C : Straightedge
Dimension (A) : Refer to TORQUE CONVERTER .
