Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

FWD Models

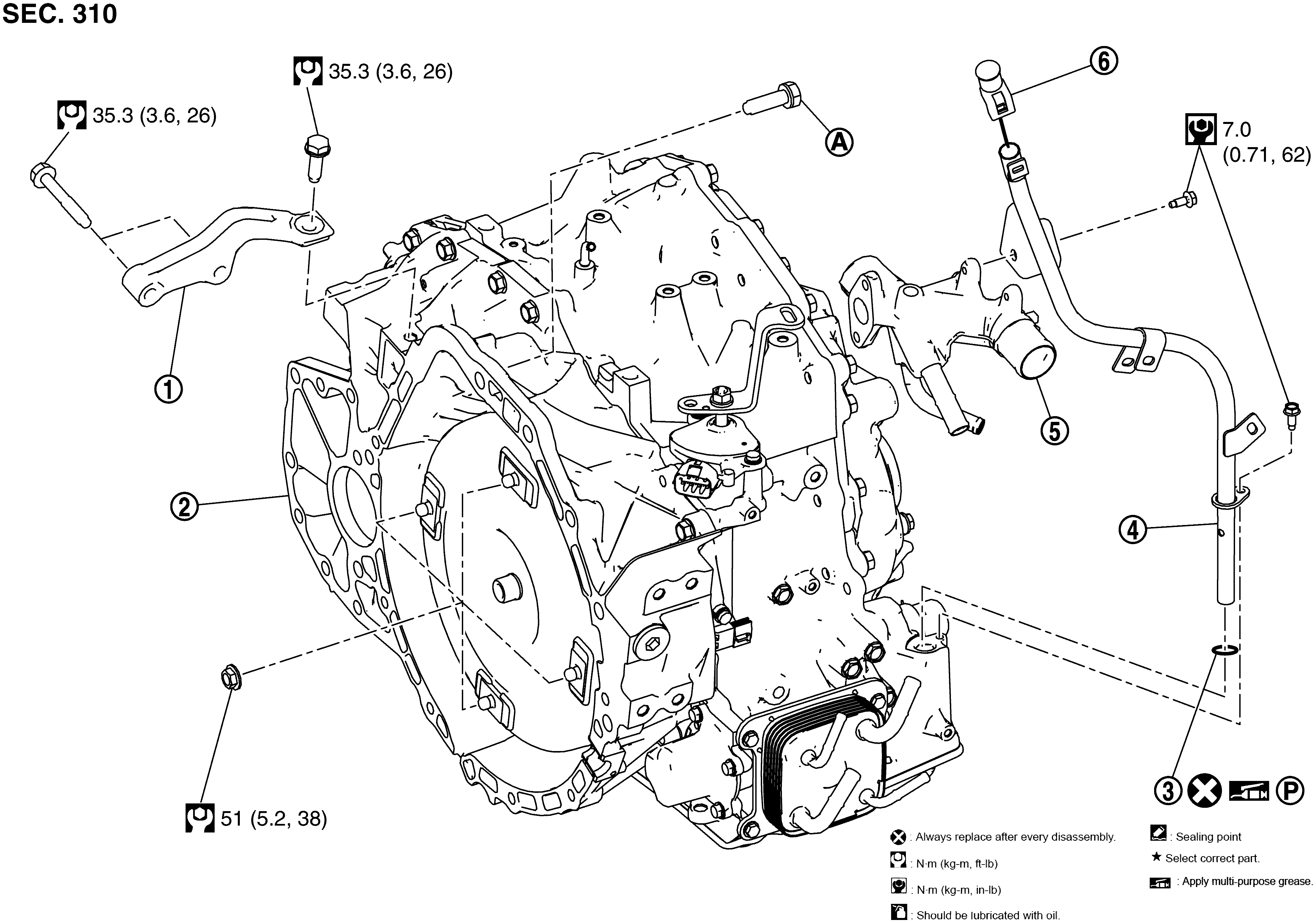

Fig 1: Transmission Assembly With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Gusset	2.	Transaxle assembly	3.	O-ring
4.	CVT fluid charging pipe	5.	Water outlet	6.	CVT fluid charging pipe cap
A.	: For the tightening torque, refer to REMOVAL AND INSTALLATION .

AWD Models

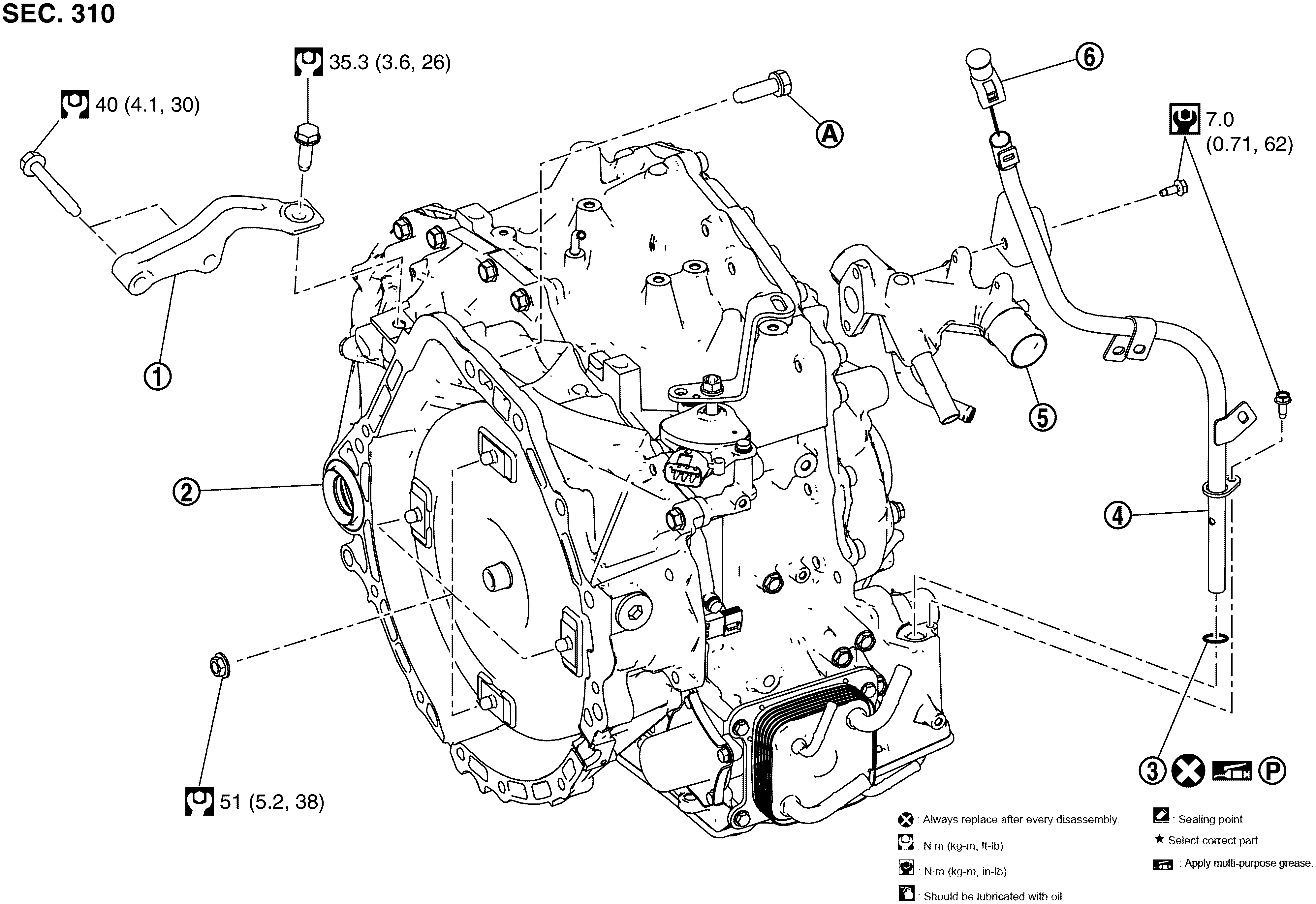

Fig 2: Transmission Assembly With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Gusset	2.	Transaxle assembly	3.	O-ring
4.	CVT fluid charging pipe	5.	Water outlet	6.	CVT fluid charging pipe cap
A.	: For the tightening torque, refer to REMOVAL AND INSTALLATION .
