Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

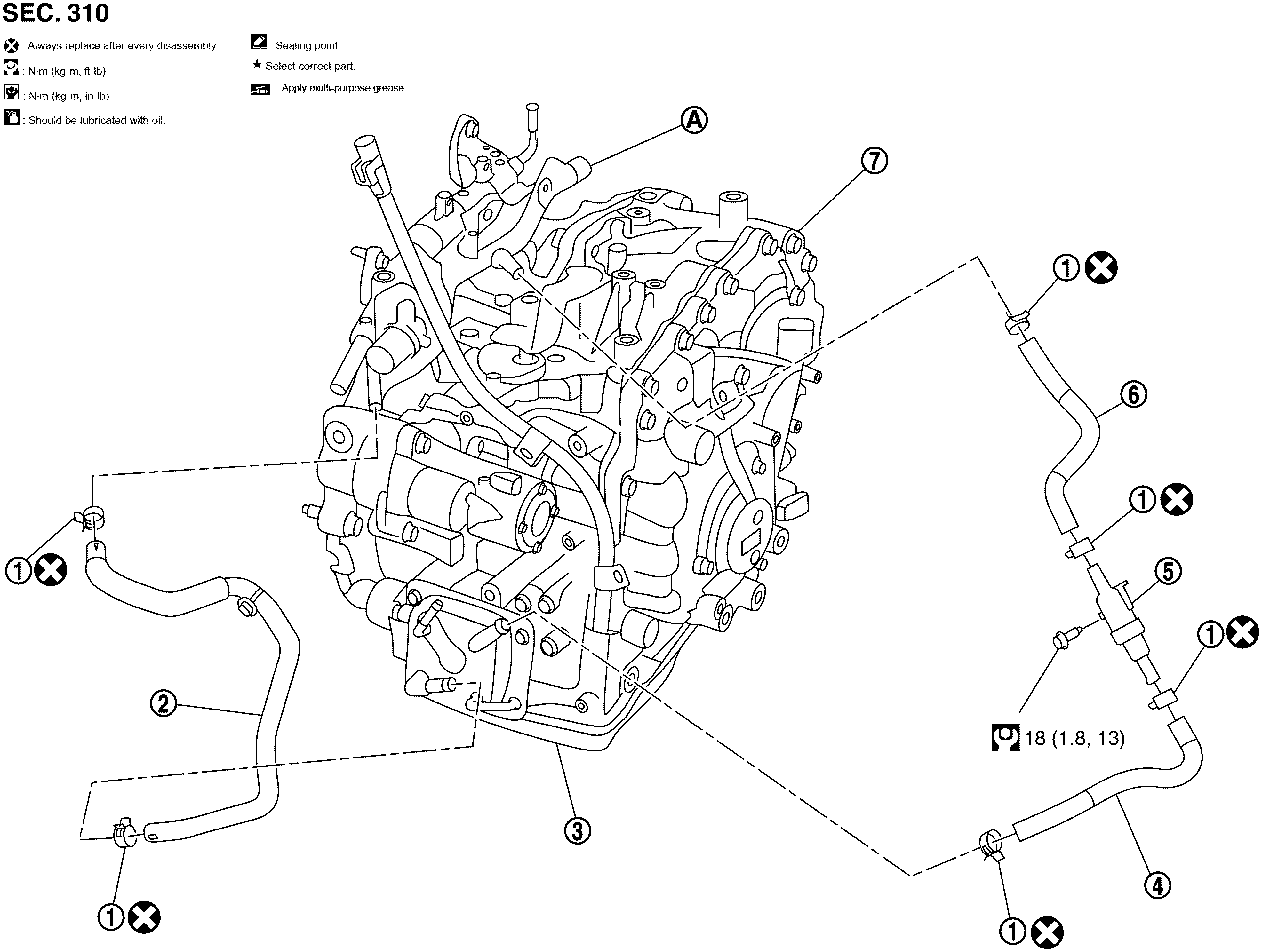

Fig 1: Water Hose With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Hose clamp	CVT water hose A	Transaxle assembly
CVT water hose B	Heater thermostat	CVT water hose C
Transaxle assembly
Water outlet
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
