Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

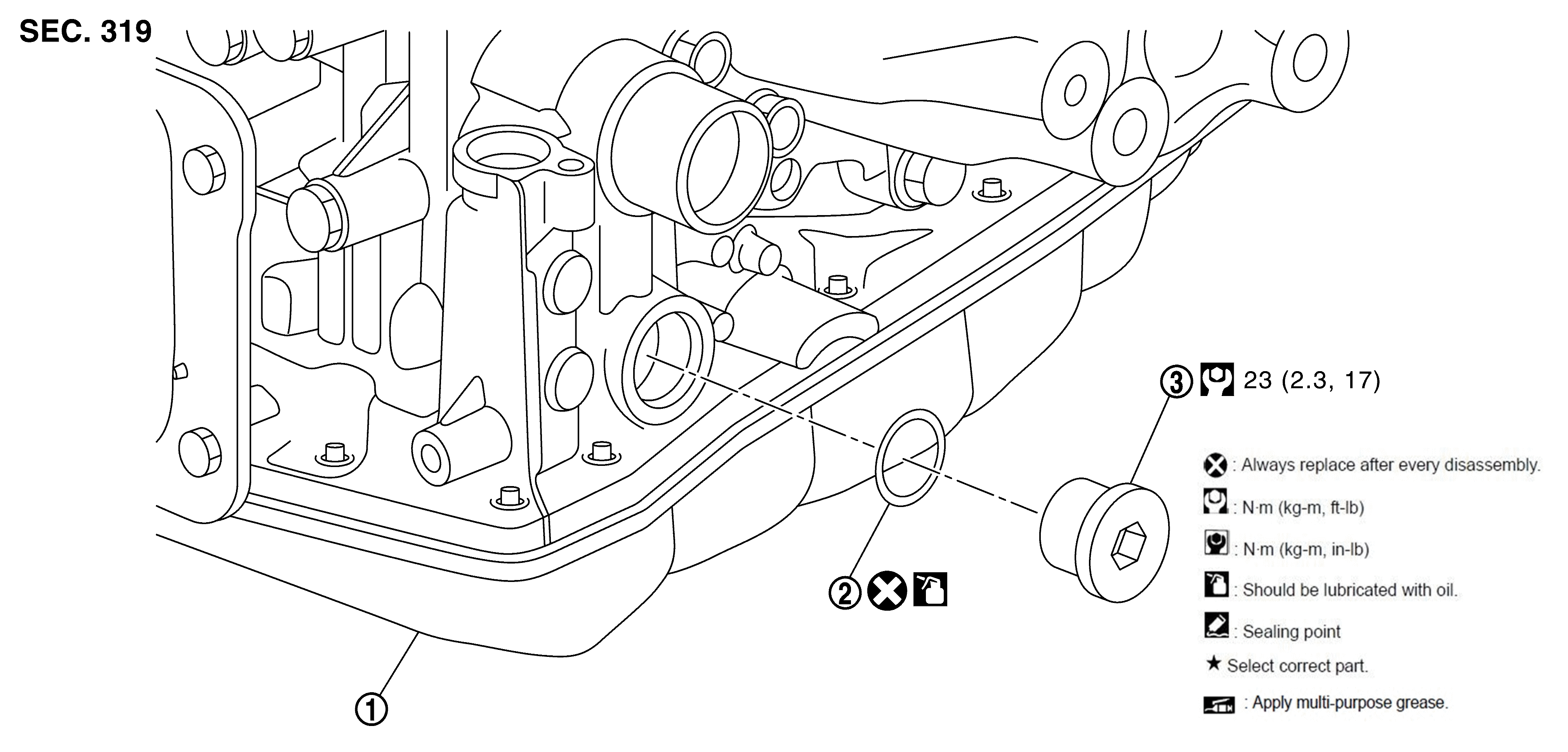

Fig 1: Plug With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Transaxle assembly	O-ring	Plug
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
: Apply CVT fluid
