Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

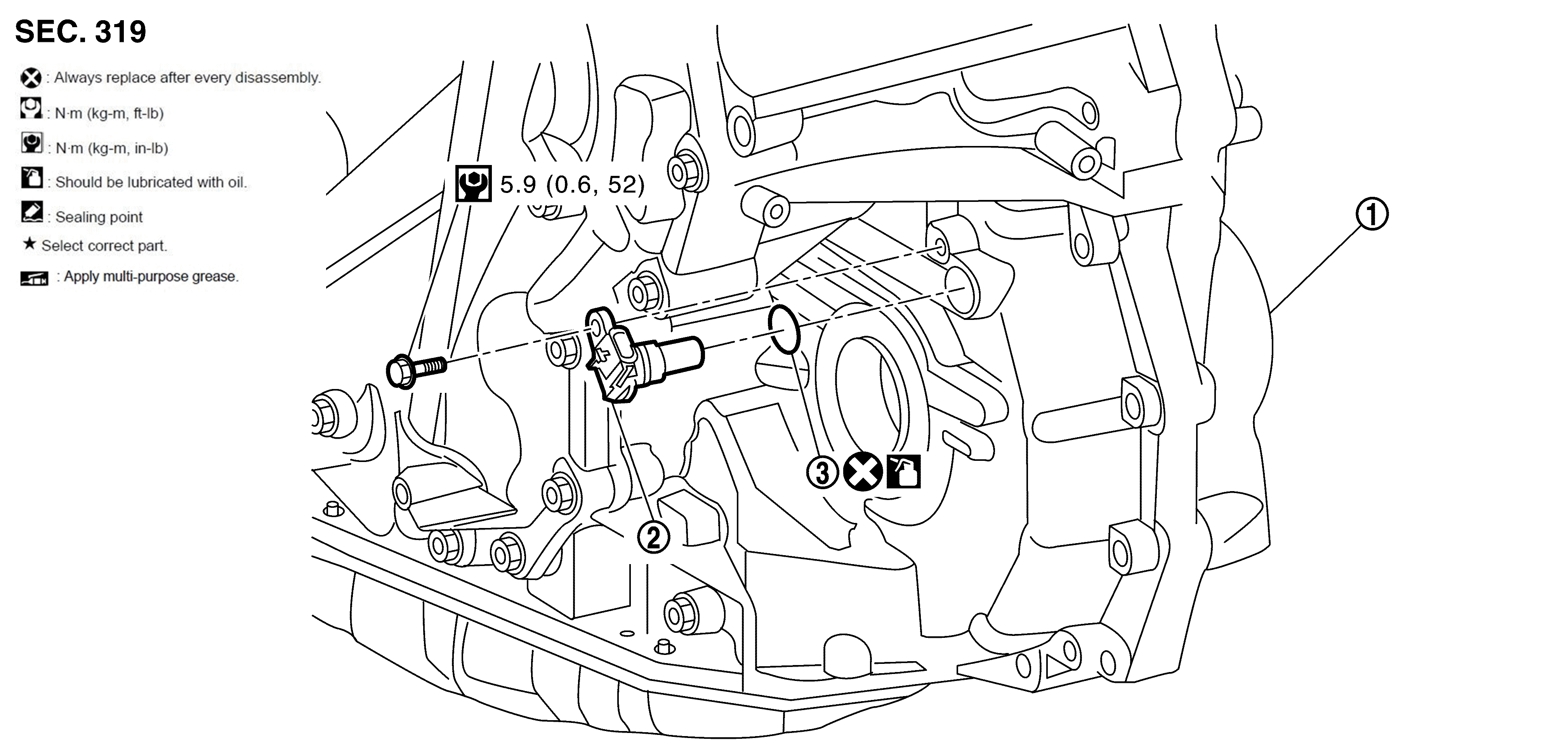

Fig 1: Output Speed Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Transaxle assembly	Output speed sensor	O-ring
: Always replace after every disassembly.
: N•m (kg-m, in-lb)
: Apply CVT fluid
