Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

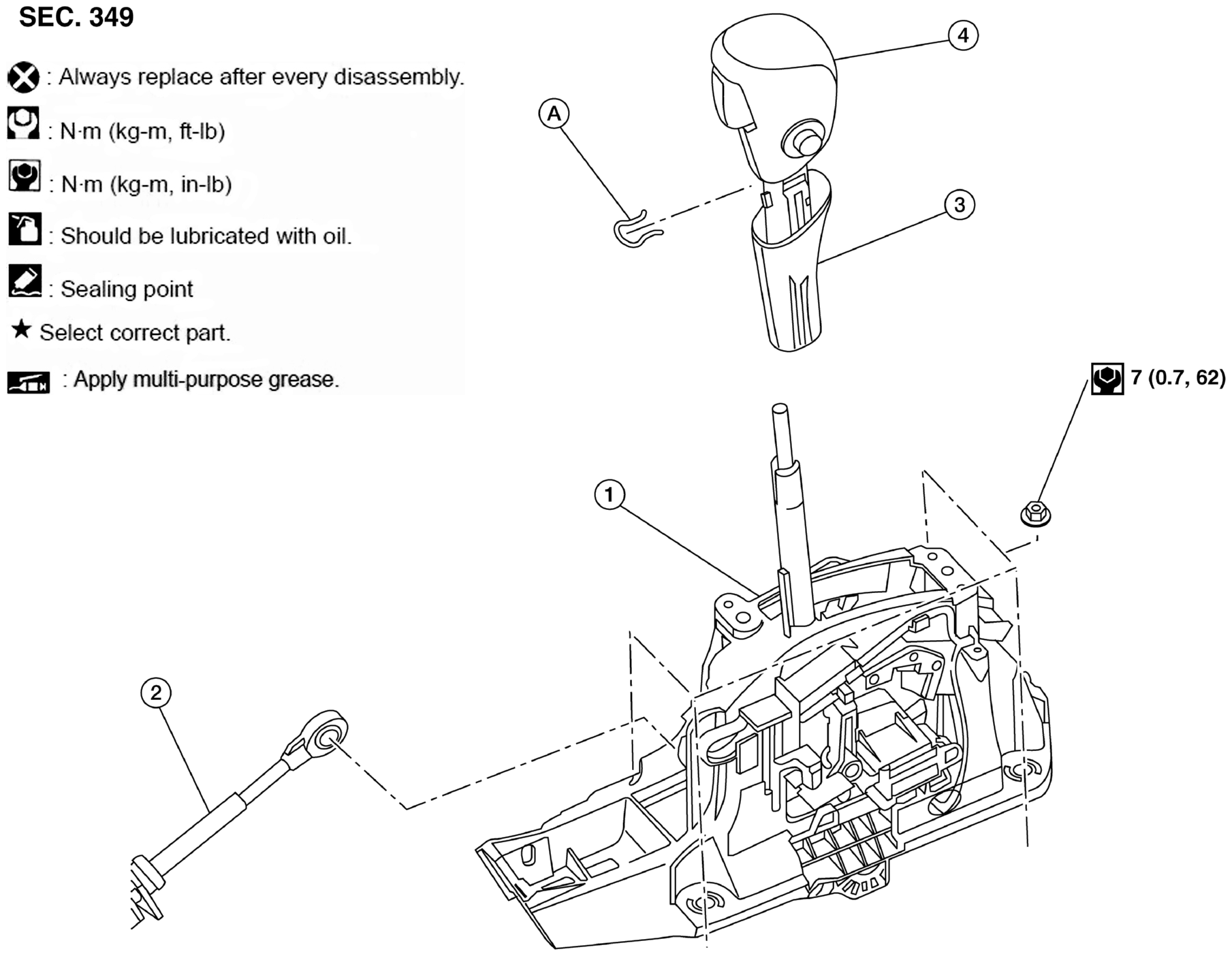

Fig 1: CVT Shift Selector With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	CVT shift selector assembly	2.	Control cable	3.	Shift selector handle cover
4	Shift selector handle	A.	Shift selector handle clip
