Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

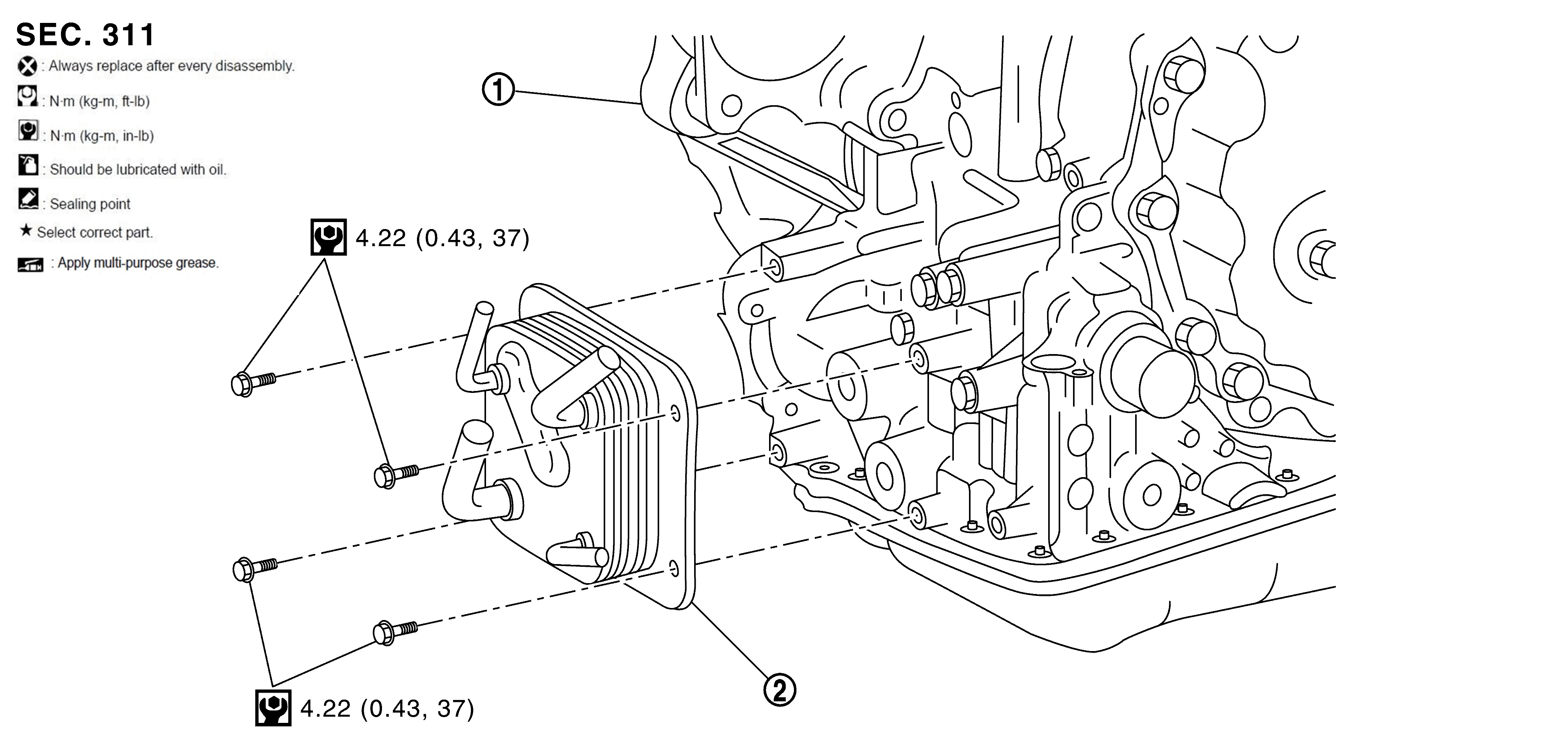

Fig 1: CVT Oil Warmer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Transaxle assembly		CVT oil warmer
	: Always replace after every disassembly.
	: N•m (kg-m, in-lb)
