Component Parts Location

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

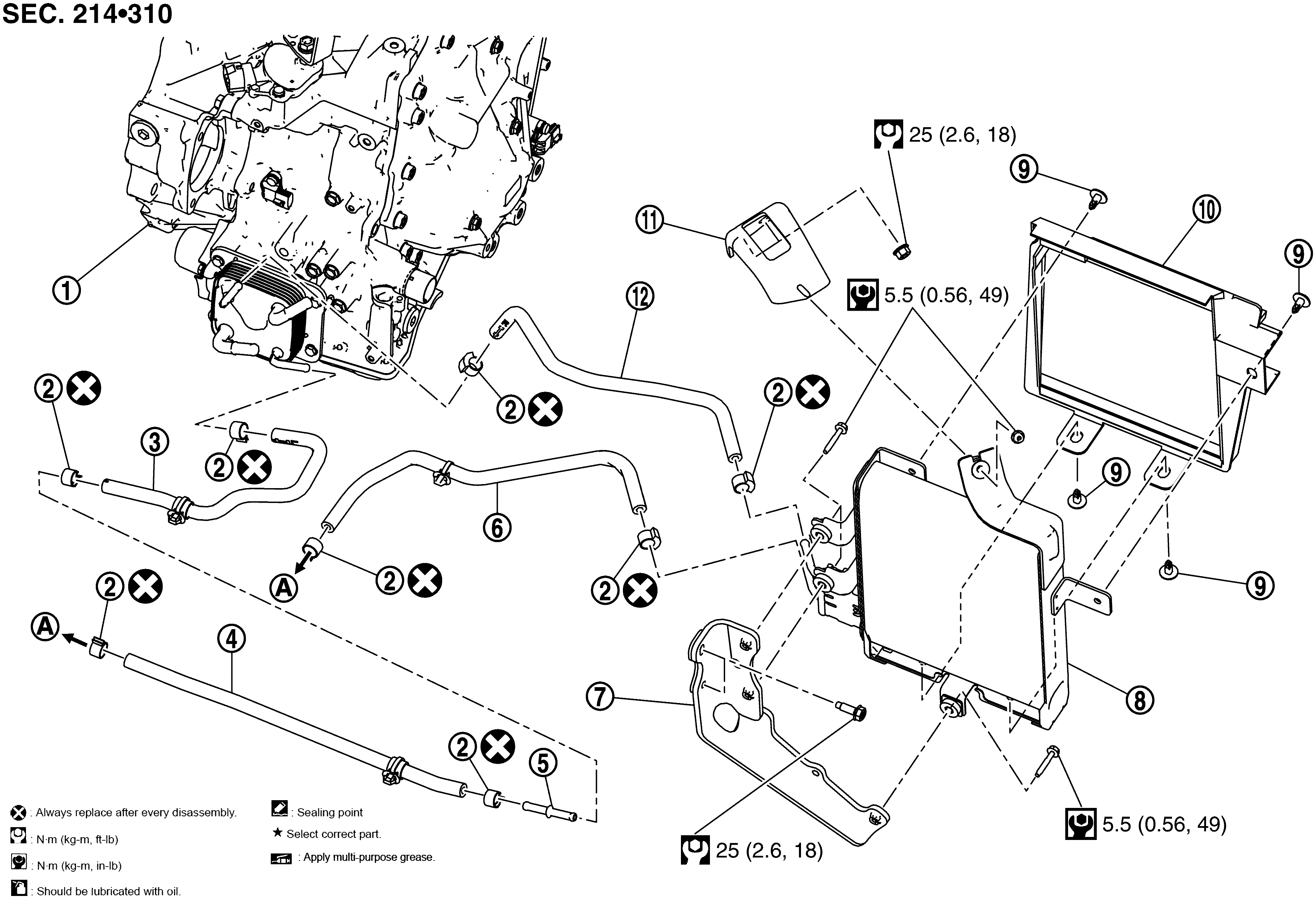

Fig 1: CVT Fluid Cooler System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Transaxle assembly	Hose clamp	CVT fluid cooler hose A
CVT fluid cooler hose B	Connector tube	CVT fluid cooler hose C
Bracket	CVT fluid cooler	Clip
Air guide	Bracket	CVT fluid cooler hose D
To radiator
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
