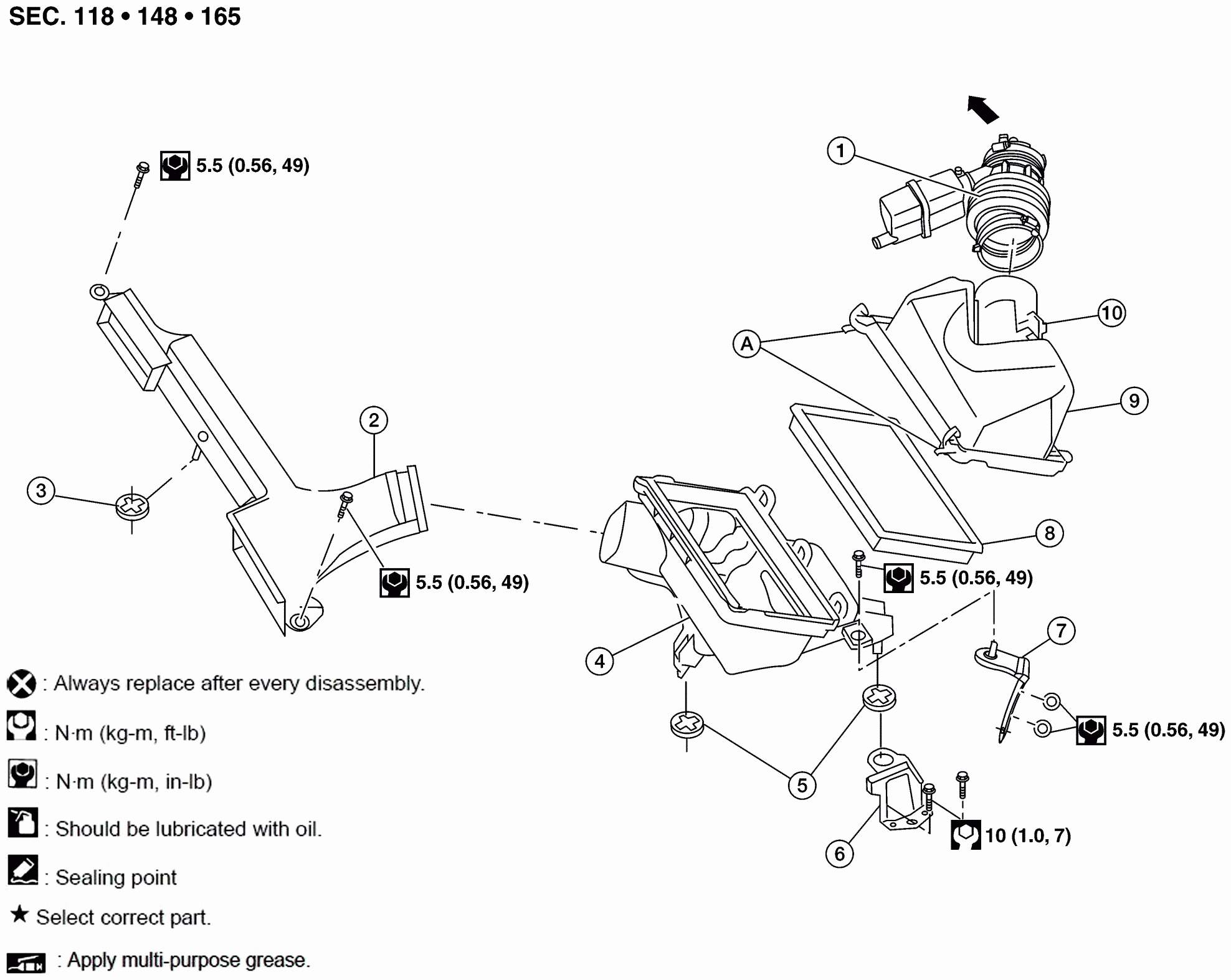

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Air duct hose and resonator assembly | 2. | Front air duct | 3. | Grommet |
| 4. | Air cleaner case (lower) | 5. | Grommets | 6. | Air cleaner case mounting bracket |
| 7. | Bracket | 8. | Air cleaner filter | 9. | Air cleaner case (upper) |
| 10. | Mass air flow sensor | A. | Air cleaner case side clips | To electric throttle control actuator |
