Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

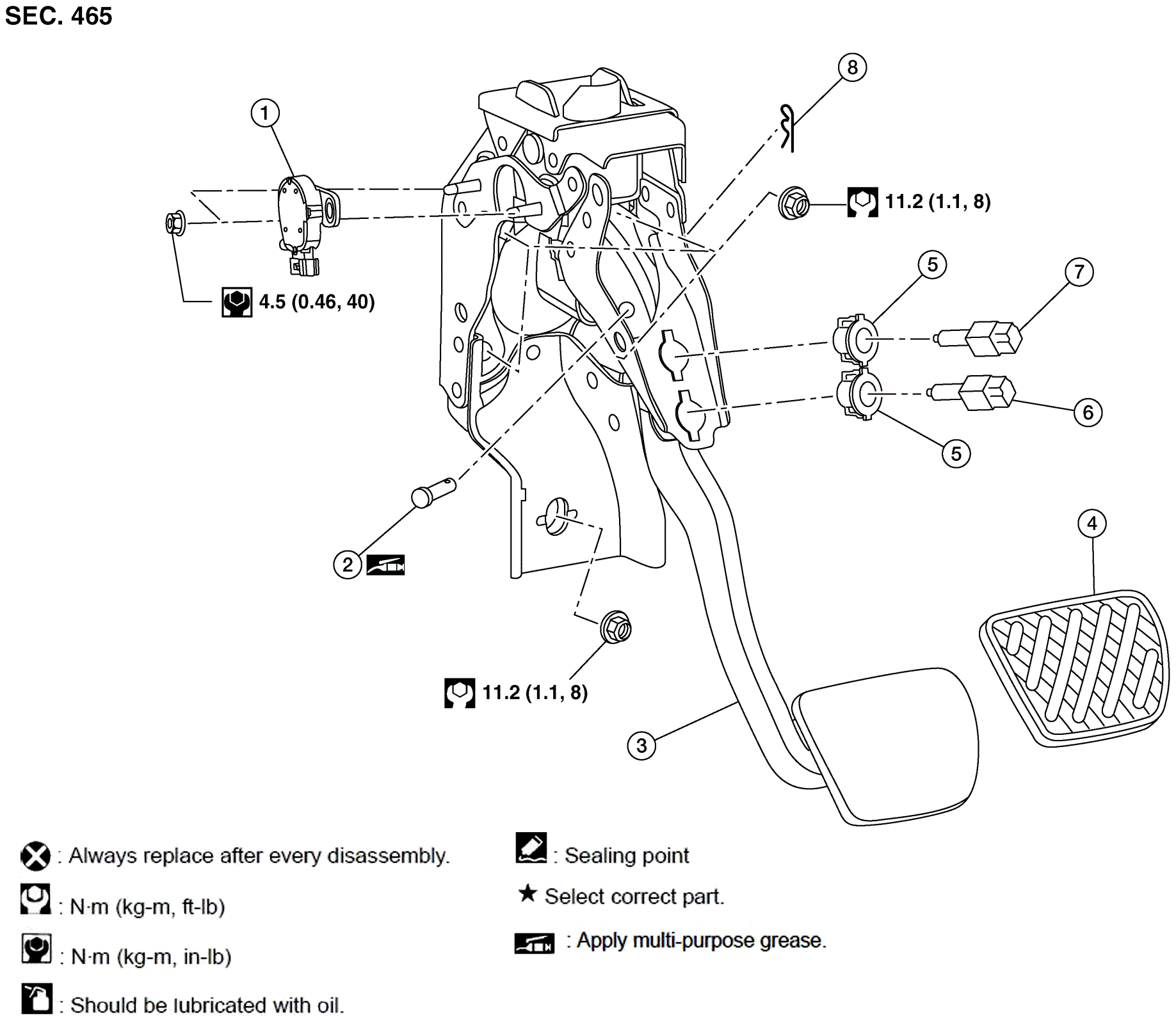

Fig 1: Brake Pedal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake stroke sensor (if equipped)	2.	Clevis pin	3.	Brake pedal
4.	Brake pedal pad	5.	Clip	6.	Stop lamp switch
7.	Brake pedal position switch	8.	Snap pin
