Wiring Diagram - IGNITION POWER SUPPLY -

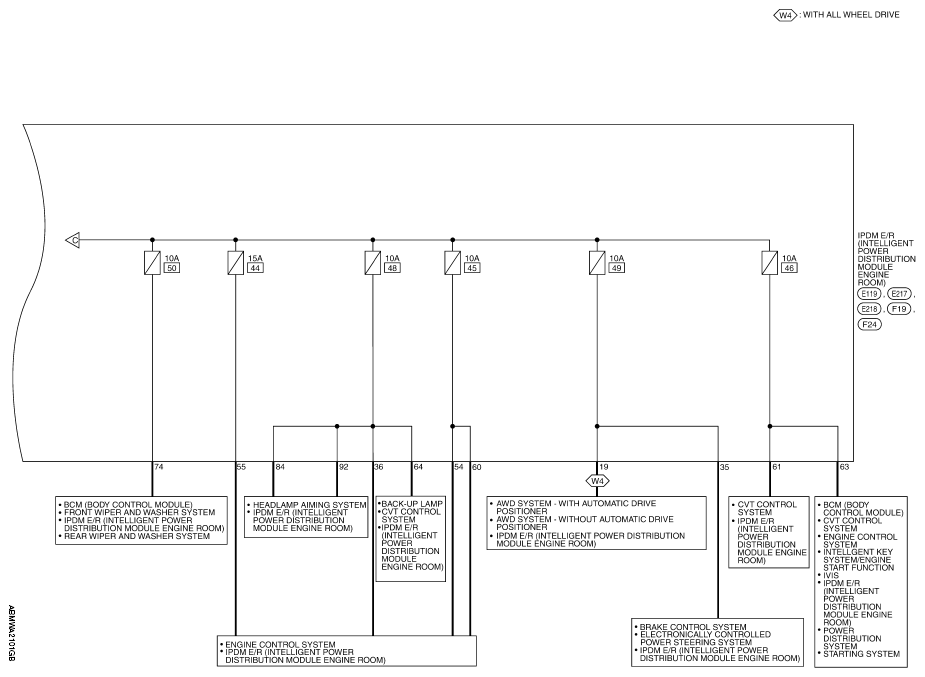

Fig 1: Ignition Power Supply Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

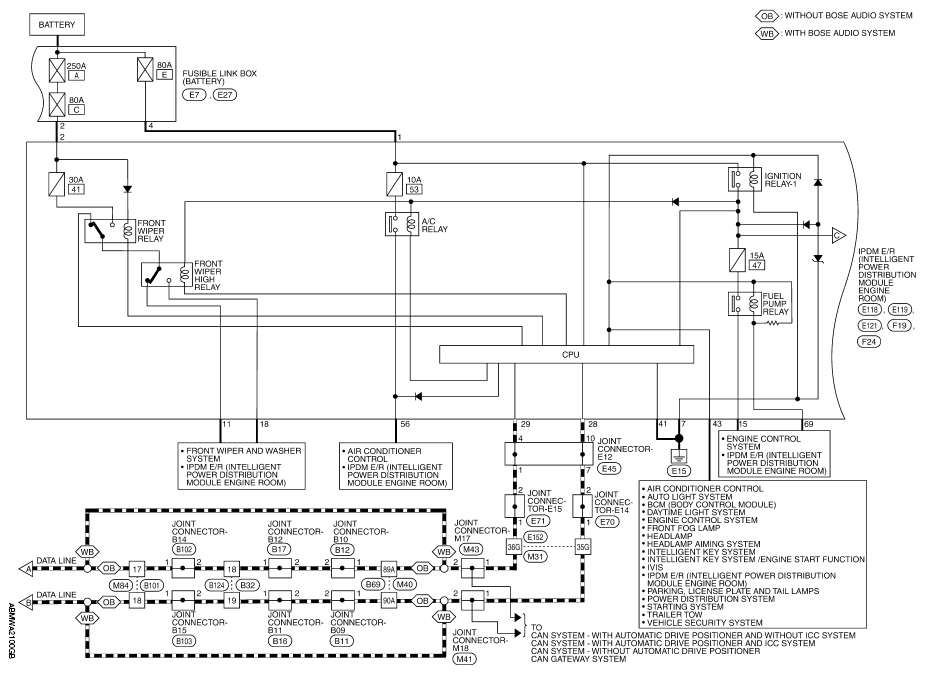

Fig 2: Ignition Power Supply Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

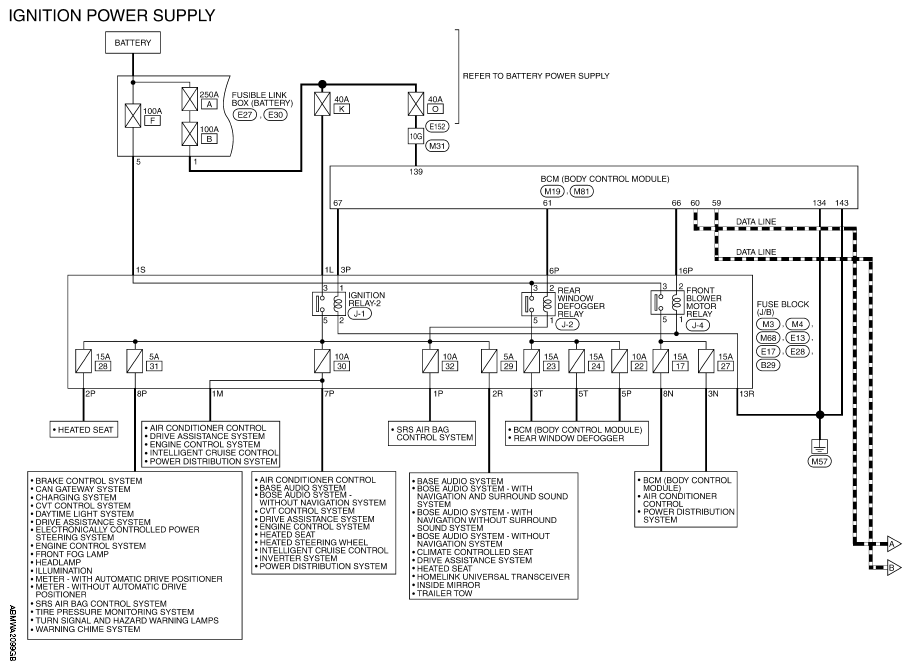

Fig 3: Ignition Power Supply Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
