Wiring Diagram - BATTERY POWER SUPPLY -
Wiring Diagram - BATTERY POWER SUPPLY -

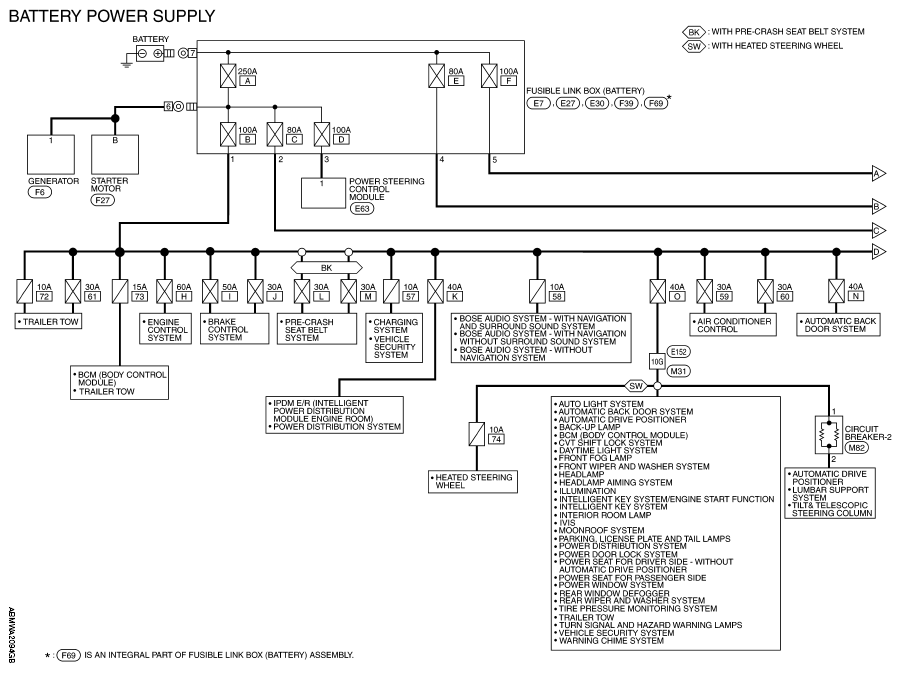

Fig 1: Battery Power Supply - Wiring Diagram (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

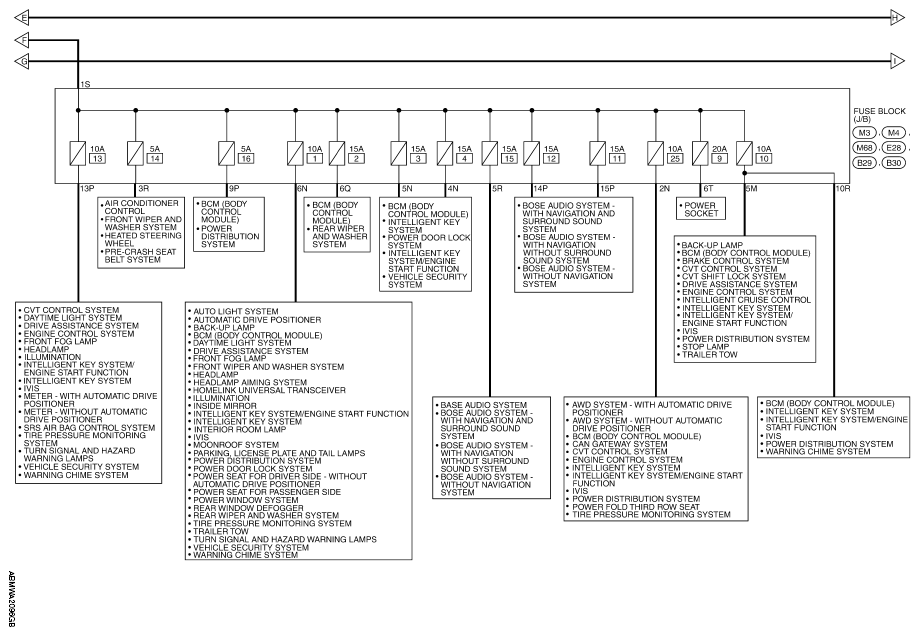

Fig 2: Battery Power Supply - Wiring Diagram (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

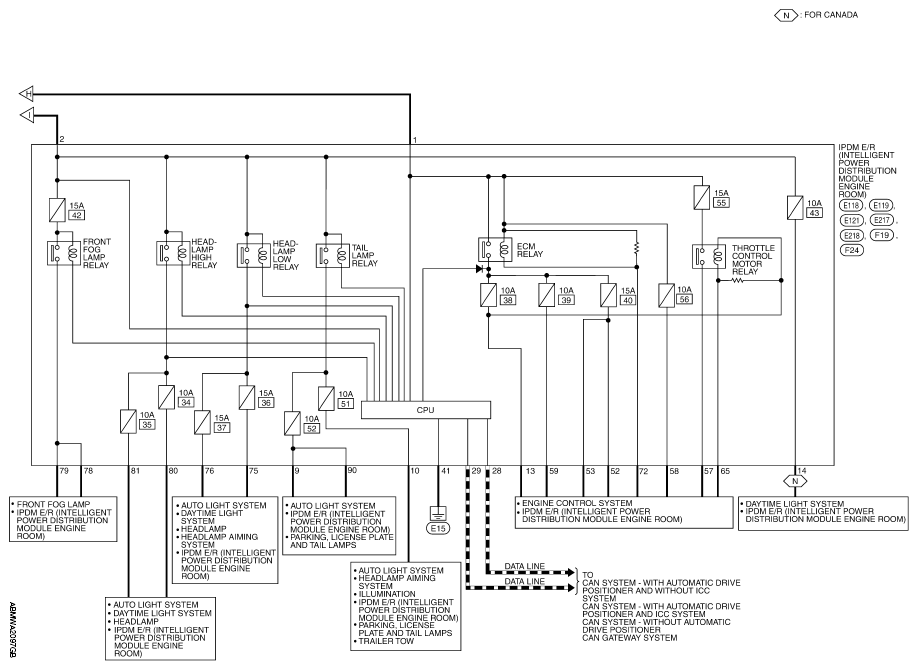

Fig 3: Battery Power Supply - Wiring Diagram (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

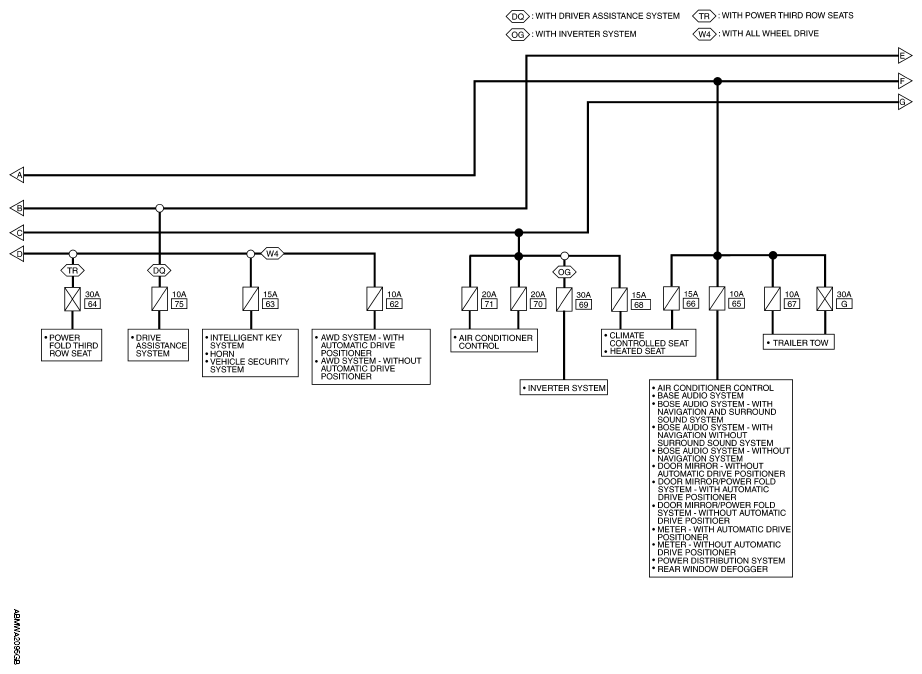

Fig 4: Battery Power Supply - Wiring Diagram (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
