Wiring Diagram - ACCESSORY POWER SUPPLY -

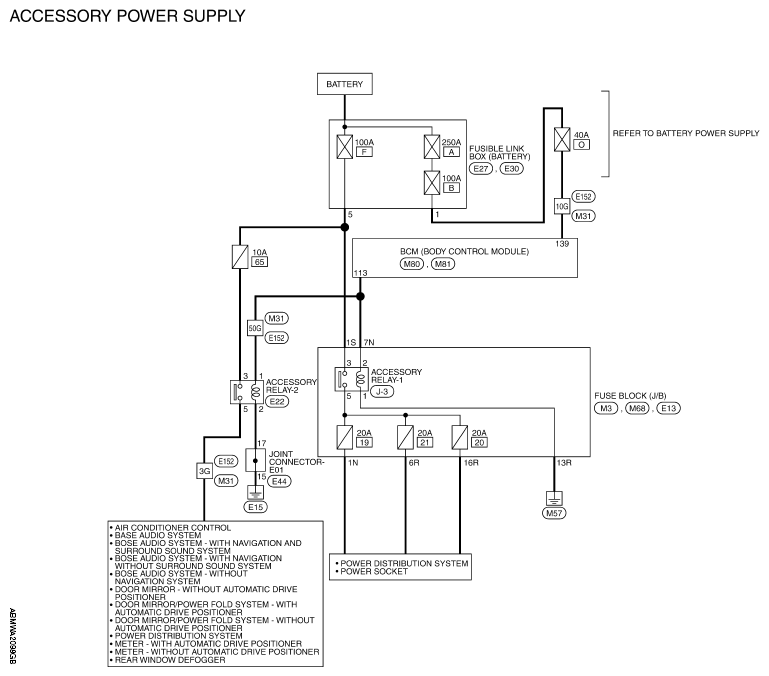

Fig 1: Accessory Power Supply Wiring Diagram

G09427228

Courtesy of NISSAN NORTH AMERICA, INC.
