Connector End Views

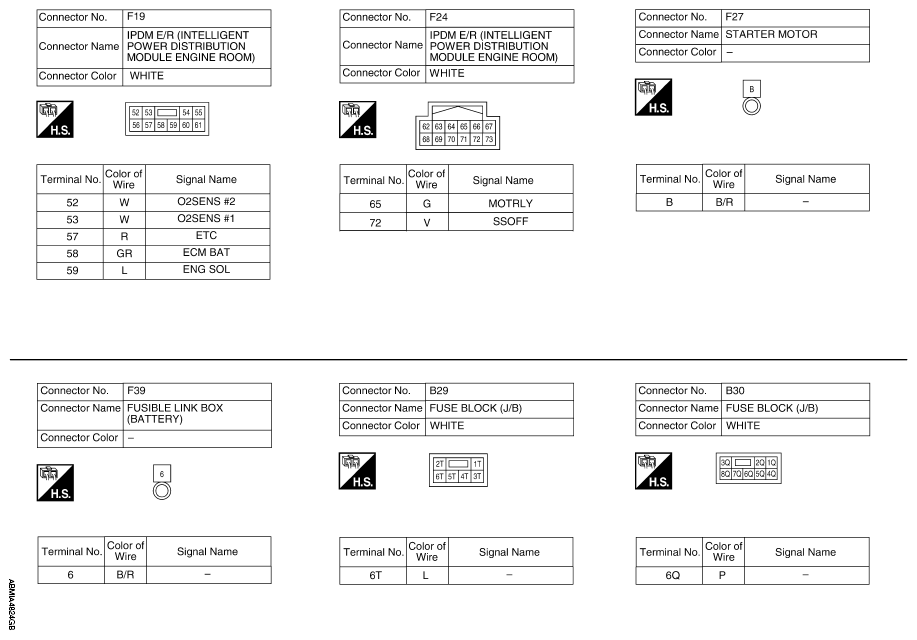

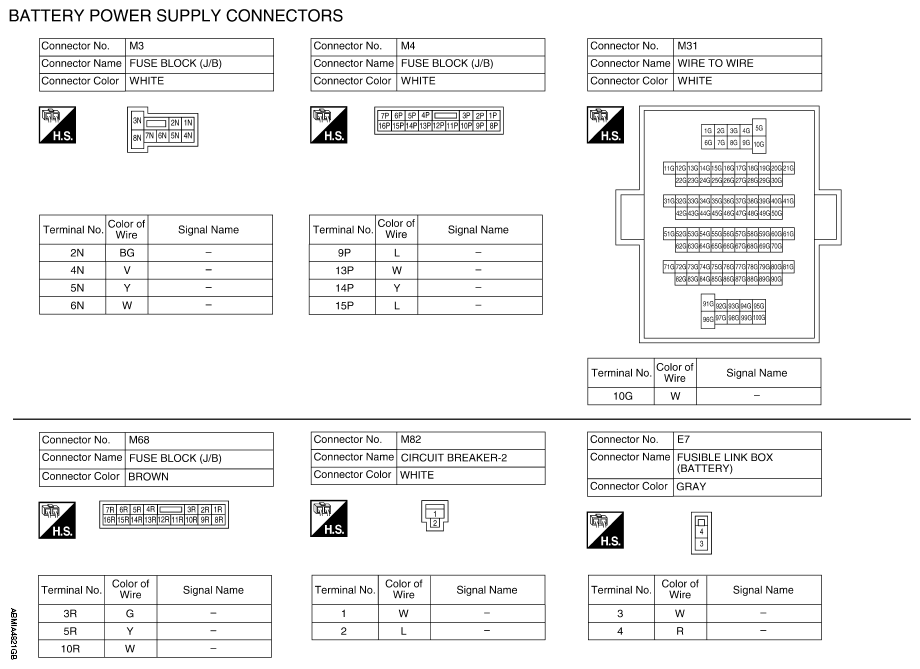

Fig 1: Battery Power Supply Connector End Views (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

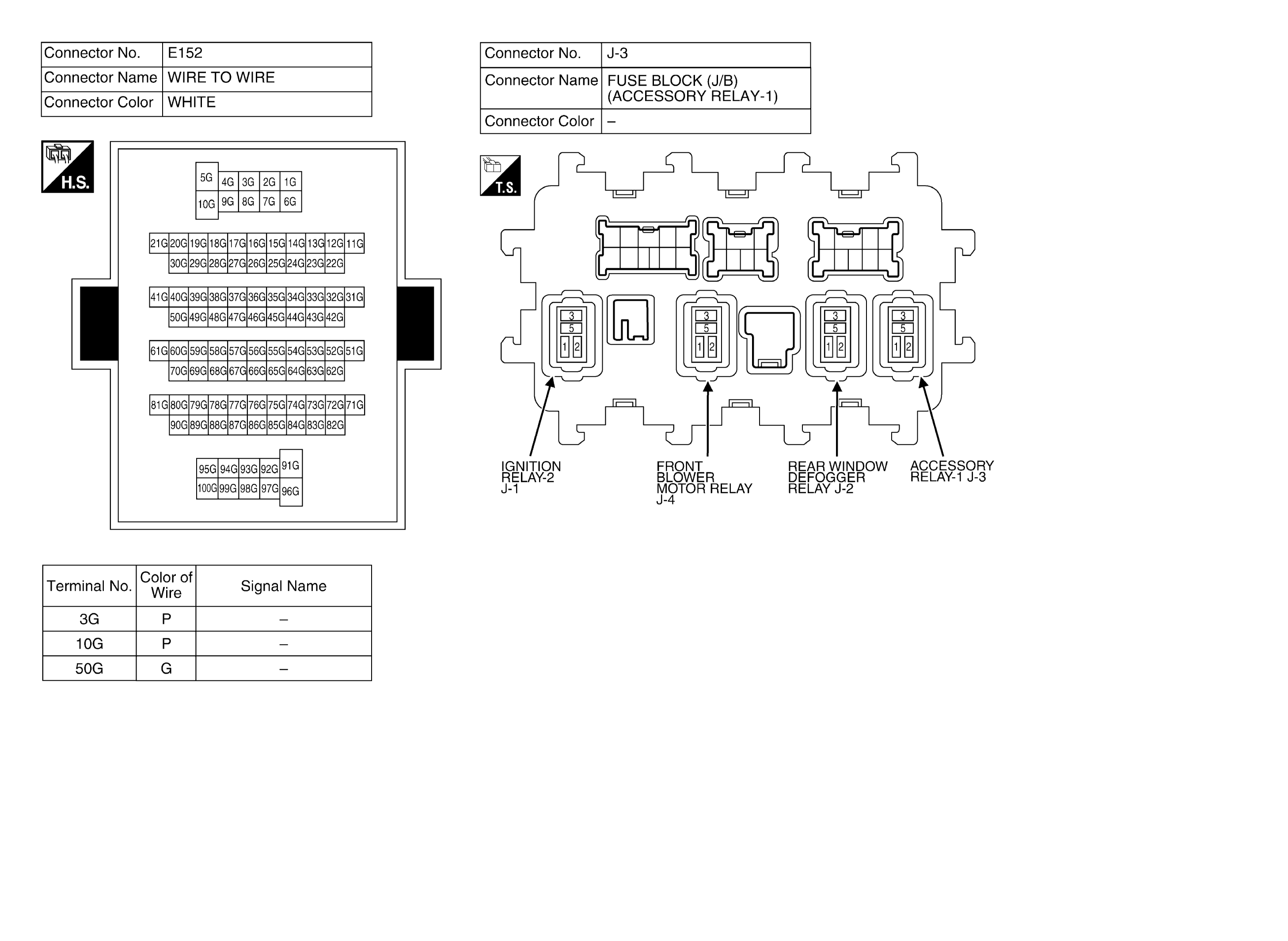

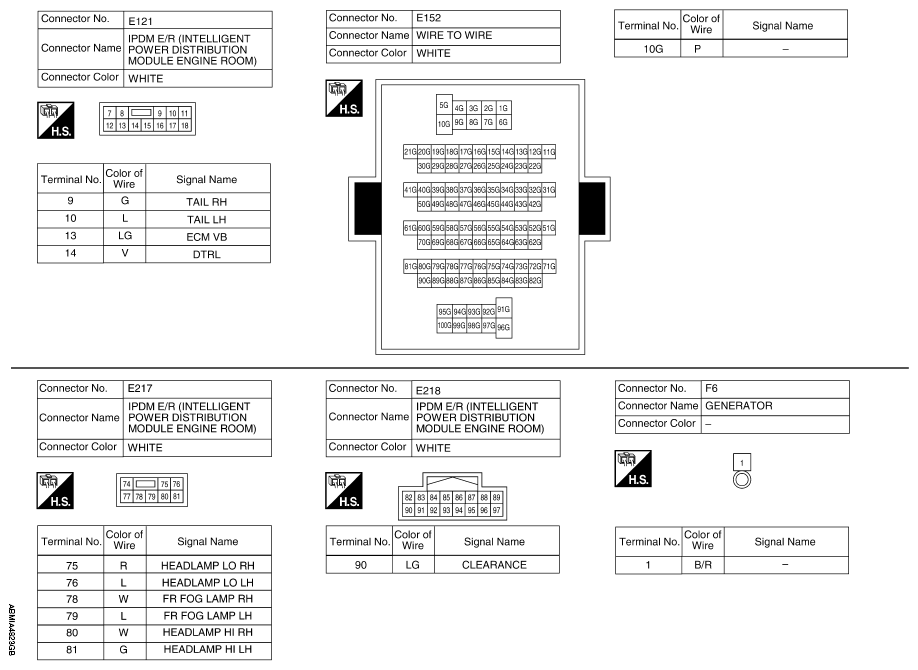

Fig 2: Battery Power Supply Connector End Views (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

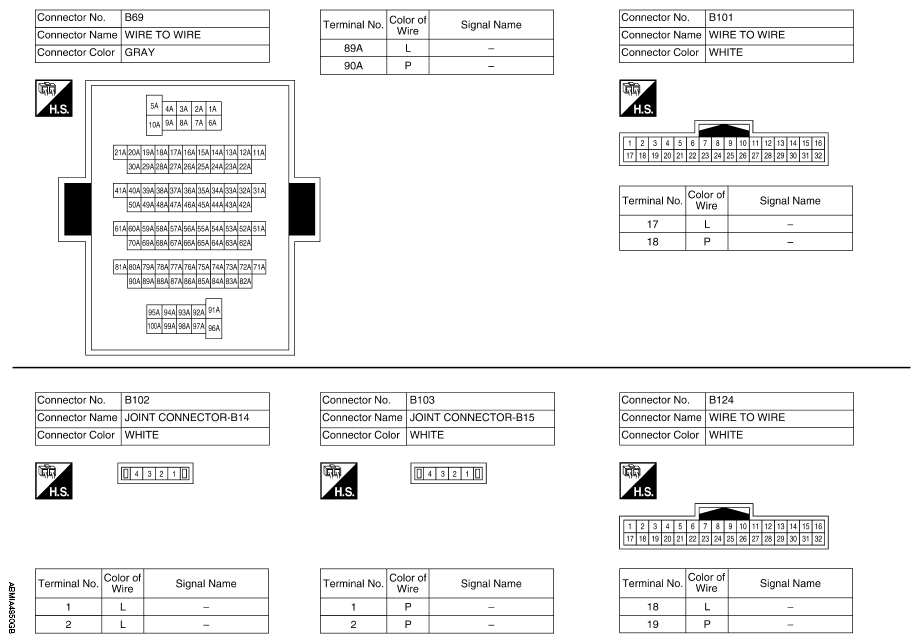

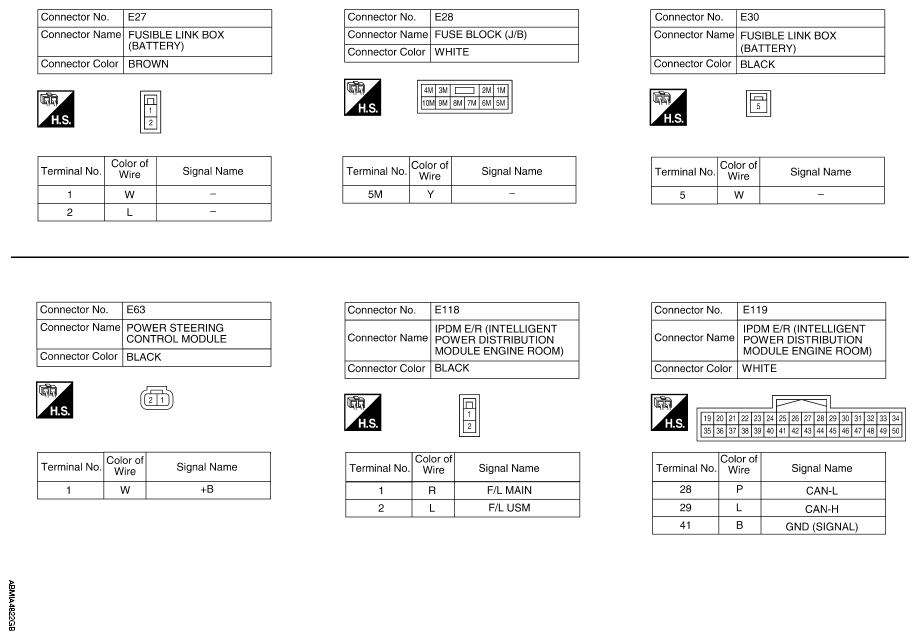

Fig 3: Battery Power Supply Connector End Views (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

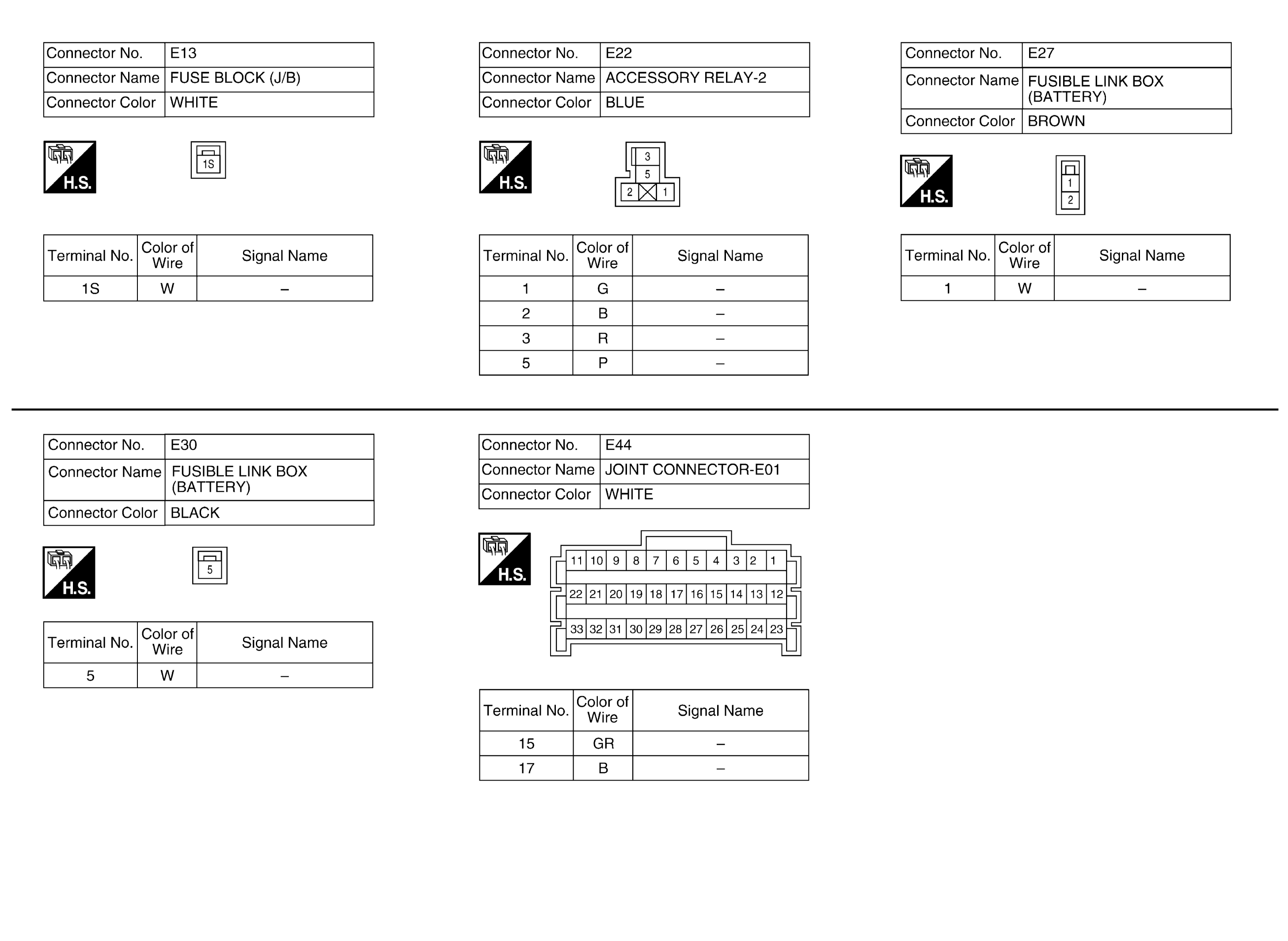

Fig 4: Battery Power Supply Connector End Views (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

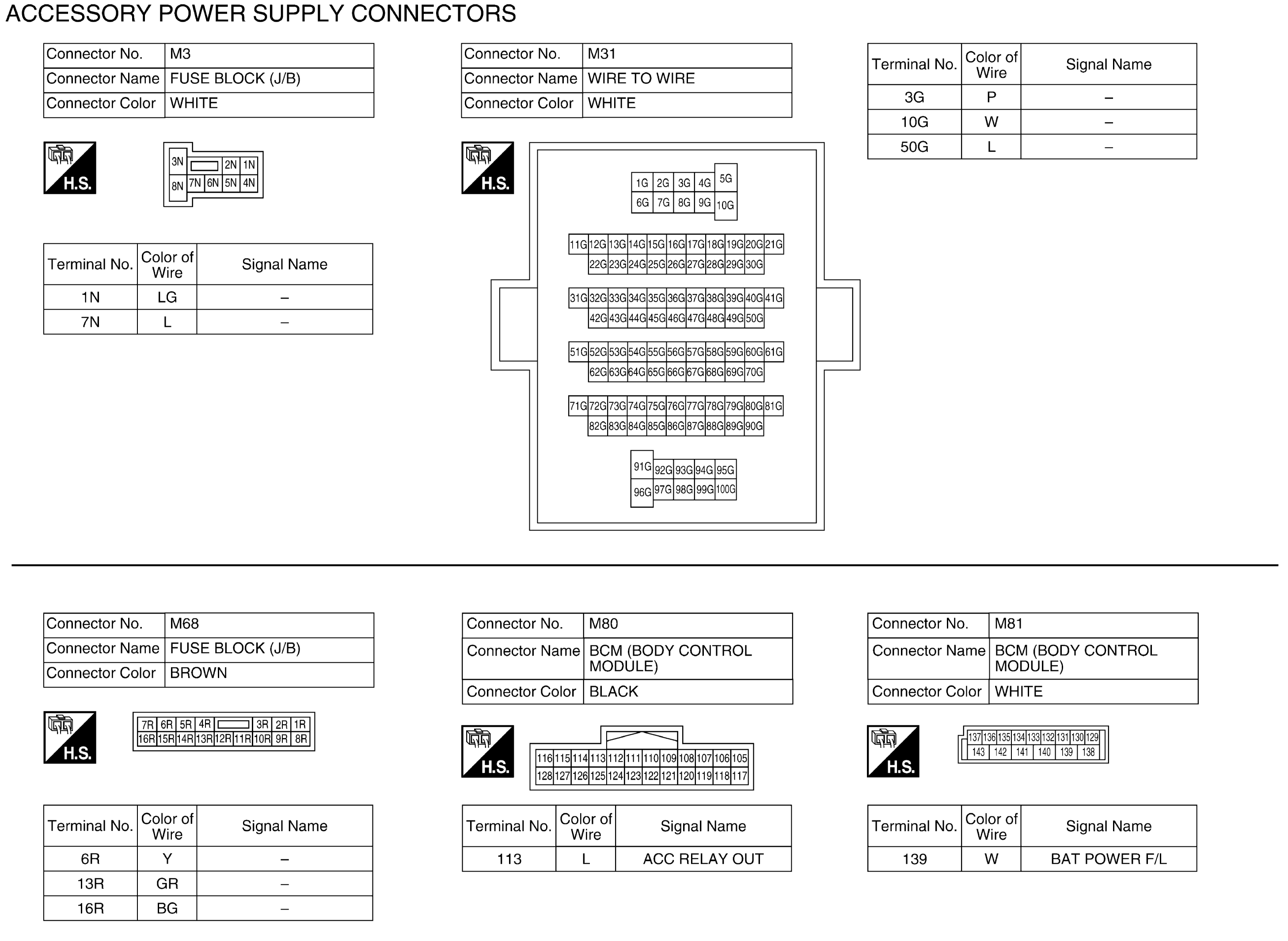

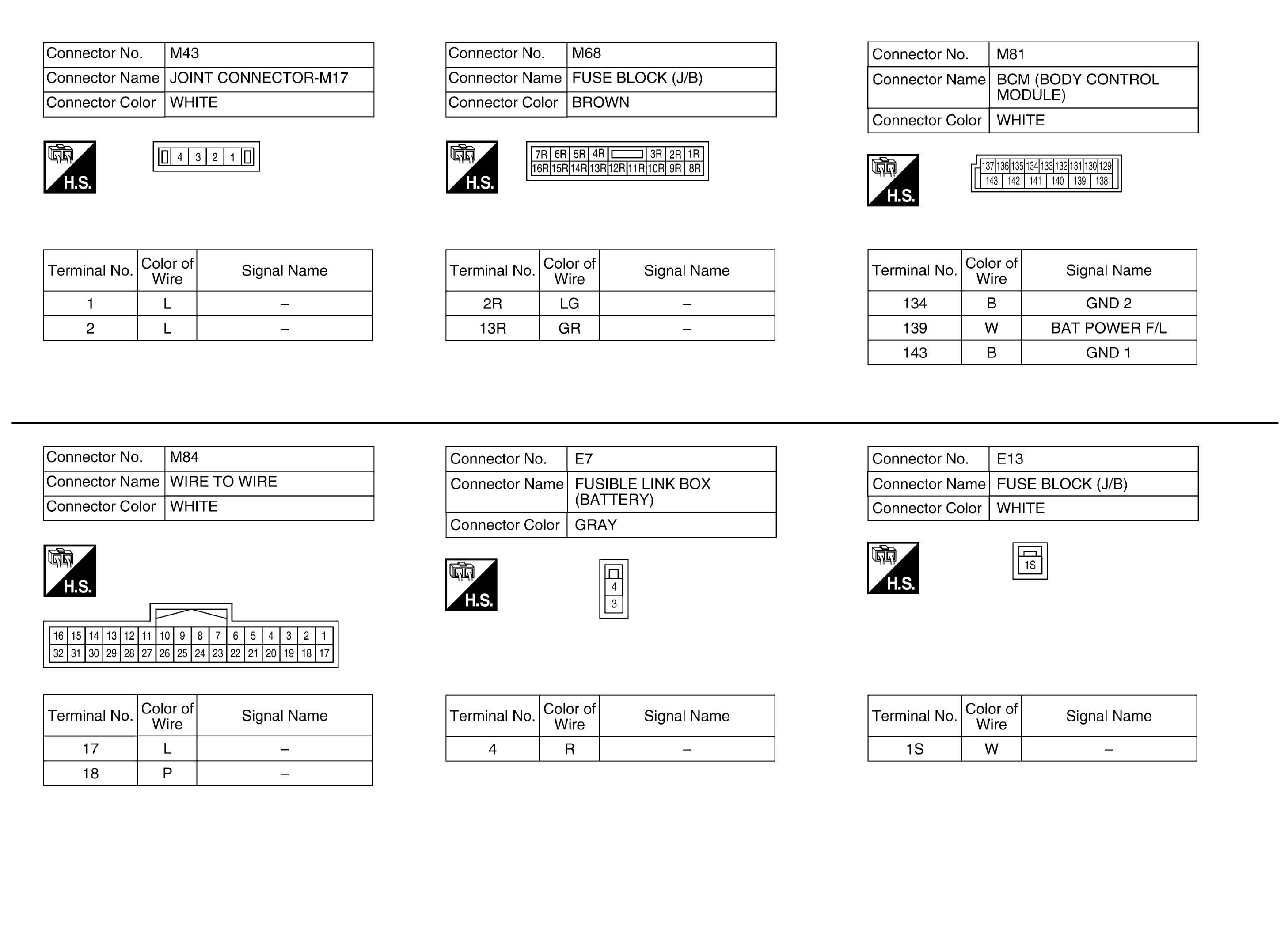

Fig 1: Accessory Power Supply Connector End Views(1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

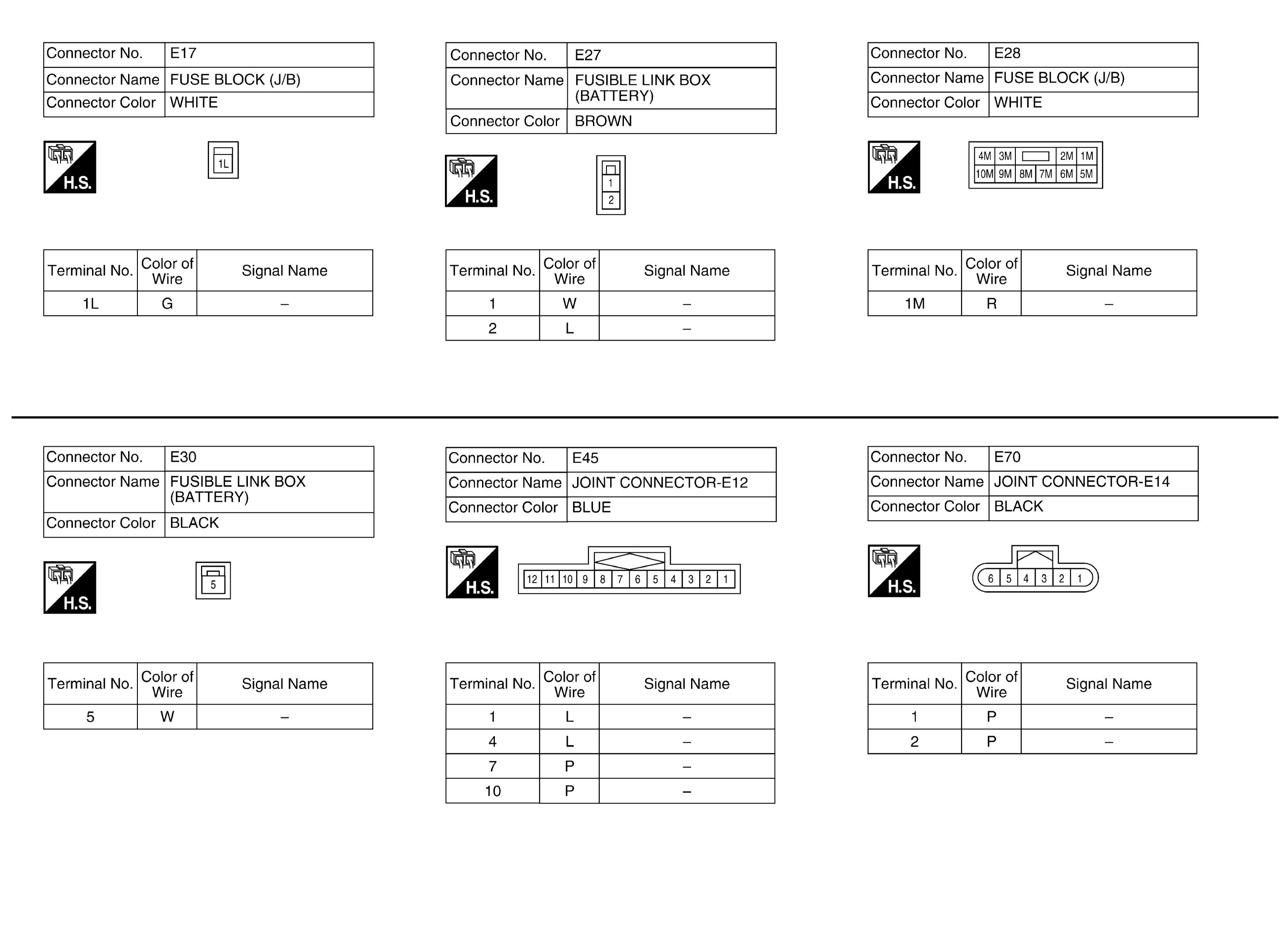

Fig 2: Accessory Power Supply Connector End Views (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Accessory Power Supply Connector End Views (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

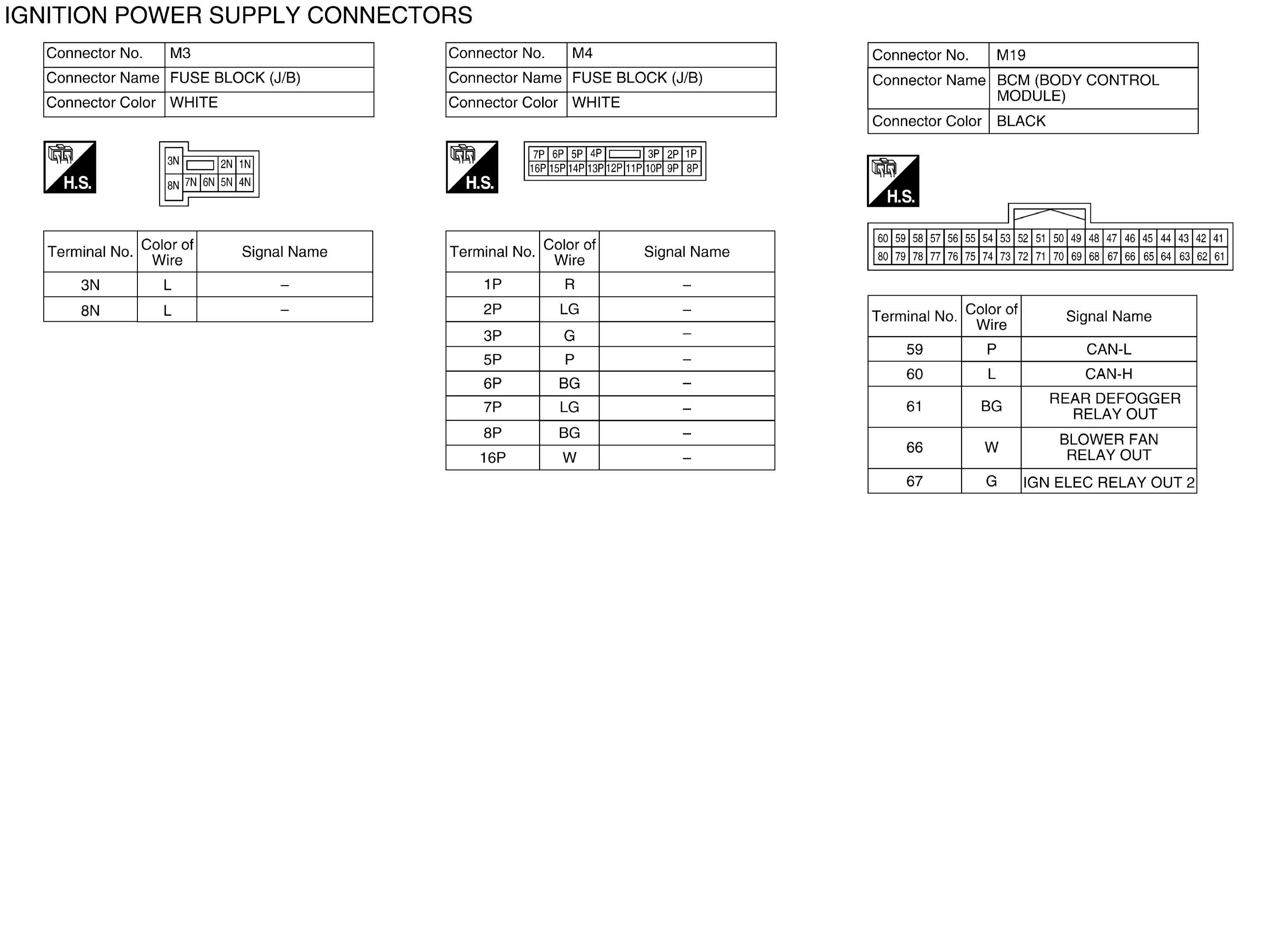

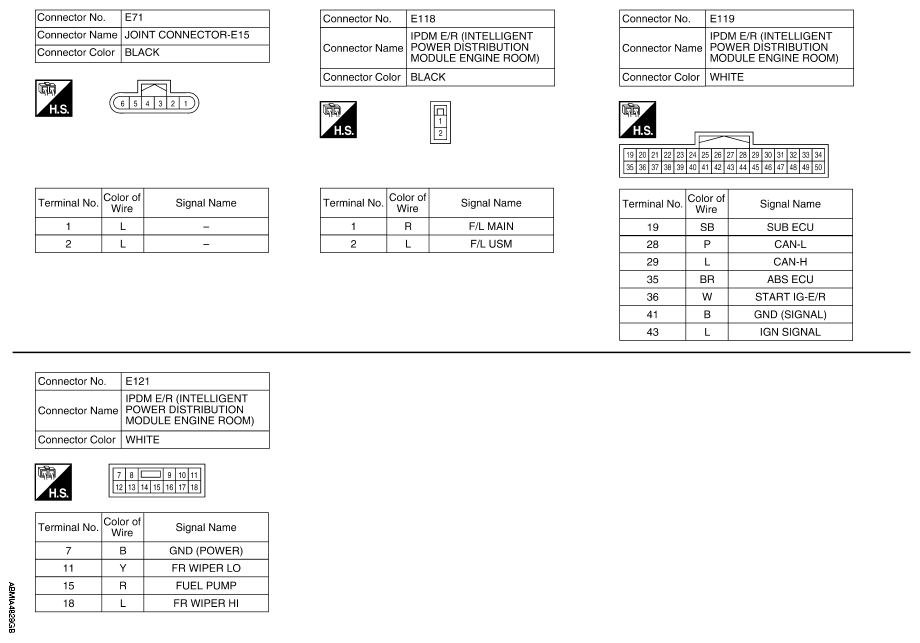

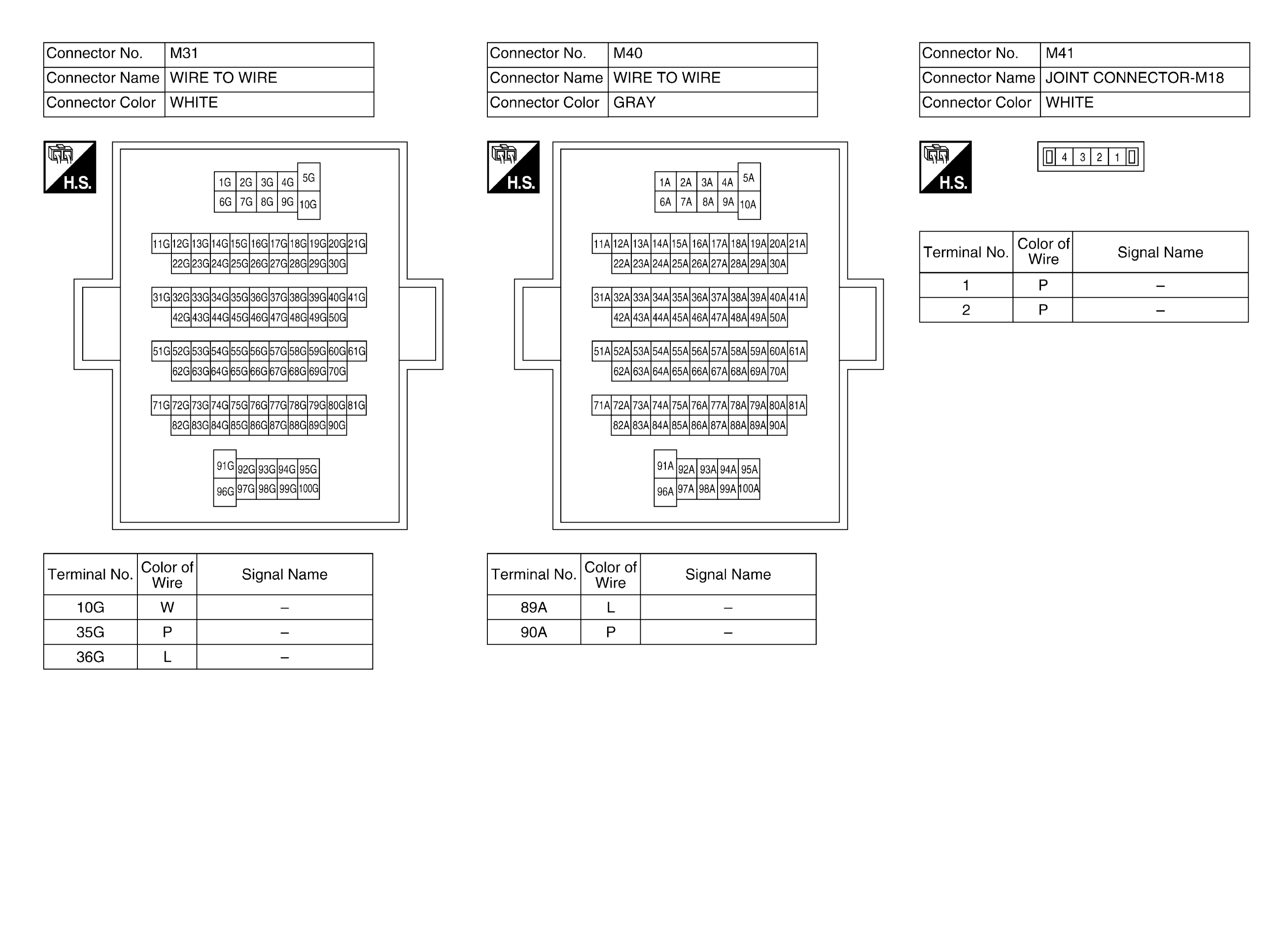

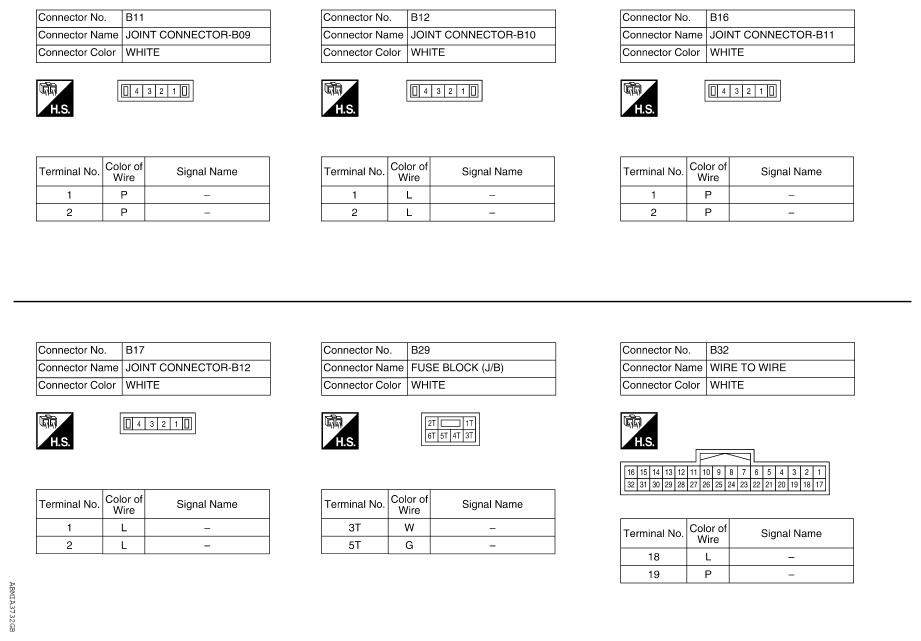

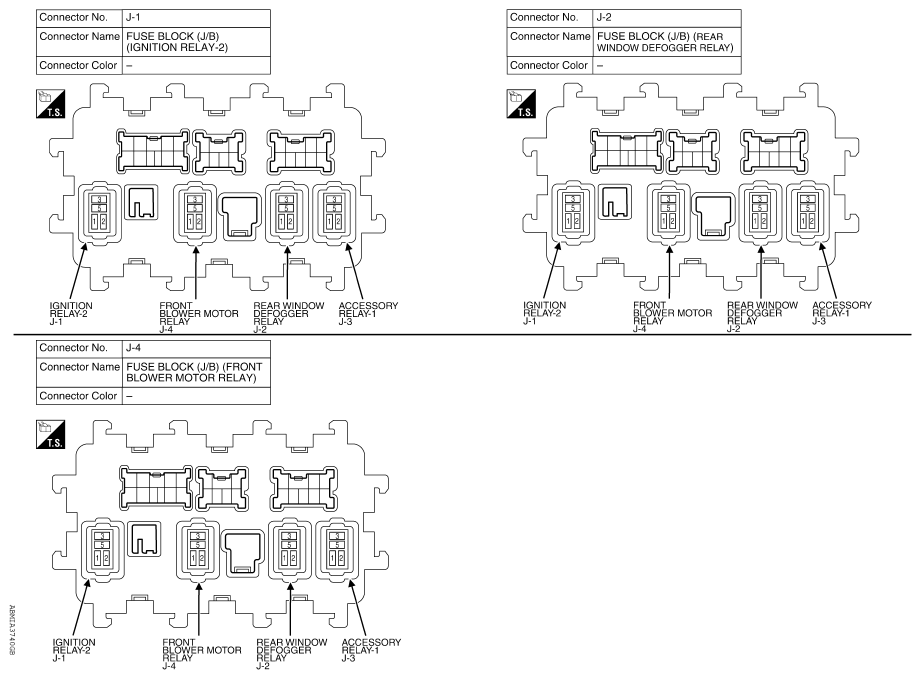

Fig 1: Ignition Power Supply Connector End Views (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

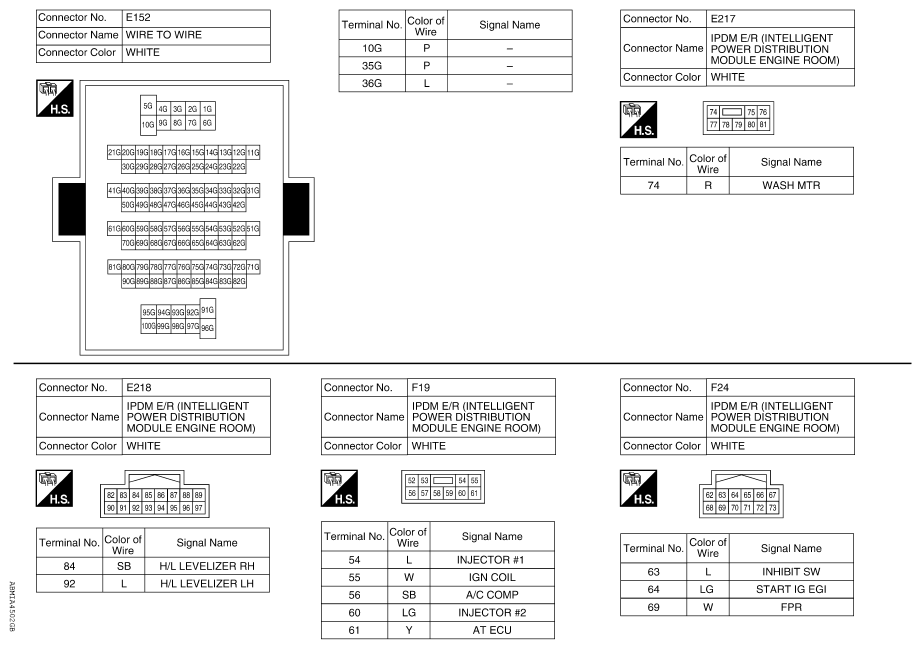

Fig 2: Ignition Power Supply Connector End Views (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Ignition Power Supply Connector End Views (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Ignition Power Supply Connector End Views (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Ignition Power Supply Connector End Views (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Ignition Power Supply Connector End Views (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Ignition Power Supply Connector End Views (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Ignition Power Supply Connector End Views (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Ignition Power Supply Connector End Views (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
