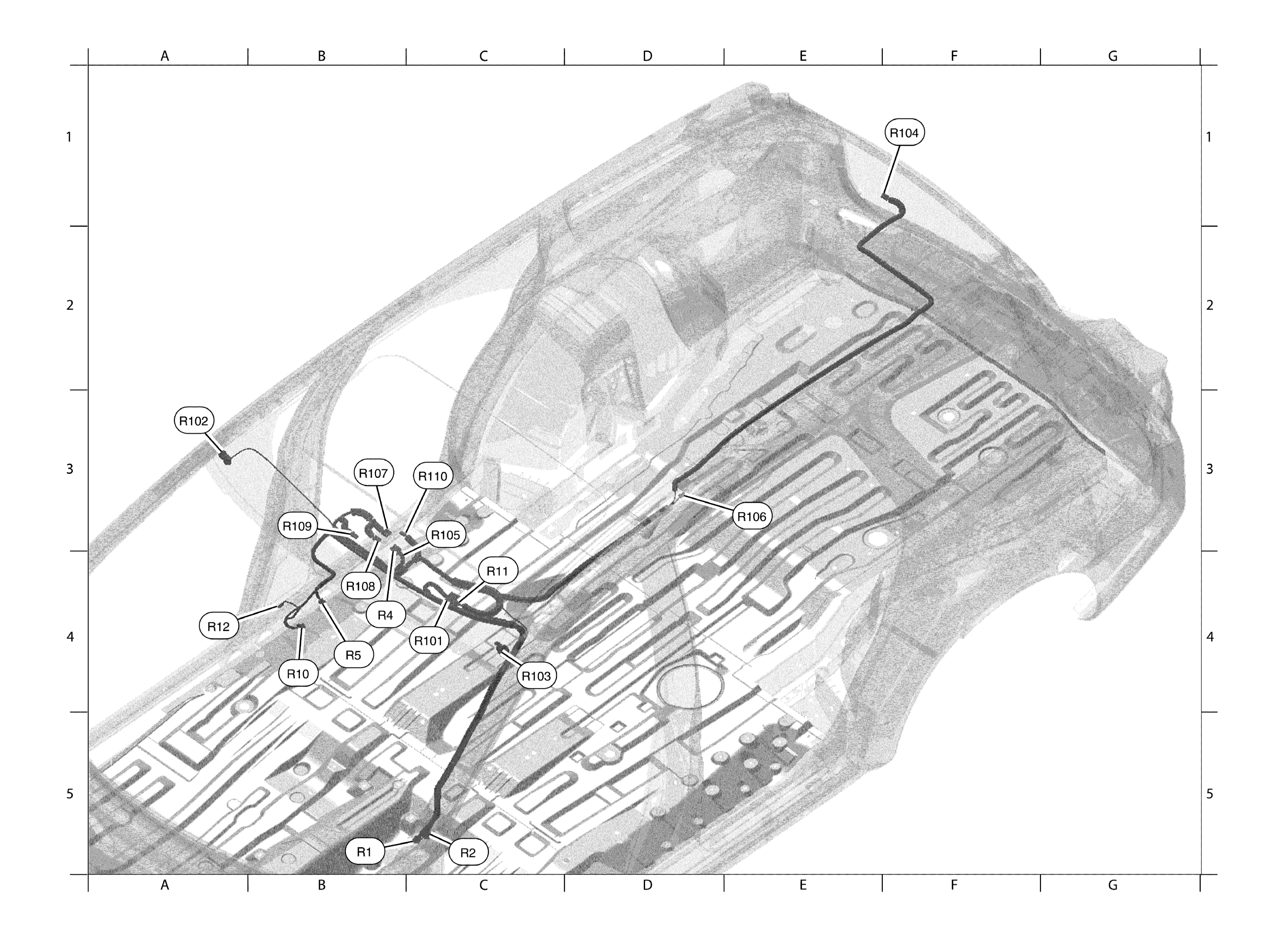

| B5 |
R1 |
W/24 |
: To M1 |
| C5 |
R2 |
W/6 |
: To M2 |
| B4 |
R4 |
GR/10 |
: Moonroof motor assembly |
| B4 |
R5 |
W/8 |
: Lane camera unit |
| B4 |
R10 |
B/10 |
: Auto anti-dazzling inside mirror |
| C4 |
R11 |
W/24 |
: To R101 |
| A4 |
R12 |
B/3 |
: Rain sensor |
| Room lamp sub harness |
| C4 |
R101 |
W/24 |
: To R11 |
| A3 |
R102 |
W/2 |
: Vanity lamp RH |
| C4 |
R103 |
W/2 |
: Vanity lamp LH |
| F1 |
R104 |
W/3 |
: Cargo lamp |
| C3 |
R105 |
W/8 |
: Telematics switch |
| E3 |
R106 |
W/4 |
: Personal lamps 2nd row |
| B3 |
R107 |
GR/8 |
: Front room/map lamp assembly |
| B4 |
R108 |
W/8 |
: Moonroof switch |
| B3 |
R109 |
W/4 |
: Microphone |
| C3 |
R110 |
W/4 |
: Sunshade switch |
