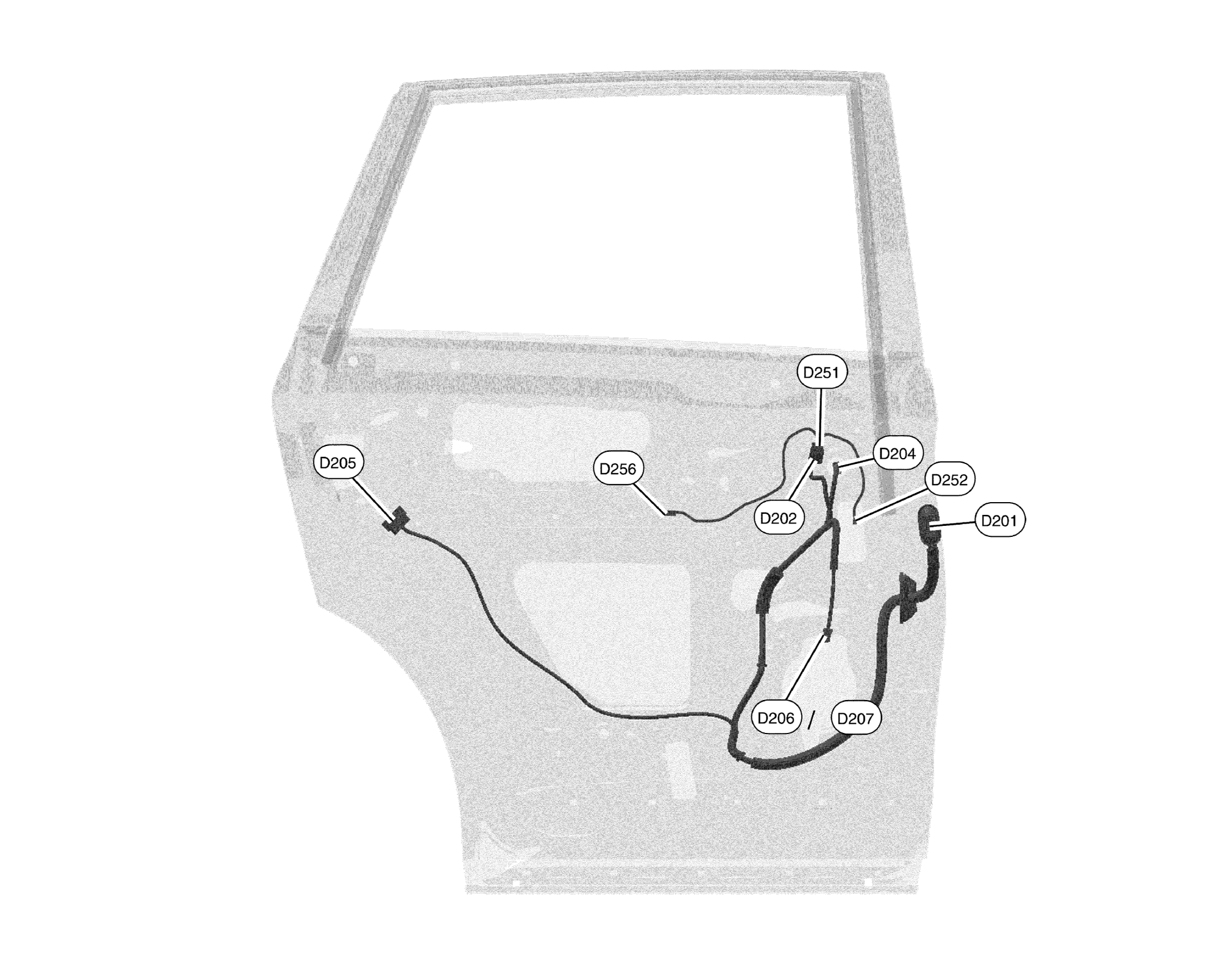

Rear Door LH Harness
| D201 | W/12 | : To B51 |
| D202 | W/12 | : To D251 |
| D204 | W/6 | : Rear power window motor LH |
| D205 | GR/6 | : Rear door lock actuator LH |
| D206 | W/2 | : Rear door speaker LH (With base audio system) |
| D207 | BR/2 | : Rear door speaker LH (With BOSE audio system) |
| Rear door LH sub harness | ||
| D251 | W/12 | : To D202 |
| D252 | BR/2 | : Rear door tweeter LH |
| D256 | W/16 | : Rear power window switch LH |
