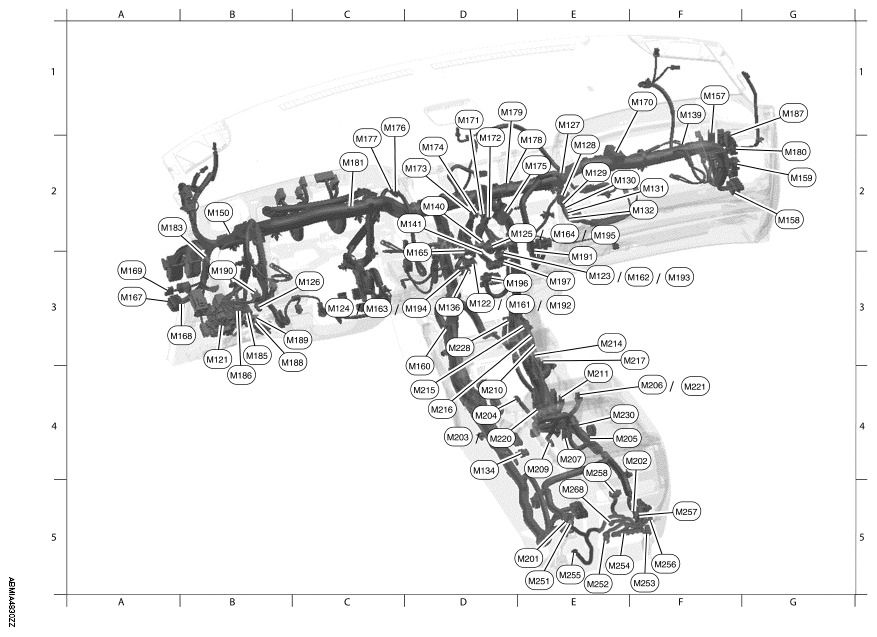

| B3 |
M121 |
W/4 |
: Headlamp aiming switch |
| D3 |
M122 |
W/20 |
: AV control unit (With BOSE audio system - With NAVI and without surround sound system) |
| E3 |
M123 |
W/28 |
: AV control unit (With BOSE audio system - with NAVI and without surround sound system) |
| C3 |
M124 |
W/32 |
: AV control unit (With BOSE audio system - With NAVI and without surround sound system) |
| E2 |
M125 |
W/40 |
: AV control unit (With BOSE audio system - With NAVI and without surround sound system) |
| C3 |
M126 |
B/8 |
: Twin switch (Warning systems switch) |
| E1 |
M127 |
W/3 |
: To M7 |
| E2 |
M128 |
W/3 |
: Intake door motor |
| E2 |
M129 |
W/3 |
: Mode door motor (Front) |
| E2 |
M130 |
W/3 |
: Air mix door motor driver side |
| F2 |
M131 |
W/3 |
: Air mix door motor passenger side |
| F2 |
M132 |
W/3 |
: Air mix door motor (Rear) |
| D4 |
M134 |
GR/17 |
: TCU |
| D3 |
M136 |
GR/17 |
: AV control unit |
| F1 |
M139 |
- |
: Body ground |
| D2 |
M140 |
B/4 |
: AV control unit |
| D2 |
M141 |
BR/4 |
: Display unit |
| B2 |
M150 |
W/33 |
: Joint connector-M27 |
| F1 |
M157 |
W/16 |
: To B161 |
| G2 |
M158 |
W/10 |
: To D102 |
| G2 |
M159 |
Y/4 |
: To D103 |
| D4 |
M160 |
B/6 |
: Yaw rate/side/decel G sensor |
| E3 |
M161 |
W/20 |
: AV control unit (With BOSE audio system - with NAVI and surround sound system) |
| F3 |
M162 |
W/28 |
: AV control unit (With BOSE audio system - with NAVI and surround sound system) |
| C3 |
M163 |
W/32 |
: AV control unit (With BOSE audio system - with NAVI and surround sound system) |
| E2 |
M164 |
W/40 |
: AV control unit (With BOSE audio system - with NAVI and surround sound system) |
| D3 |
M165 |
W/16 |
: AV control unit (With BOSE audio system - with surround sound system) |
| A3 |
M167 |
W/10 |
: To D2 |
| B3 |
M168 |
W/40 |
: To D3 |
| A3 |
M169 |
Y/4 |
: To D13 |
| F1 |
M170 |
W/33 |
: Joint connector-M09 |
| D1 |
M171 |
W/4 |
: Joint connector-M10 |
| D2 |
M172 |
W/4 |
: Joint connector-M11 |
| D2 |
M173 |
W/4 |
: Joint connector-M12 |
| D2 |
M174 |
W/4 |
: Joint connector-M13 |
| E2 |
M175 |
W/33 |
: Joint connector-M22 |
| C1 |
M176 |
W/4 |
: Joint connector-M56 |
| C2 |
M177 |
W/4 |
: Joint connector-M57 |
| E2 |
M178 |
W/4 |
: Joint connector-M58 |
| D1 |
M179 |
W/4 |
: Joint connector-M59 |
| G2 |
M180 |
BR/7 |
: Heated seat relay |
| C2 |
M181 |
W/4 |
: Joint connector-M36 |
| A2 |
M183 |
W/4 |
: Joint connector-M44 |
| B3 |
M185 |
W/10 |
: Automatic back door main switch |
| B4 |
M186 |
B/8 |
: Automatic back door switch |
| G1 |
M187 |
W/2 |
: Circuit breaker |
| C3 |
M188 |
W/24 |
: To M189 |
| C3 |
M189 |
W/24 |
: To M188 |
| B3 |
M190 |
W/12 |
: Accessory prewire LH |
| E3 |
M191 |
W/12 |
: Accessory prewire RH |
| E3 |
M192 |
W/32 |
: AV control unit (With BOSE audio system without navi) |
| F3 |
M193 |
W/20 |
: AV control unit (With BOSE audio system without navi) |
| D3 |
M194 |
W/24 |
: AV control unit (With BOSE audio system without navi) |
| E2 |
M195 |
W/16 |
: AV control unit (With BOSE audio system without navi) |
| E3 |
M196 |
W/12 |
: AV control unit (With BOSE audio system without navi) |
| E3 |
M197 |
W/12 |
: AV control unit (With BOSE audio system without navi) |
| Console sub harness |
| E5 |
M201 |
W/16 |
: To M251 |
| F4 |
M202 |
W/40 |
: To M257 |
| D4 |
M203 |
W/10 |
: Climate controlled seat switch (Driver seat) |
| D4 |
M204 |
W/4 |
: CVT shift selector |
| E4 |
M205 |
W/8 |
: Front auxillary input jacks |
| F4 |
M206 |
BR/8 |
: Climate controlled seat switch (Passenger seat) |
| E4 |
M207 |
GR/3 |
: Front console power socket |
| E4 |
M209 |
G/5 |
: USB interface |
| D4 |
M210 |
GR/7 |
: To M115 |
| E4 |
M211 |
B/10 |
: Drive mode select switch |
| E3 |
M214 |
W/16 |
: To M56 |
| D4 |
M215 |
W/24 |
: To M63 |
| D4 |
M216 |
W/16 |
: To M64 |
| F3 |
M217 |
W/32 |
: To M65 |
| D4 |
M220 |
W/10 |
: Front heated seat switch LH |
| F4 |
M221 |
BR/8 |
: Front heated seat switch RH |
| D3 |
M228 |
GR/3 |
: Front console power socket (For cigarette lighter) |
| E4 |
M230 |
GR/6 |
: Joint connector-M01 |
| Console switch sub harness |
| E5 |
M251 |
W/16 |
: To M201 |
| E5 |
M252 |
W/6 |
: 2nd row heated seat switch LH |
| F5 |
M253 |
BR/6 |
: 2nd row heated seat switch RH |
| E5 |
M254 |
W/40 |
: Rear auxiliary input jacks |
| E5 |
M255 |
GR/2 |
: Inside key antenna (Console) |
| F5 |
M256 |
W/4 |
: A/C 120V outlet |
| F5 |
M257 |
W/24 |
: To M202 |
| E4 |
M258 |
W/12 |
: Rear air control |
| E5 |
M268 |
GR/3 |
: Rear console power socket |
