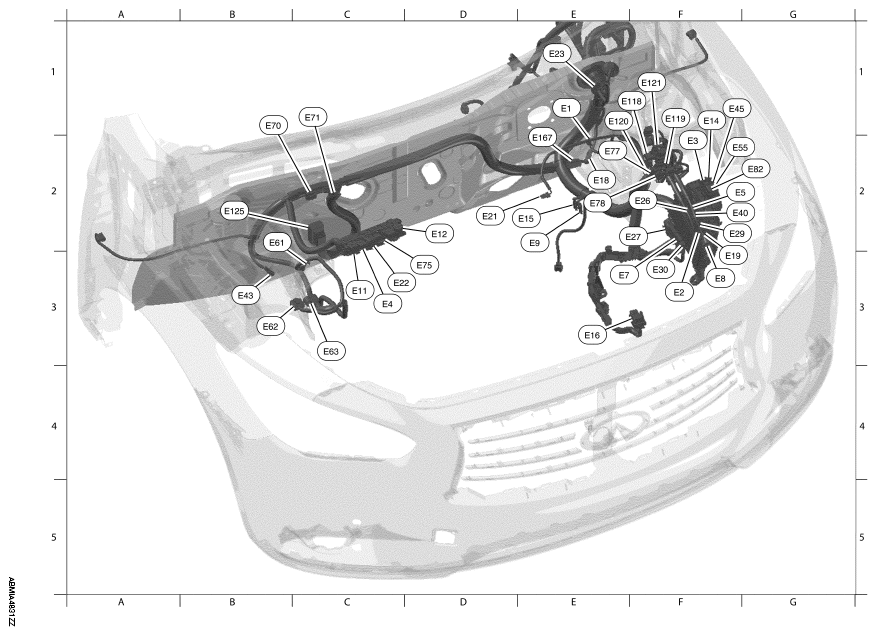

| E1 |
E1 |
BR/3 |
: Intelligent Key warning buzzer |
| F3 |
E2 |
W/16 |
: To F32 |
| F2 |
E3 |
B/2 |
: Anti theft diode |
| C3 |
E4 |
BR/6 |
: Daytime light relay |
| G2 |
E5 |
W/16 |
: To E207 |
| E3 |
E7 |
GR/2 |
: Fusible link box (Battery) |
| F3 |
E8 |
W/3 |
: Anti theft horn relay |
| E2 |
E9 |
- |
: Ground |
| C3 |
E11 |
L/5 |
: PTC relay-1 |
| D2 |
E12 |
L/5 |
: PTC relay-2 |
| F1 |
E14 |
B/12 |
: Joint connector-E05 |
| E2 |
E15 |
- |
: Engine ground |
| E3 |
E16 |
GR/32 |
: ECM |
| E2 |
E18 |
B/2 |
: Front wheel sensor LH |
| F3 |
E19 |
W/10 |
: To F33 |
| D2 |
E21 |
GR/2 |
: Brake fluid level switch |
| C3 |
E22 |
L/4 |
: Accessory relay-2 |
| E1 |
E23 |
GR/5 |
: Front wiper motor |
| F2 |
E26 |
W/24 |
: To E209 |
| F2 |
E27 |
BR/2 |
: Fusible link box (Battery) |
| F2 |
E29 |
Y/4 |
: To E210 |
| F3 |
E30 |
B/1 |
: Fusible link box (Battery) |
| G2 |
E40 |
B/2 |
: To E201 |
| B3 |
E43 |
B/2 |
: Front wheel sensor RH |
| F1 |
E45 |
L/12 |
: Joint connector-E12 |
| G2 |
E55 |
W/4 |
: Joint connector-E10 |
| B2 |
E61 |
- |
: Body ground |
| B3 |
E62 |
B/6 |
: Power steering control module |
| C3 |
E63 |
B/2 |
: Power steering control module |
| B1 |
E70 |
B/6 |
: Joint connector-E14 |
| C1 |
E71 |
B/6 |
: Joint connector-E15 |
| D3 |
E75 |
L/4 |
: ICC brake hold relay |
| E2 |
E77 |
L/4 |
: Trailer turn relay LH |
| E2 |
E78 |
L/4 |
: Trailer turn relay RH |
| G2 |
E82 |
BR/4 |
: Cooling fan relay |
| F1 |
E118 |
B/2: |
IPDM E/R (Intelligent power distribution module engine room) |
| F1 |
E119 |
W/32 |
: IPDM E/R (Intelligent power distribution module engine room) |
| E1 |
E120 |
W/4 |
: IPDM E/R (Intelligent power distribution module engine room) |
| F1 |
E121 |
W/12 |
: IPDM E/R (Intelligent power distribution module engine room) |
| B2 |
E125 |
B/34 |
: ABS actuator and electric unit (Control unit) |
| E2 |
E167 |
B/3 |
: Vacuum sensor |
