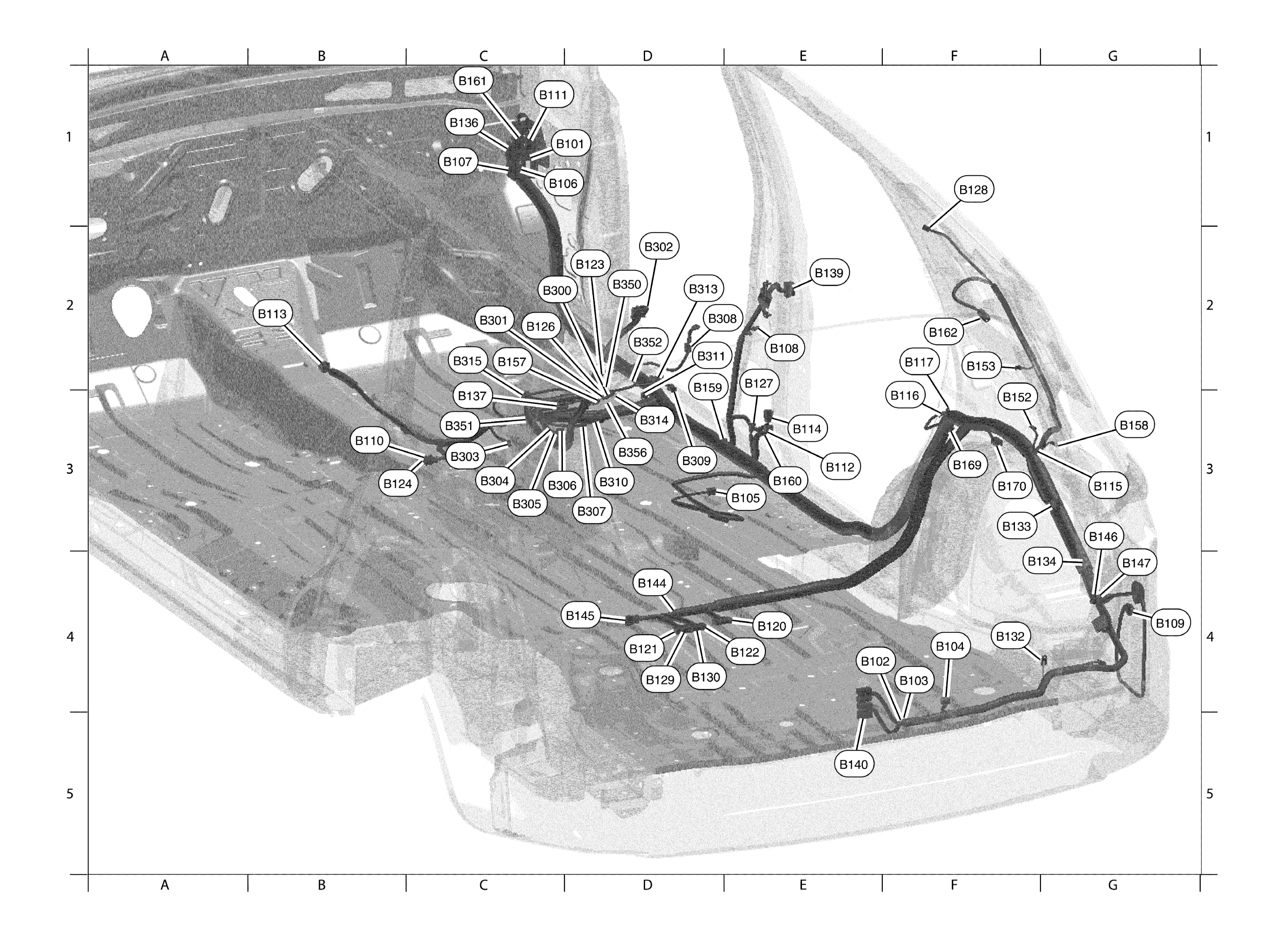

| D1 |
B101 |
W/32 |
: To M84 |
| E4 |
B102 |
W/4 |
: Joint connector-B14 |
| F4 |
B103 |
W/4 |
: Joint connector-B15 |
| F4 |
B104 |
W/16 |
: ADAS control unit |
| E3 |
B105 |
W/6 |
: 2nd row seat heater RH |
| D1 |
B106 |
GR/1 |
: To M8 |
| C1 |
B107 |
W/24 |
: To M9 |
| E2 |
B108 |
W/4 |
: Front door switch RH |
| G4 |
B109 |
B/6 |
: Side radar RH |
| B3 |
B110 |
W/24 |
: Front seat RH (Pre-wiring) |
| C1 |
B111 |
BR/16 |
: To M10 |
| E3 |
B112 |
O/2 |
: Front RH seat belt pre-tensioner |
| B2 |
B113 |
Y/14 |
: Air bag diagnosis sensor unit |
| E3 |
B114 |
Y/2 |
: Front side air bag satellite sensor RH |
| G3 |
B115 |
W/33 |
: Joint connector-B08 |
| F3 |
B116 |
W/4 |
: Rear door switch RH |
| F2 |
B117 |
- |
: Body ground |
| E4 |
B120 |
W/40 |
: BOSE speaker amp. (With surround sound system) |
| D4 |
B121 |
BR/14 |
: BOSE speaker amp. (With surround sound system) |
| E4 |
B122 |
BR/23 |
: BOSE speaker amp. (With surround sound system) |
| D2 |
B123 |
W/4 |
: To B350 |
| B3 |
B124 |
W/32 |
: To B32 |
| C2 |
B126 |
Y/2 |
: Front RH side air bag module |
| E2 |
B127 |
Y/2 |
: Front RH seat belt pre-tensioner |
| F1 |
B128 |
Y/2 |
: RH side curtain air bag module |
| D4 |
B129 |
BR/14 |
: BOSE speaker amp. (Without surround sound system) |
| D4 |
B130 |
BR/23 |
: BOSE speaker amp. (Without surround sound system) |
| F4 |
B132 |
- |
: Body ground |
| F3 |
B133 |
W/4 |
: Rear blower motor resistor 2 |
| G4 |
B134 |
W/2 |
: Rear blower motor 2 |
| C1 |
B136 |
W/40 |
: To M36 |
| C3 |
B137 |
W/24 |
: To B301 |
| E2 |
B139 |
W/12 |
: To D301 |
| E5 |
B140 |
W/16 |
: To B49 |
| D4 |
B144 |
W/4 |
: Joint connector-B11 |
| D4 |
B145 |
W/16 |
: To B75 |
| G3 |
B146 |
W/4 |
: Joint connector-B12 |
| G4 |
B147 |
W/4 |
: Joint connector-B13 |
| F3 |
B152 |
- |
: Body ground |
| F2 |
B153 |
BR/2 |
: Rear side speaker RH |
| C2 |
B157 |
W/12 |
: To B300 |
| G3 |
B158 |
- |
: Body ground |
| D2 |
B159 |
W/4 |
: Joint connector-B21 |
| E3 |
B160 |
W/20 |
: Pre-crash seat belt control unit (Passenger side) |
| C1 |
B161 |
W/16 |
: To M157 |
| F2 |
B162 |
B/10 |
: Spindle unit RH |
| F3 |
B169 |
W/4 |
: Joint connector-B04 |
| F3 |
B170 |
Y/2 |
: Rear side air bag satellite sensor RH |
| Front seat RH harness |
| C2 |
B300 |
W/12 |
: To B157 |
| C2 |
B301 |
W/24 |
: To B137 |
| D2 |
B302 |
- |
: Headrest display unit (Passenger seat) |
| C3 |
B303 |
W/4 |
: Seat belt buckle switch (Passenger seat) |
| C3 |
B304 |
B/6 |
: Climate controlled seat control unit (Passenger seat) |
| C3 |
B305 |
B/8 |
: Climate controlled seat control unit (Passenger seat) |
| D3 |
B306 |
B/16 |
: Climate controlled seat control unit (Passenger seat) |
| D3 |
B307 |
W/5 |
: Climate controlled seat blower moter (Passenger seat) |
| E2 |
B308 |
W/4 |
: Seat cushion thermal electric device (Passenger seat) |
| D3 |
B309 |
W/4 |
: Seat back thermal electric device (Passenger seat) |
| D3 |
B310 |
W/6 |
: Lifting motor RH (Rear) |
| D2 |
B311 |
W/6 |
: Reclining motor RH |
| D2 |
B313 |
W/10 |
: Power seat switch RH |
| D3 |
B314 |
W/5 |
: Sliding motor RH |
| C2 |
B315 |
W/3 |
: Front seat heater (Passenger seat) |
| ODS sub harness |
| D2 |
B350 |
W/4 |
: To B123 |
| C3 |
B351 |
B/3 |
: Occupant classification system sensor (FL) |
| D2 |
B352 |
P/3 |
: Occupant classification system sensor (FR) |
| D3 |
B356 |
P/20 |
: Occupant classification system control unit |
