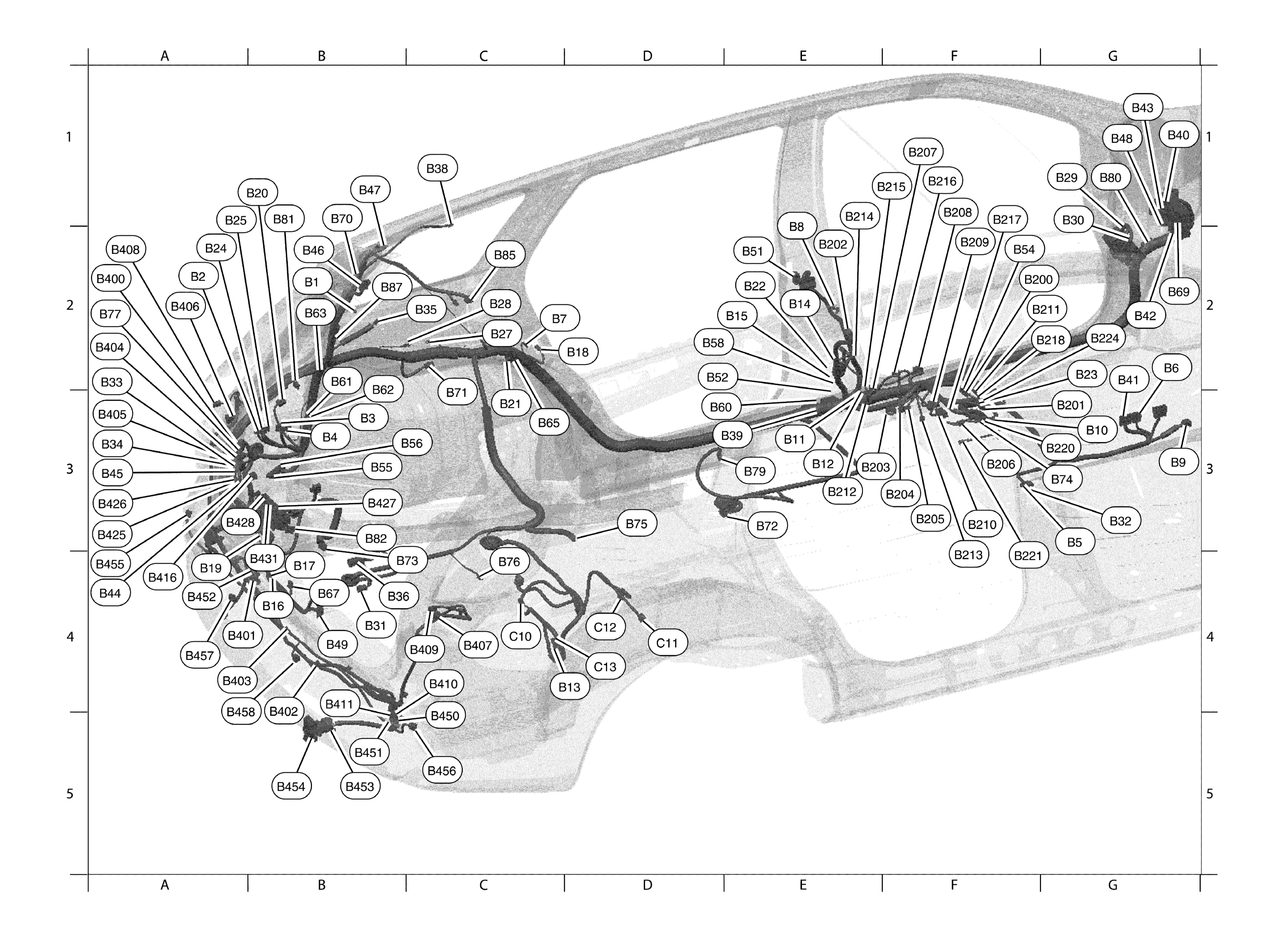

| B2 |
B1 |
BR/2 |
: Rear side speaker LH |
| A2 |
B2 |
W/16 |
: Satellite radio tuner |
| B3 |
B3 |
W/32 |
: Bluetooth® control unit |
| B3 |
B4 |
W/8 |
: Bluetooth® control unit |
| G3 |
B5 |
W/16 |
: Front seat LH (Pre-wiring) |
| G2 |
B6 |
W/24 |
: To M66 |
| C2 |
B7 |
- |
: Body ground |
| E1 |
B8 |
W/4 |
: Front door switch LH |
| G3 |
B9 |
Y/15 |
: Air bag diagnosis sensor unit |
| G3 |
B10 |
Y/2 |
: Front LH side air bag module |
| E3 |
B11 |
W/4 |
: Joint connector-B09 |
| E3 |
B12 |
W/4 |
: Joint connector-B10 |
| D4 |
B13 |
B/14 |
: To C13 |
| E2 |
B14 |
Y/2 |
: Front LH seat belt pre-tensioner |
| E2 |
B15 |
Y/2 |
: Front side air bag satellite sensor LH |
| B4 |
B16 |
W/4 |
: Joint connector-B11 |
| B4 |
B17 |
W/4 |
: Joint connector-B12 |
| D2 |
B18 |
W/4 |
: Rear door swtich LH |
| A4 |
B19 |
- |
: Body ground |
| B1 |
B20 |
W/4 |
: Fuel lid door lock actuator |
| C3 |
B21 |
W/4 |
: Joint connector-B20 |
| E2 |
B22 |
O/2 |
: Front LH seat belt pre-tensioner |
| G2 |
B23 |
W/24 |
: To B201 |
| A2 |
B24 |
W/32 |
: Video distributor |
| A1 |
B25 |
W/24 |
: Video distributor |
| C2 |
B27 |
- |
: Body ground |
| C2 |
B28 |
- |
: Body ground |
| G1 |
B29 |
W/6 |
: Fuse block (J/B) |
| G1 |
B30 |
W/8 |
: Fuse block (J/B) |
| B4 |
B31 |
B/2 |
: Evap canister vent control valve |
| G3 |
B32 |
W/32 |
: To B124 |
| A2 |
B33 |
B/2 |
: To B404 |
| A3 |
B34 |
W/8 |
: To B405 |
| C2 |
B35 |
W/4 |
: Sonar buzzer |
| B4 |
B36 |
GR/3 |
: Evap control system pressure sensor |
| C1 |
B38 |
Y/2 |
: LH side curtain air bag module |
| E3 |
B39 |
W/4 |
: Joint connector-B05 |
| G1 |
B40 |
W/24 |
: To E34 |
| G2 |
B41 |
W/32 |
: To M69 |
| G2 |
B42 |
BR/12 |
: To M74 |
| G1 |
B43 |
W/12 |
: To E33 |
| A4 |
B44 |
B/2 |
: To B425 |
| A3 |
B45 |
W/16 |
: To B426 |
| B2 |
B46 |
W/24 |
: To D501 |
| B1 |
B47 |
W/8 |
: To D502 |
| G1 |
B48 |
W/1 |
: To E35 |
| B4 |
B49 |
W/16 |
: To B140 |
| E2 |
B51 |
W/12 |
: To D201 |
| D2 |
B52 |
W/2 |
: Condenser-2 |
| F2 |
B54 |
BR/12 |
: To B200 |
| B3 |
B55 |
B/24 |
: Automatic back door control module |
| C3 |
B56 |
GR/14 |
: Automatic back door control module |
| D2 |
B58 |
W/20 |
: Pre-crash seat belt control unit (Driver side) |
| D3 |
B60 |
W/4 |
: Joint connector-B06 |
| B2 |
B61 |
W/4 |
: Joint connector-B18 |
| B2 |
B62 |
W/4 |
: Joint connector-B19 |
| B2 |
B63 |
W/33 |
: Joint connector-B01 |
| C3 |
B65 |
W/4 |
: Joint connector-B07 |
| B4 |
B67 |
W/16 |
: Awd control unit |
| G2 |
B69 |
W/99 |
: To M40 |
| B1 |
B70 |
B/10 |
: Spindle unit LH |
| C3 |
B71 |
Y/2 |
: Rear side air bag satellite sensor LH |
| E3 |
B72 |
GR/6 |
: Fuel level sensor and fuel pump |
| C4 |
B73 |
GR/6 |
: Subwoofer |
| G3 |
B74 |
W/12 |
: To B220 |
| D3 |
B75 |
W/16 |
: To B145 |
| C4 |
B76 |
GR/2 |
: Inside key antenna (Luggage room) |
| A2 |
B77 |
W/32 |
: To B400 |
| E3 |
B79 |
W/3 |
: 2nd row seat heater LH |
| G1 |
B80 |
W/4 |
: Joint connector-B17 |
| B1 |
B81 |
GR/3 |
: Rear cargo power socket |
| B3 |
B82 |
B/8 |
: Inverter unit |
| C2 |
B85 |
W/10 |
: Sunshade motor assembly |
| B2 |
B87 |
W/4 |
: Joint connector-B16 |
| Front seat LH harness |
| G2 |
B200 |
BR/12 |
: To B54 |
| G3 |
B201 |
W/24 |
: To B23 |
| E2 |
B202 |
W/32 |
: Headrest display unit (Driver seat) |
| E3 |
B203 |
B/16 |
: Climate controlled seat control unit (Driver seat) |
| F3 |
B204 |
B/8 |
: Climate controlled seat control unit (Driver seat) |
| F3 |
B205 |
B/6 |
: Climate controlled seat control unit (Driver seat) |
| F3 |
B206 |
W/4 |
: Seat cushion thermal electric device (Driver seat) |
| F1 |
B207 |
W/6 |
: Lifting motor LH (Rear) |
| F1 |
B208 |
W/10 |
: Power seat switch LH |
| F2 |
B209 |
W/32 |
: Driver seat control unit |
| F3 |
B210 |
W/12 |
: Driver seat control unit |
| G2 |
B211 |
GR/5 |
: Sliding motor LH |
| E3 |
B212 |
W/4 |
: Seat back thermal electric device (Driver seat) |
| F4 |
B213 |
W/5 |
: Climate controlled seat blower motor (Driver seat) |
| E1 |
B214 |
BR/4 |
: Lumbar support switch |
| F1 |
B215 |
B/2 |
: Lumbar support motor |
| F1 |
B216 |
W/3 |
: Front seat heater (Driver seat) |
| F1 |
B217 |
W/6 |
: Reclining motor LH |
| G2 |
B218 |
W/6 |
: Lifting motor LH (Front) |
| G3 |
B220 |
W/12 |
: To B74 |
| F4 |
B221 |
W/4 |
: Seat belt buckle switch (Driver seat) |
| G2 |
B224 |
P/20 |
: Joint connector-B22 |
| Body no. 3 harness |
| A2 |
B400 |
W/32 |
: To B77 |
| A4 |
B401 |
B/12 |
: To B452 |
| B4 |
B402 |
BR/2 |
: Back door warning chime |
| A4 |
B403 |
GR/2 |
: Outside key antenna (Rear bumper) |
| A2 |
B404 |
B/2 |
: To B33 |
| A3 |
B405 |
W/8 |
: To B34 |
| A2 |
B406 |
GR/3 |
: Rear combination lamp LH |
| C4 |
B407 |
GR/3 |
: Rear combination lamp RH |
| A2 |
B408 |
GR/2 |
: Rear combination lamp LH |
| C4 |
B409 |
GR/2 |
: Rear combination lamp RH |
| C4 |
B410 |
GR/6 |
: To B450 |
| B4 |
B411 |
B/2 |
: To B451 |
| A4 |
B416 |
B/6 |
: Side radar LH |
| Trailer relay sub harness |
| A3 |
B425 |
B/2 |
: To B44 |
| A3 |
B426 |
W/16 |
: To B45 |
| B3 |
B427 |
L/4 |
: Trailer tow relay 1 |
| A3 |
B428 |
BR/6 |
: Trailer tow relay 2 |
| B4 |
B431 |
L/4 |
: Trailer back-up relay |
| Body no. 3 sub harness |
| C5 |
B450 |
GR/6 |
: To B410 |
| B5 |
B451 |
B/2 |
: To B411 |
| A4 |
B452 |
B/12 |
: To B401 |
| B5 |
B453 |
B/7 |
: Trailer |
| B5 |
B454 |
B/7 |
: Trailer receptacle |
| A4 |
B455 |
B/3 |
: Rear sonar sensor LH outer |
| C5 |
B456 |
B/3 |
: Rear sonar sensor RH outer |
| A4 |
B457 |
B/3 |
: Rear sonar sensor LH inner |
| A5 |
B458 |
B/3 |
: Rear sonar sensor RH inner |
| Chassis harness |
| C4 |
C10 |
B/2 |
: Rear wheel sensor LH |
| D4 |
C11 |
GR/2 |
: Rear wheel sensor RH |
| D4 |
C12 |
GR/2 |
: AWD solenoid |
| D4 |
C13 |
B/14 |
: To B13 |
