| A2 |
D501 |
W/24 |
: To B46 |
| A1 |
D502 |
GR/8 |
: To B47 |
| C1 |
D503 |
BR/2 |
: High-mounted stop lamp |
| D3 |
D504 |
W/4 |
: Rear view camera (Without NAVI) |
| C5 |
D505 |
W/6 |
: To D550 |
| C5 |
D506 |
W/6 |
: To D551 |
| B4 |
D507 |
W/16 |
: To D552 |
| B4 |
D508 |
B/1 |
: Rear window defogger condenser |
| A4 |
D509 |
B/1 |
: Rear window defogger condenser |
| B3 |
D510 |
B/1 |
: Rear window defogger |
| D3 |
D511 |
W/8 |
: Rear view camera (With NAVI) |
| F3 |
D513 |
- |
: Body ground |
| C3 |
D514 |
- |
: Body ground |
| F2 |
D525 |
B/1 |
: Rear window defogger |

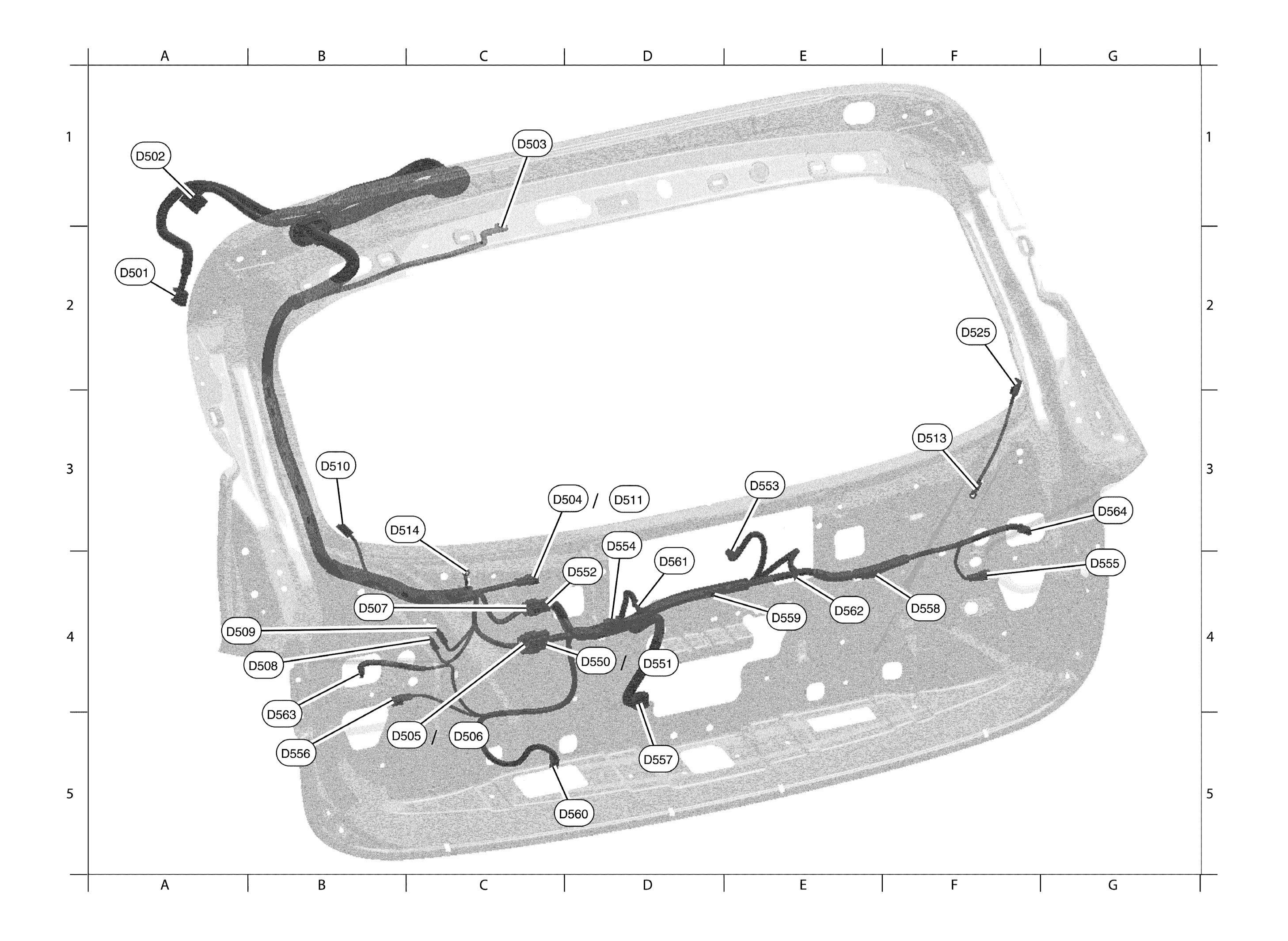

| Back door RH harness |
| D4 |
D550 |
W/6 |
: To D505 |
| D4 |
D551 |
W/6 |
: To D506 |
| D4 |
D552 |
W/16 |
: To D507 |
| E3 |
D553 |
W/3 |
: Rear wiper motor |
| D3 |
D554 |
W/4 |
: Joint connector-D01 |
| G4 |
D555 |
GR/2 |
: Touch sensor RH |
| B5 |
D556 |
W/2 |
: Touch sensor LH |
| D5 |
D557 |
W/8 |
: Back door lock assembly |
| F4 |
D558 |
B/2 |
: Diode-2 |
| E4 |
D559 |
W/4 |
: Back door opener switch |
| D5 |
D560 |
B/8 |
: Automatic back door close switch |
| D4 |
D561 |
BR/2 |
: License plate lamp LH |
| E4 |
D562 |
BR/2 |
: License plate lamp RH |
| B5 |
D563 |
W/2 |
: Back-up lamp RH |
| G3 |
D564 |
W/2 |
: Back-up lamp LH |
