Wiring Diagram - With Automatic Drive Positioner

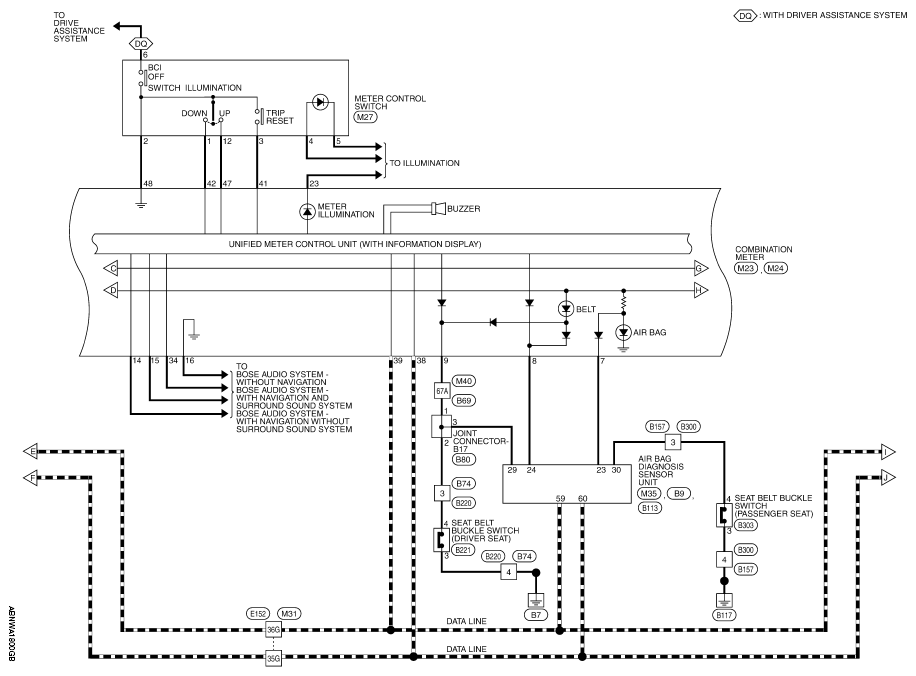

Fig 1: Meter - With Automatic Drive Positioner Wiring Diagram (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

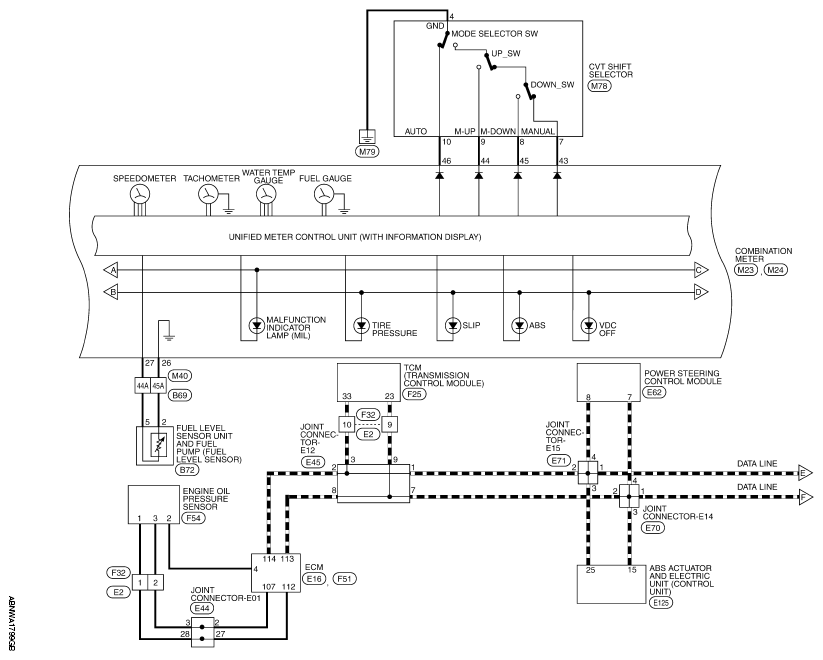

Fig 2: Meter - With Automatic Drive Positioner Wiring Diagram (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

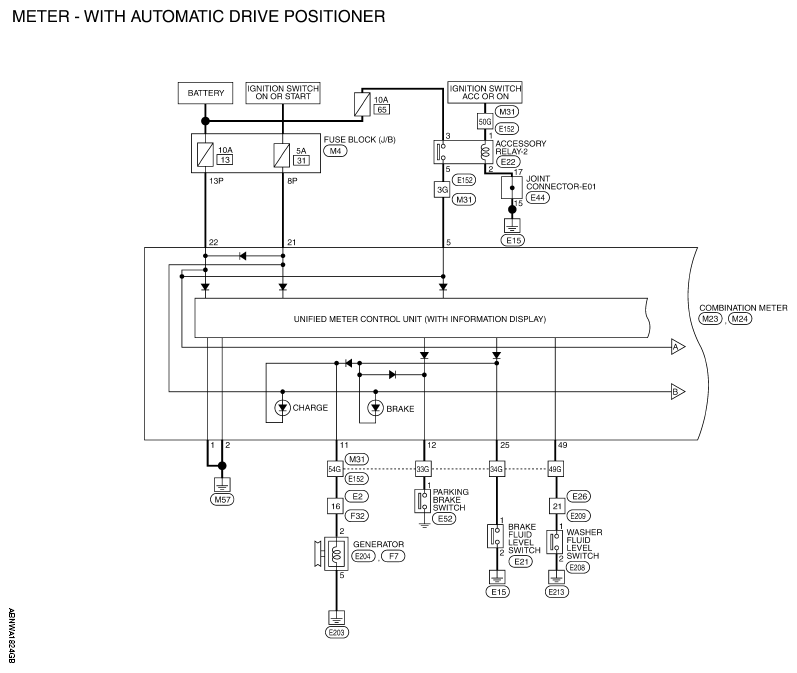

Fig 3: Meter - With Automatic Drive Positioner Wiring Diagram (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

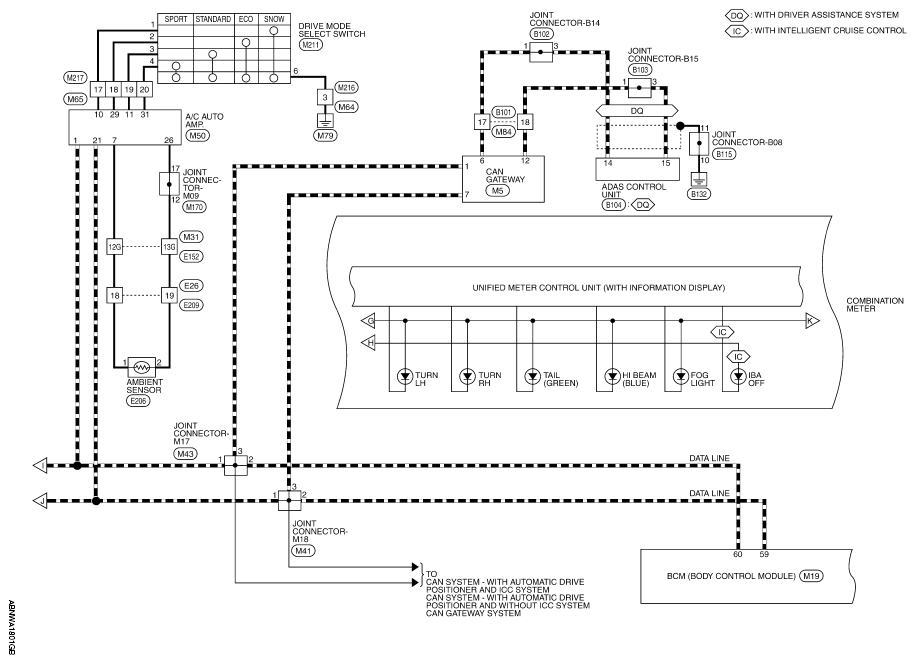

Fig 4: Meter - With Automatic Drive Positioner Wiring Diagram (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

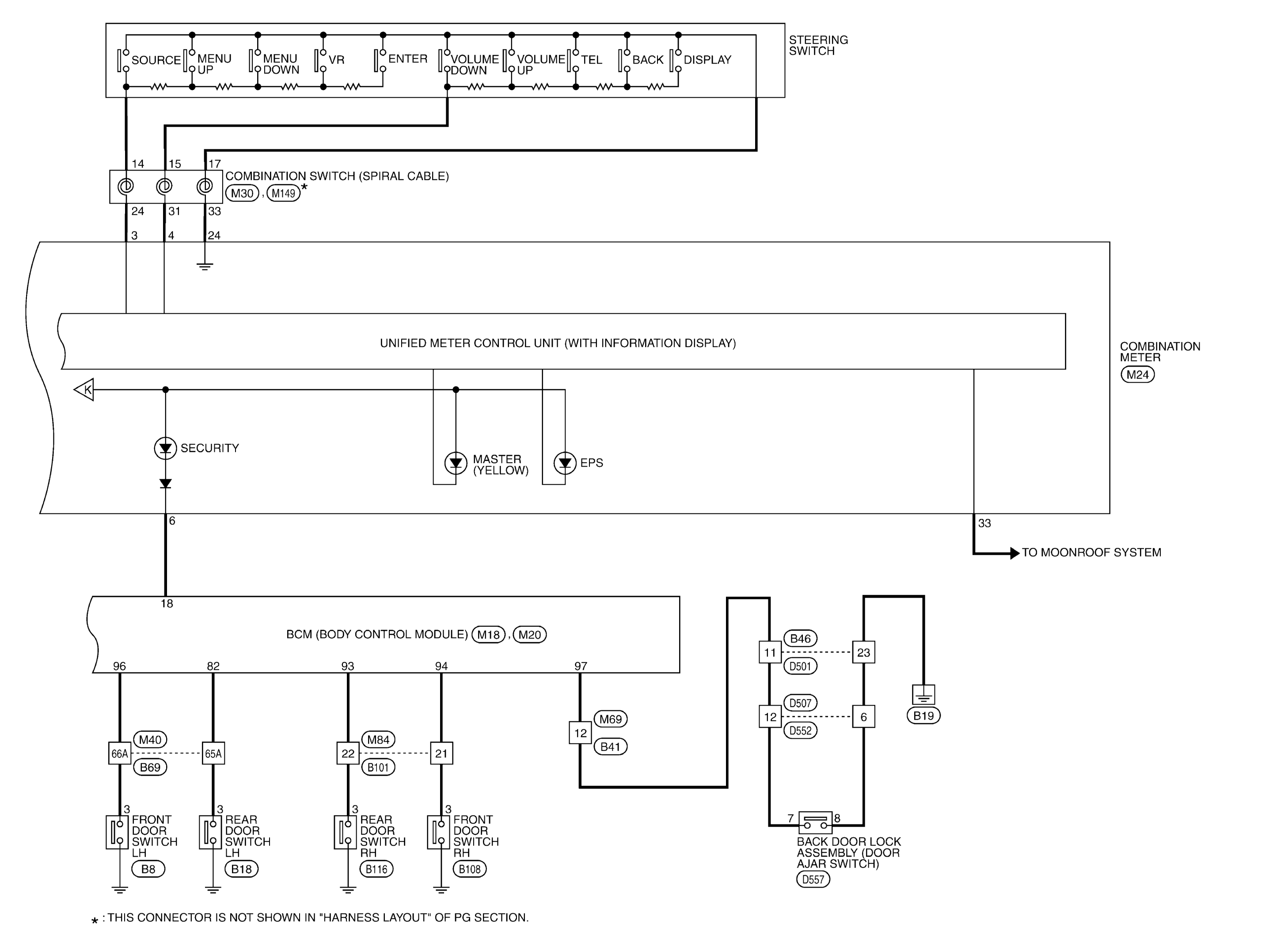

Fig 5: Meter - With Automatic Drive Positioner Wiring Diagram (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
