CLIMATE CONTROLLED SEAT SYSTEM: Component Parts Location

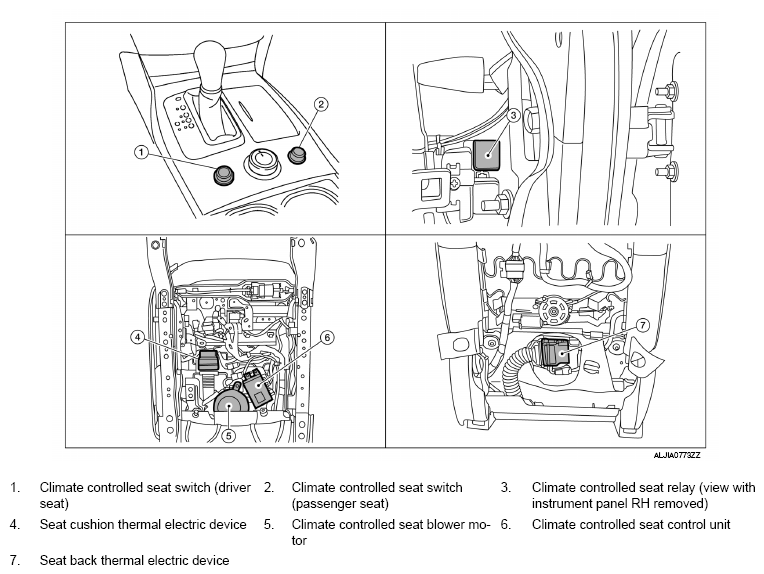

Fig 1: Climate Controlled Seat System Components Location

G09425962

Courtesy of NISSAN NORTH AMERICA, INC.
