INFINITI Vehicle Immobilizer System-NATS: Wiring Diagram

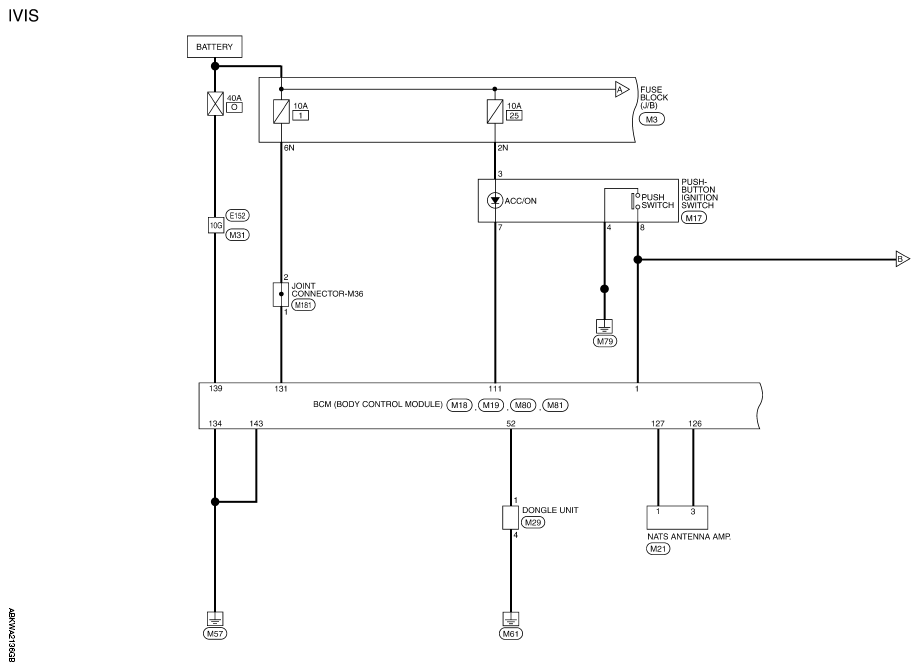

Fig 1: Infiniti Vehicle Immobilizer System-NATS - Wiring Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

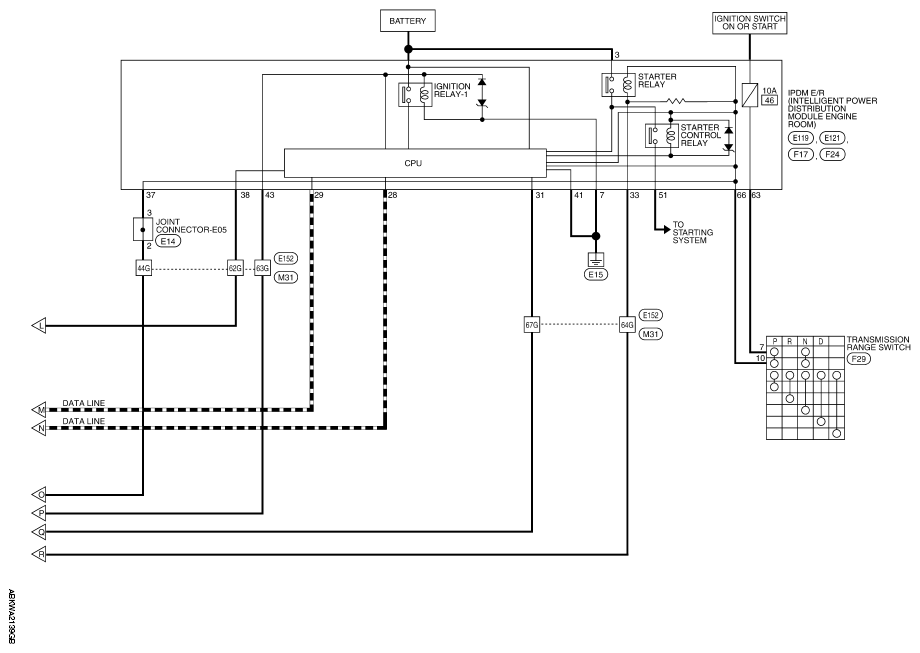

Fig 2: Infiniti Vehicle Immobilizer System-NATS - Wiring Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

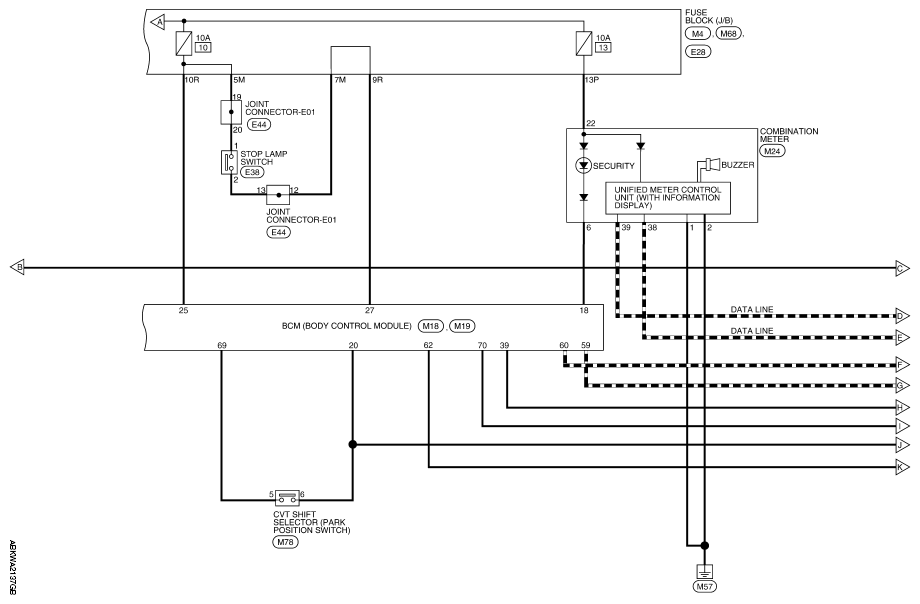

Fig 3: Infiniti Vehicle Immobilizer System-NATS - Wiring Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Infiniti Vehicle Immobilizer System-NATS - Wiring Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
