Removal and Installation: Removal

  1. Remove instrument side finisher (LH) (1) using a suitable tool.
    Fig 1: Identifying Instrument Side Finisher LH
    G05878337Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  3. Release cluster lid A pawls and metal clips using a suitable tool, disconnect the harness connector and remove.

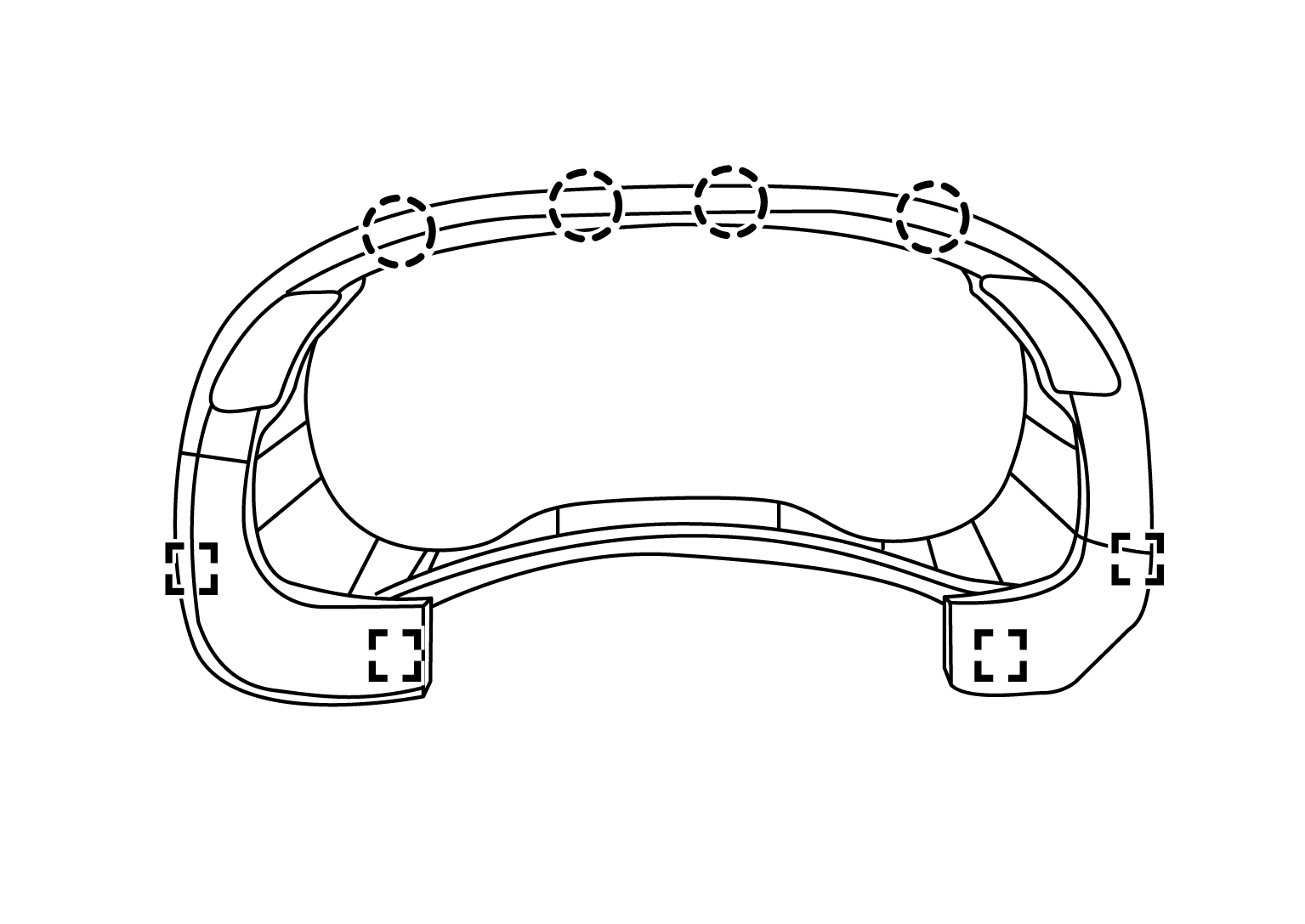

    Fig 2: Identifying Cluster Lid Pawls And Metal Clips
    G09425937Courtesy of NISSAN NORTH AMERICA, INC.
