Air Mix Door Motor (Rear) Connector End View (M132)

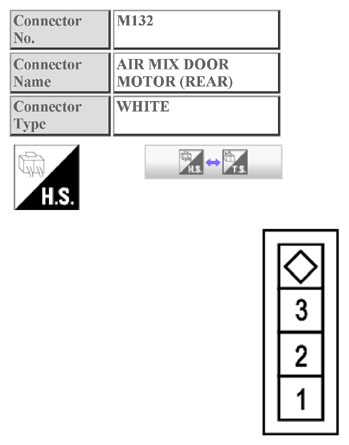

Fig 1: Air Mix Door Motor (Rear) Connector End View (M132)

G10435571

Courtesy of NISSAN NORTH AMERICA, INC.
