Connector End Views

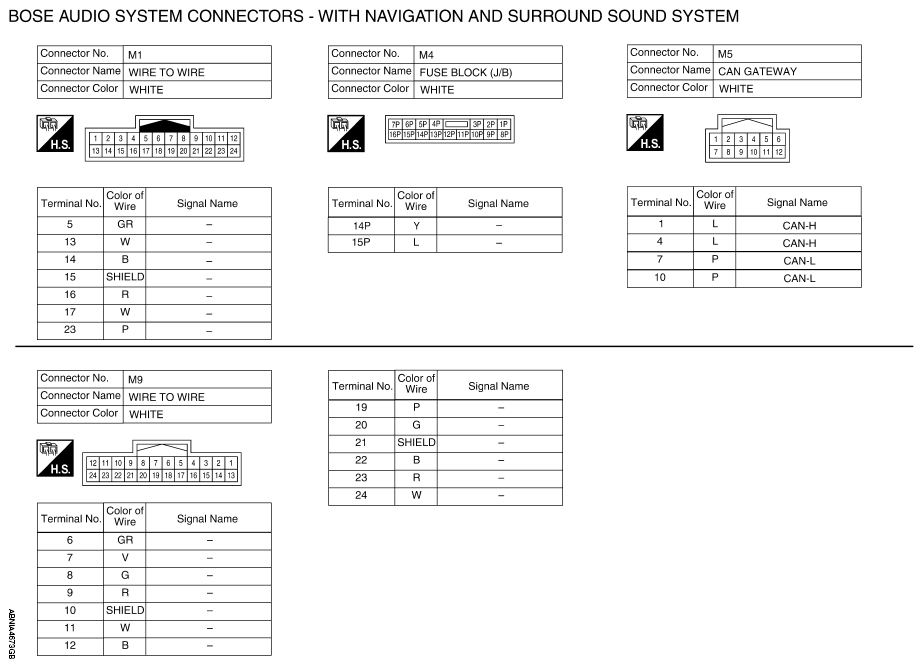

Fig 1: Bose Audio - With Navigation And Surround Sound System Connector End Views (1 Of 46)
G09428066Courtesy of NISSAN NORTH AMERICA, INC.

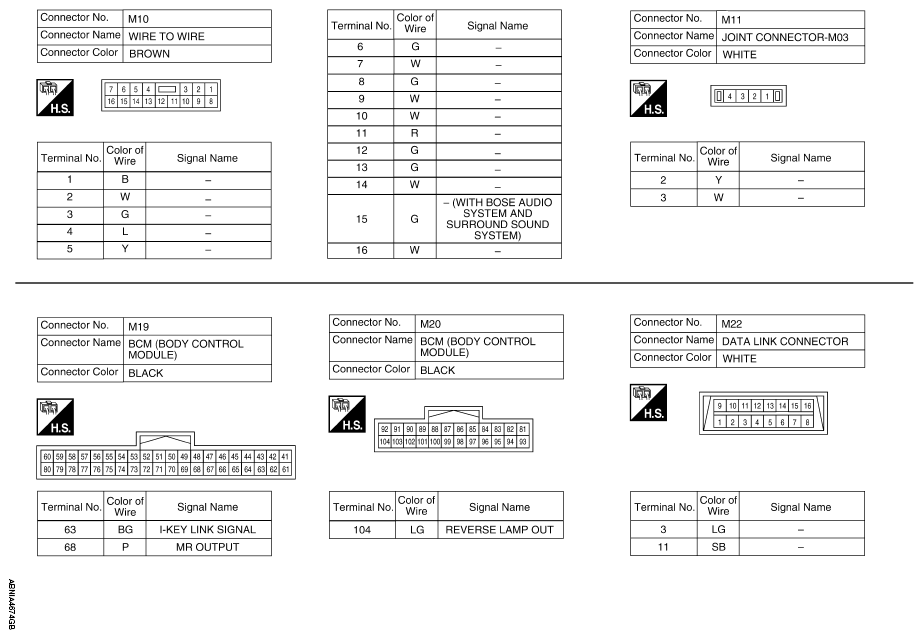

Fig 2: Bose Audio - With Navigation And Surround Sound System Connector End Views (2 Of 46)
G09428067Courtesy of NISSAN NORTH AMERICA, INC.

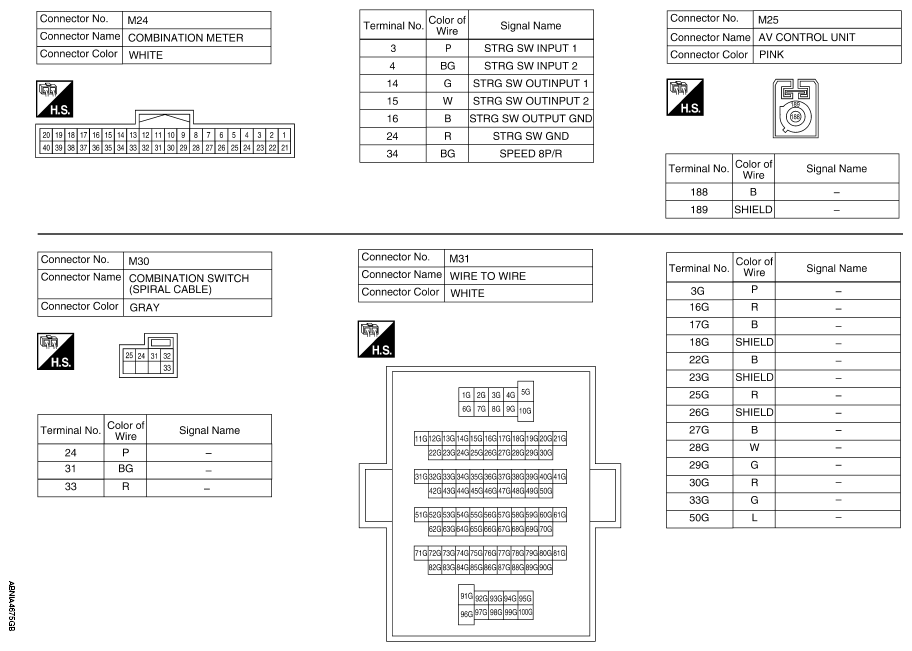

Fig 3: Bose Audio - With Navigation And Surround Sound System Connector End Views (3 Of 46)
G09428068Courtesy of NISSAN NORTH AMERICA, INC.

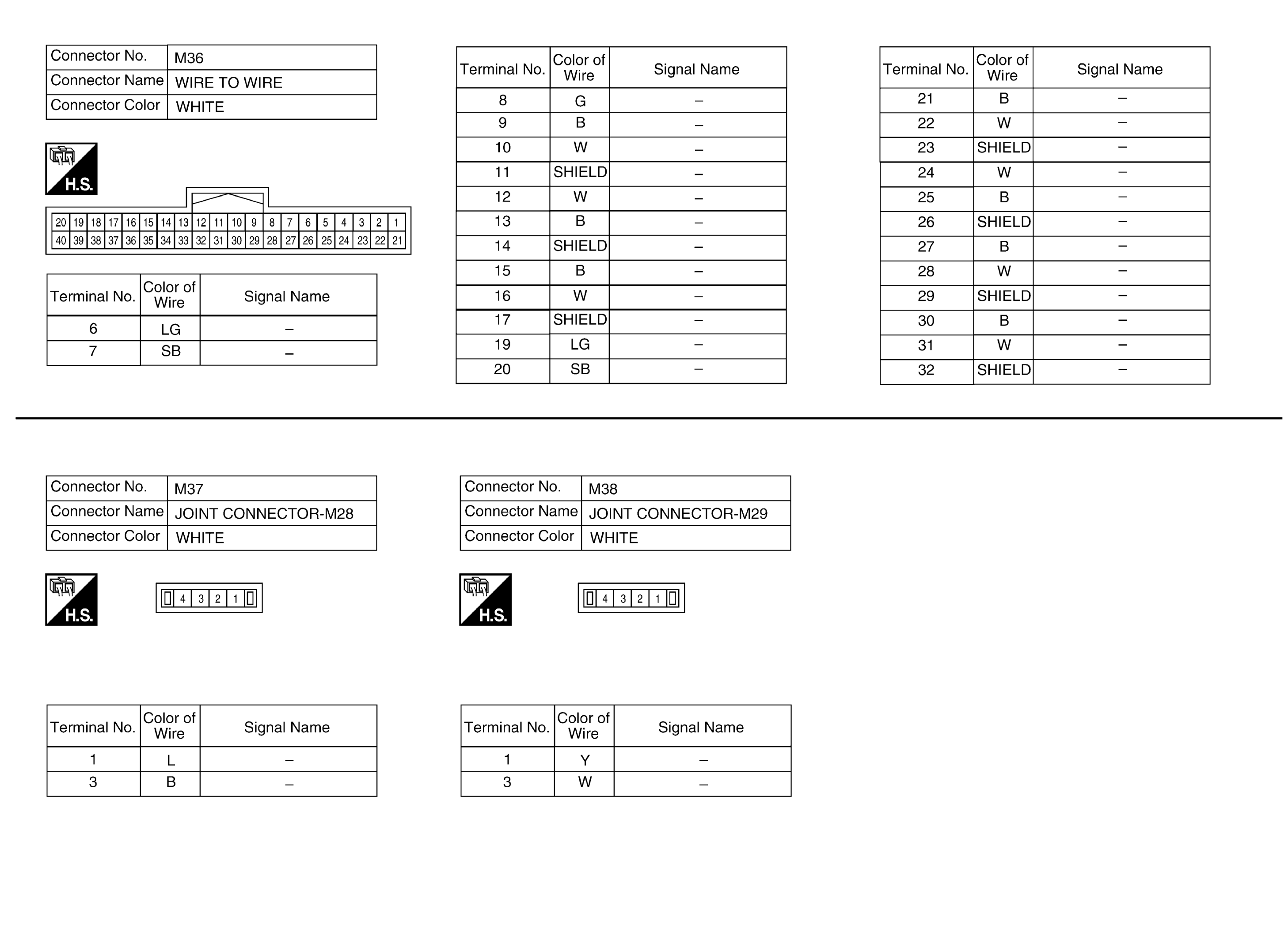

Fig 4: Bose Audio - With Navigation And Surround Sound System Connector End Views (4 Of 46)
G09428069Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Bose Audio - With Navigation And Surround Sound System Connector End Views (5 Of 46)
G09428070Courtesy of NISSAN NORTH AMERICA, INC.

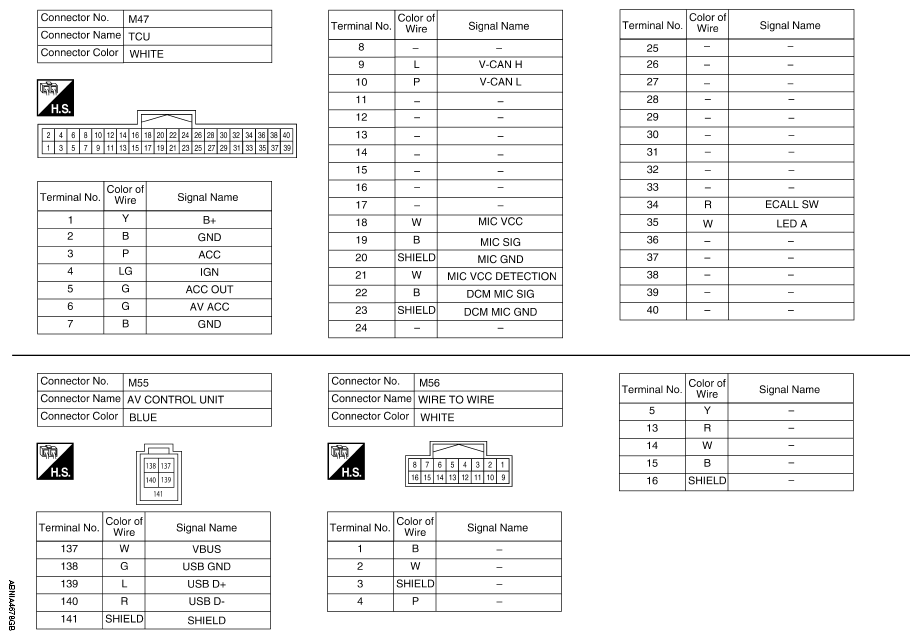

Fig 6: Bose Audio - With Navigation And Surround Sound System Connector End Views (6 Of 46)
G09428071Courtesy of NISSAN NORTH AMERICA, INC.

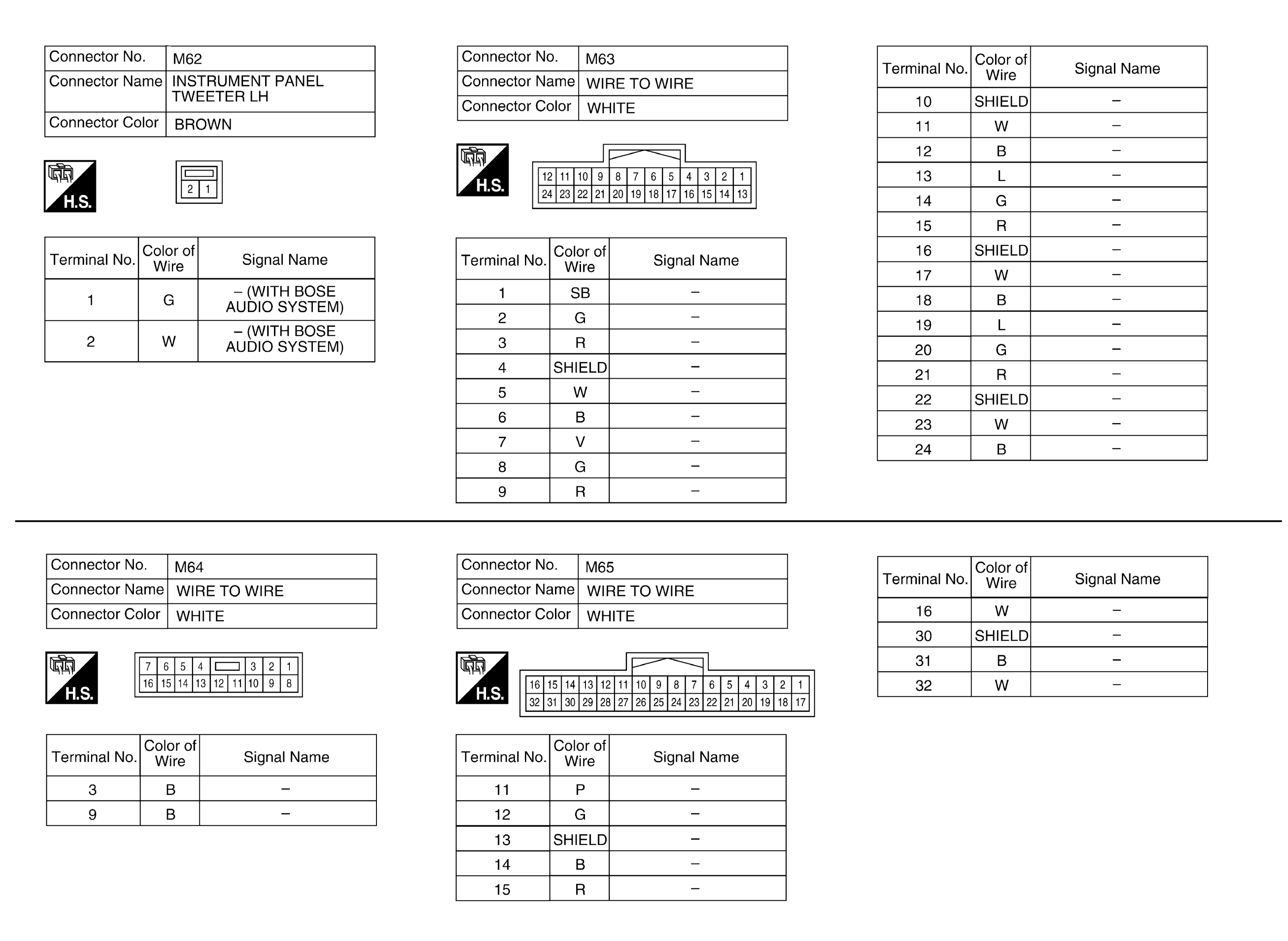

Fig 7: Bose Audio - With Navigation And Surround Sound System Connector End Views (7 Of 46)
G09428072Courtesy of NISSAN NORTH AMERICA, INC.

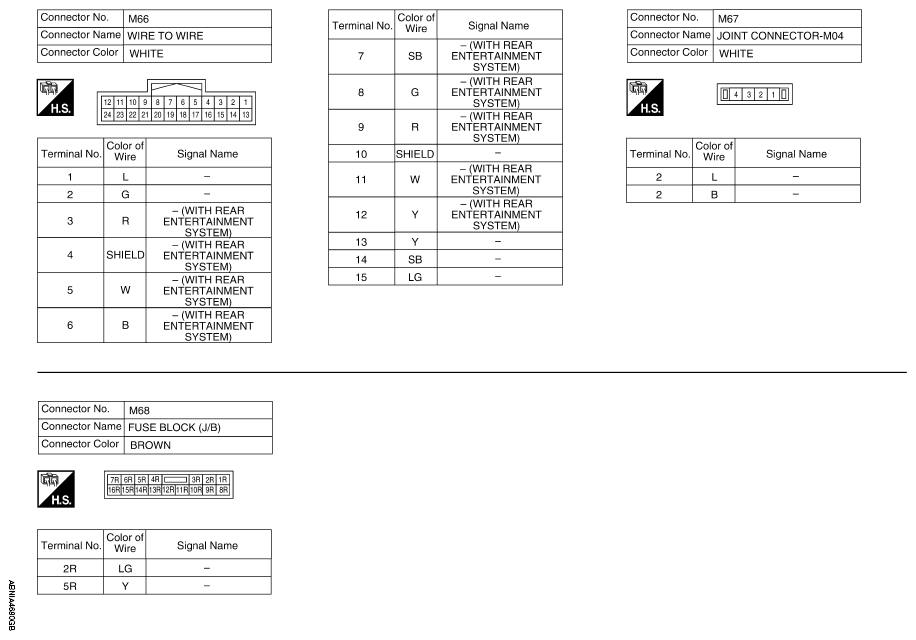

Fig 8: Bose Audio - With Navigation And Surround Sound System Connector End Views (8 Of 46)
G09428073Courtesy of NISSAN NORTH AMERICA, INC.

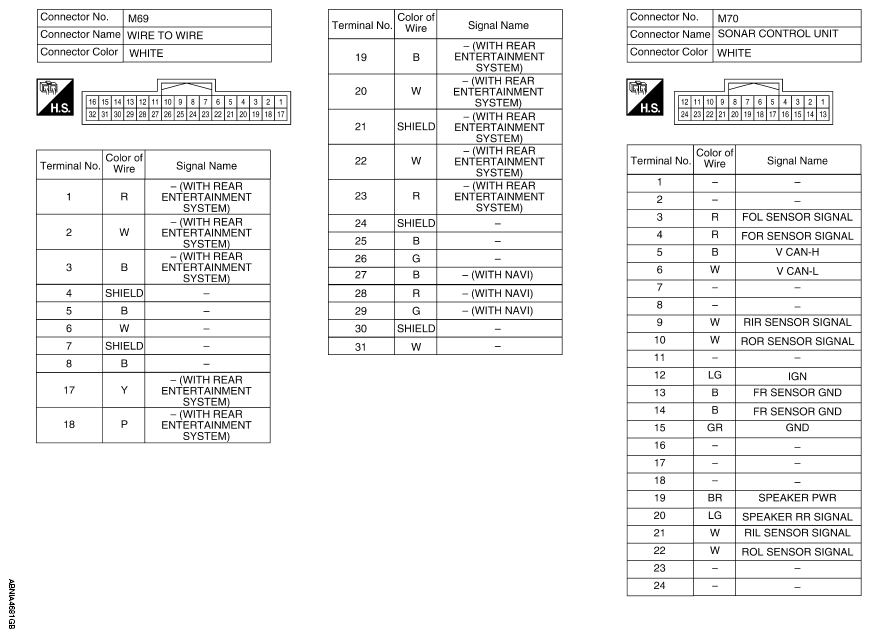

Fig 9: Bose Audio - With Navigation And Surround Sound System Connector End Views (9 Of 46)
G09428074Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Bose Audio - With Navigation And Surround Sound System Connector End Views (10 Of 46)
G09428075Courtesy of NISSAN NORTH AMERICA, INC.

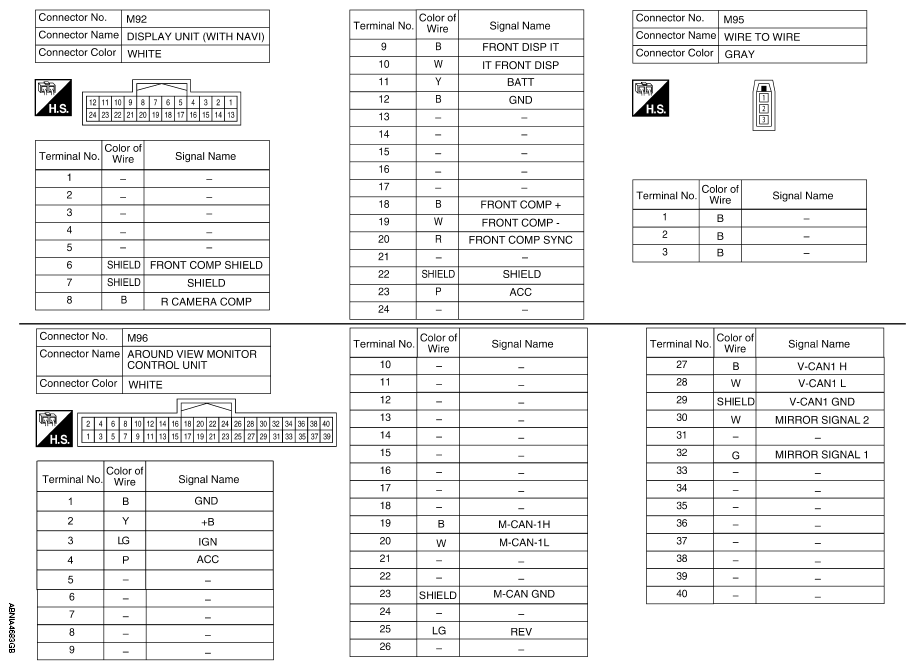

Fig 11: Bose Audio - With Navigation And Surround Sound System Connector End Views (11 Of 46)
G09428076Courtesy of NISSAN NORTH AMERICA, INC.

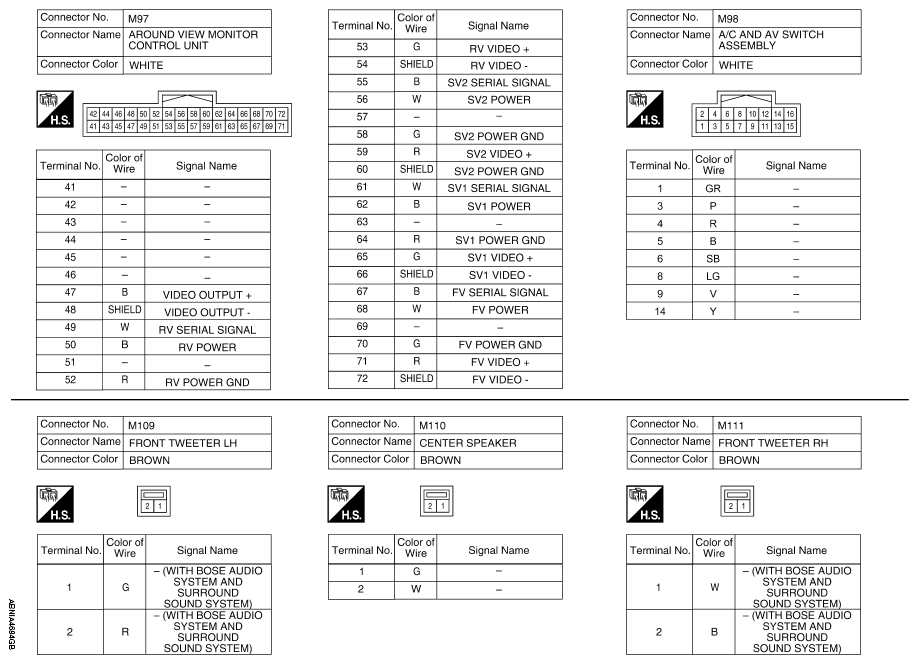

Fig 12: Bose Audio - With Navigation And Surround Sound System Connector End Views (12 Of 46)
G09428077Courtesy of NISSAN NORTH AMERICA, INC.

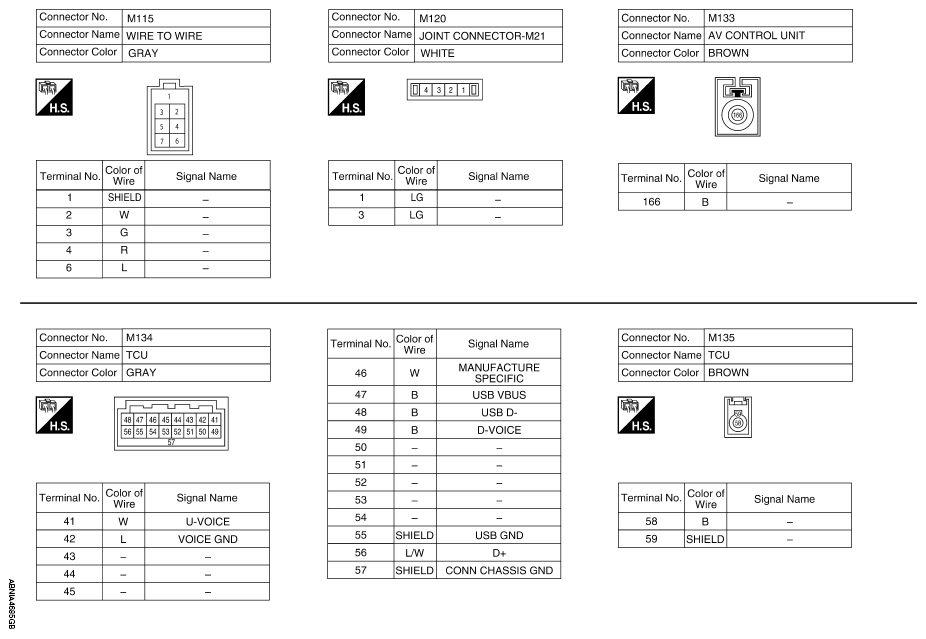

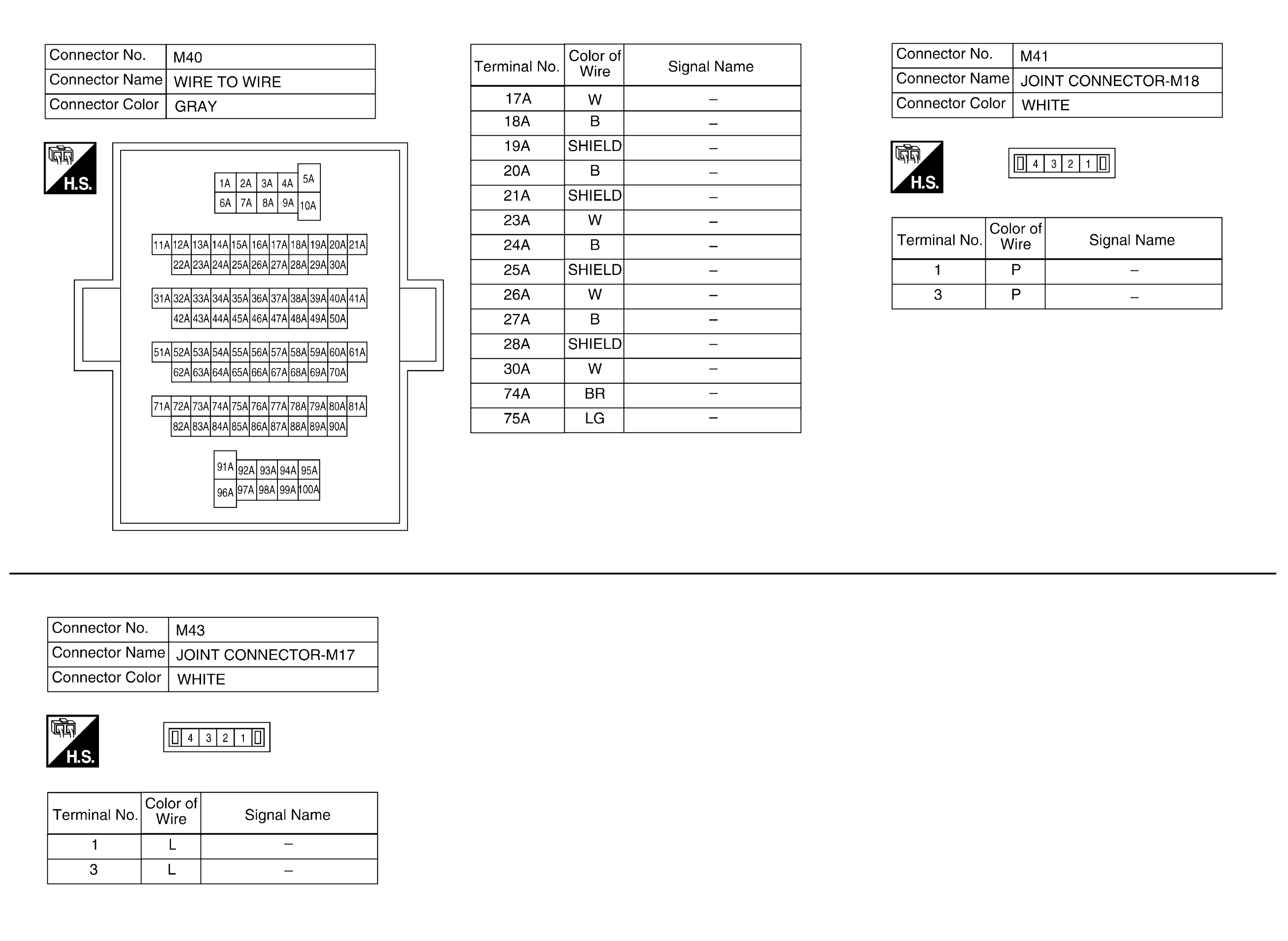

Fig 13: Bose Audio - With Navigation And Surround Sound System Connector End Views (13 Of 46)
G09428078Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Bose Audio - With Navigation And Surround Sound System Connector End Views (14 Of 46)
G09428079Courtesy of NISSAN NORTH AMERICA, INC.

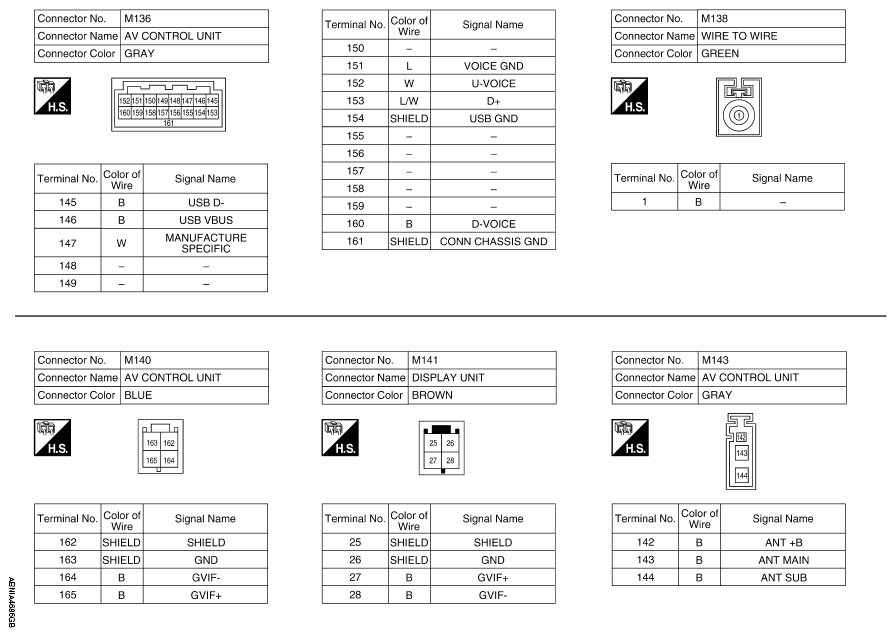

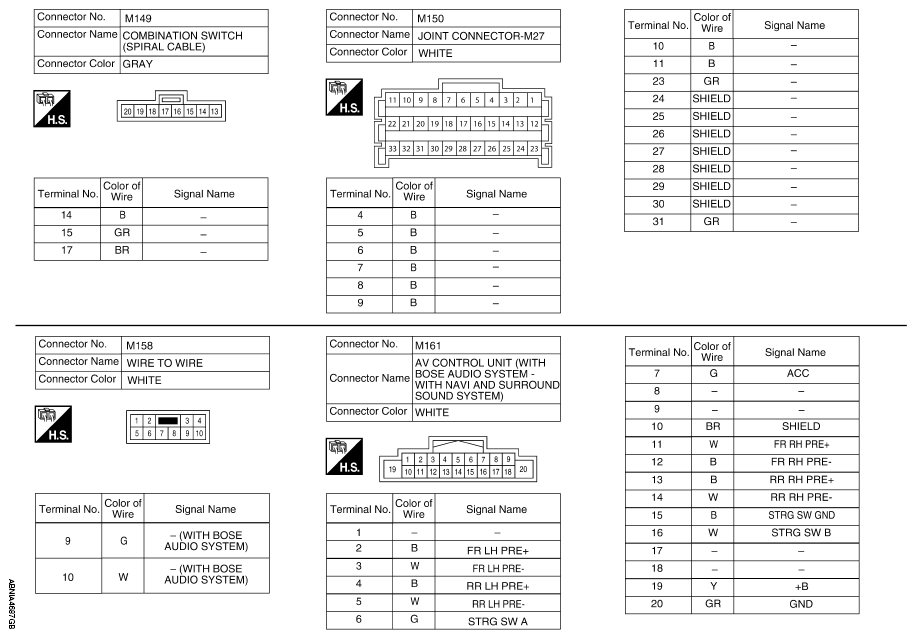

Fig 15: Bose Audio - With Navigation And Surround Sound System Connector End Views (15 Of 46)
G09428080Courtesy of NISSAN NORTH AMERICA, INC.

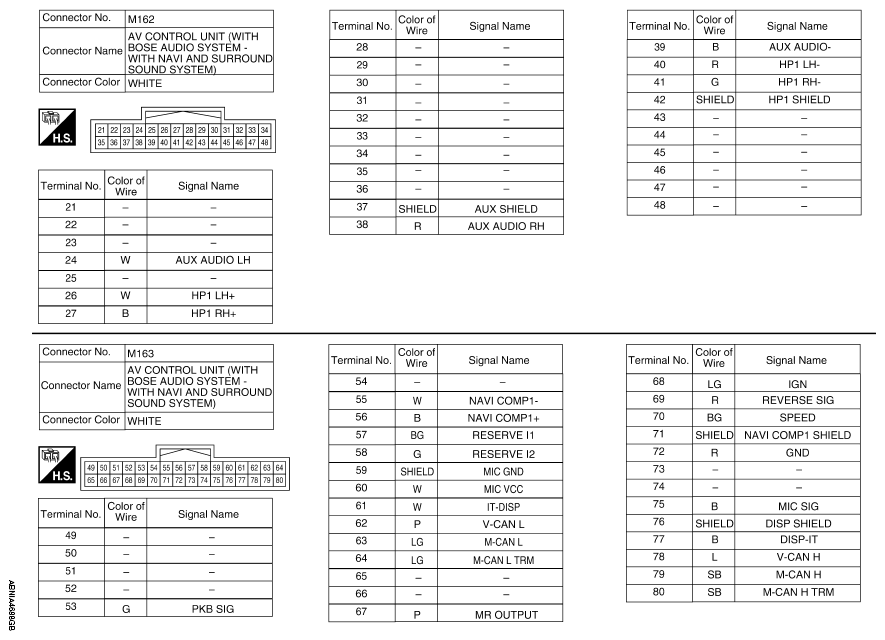

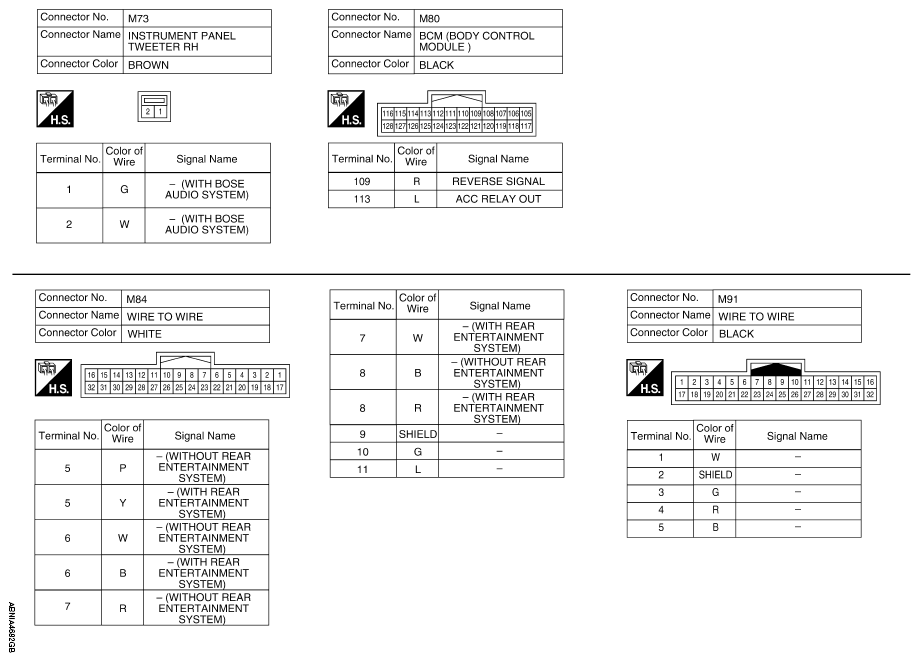

Fig 16: Bose Audio - With Navigation And Surround Sound System Connector End Views (16 Of 46)
G09428081Courtesy of NISSAN NORTH AMERICA, INC.
Fig 17: Bose Audio - With Navigation And Surround Sound System Connector End Views (17 Of 46)
G09428082Courtesy of NISSAN NORTH AMERICA, INC.

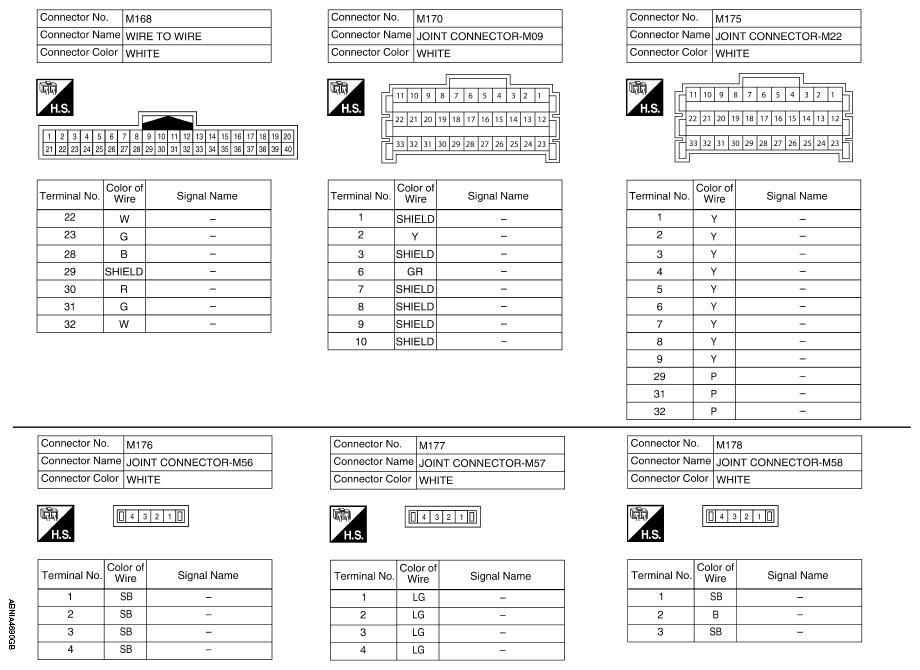

Fig 18: Bose Audio - With Navigation And Surround Sound System Connector End Views (18 Of 46)
G09428083Courtesy of NISSAN NORTH AMERICA, INC.

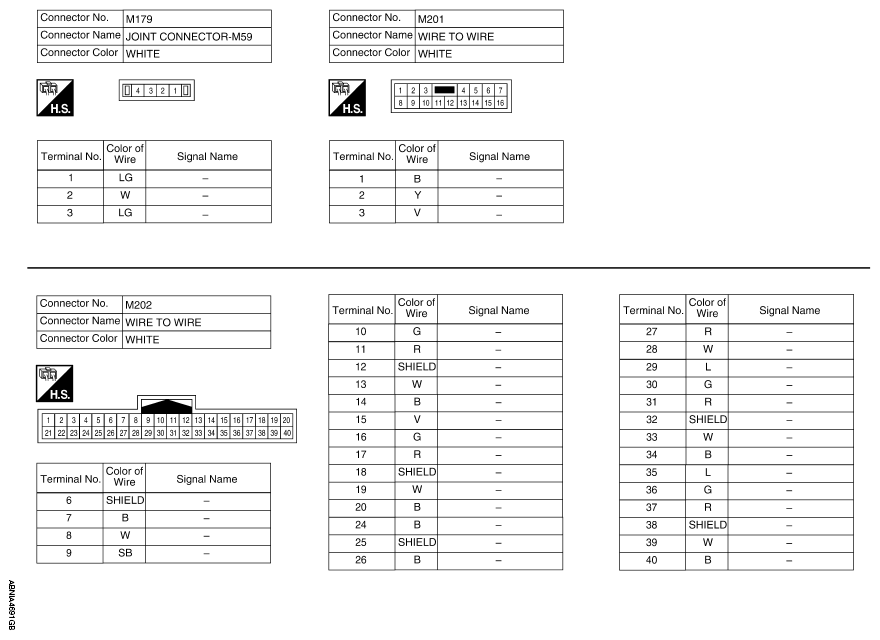

Fig 19: Bose Audio - With Navigation And Surround Sound System Connector End Views (19 Of 46)
G09428084Courtesy of NISSAN NORTH AMERICA, INC.
Fig 20: Bose Audio - With Navigation And Surround Sound System Connector End Views (20 Of 46)
G09428085Courtesy of NISSAN NORTH AMERICA, INC.

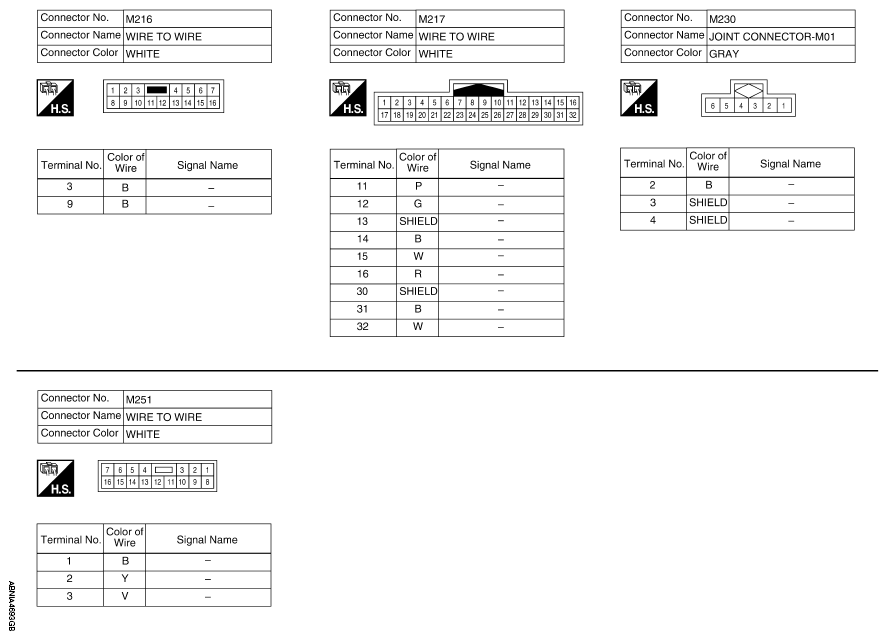

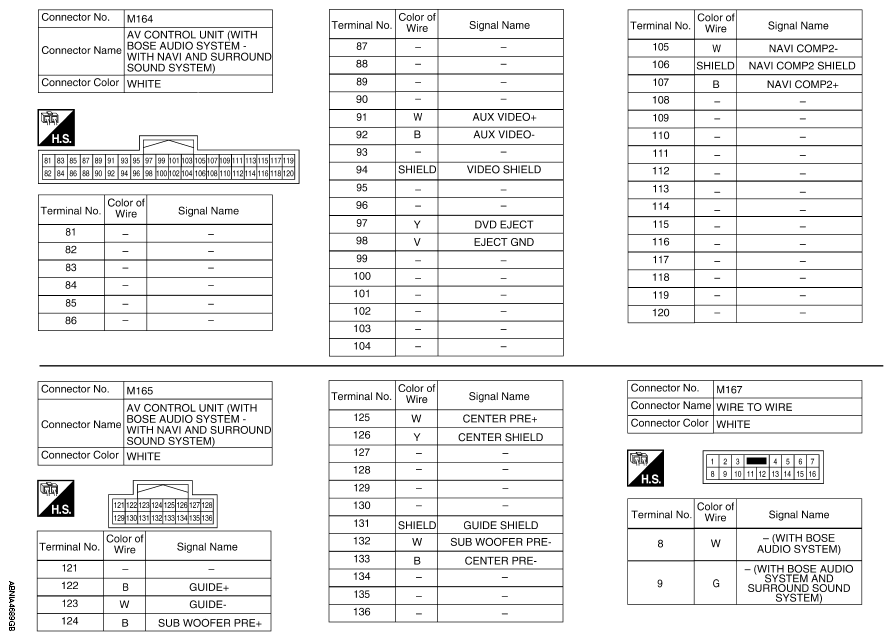

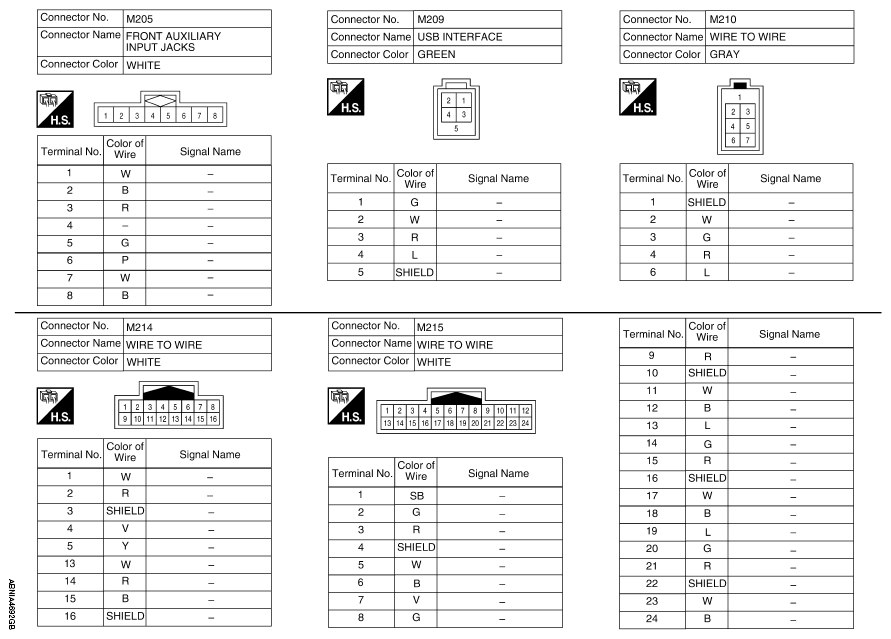

Fig 21: Bose Audio - With Navigation And Surround Sound System Connector End Views (21 Of 46)
G09428086Courtesy of NISSAN NORTH AMERICA, INC.

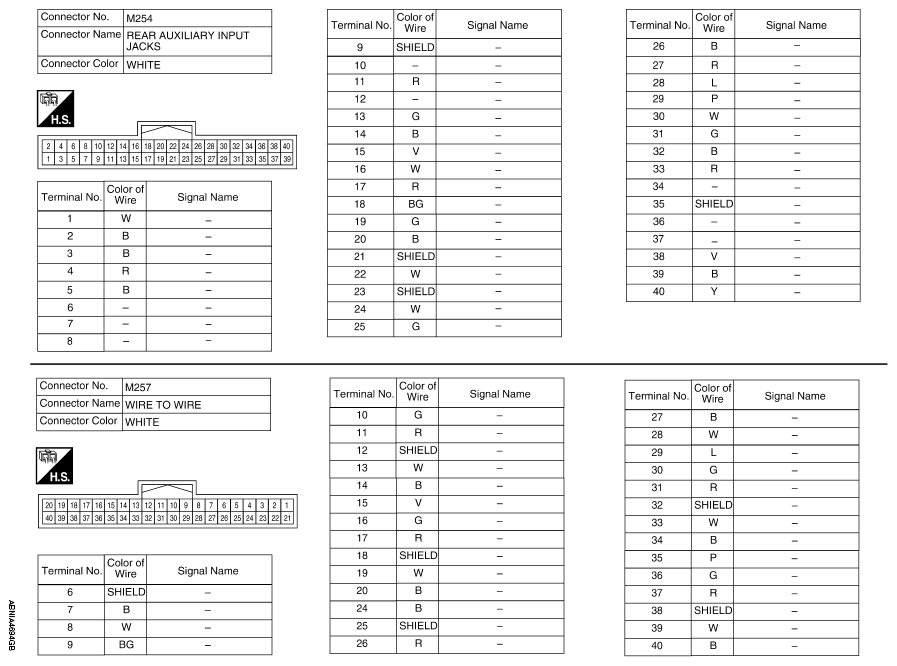

Fig 22: Bose Audio - With Navigation And Surround Sound System Connector End Views (22 Of 46)
G09428087Courtesy of NISSAN NORTH AMERICA, INC.

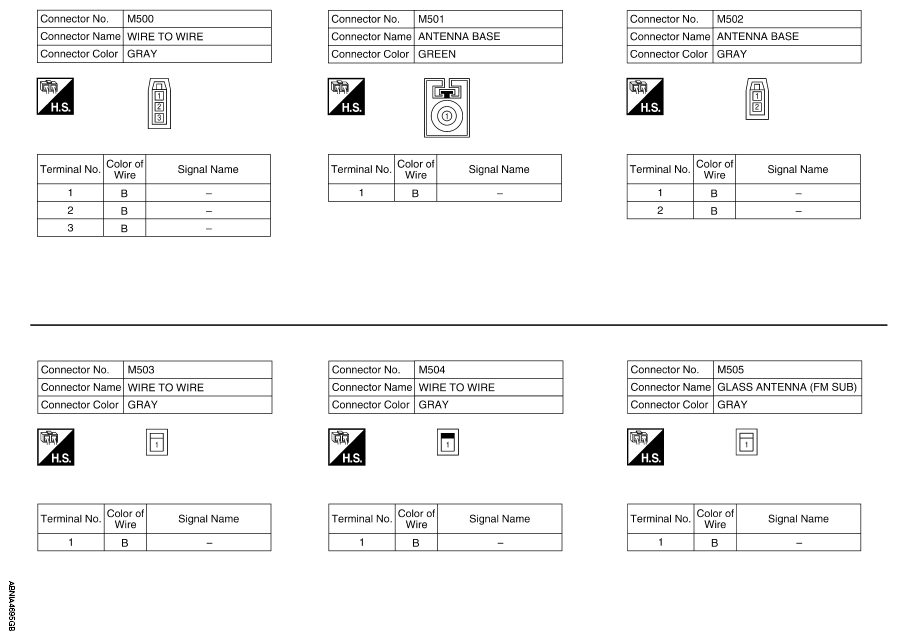

Fig 23: Bose Audio - With Navigation And Surround Sound System Connector End Views (23 Of 46)
G09428088Courtesy of NISSAN NORTH AMERICA, INC.

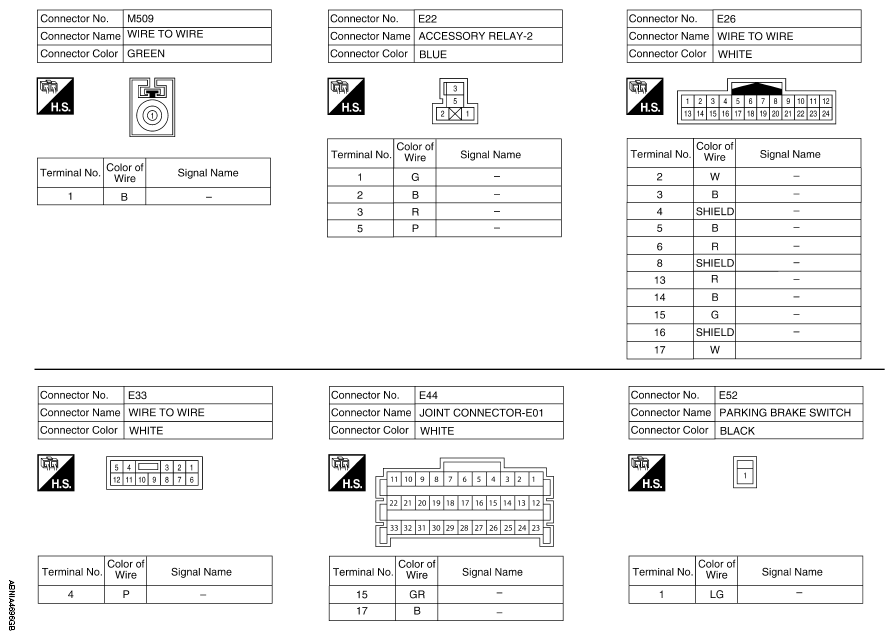

Fig 24: Bose Audio - With Navigation And Surround Sound System Connector End Views (24 Of 46)
G09428089Courtesy of NISSAN NORTH AMERICA, INC.

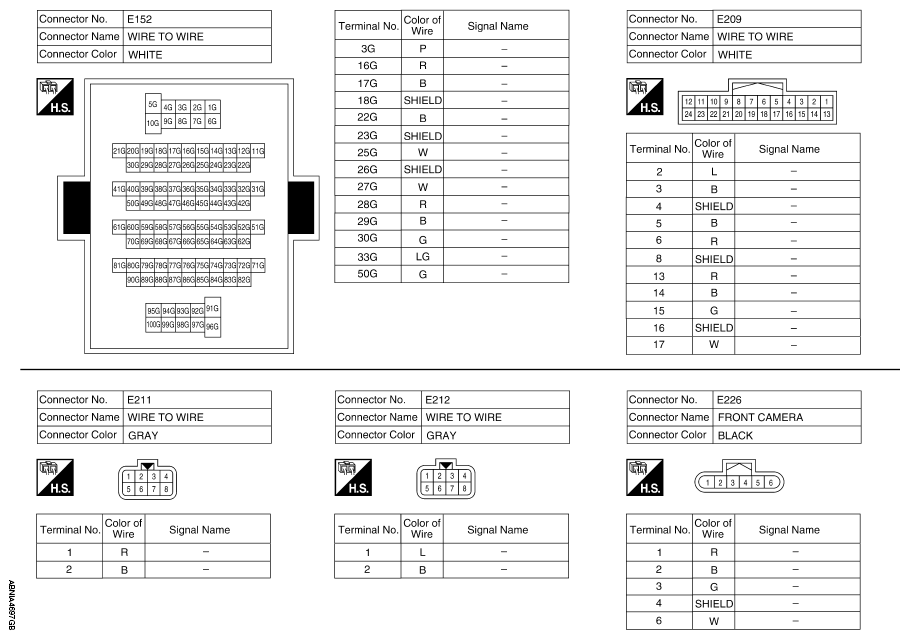

Fig 25: Bose Audio - With Navigation And Surround Sound System Connector End Views (25 Of 46)
G09428090Courtesy of NISSAN NORTH AMERICA, INC.
Fig 26: Bose Audio - With Navigation And Surround Sound System Connector End Views (26 Of 46)
G09428091Courtesy of NISSAN NORTH AMERICA, INC.

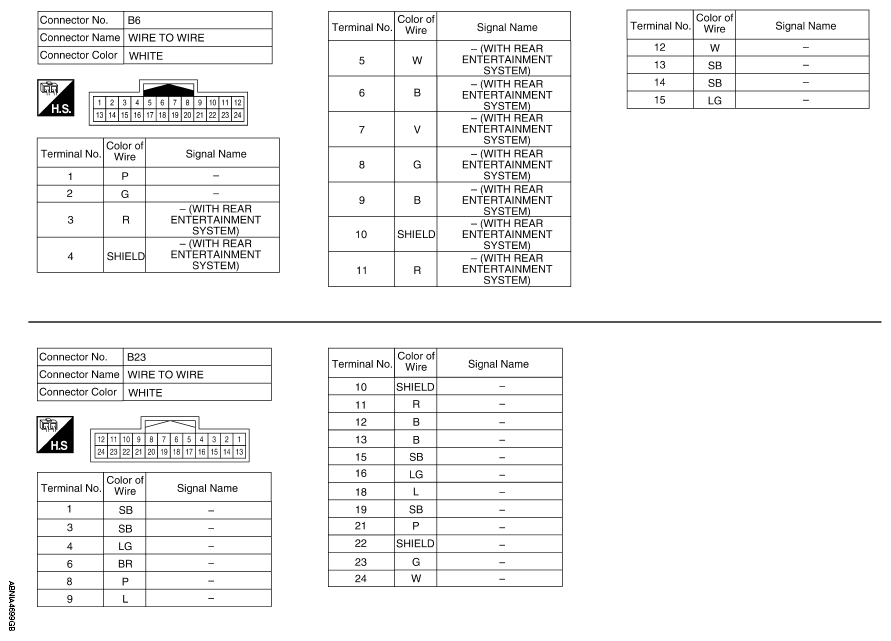

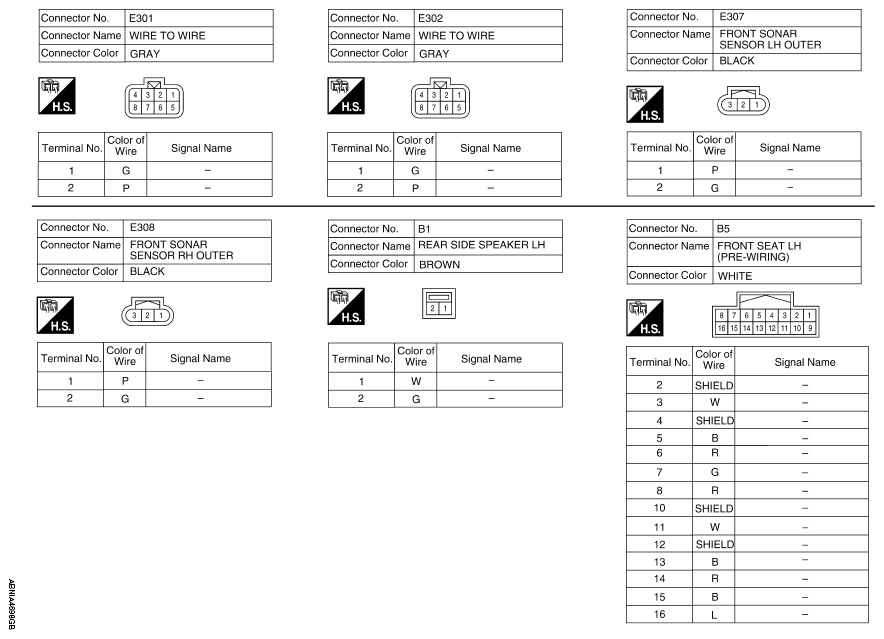

Fig 27: Bose Audio - With Navigation And Surround Sound System Connector End Views (27 Of 46)
G09428092Courtesy of NISSAN NORTH AMERICA, INC.
Fig 28: Bose Audio - With Navigation And Surround Sound System Connector End Views (28 Of 46)
G09428093Courtesy of NISSAN NORTH AMERICA, INC.

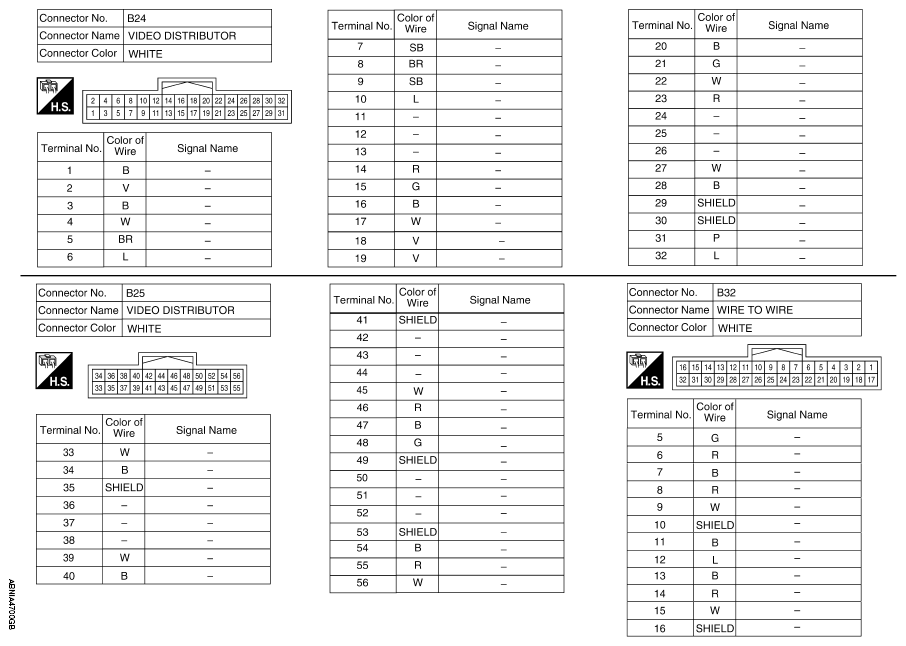

Fig 29: Bose Audio - With Navigation And Surround Sound System Connector End Views (29 Of 46)
G09428094Courtesy of NISSAN NORTH AMERICA, INC.

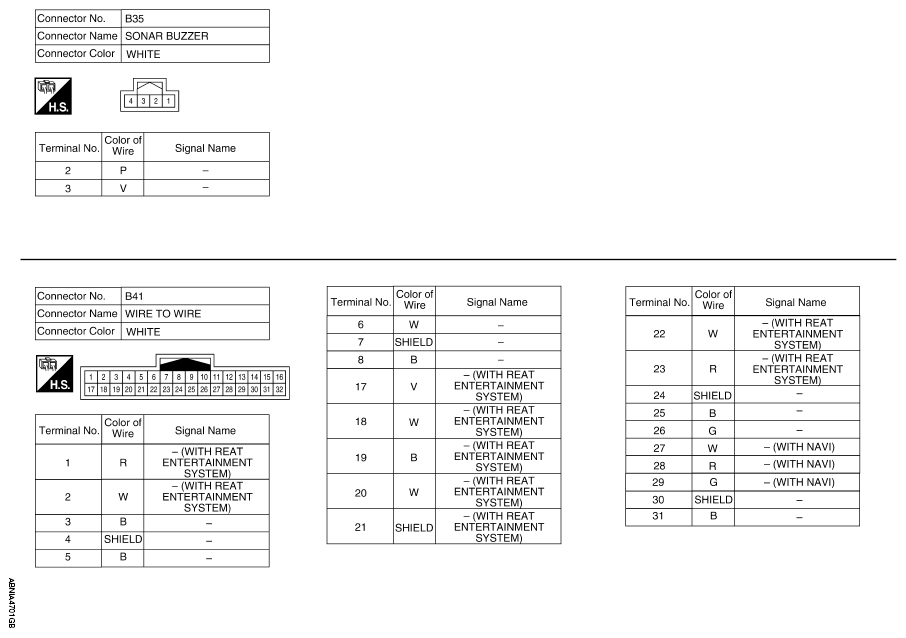

Fig 30: Bose Audio - With Navigation And Surround Sound System Connector End Views (30 Of 46)
G09428095Courtesy of NISSAN NORTH AMERICA, INC.

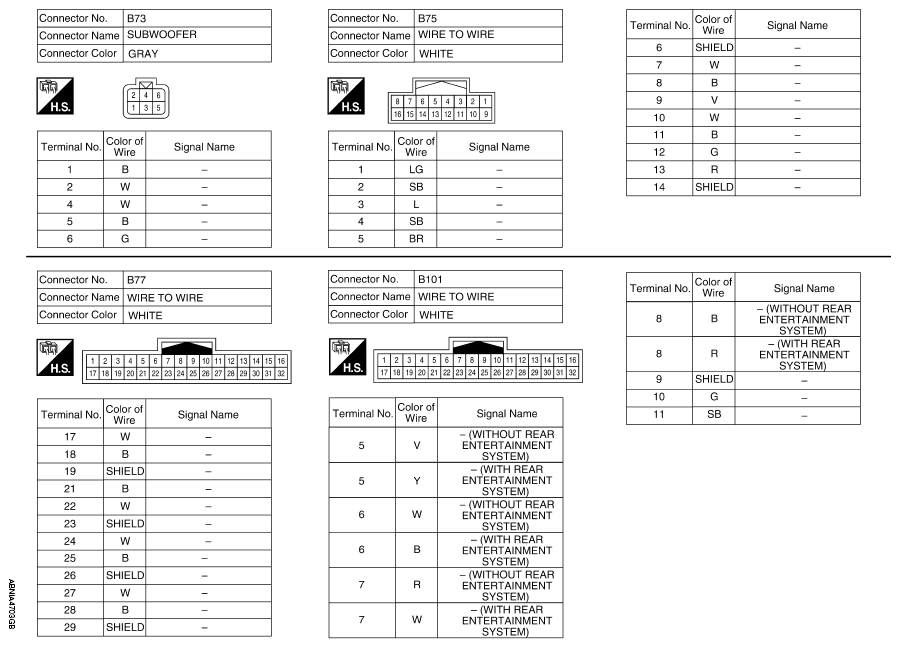

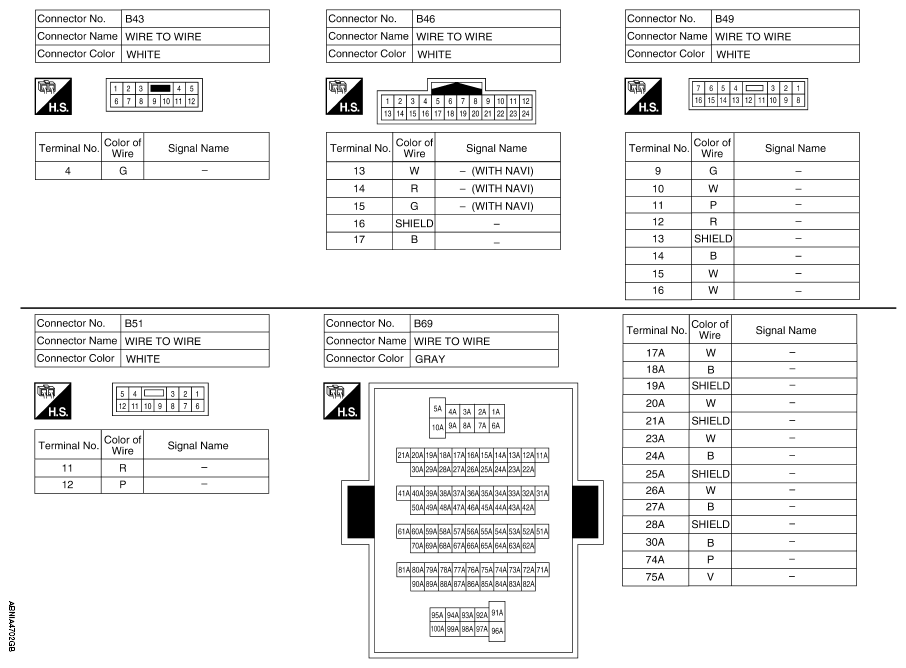

Fig 31: Bose Audio - With Navigation And Surround Sound System Connector End Views (31 Of 46)
G09428096Courtesy of NISSAN NORTH AMERICA, INC.

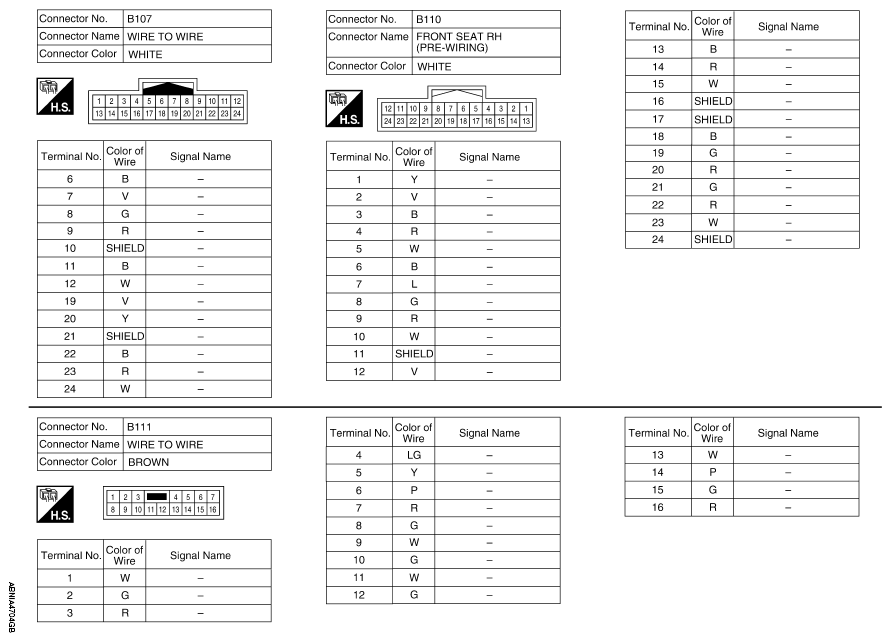

Fig 32: Bose Audio - With Navigation And Surround Sound System Connector End Views (32 Of 46)
G09428097Courtesy of NISSAN NORTH AMERICA, INC.

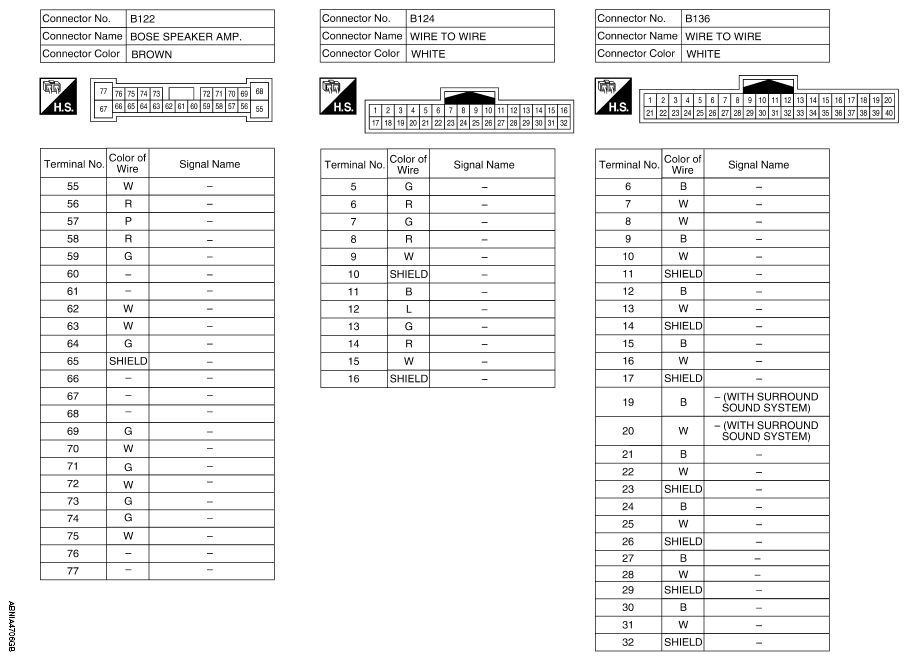

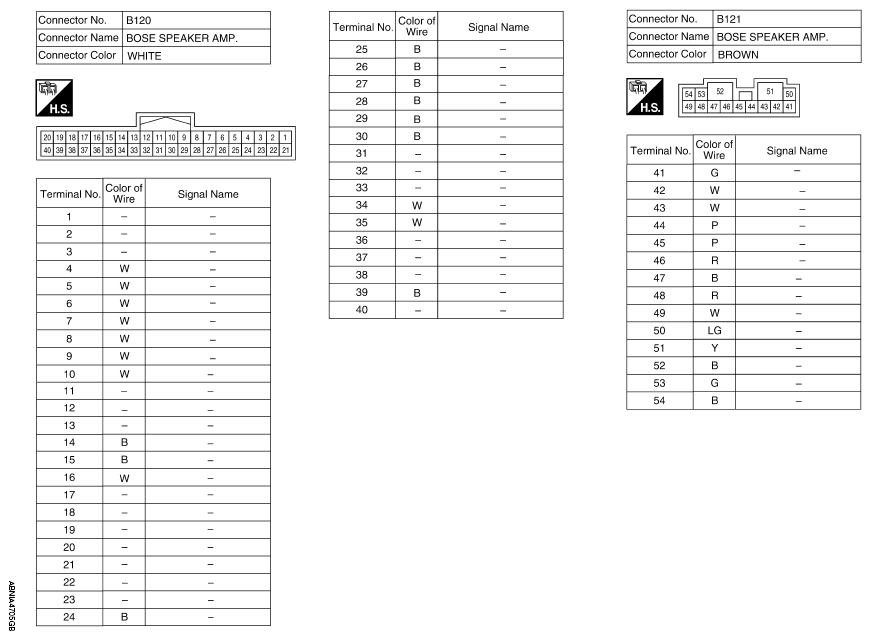

Fig 33: Bose Audio - With Navigation And Surround Sound System Connector End Views (33 Of 46)
G09428098Courtesy of NISSAN NORTH AMERICA, INC.
Fig 34: Bose Audio - With Navigation And Surround Sound System Connector End Views (34 Of 46)
G09428099Courtesy of NISSAN NORTH AMERICA, INC.

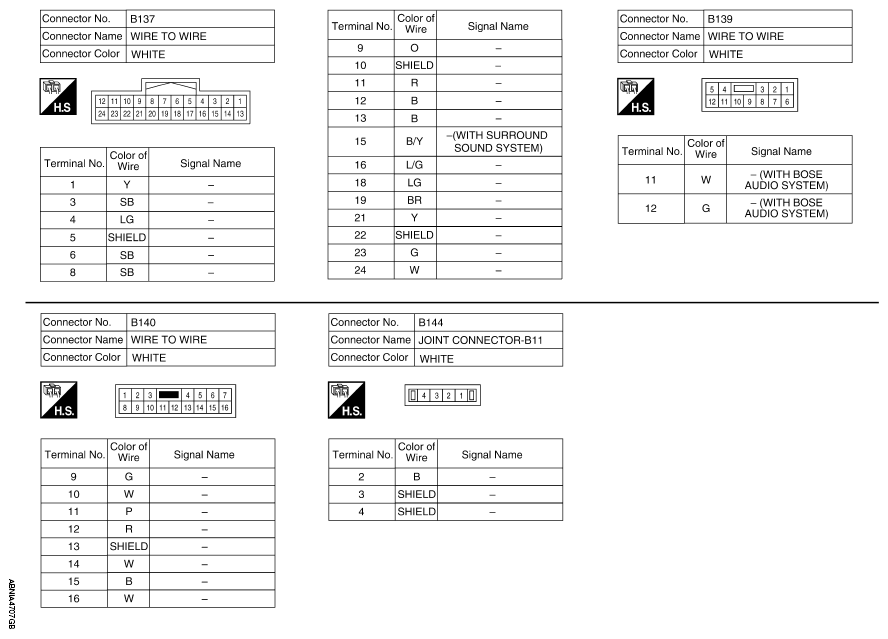

Fig 35: Bose Audio - With Navigation And Surround Sound System Connector End Views (35 Of 46)
G09428100Courtesy of NISSAN NORTH AMERICA, INC.
Fig 36: Bose Audio - With Navigation And Surround Sound System Connector End Views (36 Of 46)
G09428101Courtesy of NISSAN NORTH AMERICA, INC.

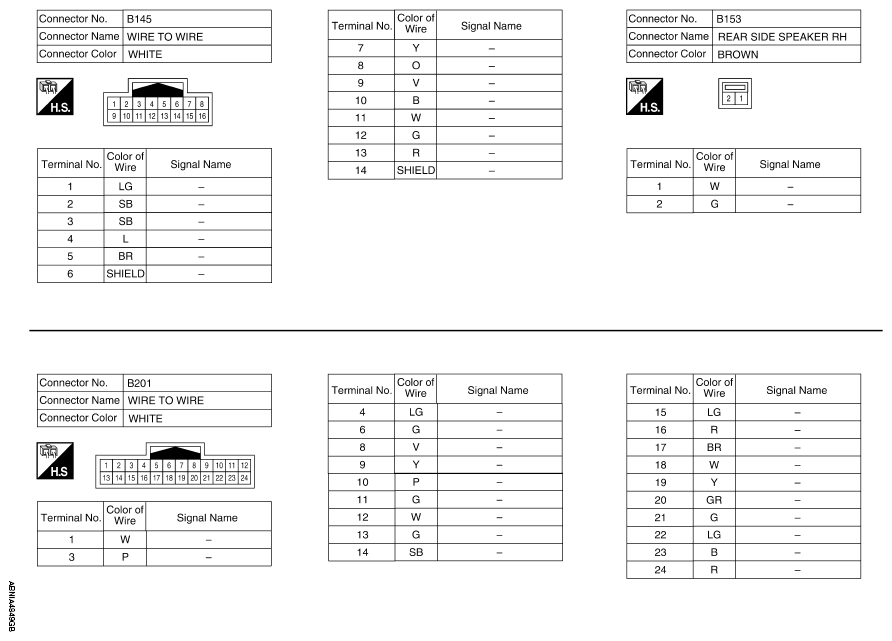

Fig 37: Bose Audio - With Navigation And Surround Sound System Connector End Views (37 Of 46)
G09428102Courtesy of NISSAN NORTH AMERICA, INC.

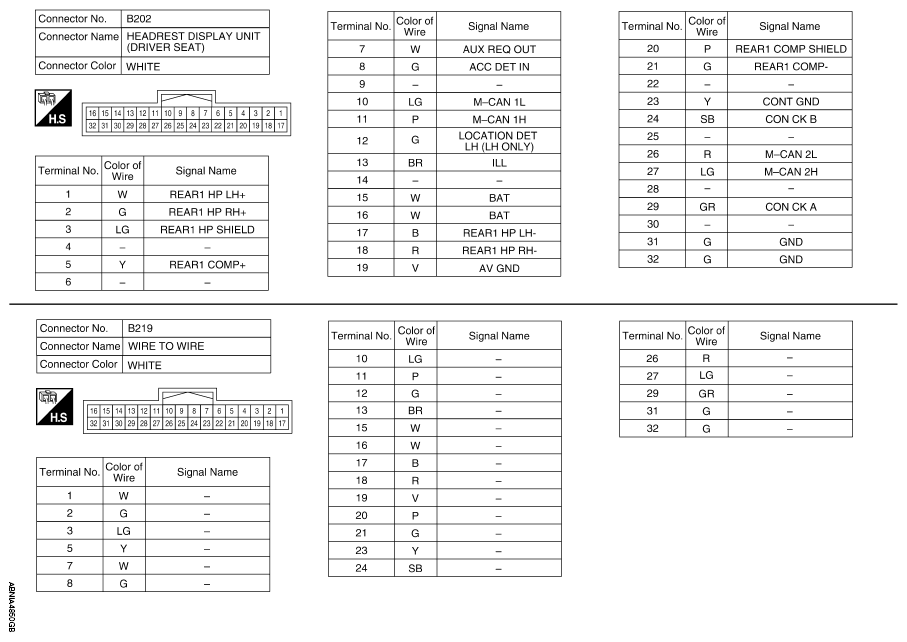

Fig 38: Bose Audio - With Navigation And Surround Sound System Connector End Views (38 Of 46)
G09428103Courtesy of NISSAN NORTH AMERICA, INC.

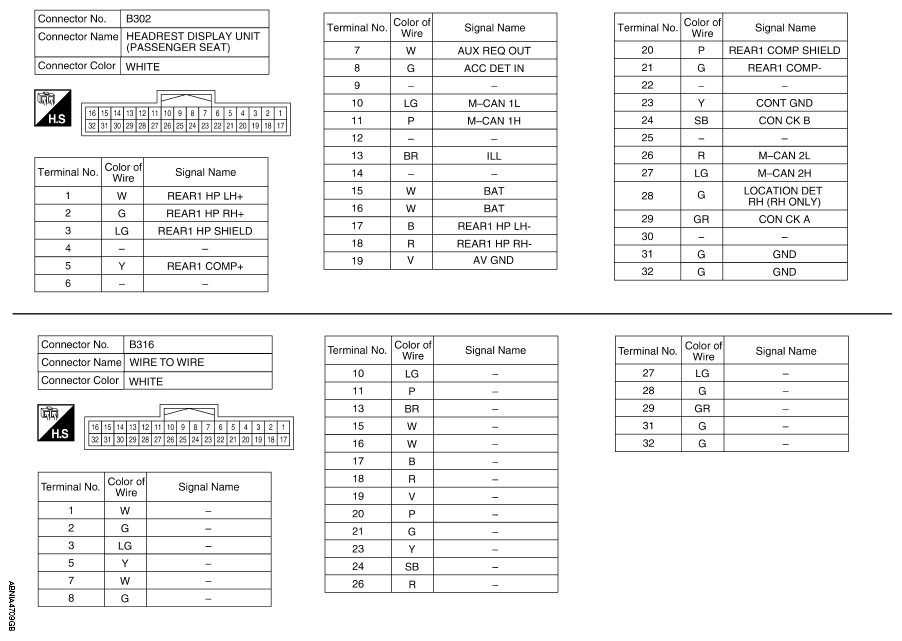

Fig 39: Bose Audio - With Navigation And Surround Sound System Connector End Views (39 Of 46)
G09428104Courtesy of NISSAN NORTH AMERICA, INC.

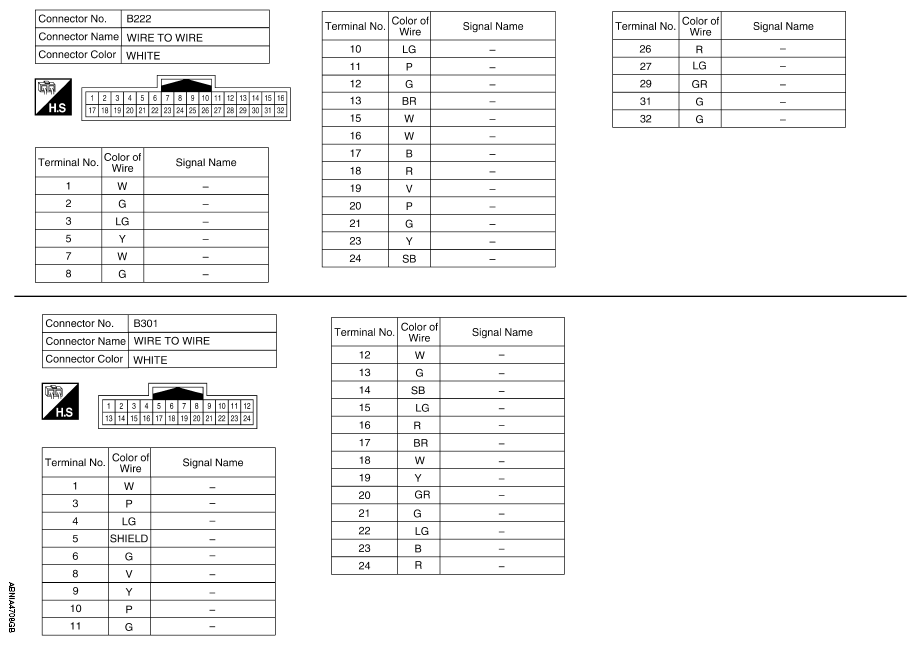

Fig 40: Bose Audio - With Navigation And Surround Sound System Connector End Views (40 Of 46)
G09428105Courtesy of NISSAN NORTH AMERICA, INC.

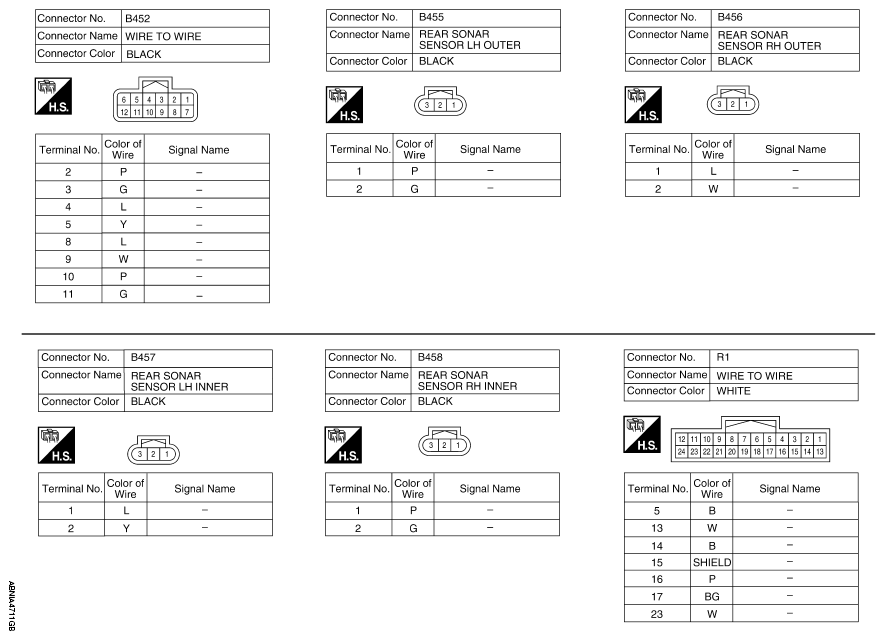

Fig 41: Bose Audio - With Navigation And Surround Sound System Connector End Views (41 Of 46)
G09428106Courtesy of NISSAN NORTH AMERICA, INC.
Fig 42: Bose Audio - With Navigation And Surround Sound System Connector End Views (42 Of 46)
G09428107Courtesy of NISSAN NORTH AMERICA, INC.

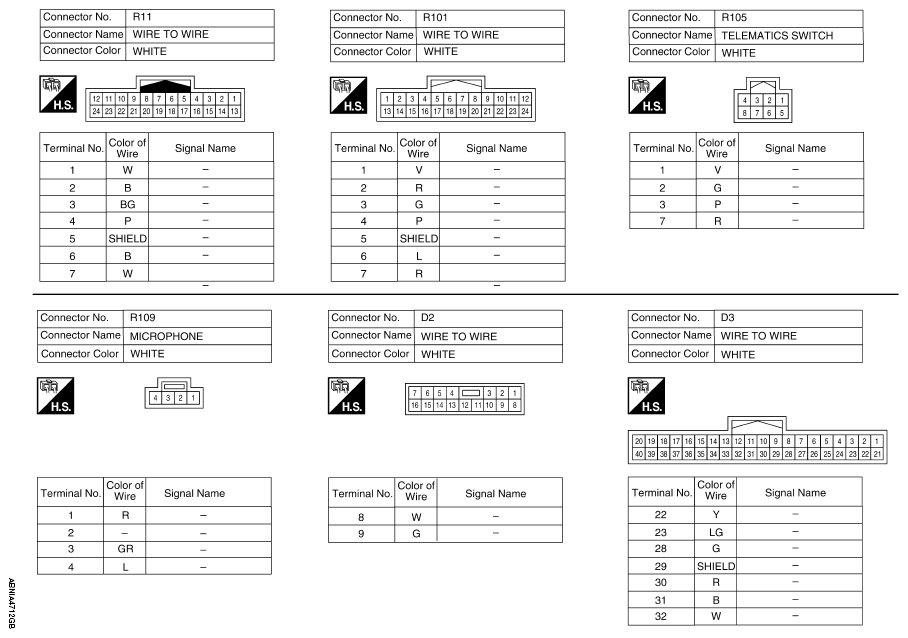

Fig 43: Bose Audio - With Navigation And Surround Sound System Connector End Views (43 Of 46)
G09428108Courtesy of NISSAN NORTH AMERICA, INC.

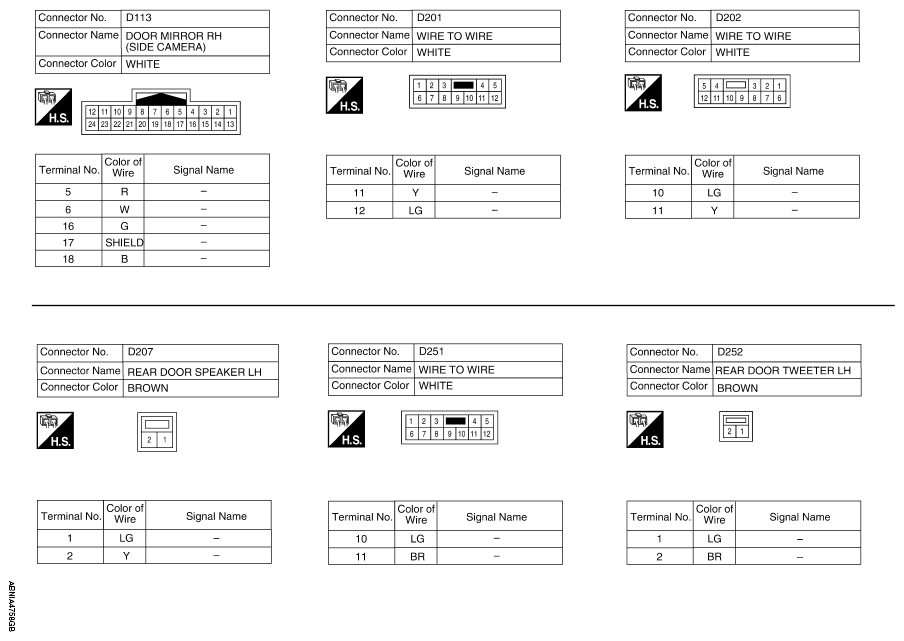

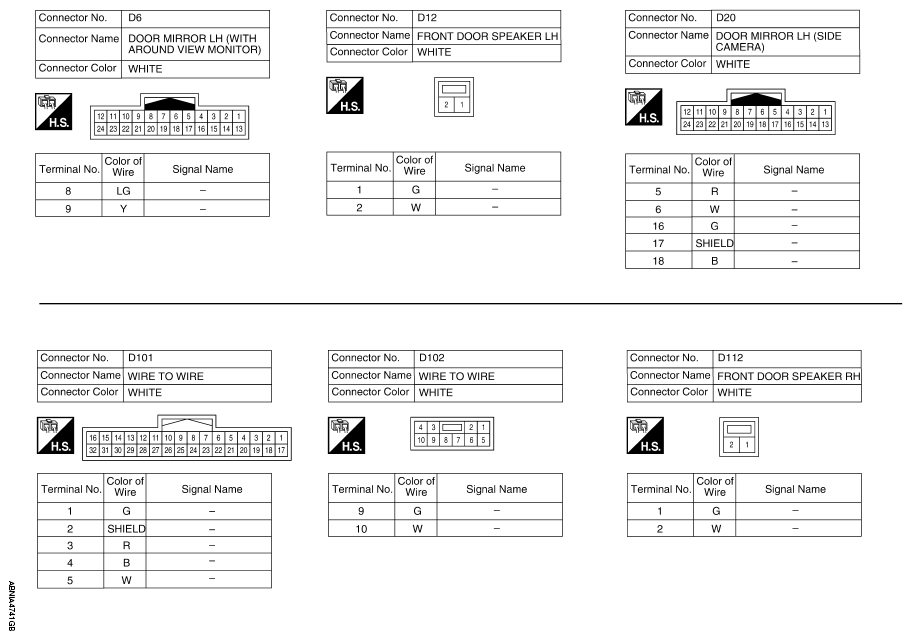

Fig 44: Bose Audio - With Navigation And Surround Sound System Connector End Views (44 Of 46)
G09428109Courtesy of NISSAN NORTH AMERICA, INC.

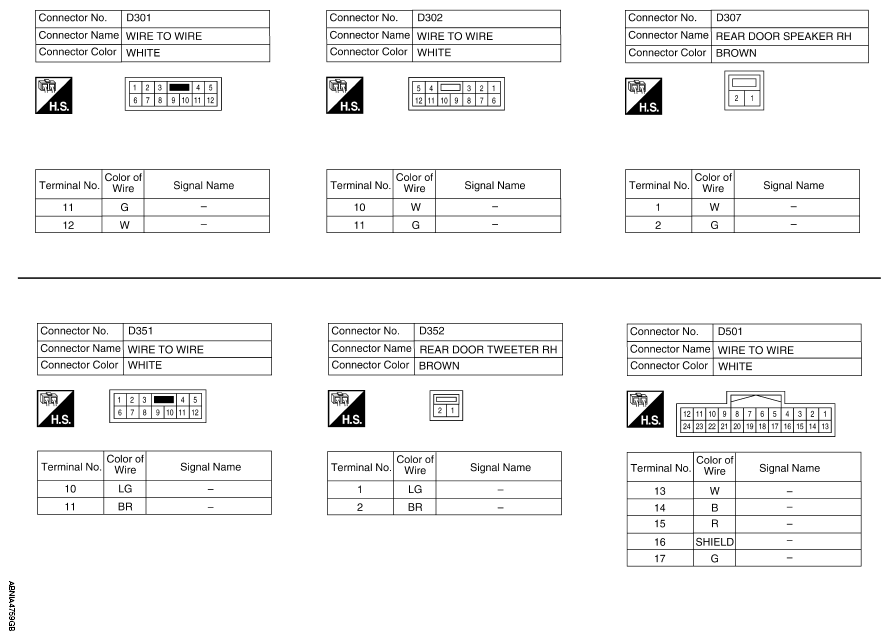

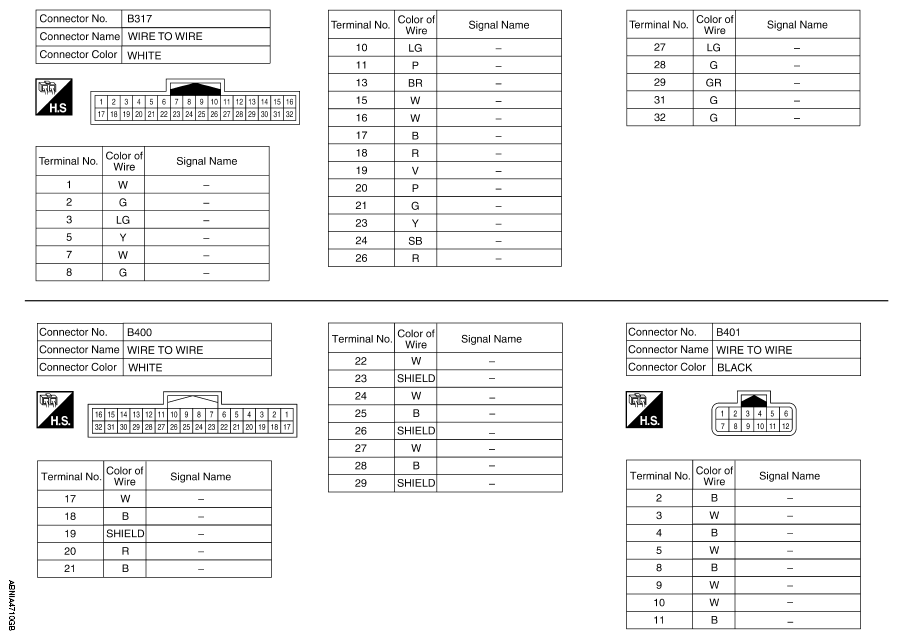

Fig 45: Bose Audio - With Navigation And Surround Sound System Connector End Views (45 Of 46)
G09428110Courtesy of NISSAN NORTH AMERICA, INC.
Fig 46: Bose Audio - With Navigation And Surround Sound System Connector End Views (46 Of 46)
G09428111Courtesy of NISSAN NORTH AMERICA, INC.
