Removal and Installation: Removal

  1. Remove back door outer upper finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove rear view camera screws (A), then remove rear view camera (1) from the back door outer upper finisher (2).

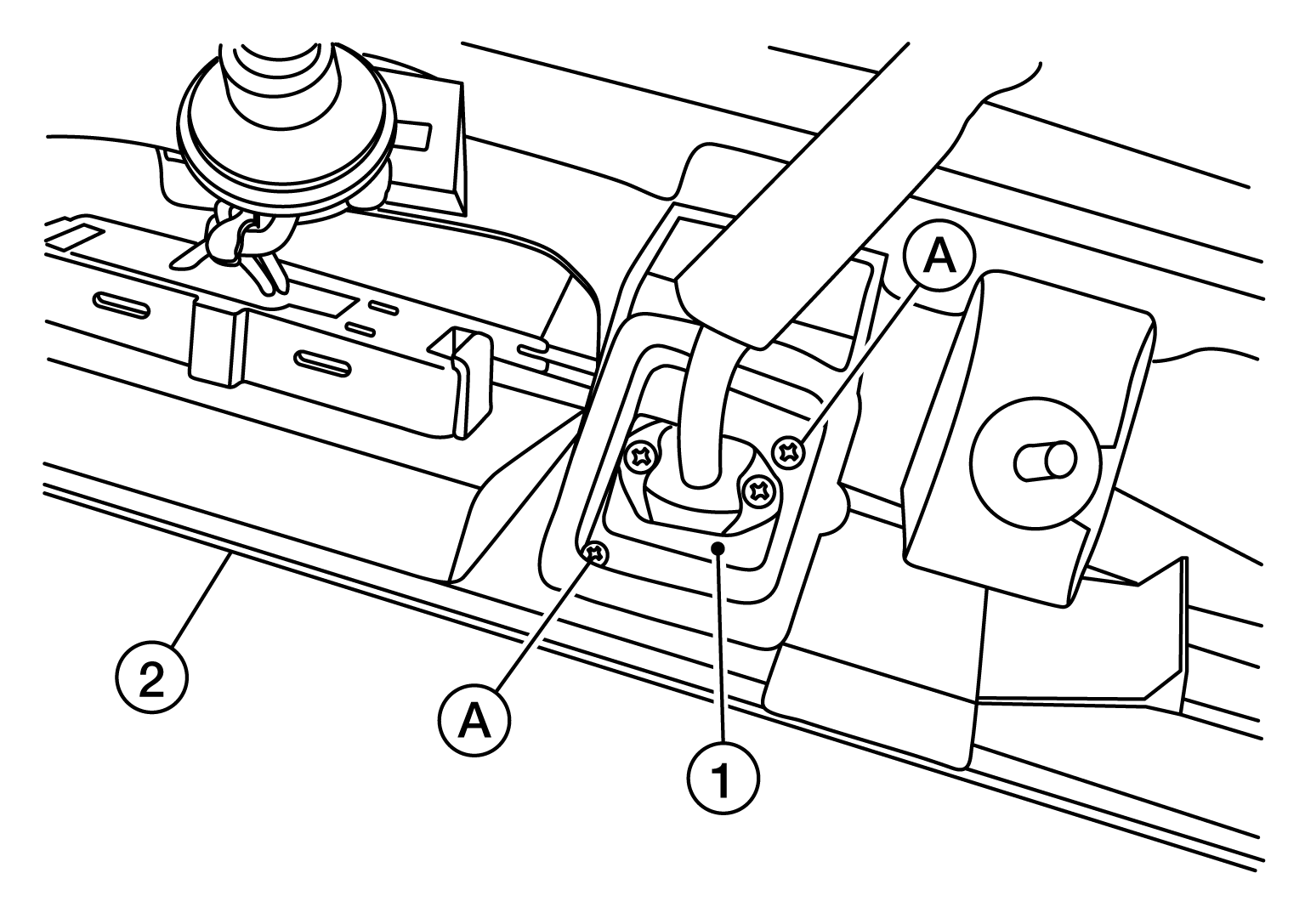

    Fig 1: Identifying Back Door Outer Upper Finisher And Rear View Camera Screws
    G08853771Courtesy of NISSAN NORTH AMERICA, INC.
