Removal and Installation: Removal

  1. Remove instrument panel tweeter grille. Refer to "EXPLODED VIEW ".
  2. Remove the screws (A), then pull out the instrument panel tweeter (1).
  3. Disconnect the harness connector from the instrument panel tweeter (1) and remove.

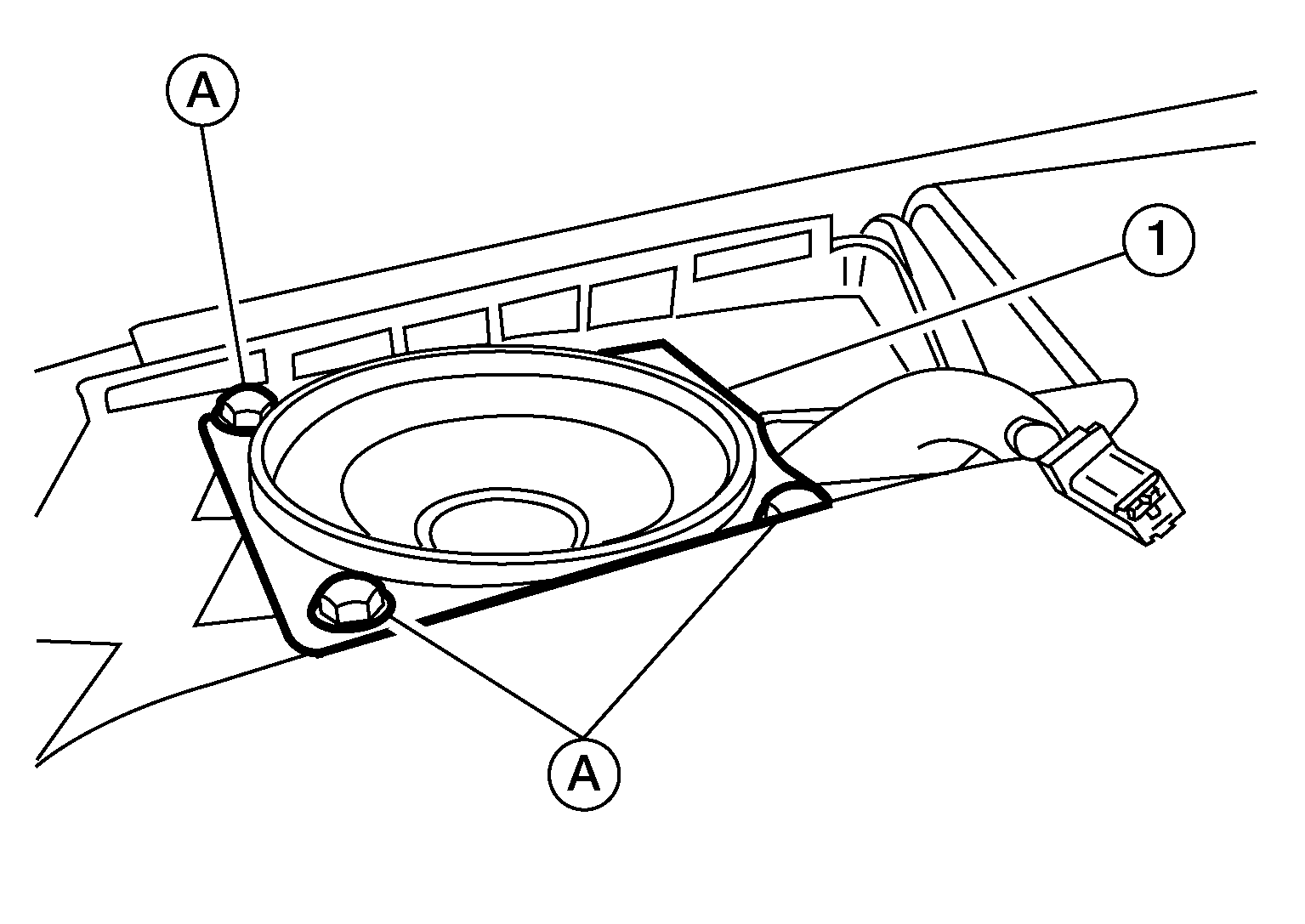

    Fig 1: Identifying Instrument Panel Tweeter And Screw
    G08151232Courtesy of NISSAN NORTH AMERICA, INC.
