Removal and Installation: Removal

CAUTION:

Do not press panel surface of display (glass area).
Do not press or pull out the movable part of display.

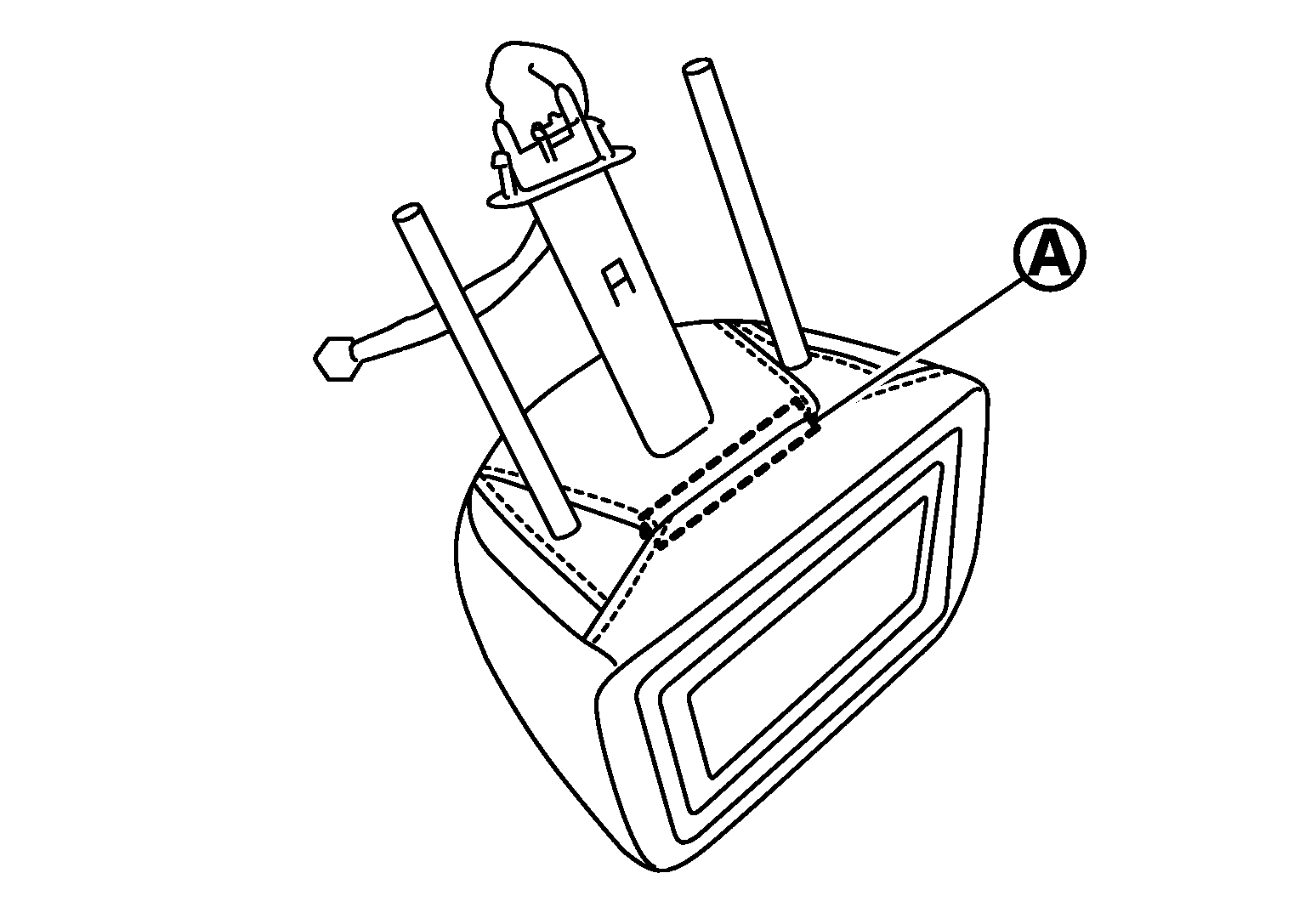

Remove the headrest trim retainer (A).

Fig 1: Identifying Headrest Trim Retainer
Courtesy of NISSAN NORTH AMERICA, INC.

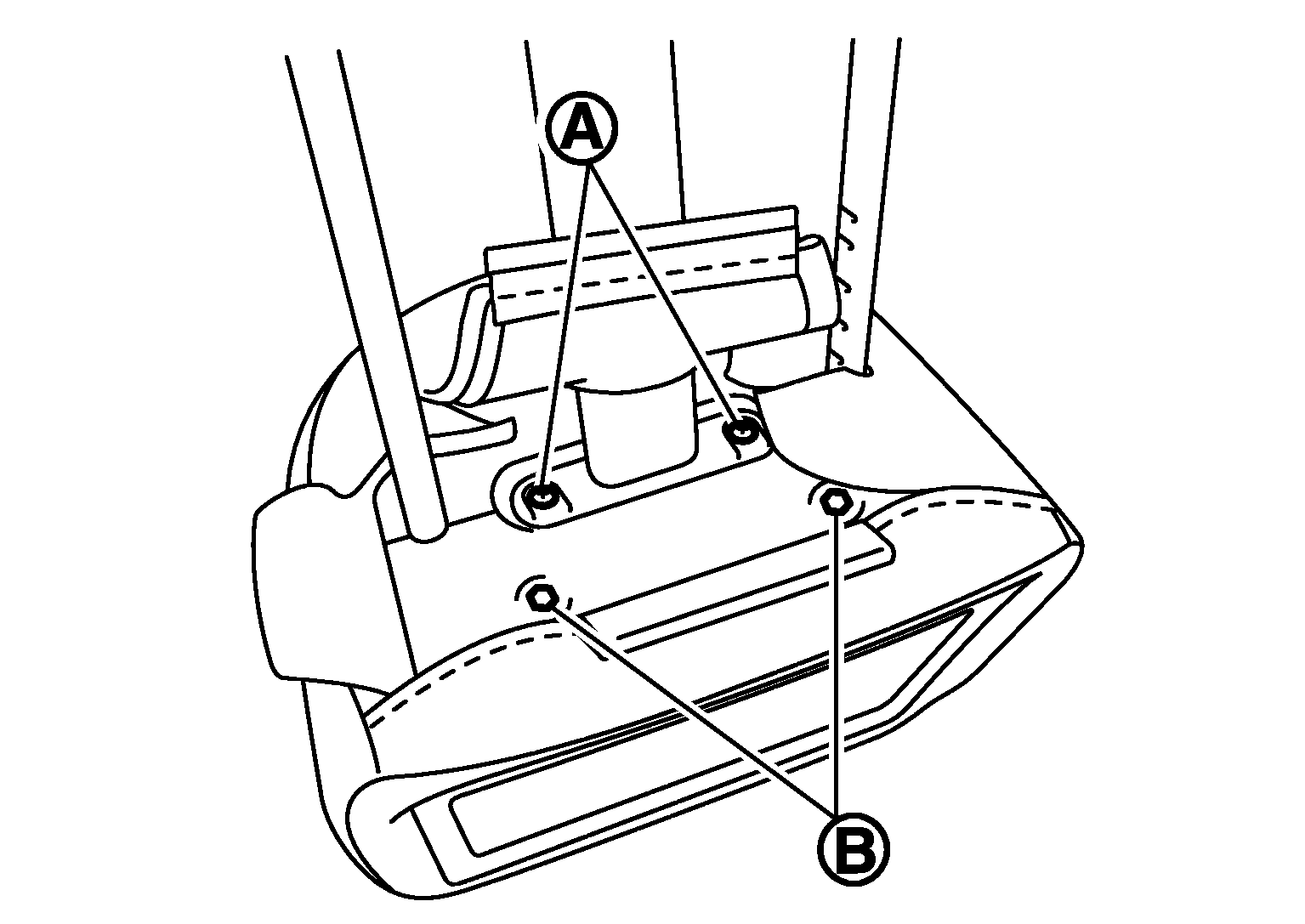

Remove the headrest display harness and upper tube screws (A), then remove headrest display unit bolts (B).

Fig 2: Identifying Headrest Display Unit Bolts And Upper Tube Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the headrest display escutcheon and headrest display.
1. Insert a suitable tool (A) between lower side of headrest display escutcheon (1) and headrest trim (2) and pull out lower side of escutcheon.

  Fig 3: Locating Lower Side Of Headrest Display Escutcheon And Headrest Trim
  Courtesy of NISSAN NORTH AMERICA, INC.

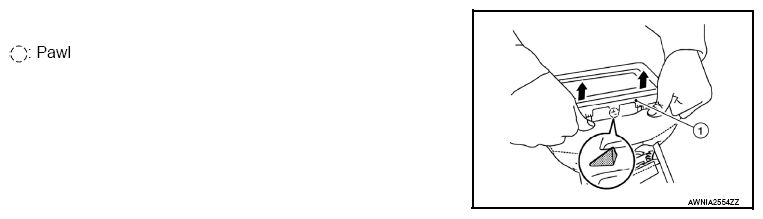

2. Pull out headrest display escutcheon (1) to the position that pawl is visible and disengage pawl.

  Fig 4: Pulling Out Headrest Display Escutcheon
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Pull out lower side of headrest display escutcheon from headrest.
  CAUTION: Be careful not damage pawls on upper side headrest display escutcheon.

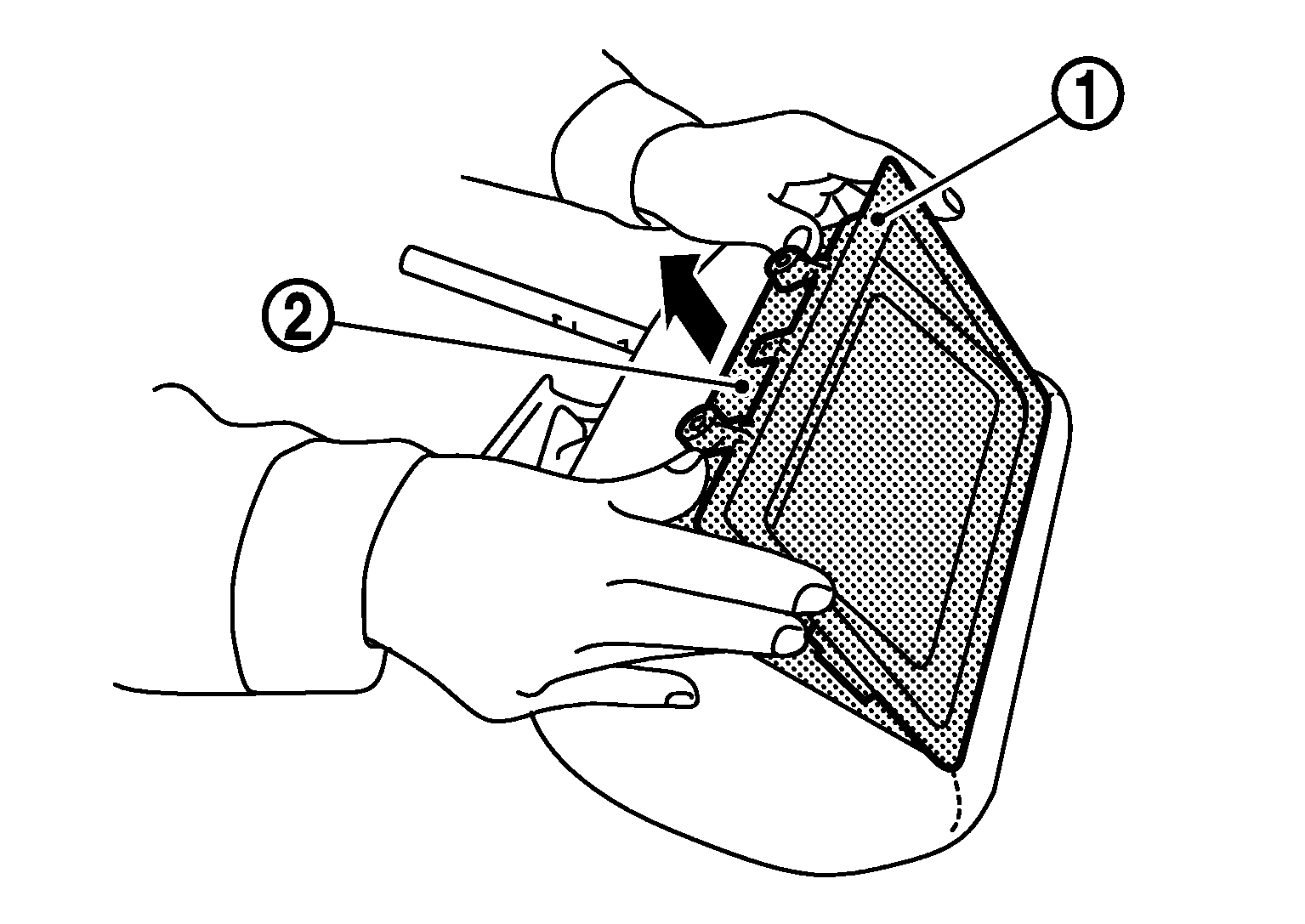

4. Pull downward and remove headrest display escutcheon (1) and headrest display unit (2) by pulling them out and removing pins on upper side of display.

  Fig 5: Removing Headrest Display Escutcheon And Unit
  Courtesy of NISSAN NORTH AMERICA, INC.
5. Disconnect inner harness connector.
6. Press headrest display escutcheon to the headrest display unit side. Disconnect pawls on upper side and remove headrest display escutcheon.
Remove the headrest display harness upper tube from headrest trim.
