Removal and Installation: Removal

  1. Remove combination meter. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect harness connector from AV control unit.
  3. Remove harness feeder clips.
  4. Remove GPS antenna screw and GPS antenna (1).

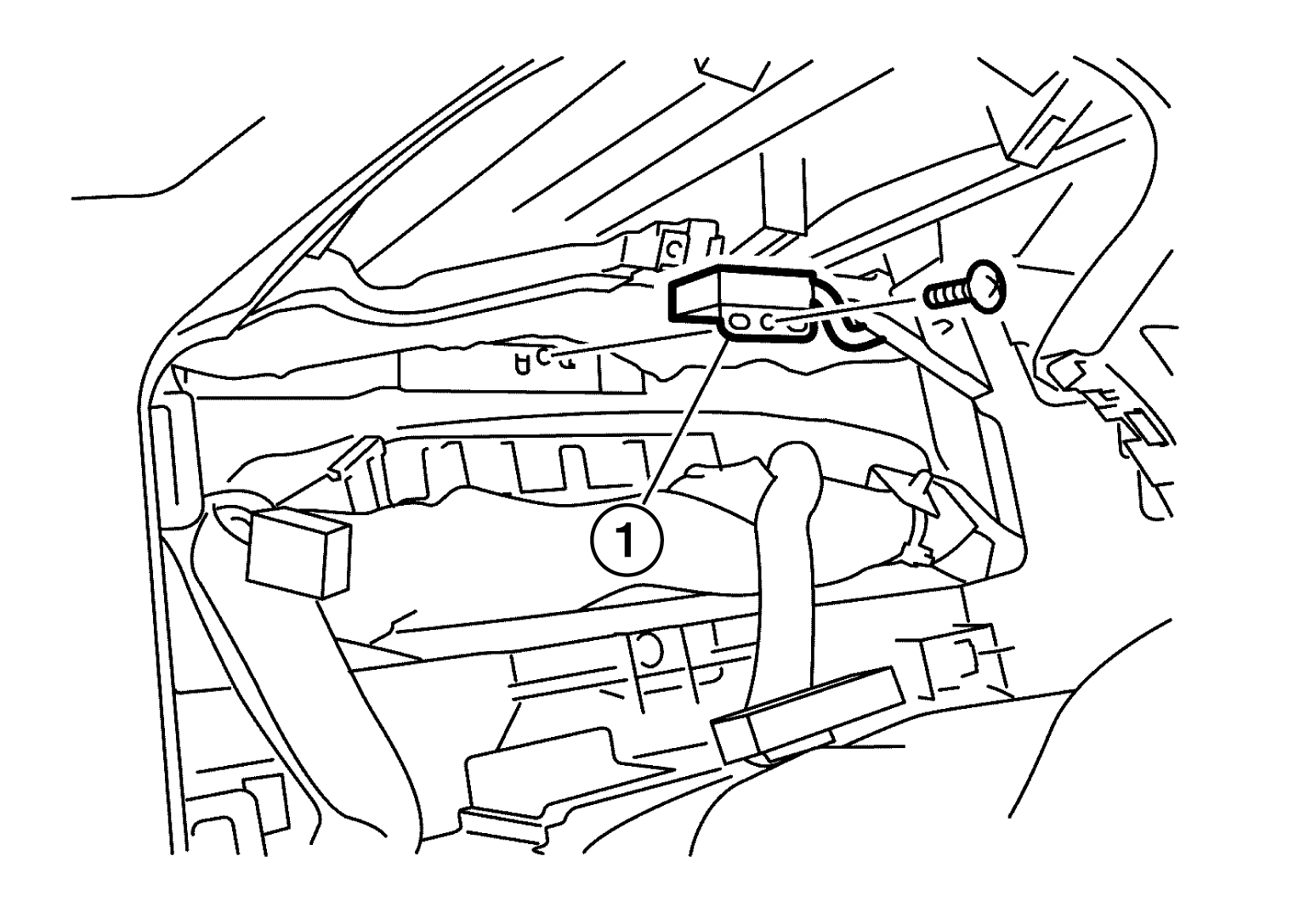

    Fig 1: Identifying GPS Antenna Screw And GPS Antenna
    G08855244Courtesy of NISSAN NORTH AMERICA, INC.
