Removal and Installation: Removal

  1. Remove front grille. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove front camera screws and front camera (2) from front emblem (1).

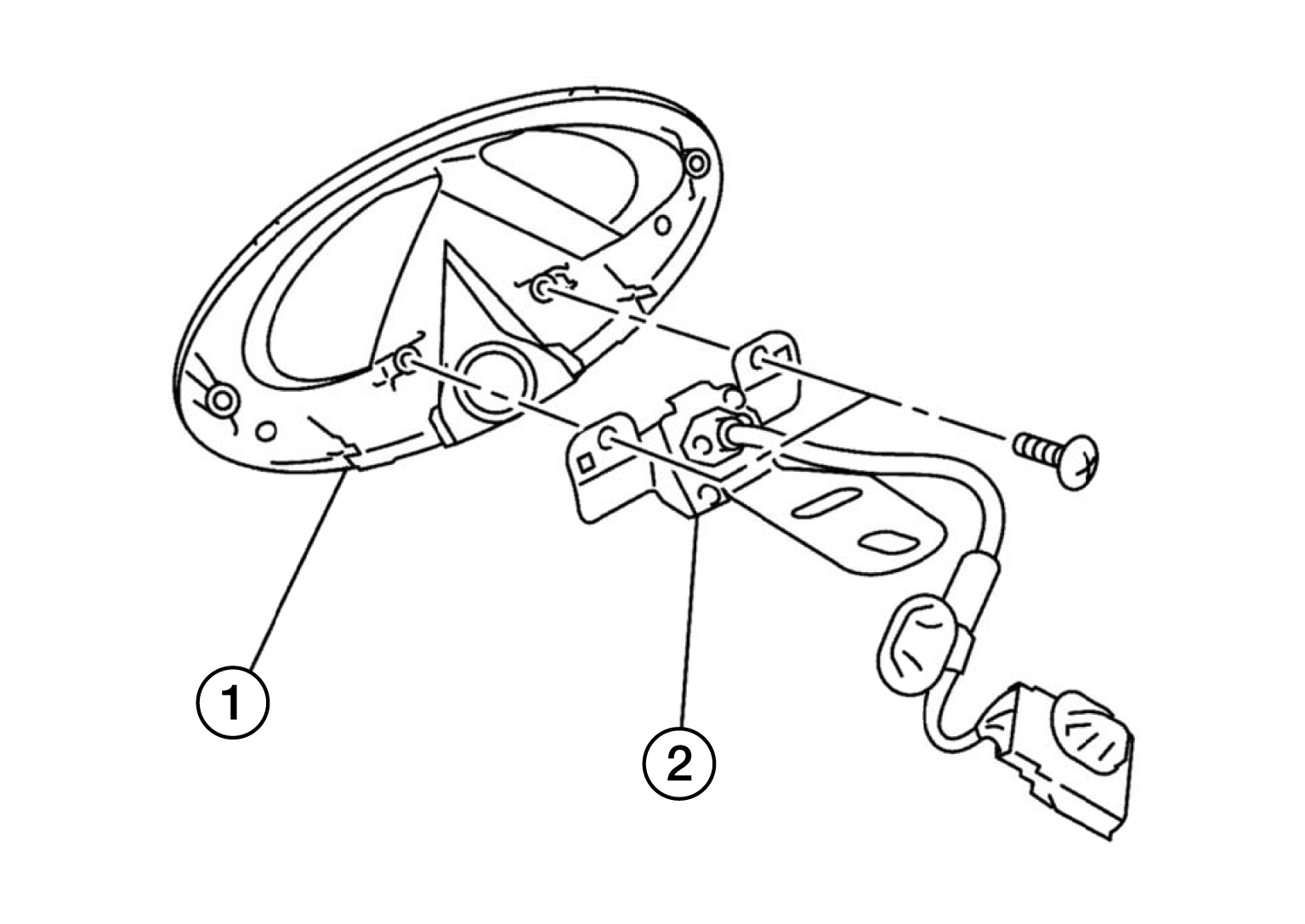

    Fig 1: Identifying Front Camera And Emblem
    G08855113Courtesy of NISSAN NORTH AMERICA, INC.
