Removal and Installation: Removal

  1. Remove center speaker grille. Refer to "EXPLODED VIEW ".
  2. Remove the center speaker bolts (A).
  3. Pull out the center speaker (1), disconnect harness connector, then remove center speaker.

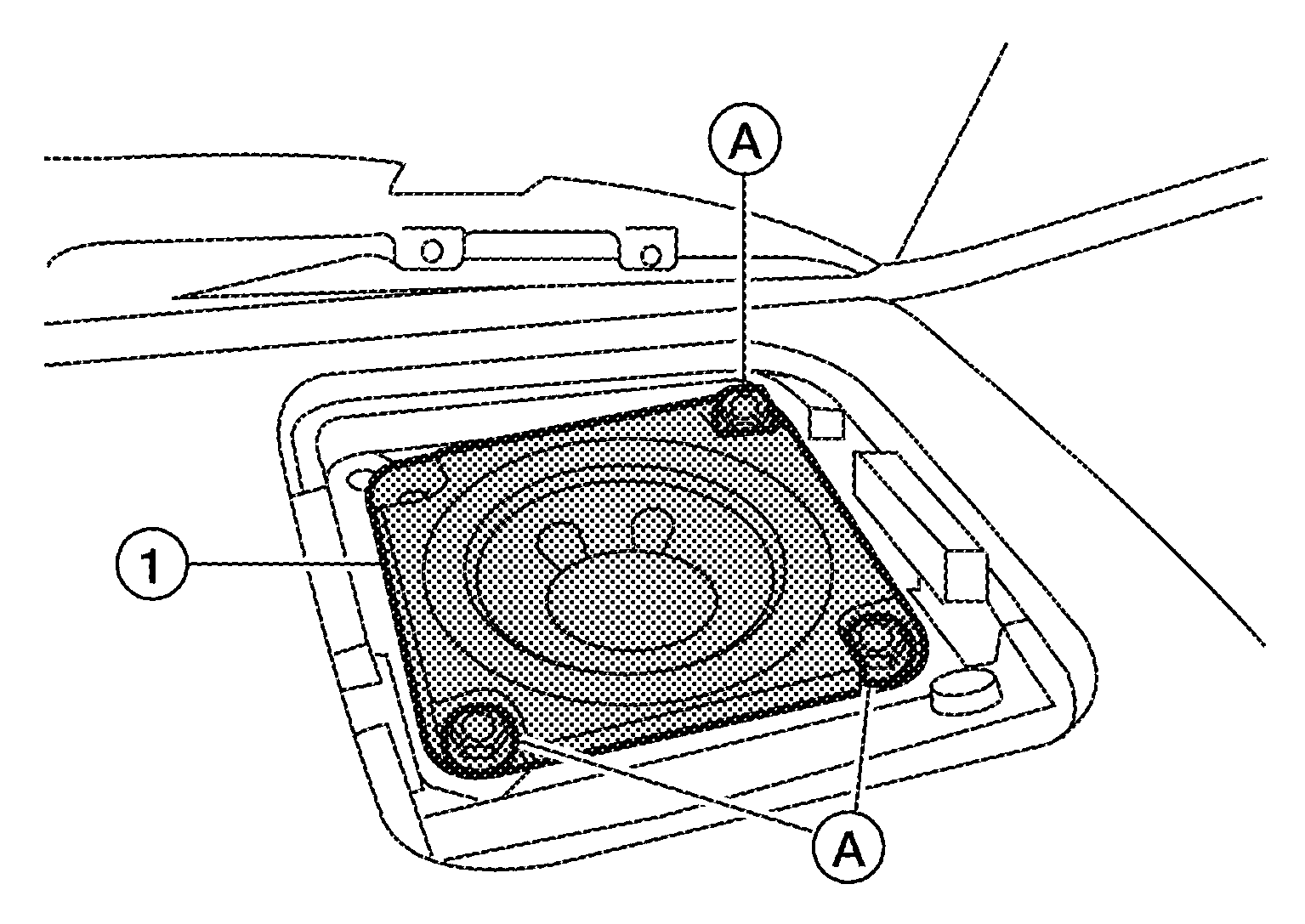

    Fig 1: Identifying Center Speaker And Mounting Bolts
    G05714468Courtesy of NISSAN NORTH AMERICA, INC.
