Removal and Installation: Removal

  1. Remove luggage side lower finisher (RH). Refer to "LUGGAGE SIDE LOWER FINISHER: REMOVAL AND INSTALLATION ".
  2. Disconnect harness connector (1) from the buzzer.
  3. Remove buzzer screws (A), then remove buzzer (2).

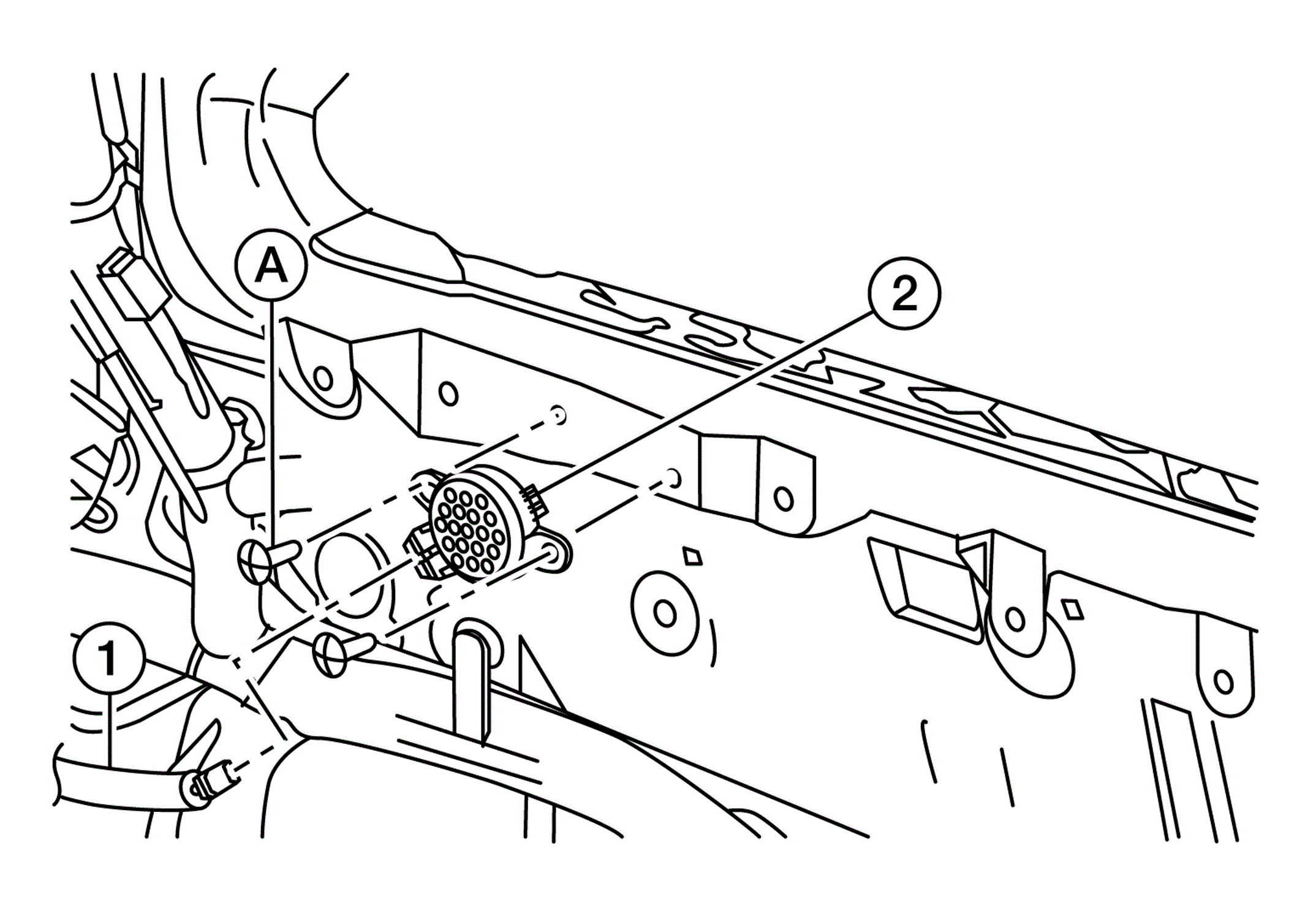

    Fig 1: Identifying Harness Connector And Buzzer Screws
    G08855124Courtesy of NISSAN NORTH AMERICA, INC.
